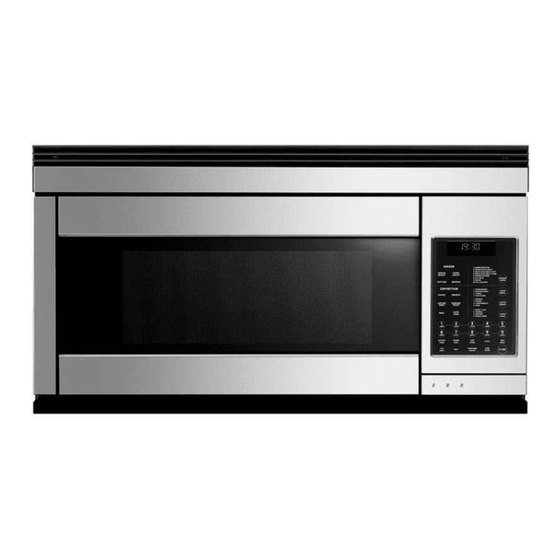

Fisher & Paykel CMOH30SS Installation Manual
Over the range convection microwave oven
Hide thumbs
Also See for CMOH30SS:
- Use and care manual (76 pages) ,
- User manual (39 pages) ,
- Installation manual (12 pages)
Related Manuals for Fisher & Paykel CMOH30SS
Summary of Contents for Fisher & Paykel CMOH30SS
- Page 1 OV E R T H E R A NG E CO NV E CT I ON M ICROWAVE OVEN CMOH30SS INSTALLATION GUIDE US CA...
-
Page 3: Table Of Contents
CONTENTS Mounting space Wall construction Electrical grounding instructions Hood exhaust duct Tools recommended for installation Installation hardware Preparation of the oven Ventilation system Oven installation Mounting oven to the wall Mounting deflector Check list for operation... -
Page 4: Mounting Space
MOUNTING SPACE WALL CONSTRUCTION Please read all instructions thoroughly before installing the Over the Range Convection This Over the Range Microwave Oven should be mounted against and supported by a flat Microwave Oven. Two people are recommended to install this product. vertical wall. -
Page 5: Electrical Grounding Instructions
ELECTRICAL GROUNDING INSTRUCTIONS HOOD EXHAUST DUCT This appliance must be grounded. This microwave oven is When the hood is vented to the outside, a hood exhaust duct is required. All ductwork must equipped with a cord having a grounding wire with a grounding be metal;... -
Page 6: Tools Recommended For Installation
TOOLS RECOMMENDED FOR INSTALLATION INSTALLATION HARDWARE Phillips screwdriver The INSTALLATION HARDWARE (items ) packed with the oven should contain the following: Electric drill Scissors ITEM NAME QUANTITY PART CODE Pencil Wood Screw 5 x 30 mm 290109 Tape Measure tape Toggle Bolt #10 - 24 x 50 mm 290106 ⁄... -
Page 7: Preparation Of The Oven
PREPARATION OF THE OVEN VENTILATION SYSTEM Open the bottom of the carton, remove oven and all packing materials. This Over-the-range microwave oven is designed for adaptation to three types of hood ventilation systems. Select the type required for your installation. 2. - Page 8 VENTILATION SYSTEM C. VERTICAL VENTILATION - OUTSIDE VENTILATION Step (A) Rotate 180˚ Rotate the Hood Fan Unit 180˚ so that Step the fan blade openings are facing the back of the oven. Note, you will need to Fan Cover Bracket lift the wire over the hood fan unit so the Remove and save the 4 screws from the wire will clear.
-
Page 9: Oven Installation
OVEN INSTALLATION VENTILATION SYSTEM This oven cannot be properly installed without referring to the mounting instructions found on Step both templates. Read and follow mounting information on both TOP CABINET TEMPLATE WALL TEMPLATE Attach the Fan Cover Bracket to unit MOUNTING PLATE with the 4 screws removed in step 1 above. -
Page 10: Mounting Oven To The Wall
MOUNTING OVEN TO THE WALL Two people are recommended to attach the Over the Range Microwave Oven to the Mounting Step Plate. Step Thread the power supply cord through the hole made in the bottom of the top cabinet. Install grease filters by fitting Step into the opening. -
Page 11: Mounting Deflector
MOUNTING DEFLECTOR CHECKLIST FOR INSTALLATION Make sure the unit has been installed according to all of the Installation Instructions and the Wall and Top Cabinet Templates. 2. Plug in the power cord. 3. Keep the use and care guide. Secure the deflector with 3 Tapping screws 4 x 12 mm, packed in the Installation Hardware. - Page 12 FISHERPAYKEL.COM © Fisher & Paykel Appliances 2023. All rights reserved. The models shown in this guide may not be available in all markets and are subject to change at any time. The product specifications in this guide apply to the specific products and models described at the date of issue.
