Page 1: Instruction Manual
Instruction Manual STVG-989 Please read before using this unit. Semi-Pro Compact Disc + Graphics with Built-In TV, Video Camera Karaoke Center... -
Page 2: Ventilation Warning
WARNINGS WARNING: TO REDUCE THE RISK OF FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER OR BACK. NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED PERSONNEL. -
Page 3: Important Safety Instructions
WARNINGS NOTE: This digital apparatus does not exceed the Class B limits for radio noise emissions from digital apparatus as set out in the Radio Interference Regulations of Industry Canada. These limits are designed to provide reasonable protection against harmful Nterference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. - Page 4 IMPORTANT SAFETY INSTRUCTIONS 13. Power-Cord Protection - Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the product.
- Page 5 INTRODUCTION Your Semi-Pro Compact Disc+Graphics with Built-In TV, Video Camera Karaoke Center will provide you with fun and entertainment. It can let you be the "star" as you sing along with your favorite recordings and hear your voice with the music through the system's speaker. This Karaoke System is compact and designed to include many features, yet it is easy to use.
-

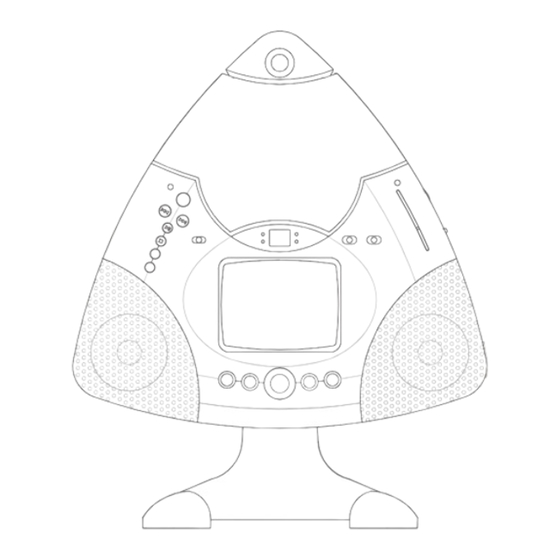

Page 6: Control Locations
21. CD Door Open Lid 10. PROGRAM Button 22. CDG LED 11. REPEAT Button 23. FM Stereo Indicator 12. SKIP Button 24. Tuning Knob STVG-989 25. Dial Pointer 26. Band Selector 27. Video Out Selector 28. Monitor Selector 29. REPEAT LED 30. LED Display 31. -
Page 7: Rear View
CONTROL LOCATIONS REAR VIEW 36. AUX OUT Jack (L) 40. Contrast Control 37. VIDEO IN Jack 41. Brightness Control 38. VIDEO OUT Jack 42. AC Power Cord 39. AUX OUT Jack (R) 43. Rod Antenna 44. AUX IN Jack (L) 45. -
Page 8: Making The Connections
MAKING THE CONNECTIONS CONNECTING POWER You can power the system from a standard AC outlet by using the supplied power cord. CAUTION: The supplied AC power cord has a polarized plug that fits into the wall outlet only one way. If the plug does not fit properly, turn it over and try again. Do not force it. CONNECTING TO YOUR HEADPHONE A headphone jack is provided for using headphones instead of the built-in speaker. - Page 9 MAKING THE CONNECTIONS If your television does not have the required Video Input, you will need an RF Modulator (Radio Frequency Modulator), which connects through your TV Antenna or cable line and serves as Video Input. An RF Modulator can be purchased at almost any consumer electronics retailer. If you are connecting the video from the Singing Machine to either a television or a VCR video input jack, you must specify the source the TV or VCR is to display.
- Page 10 (Yellow Jack) AUDIO CONNECTION Connect the unit to your TV or home stereo system using the White and Red connections on the supplied patch cord. Plug the white end of the patch cord into the white AUX OUT jack on the unit.
- Page 11 MAKING THE CONNECTIONS CONNECTING AN AUDIO COMPONENT FOR INPUT To connect another audio source (such as a Tuner, an AV Receiver or a VCR) so you can sing along with its music, simply connect the Audio Output jacks (Red & White RCA jacks) to the Singing Machine’s AUX IN L &...
- Page 12 MAKING THE CONNECTIONS MONITOR Selector To display image on the monitor from another video source, set the MONITOR Selector to CDG/AUX mode and set the FUNCTION Selector to AUX mode. To display CDG lyrics on the Singing Machine’s monitor, set the MONITOR Selector and FUNCTION Selector to CDG mode.
-
Page 13: Cd Or Cd+G Operation
CD OR CD+G OPERATION Warning - Tapping or dropping the microphone while it is on can permanently damage your microphone. Resist the urge to swing the microphone around by the cord! PREPARATION This unit is designed to play CD’s bearing the identification logo " conform to the CD standard, they may not play properly. -
Page 14: Play/Pause Mode
CD OR CD+G OPERATION PLAY/PAUSE MODE To start playing, press the PLAY/PAUSE button. The first track [ ] and the PLAY/PAUSE LED will be lit. To temporarily stop playing, press the PLAY/PAUSE button. The PLAY/PAUSE LED Indicator will flash. To resume play, press this button again. NOTE: Pressing pause when a CDG is playing may cause distorted lyrics on the monitor. -
Page 15: Radio Operations
TV OPERATIONS TV BROADCASTING RECEPTION Press the ON/OFF button. Switch FUNCTION Selector to TV/RADIO position. Switch MONITOR Selector to TV position. Turn TUNING knob to select desired TV channel with UHF/VH/VL channel selector. For the best signal, connect the unit to an aerial antenna using the external antenna jack or use the directional antenna on the back of the unit. -
Page 16: Care And Maintenance
CD players. To prevent fire or shock hazard, disconnect your stereo system from the AC power plug when cleaning. COMPACT DISC Handling Disc... -
Page 17: Troubleshooting Guide
TROUBLE SHOOTING GUIDE If you have followed the instructions and are having difficulty operating the unit, locate the PROBLEM in the left column below. Check the corresponding POSSIBLE CAUSE column to locate and remedy the problem. PROBLEM POSSIBLE CAUSE No power when POWER No power plug connection at is on. - Page 18 TROUBLE SHOOTING GUIDE PROBLEM POSSIBLE CAUSE Source Selection on TV or VCR is not correct. No sound - If audio is connected to TV or VCR. Patch cords are not connected securely. Video cable is not connected properly to the TV. Source selector on TV is not set to VIDEO.
- Page 19 Playing music only track. Source Selection on your stereo is not set properly. Improper Connection to No sound - If audio is stereo system or PA. connected to home stereo. Patch cords are not secure. MONITOR Selector is not No image displays on set properly.
-
Page 20: Specifications
SPECIFICATIONS AUDIO SECTION: OUTPUT POWER (MAXIMUM) OUTPUT IMPEDANCE CD PLAYER SECTION: FREQUENCY RESPONSE SIGNAL - TO - NOISE RATIO WOW AND FLUTTER D - A CONVERSION NUMBER OF PROGRAMS SAMPLING SYSTEM TV SECTION: SYSTEM LO VHF CHANNEL HI VHF CHANNEL UHF CHANNEL RADIO SECTION: AM FREQUENCY RANGE... -
Page 21: The Singing Machine Karaoke Glossary Of Terms
THE SINGING MACHINE KARAOKE GLOSSARY OF TERMS In addition to all of the terminology associated with consumer electronics products, a few additional terms are used almost exclusively in karaoke. These terms are meant to familiarize you with the world of Karaoke. The features listed below may not necessarily pertain to the particular model Singing Machine that you have. - Page 24 The Singing Machine Company, Inc. 989-0411-ENG01 6601 Lyons Road, Bldg. A7, Coconut Creek, FL33073-9902, USA. PRINTED IN CHINA TEL: (954) 596-1000 FAX: (954) 596-2000 VISIT OUR WEBSITE www.singingmachine.com...
