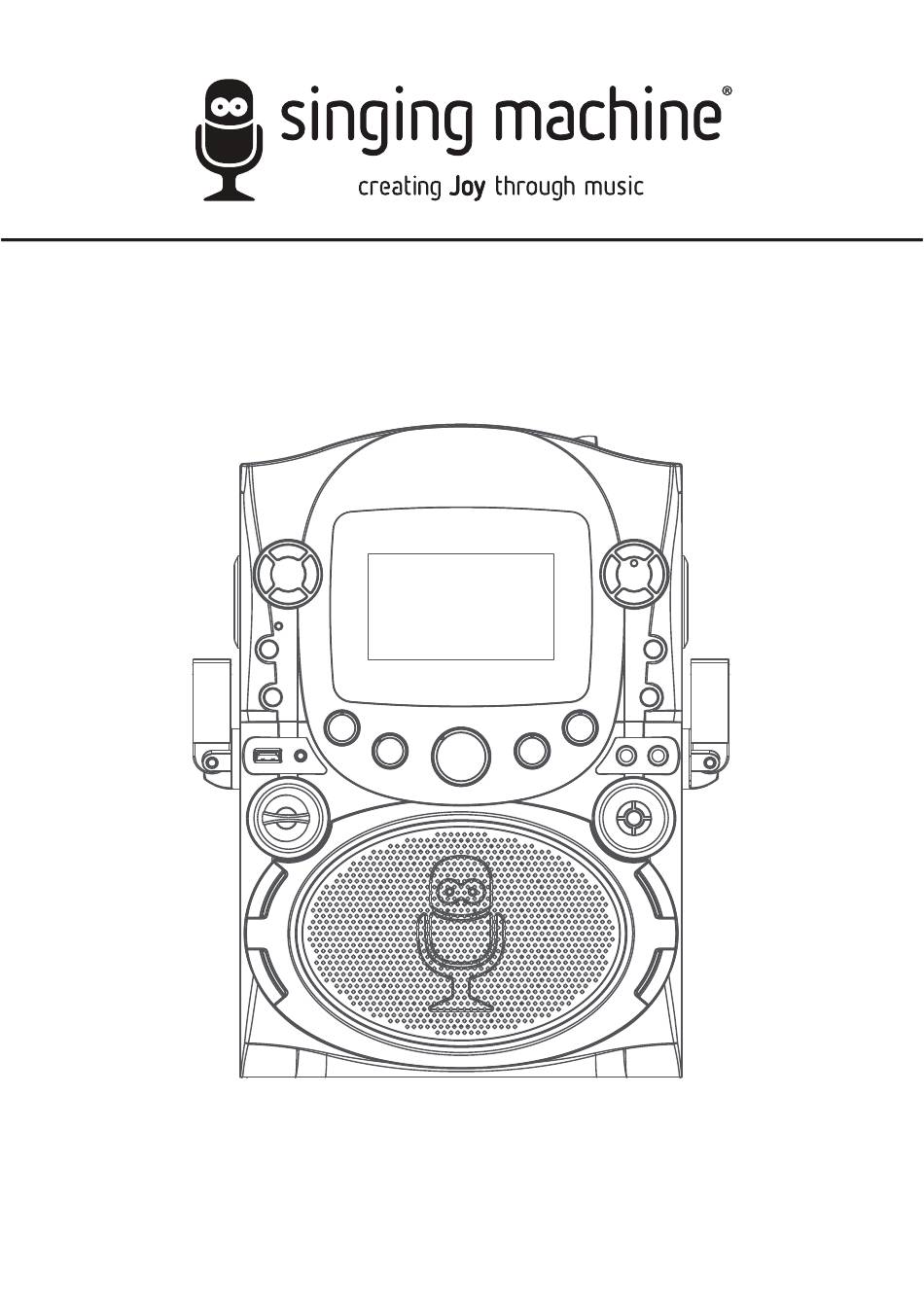

- Page 1 STVG592BK / STVG592W INSTRUCTION MANUAL www.singingmachine.com The Singing Machine® is a registered trademark of The Singing Machine Co., Inc.
-
Page 2: Important Safety Information
Warnings WARNING: TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE CAUTION THIS UNIT TO RAIN OR MOISTURE. RISK OF ELECTRIC SHOCK FCC WARNING: This equipment may generate or use radio frequency DO NOT OPEN energy. Changes or modifications to this equipment may cause harmful interference unless the modifications are expressly approved in the CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT instruction manual. - Page 3 Included Please make sure the following items are included. Main Unit Wired Microphone AC Adapter Manual Audio/Video Cables — E2 —...
- Page 4 Location of Controls (Top/Front) 1. CD Compartment 10. Mic Holders 20. REPEAT/PROGRAM Button 2. Screen 11. USB Slot 21. Record Button 3. Navigation RIGHT / 12. Line in Jack Skip Button 22. LIGHT Button 13. MIC VOLUME Control 4. Navigation UP Button 23.
-
Page 5: Location Of Controls (Rear)
Location of Controls (Rear) 1. VIDEO OUT Jack 2. AUDIO OUT Jack (R) 3. AUDIO OUT Jack (L) 4. DC IN Jack — E4 —... - Page 6 Connection Connecting the Microphone(s) Microphones: Connect a microphone into Mic jack 1 u as well as Mic jack 2 v (when desired). Note: Do not drop or tap the Mic as damage to the Mic or speakers may occur. Do not twirl the microphone cord as it will cause damage to the encased wiring.
- Page 7 Connection Connecting to AC Power Insert the small end of the AC adapter into the DC IN Jack on the rear of the unit. Insert the other end (with the 2 blades) into a conveniently located AC outlet having AC 120V, 60Hz.
-
Page 8: Operation
Operation Playing a CDG Connect the unit as described previously. Press the ON/OFF button to turn the unit on; the Power indicator will light. Lift open the CD door and insert a CD or a CD+G by gently pressing it on the center spindle. - Page 9 Operation Playing a CDG (Continued) Connect microphone(s) and slide the ON/ OFF switch on the microphone to the ON position. Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones. Rotate the ECHO control to add an echo effect to your voice.
- Page 10 Operation Playing a CDG (Continued) SKIP: Advance or go back one track by pressing the Skip /Skip buttons. SEARCH: When playing any audio CD, press and hold the Skip /Skip button. The CD will search at high speed in the forward or backward direction.
- Page 11 Operation Playing a CDG (Continued) RECORDING YOUR SINGING: Insert a USB drive first, then press the REC button; the song will start over and recording will begin. REC with track progress in percentage will appear at the top left of the screen. When done recording, press the REC button again to stop recording.
- Page 12 Operation Playing Songs from the USB Connect the unit as described previously. Press the ON/OFF button to turn the unit on. Insert a USB flash drive into the USB port on the unit so it faces upward. Make sure to download music from the Karaoke store.
- Page 13 Operation Playing Songs from the USB (Continued) Connect microphone(s) and slide the ON/OFF switch on the microphone to the ON position. Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones. Rotate the ECHO control to add an echo effect to your voice.
- Page 14 Operation Playing Songs from the USB (Continued) SKIP: Advance or go back one track by pressing the buttons. SEARCH: When playing any audio from the USB, press and hold the / or / buttons. The USB will search at high speed in the forward or backward direction.
- Page 15 Operation Playing Songs from the USB (Continued) PROGRAM: You can program up to 20 tracks on any USB for playback in any desired order. While in the Stop mode, press the REPEAT/PROG button; PROG SET00:XX (xx is the total tracks) will appear in the display. Select the first track using the or / buttons, then press the...
- Page 16 Operation Using a Bluetooth Device Connect the unit as described previously. Press the ON/OFF button to turn the unit on; the Power indicator will light. Repeatedly press the CDG/USB/ BT button to select the Bluetooth; “BLUETOOTH” will flash on the screen. The screen will show your Bluetooth device is ready to connect with a notification sound.
- Page 17 Operation Using a Bluetooth Device (Continued) To control your Bluetooth device from this unit, press the PLAY/PAUSE button to start playback (music app must be open). Press the PLAY/PAUSE button during playback to pause the song. Adjust the volume to a comfortable level using the MASTER VOLUME control on this unit as well as the volume on your Bluetooth device.
- Page 18 Operation Using a Bluetooth Device (Continued) RECORDING YOUR SINGING: Insert a USB drive first, then press the REC button; the song will start over and recording will begin. REC with track progress in percentage will appear at the top left of the screen. When done recording, press the REC button again to stop recording.
- Page 19 Operation Using the LINE IN Jack Connect the unit as described previously. Press the ON/OFF button to turn the unit on; the Power indicator will light. Connect the external unit to the LINE IN Jack on the front of this unit. Connecting an external unit will allow the audio to be played through your Singing Machine.
- Page 20 Operation Using the LINE IN Jack (Continued) Adjust the MIC VOLUME control as desired. Increasing this control will increase the volume of both microphones. Rotate the ECHO control to add an echo effect to your voice. Rotate clockwise to increase the echo effect. Adjust the BALANCE control to move the audio from the left to right speaker or vice-versa.
- Page 21 • Remove (eject) the USB flash drive from your Select and purchase your favorite computer. karaoke music from the Singing Turn on the Singing Machine and connect the USB Machine Download Store. flash drive. Download your selected purchase(s) from the Singing Machine Digital •...
-
Page 22: Troubleshooting Guide
Troubleshooting Guide Should this unit exhibit a problem, check the following before seeking service: No Power • Power is not on; press the ON/OFF button to turn unit on. • Confirm that the AC adapter is connected securely to the back of the unit. •... -
Page 23: Specifications
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks and logos by The Singing Machine Company, Inc. is under license. Other trademarks and trade names are those of their respective owners. - Page 24 Visit Our Website: www.singingmachine.com Responsible Party Information as follow: Company NameÿThe Singing Machine Company, Inc. Addressÿ6301 NW 5th Way, Suite 2900, Fort Lauderdale, FL 33309, USA Contact nameÿGary Atkinson Telephoneÿ954-596-1000 Websiteÿwww.singingmachine.com PRINTED IN CHINA Copyright © 2018 All Rights Reserved.
