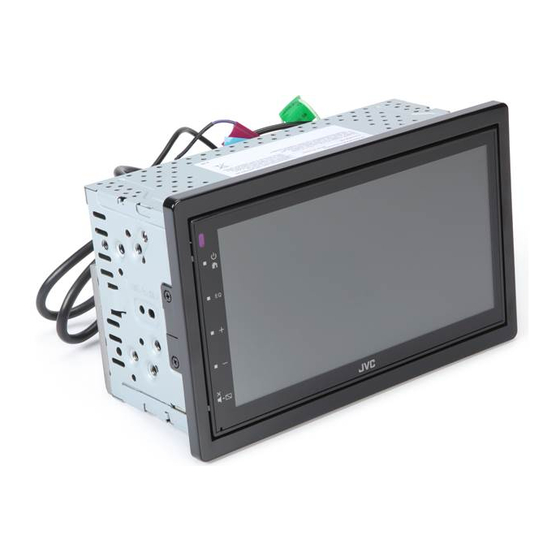

JVC KW-M180BT Instruction Manual
Monitor with receiver
Hide thumbs
Also See for KW-M180BT:
- Quick start manual (144 pages) ,
- Instruction manual (32 pages) ,
- Instruction manual (52 pages)
Table of Contents
Advertisement
Quick Links
• For detailed operations and information, refer to the INSTRUCTION MANUAL
on the following website:
• Pour plus d'informations et de détails sur les opérations, reportez-vous au
MODE D'EMPLOI sur le site Internet suivant :
• Para obtener información y detalles sobre las operaciones, consulte el
MANUAL DE INSTRUCCIONES en el siguiente sitio web:
<http://www.jvc.net/cs/car/>
Model name indication position
See "Removing the trim plate" (P.13)
Position d'indication du nom du modèle
Reportez-vous à la section «Retrait de la
plaque de garniture» (P.2 9)
Trim plate
Plaque de garniture
© 2023 JVCKENWOOD Corporation
3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan
KW-M180BT
MONITOR WITH RECEIVER
INSTRUCTION MANUAL
ÉCRAN AVEC RÉCEPTEUR
Guide de démarrage rapide
MONITOR CON RECEPTOR
Guía de inicio rápido
Marco
Posición de la indicación del nombre del
modelo
Consulte "Retirada del marco" (P.45)
B5K-1095-00b EN (K)
Advertisement
Chapters
Table of Contents
Related Manuals for JVC KW-M180BT
Summary of Contents for JVC KW-M180BT
- Page 1 KW-M180BT MONITOR WITH RECEIVER INSTRUCTION MANUAL ÉCRAN AVEC RÉCEPTEUR Guide de démarrage rapide MONITOR CON RECEPTOR Guía de inicio rápido • For detailed operations and information, refer to the INSTRUCTION MANUAL on the following website: • Pour plus d’informations et de détails sur les opérations, reportez-vous au MODE D’EMPLOI sur le site Internet suivant :...
-
Page 2: Table Of Contents
Register your smartphone to the unit ............. 9 • When you purchase optional accessories, check with Receive a phone call .................... 9 your JVC dealer to make sure that they work with Make a phone call ....................9 your model and in your area. -
Page 3: Getting Started
Getting Started [Guidelines SETUP] Turn the ignition key of your car to ACC. If you select [ON] for [Parking Guidelines], you can The unit is turned on, please read the warning and adjust the parking guidelines. See To adjust the press “Agree”... -
Page 4: Basics
• Press and hold turns the screen off. • When android device with “Mirroring OB for When the screen is off, touch the display to turn JVC” application installed is connected. on the screen. 6 Reset 4 Switches to an external component connected to •... -
Page 5: Tuner
Tuner Tuner Tuner Basic Operation Tuner Setup Press the < > button. Touch [ ]. Touch [Tuner]. Set each item as follows. Ñ Source control screen [Auto Store] Automatically searches and stores the 6 stations with the strongest signals for the selected band. “Auto Store”... -
Page 6: Usb
Ñ For Video playback Preparation Ñ Connecting a USB device When the operation buttons are not displayed on the screen, touch the display. Remove the cap of the USB terminal. Connect the USB device with the USB cable. The unit reads the device and playback starts. Ñ... -
Page 7: Iphone
iPhone iPhone Preparation Playback operations Ñ Control the music you are listening to on Ñ Connecting iPhone the source control screen. • For details about connecting iPhone, see page 15 . Remove the cap of the USB terminal. Connect the iPhone. The unit reads the device and playback starts. -
Page 8: External Components
External Components External Components Ñ To adjust the parking guidelines Using external audio/video players ✎ NOTE Ñ Starting playback • Install the rear view camera in the appropriate Connect an external component to the AV-IN position according to the instruction manual input terminal. -
Page 9: Bluetooth
Touch [Phone]. Turn on the Bluetooth function on your See the table below for each operation method. smartphone/cell-phone. Search the unit (“KW-M180BT”) from your smartphone/cell-phone. If a PIN code is required, enter the PIN code (“0000”). • appears when the Bluetooth smartphone is connected. -
Page 10: Playing Bluetooth Audio Device
Controlling Audio Bluetooth Bluetooth Playing Bluetooth Audio Device You can adjust various settings such as audio balance or subwoofer level. Press the < > button. Press the <EQ> button. Touch [Bluetooth Audio]. See the below for each operation method. Ñ Source control screen Controlling General Audio Press the <EQ>... -
Page 11: Installation
Installation Installation Before Installation • Connect the speaker wires correctly to the terminals to which they correspond. The unit may be Before installation of this unit, please note the damaged or fail to work if you share the ¤ wires or following precautions. -
Page 12: Installing The Unit
Installation Installation Ñ Supplied accessories for installation Installing the unit Ñ Non-Japanese cars (3 m) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. ✎ NOTE (M5 × 8 mm) (M5 × 6 mm) •... - Page 13 Installation Ñ Microphone unit Ñ Removing the unit 1) Check the installation position of the microphone 1) Remove the trim plate by referring to step 1 in (accessory 4). “Removing the trim plate”. 2) Clean the installation surface. 2) Insert the extraction key (accessory 2) deeply into 3) Remove the separator of the microphone the slot as shown.
- Page 14 Installation Installation Ñ Connecting wires to terminals Light Blue/Yellow (Steering remote control wire) To steering remote To use the steering wheel remote control feature, you need an exclusive remote adapter (not supplied) matched to your car. Accessory 4: Light Green (Parking sensor wire) Bluetooth Microphone Accessory 9: Extension cable For best safety, be sure to...
- Page 15 Installation Ñ Connecting an iPhone/Android Android smartphone USB cable M4x6 REAR OUT FRONT OUT AV IN 1 3 5 7 2 4 6 8 1 3 5 7 iPhone 2 4 6 8 CAM IN VIDEO OUT VIDEO IN Lightning-USB cable Accessory 5 Accessory 6 Speaker impedance: 4-8 Ω...
-
Page 16: About This Unit
About this Unit About this Unit Ñ Acceptable Video files More information Video Video codec Audio codec Ñ Usable USB device format This unit can play MPEG1/ MPEG2/ MPEG4/ H.264/ MPEG-1 MPEG-1 MPEG Audio Layer 2 MKV/ MP3/WMA/ AAC/ WAV/ FLAC/ OGG files stored (.mpg, .mpeg) in a USB mass storage class device. -
Page 17: Copyrights
About this Unit – Redistributions in binary form must reproduce the Copyrights above copyright notice, this list of conditions and the Bluetooth® • The word mark and logos are registered following disclaimer in the documentation and/or other materials provided with the distribution. trademarks owned by the Bluetooth SIG, Inc. - Page 19 KW-M180BT MONITOR WITH RECEIVER INSTRUCTION MANUAL • Updated information (the latest Instruction Manual, etc.) is available from <https://www.jvc.net/cs/car/>. Model name indication position See “Removing the trim plate” (P.19) Trim plate © 2023 JVCKENWOOD Corporation 3-12, Moriyacho, Kanagawa-ku, Yokohama-shi, Kanagawa, 221-0022, Japan...
- Page 20 Bluetooth ................11 • When you purchase optional accessories, check with Register your smartphone to the unit ...........11 your JVC dealer to make sure that they work with Bluetooth Setup ....................11 your model and in your area. Receive a phone call ..................12 Make a phone call ....................12...
-
Page 21: Getting Started
Getting Started [Guidelines SETUP] Turn the ignition key of your car to ACC. If you select [ON] for [Parking Guidelines], you can The unit is turned on, please read the warning and adjust the parking guidelines. See To adjust the press “Agree”... -
Page 22: Basics
Basics Basics Functions of the Buttons on the Press and hold the < > button. Front Panel Ñ Adjusting the volume Press the <+> or <–> button. 1 Remote Sensor ✎ NOTE • Receives the remote control signal. • The volume will go up until 15 when you keep (HOME) pressing [ + ]. -
Page 23: Home Screen Descriptions
• When iPhone is connected. [Mirroring] Displays the Mirroring screen. (P.9) • When android device with “Mirroring OB for JVC” application installed is connected. 4 Switches to an external component connected to the AV-IN input terminal. (P.10) 5 Displays the Hands Free screen. (P.12) 6 Plays a Bluetooth audio player. -
Page 24: Source Control Screen
Tuner Tuner Tuner Basic Operation Tuner Setup Press the < > button. Touch [ ]. Touch [Tuner]. Set each item as follows. Ñ Source control screen [Auto Store] Automatically searches and stores the 6 stations with the strongest signals for the selected band. “Auto Store”... -
Page 25: Usb
Ñ For Video playback Preparation Ñ Connecting a USB device When the operation buttons are not displayed on the screen, touch the display. Remove the cap of the USB terminal. Connect the USB device with the USB cable. The unit reads the device and playback starts. Ñ... -
Page 26: Iphone
iPhone iPhone Preparation 1 Artwork (Shown if the track contains artwork) 2 Displays the information of the current file. Ñ Connecting iPhone 3 Playing time/File number • For details about connecting iPhone, see page Play time bar : For confirmation of current playing 21 . -
Page 27: Mirroring
Ñ Connecting Android smartphone Download Mirroring App from Google Play. Install the latest version of the Mirroring application “Mirroring OB for JVC” on your Android. • You can display the same screen of the Android device on the monitor of the unit. -
Page 28: External Components
External Components External Components Ñ To adjust the parking guidelines Using external audio/video players ✎ NOTE Ñ Starting playback • Install the rear view camera in the appropriate Connect an external component to the AV-IN position according to the instruction manual input terminal. -
Page 29: Bluetooth
Bluetooth units. Delete unnecessary registration. (P.11) Turn on the Bluetooth function on your smartphone/cell-phone. Search the unit (“KW-M180BT”) from your smartphone/cell-phone. If a PIN code is required, enter the PIN code (“0000”). • appears when the Bluetooth smartphone is connected. -
Page 30: Receive A Phone Call
Bluetooth Receive a phone call Make a phone call Touch [Û]. Press the < > button. Touch [Phone]. See the table below for each operation method. • [Ý] : Reject an incoming call. Ñ Operations during a call Call by entering a phone number 1) Enter a phone number with number keys. -
Page 31: Playing Bluetooth Audio Device
Bluetooth Call by voice 1 Displays the information of the current file. You can make a voice call using the voice recognition function of the Bluetooth smartphone. 2 Playing time/File number Play time bar : For confirmation of current playing 1) Touch [ ... -
Page 32: Controlling Audio
Controlling Audio Controlling Audio Equalizer Control You can adjust various settings such as audio balance or subwoofer level. Press the <EQ> button. Press the <EQ> button. Touch [Equalizer]. See the below for each operation method. Set each item as follows. Controlling General Audio 1 You can select frequency bar and adjust its level. -
Page 33: Speaker / X'over Setup
Controlling Audio Speaker / X’over setup Listening Position DTA Press the <EQ> button. Press the <EQ> button. Touch [Speaker / X’over]. Touch [Position DTA]. Touch the speaker to set up. Touch [Delay]. Touch [T] or [U] to adjust the delay time of the selected speaker. -
Page 34: Remote Control
Remote control Functions of the Remote control This unit can be operated using the remote control. The remote control RM-RK258 (optional accessory) Buttons can be used. • Aim the remote control directly at the remote sensor #WARNINGS on the faceplate. •... -
Page 35: Installation
Installation Installation Before Installation • Connect the speaker wires correctly to the terminals to which they correspond. The unit may be Before installation of this unit, please note the damaged or fail to work if you share the ¤ wires or following precautions. -
Page 36: Installing The Unit
Installation Ñ Supplied accessories for installation Installing the unit Ñ Non-Japanese cars (3 m) Bend the tabs of the mounting sleeve with a screwdriver or similar utensil and attach it in place. ✎ NOTE (M5 × 8 mm) (M5 × 6 mm) •... - Page 37 Installation Ñ Microphone unit Ñ Removing the unit 1) Check the installation position of the microphone 1) Remove the trim plate by referring to step 1 in (accessory 4). “Removing the trim plate”. 2) Clean the installation surface. 2) Insert the extraction key (accessory 2) deeply into 3) Remove the separator of the microphone the slot as shown.
- Page 38 Installation Ñ Connecting wires to terminals Light Blue/Yellow (Steering remote control wire) To steering remote To use the steering wheel remote control feature, you need an exclusive remote adapter (not supplied) matched to your car. Accessory 4: Light Green (Parking sensor wire) Bluetooth Microphone Accessory 9: Extension cable For best safety, be sure to...
- Page 39 Installation Ñ Connecting an iPhone/Android Android smartphone USB cable M4x6 REAR OUT FRONT OUT AV IN 1 3 5 7 2 4 6 8 1 3 5 7 iPhone 2 4 6 8 CAM IN VIDEO OUT VIDEO IN Lightning-USB cable Accessory 5 Accessory 6 Speaker impedance: 4-8 Ω...
- Page 40 About this Unit About this Unit Ñ Acceptable Video files More information Video Video codec Audio codec Ñ Usable USB device Ñ Usable USB device format This unit can play MPEG1/ MPEG2/ MPEG4/ H.264/ MPEG-1 MPEG-1 MPEG Audio Layer 2 MKV/ MP3/WMA/ AAC/ WAV/ FLAC/ OGG files stored (.mpg, .mpeg) in a USB mass storage class device.
-
Page 41: About This Unit
About this Unit Ñ AV-IN Troubleshooting No picture appears on the screen. What appears to be trouble is not always serious. • Turn on the video component if it is not on. Check the following points before calling a service •... -
Page 42: Copyrights
About this Unit – Redistributions in binary form must reproduce the Copyrights above copyright notice, this list of conditions and the Bluetooth® • The word mark and logos are registered following disclaimer in the documentation and/or trademarks owned by the Bluetooth SIG, Inc. and any other materials provided with the distribution. -
Page 43: Specifications
About this Unit Ñ Bluetooth section Specifications Technology Ñ Monitor section : Bluetooth Ver.5.0 Frequency Picture Size : 2.4 – 2.48 GHz : 6.75 inches (diagonal) wide Maximum Communication range : 151.8 mm (W) × 79.7 mm (H) : Line of sight approx. 10m (32.8 ft) 5-15/16 ×... - Page 44 About this Unit Ñ Audio section Ñ FCC CAUTION Changes or modifications not expressly approved by Maximum Power (Front & Rear) the party responsible for compliance could void the : 45 W × 4 user’s authority to operate the equipment. Full Bandwidth Power (Front &...
- Page 45 Trade Name: Ñ Para cumplimiento de la IFT: Products: MONITOR WITH RECEIVER Model Name: KW-M180BT La operación de este equipo esta sujeta a las Responsible Party: JVCKENWOOD USA siguientes dos condiciones: CORPORATION (1) es posible que este equipo o dispositivo no cause...
