- Page 1 MODEL CNTRLDRCINW Wired Remote Controller Operation and Installation Manual...
- Page 2 Congratulations on the purchase of your Rinnai Wired Remote Controller. This manual describes safety precautions required for the use of the product. • Read this manual carefully before installing or operating your wired remote controller. Make sure you understand the information provided before attempting to use the product.
- Page 3 This Wired Controller is compatible with the following Rinnai indoor models: DRCi Hi-Wall Slim Ducted Cassette DINLR07B1 HINRP20M DINSD26MB CIN20RMB DINLR09B1 HINRP26M DINSD35MB CIN26RMB DINLR11B1 HINRP35M DINSD50MB CIN35RMB DINLR13B1 HINRP50M DINSD70MB CIN50RMB DINLR15B1 HINRP60M DINLR18B1 HINRP70M This controller contains features and functions that are applicable to certain models in 1:1 and Multi configurations.
-
Page 4: Table Of Contents
Thermostat connection to Indoor Unit ..............13 Setting up two Controllers ................13 Specifications Wiring Specifications ..................17 Features Feature and functions of the wired controller ...........18 LCD Display Controller buttons Settings prior to Operation Setting the current day and time ..............21 Rinnai DRCi R32 Wired Controller OIM... - Page 5 To set the On or Off Timer ................28 To set the On and Off Timer ................29 Weekly Timer 1 WEEKLY timer operation ..................32 Delay function ....................34 Weekly Timer 2 Delete the time scale in one day ..............42 Rinnai DRCi R32 Wired Controller OIM...
- Page 6 Wireless safety strategy ...................44 Download and Install APP ................45 User Registration 16. Network Configuration Network configuration by Bluetooth scan ............49 Network configuration by selecting appliance type ......... 53 How to Use App Special Functions .....................60 Warranty Contacts Rinnai DRCi R32 Wired Controller OIM...
-
Page 7: Safety Precautions
Otherwise, electric leakage or heating may occur and result in fire. • The specified cables shall be applied in the wiring. No external force may be applied to the terminal. • The illustrations used in this manual are for explanatory purposes only. Rinnai DRCi R32 Wired Controller OIM... - Page 8 Megger tester to check the insulation. That may damage the product. A maximum of two controllers may be installed on a system and the mix may contain any of the following three controllers: NOTE CNTRLDRCINW / CNTRLDRCIPW / CNTRLDRCIPB Rinnai DRCi R32 Wired Controller OIM...
-
Page 9: Accessory Installation
1. Please confirm that all the following parts have been supplied. No. Name Remarks Wired Controller — Operation & Installation Manual — Screws ST 3.9*25 (For mounting on the wall) Wall Plugs For Mounting on the Wall Battery (CR2032) — Rinnai DRCi R32 Wired Controller OIM... -
Page 10: Installation Method
(2 places). Rotate the screwdriver (2 places) to remove the backing plate (Figure 2). Figure 2. Backing plate removal Do not pry up and down, you can only rotate the screwdriver. NOTE Rinnai DRCi R32 Wired Controller OIM... - Page 11 Create a hole in the wall to access the wall cavity for routing the loom from FCU to controller. Put on a flat surface. Be careful not to distort the back plate of the NOTE Remove knockout wire controller by over tightening the mounting screws. Figure 4. Rinnai DRCi R32 Wired Controller OIM...
-
Page 12: Battery Installation (Cr2032)
If the displayed time is not correct Figure 5. once power is restored replace the battery. All the illustrations in this manual are for explanation purposes only. Your wired controller may be slightly different. The actual NOTE shape shall prevail. Rinnai DRCi R32 Wired Controller OIM... -
Page 13: Thermostat Connection To Indoor Unit
Indoor Unit Figure 6. Model A Setting up two Controllers To configure a secondary CNTRLDRCINW controller do the following: With both controllers connected, turn power to the system ON at the isolating switch. Go to the proposed secondary controller and press the copy button. - Page 14 ‘SUB’ controller is not capable of the following functions: Setting Time and Date Weekly Schedule Timer On / Off Wi-Fi control may be setup on one of the controllers only. There is no polarity between HA and HB (Figure 7). Rinnai DRCi R32 Wired Controller OIM...
- Page 15 HA must connect to HA on all indoor units, the same applies to HB. In group control, there will be no error displayed on the wired controller (Figure 8). Total length 40m maximum Figure 8. Rinnai DRCi R32 Wired Controller OIM...
- Page 16 To reconnect the fascia to the backing plate, anchor the top lugs first as shown below then swing the fascia down and press lightly to engage the bottom tabs, be careful not pinch the loom during this process (Figure 10). Figure 10. Rinnai DRCi R32 Wired Controller OIM...
-
Page 17: Specifications
Input Voltage 5V~24V Ambient Temperature -5~43°C Ambient Humidity RH40%~RH90% Wiring Specifications Controller loom shall be 2-Core shielded cable, 2 x 0.5mm.sq minimum, Rinnai part number CNTRLLOOM2W18M is 18m long and it may be used. NOTE Rinnai DRCi R32 Wired Controller OIM... -
Page 18: Features
Group Control Timer ON/OFF • (1:1 – DRCi / Cassette) Temp Setting • • Child Lock Weekly Timer • • LCD Display Follow Me • • Clock Turbo • 24-hour System • 12-hour System Rinnai DRCi R32 Wired Controller OIM... -
Page 19: Lcd Display
LCD DISPLAY (1:1 - DRCi / Hi-Wall / Cassette) (1:1 & Multi - Cassette / Hi-Wall / Slim Ducted) (1:1 - DRCi / Cassette / Hi-Wall) Rinnai DRCi R32 Wired Controller OIM... -
Page 20: Controller Buttons

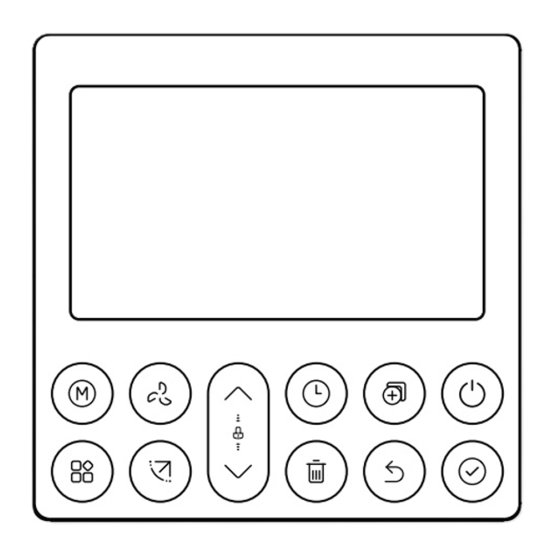

CONTROLLER BUTTONS FAN SPEED COPY MODE POWER FUNCTION CONFIRM SWING (1:1 & Multi – BACK Hi-Wall / Cassette ) DAY OFF/DELAY (1:1 – DRCi / ADJUST Cassette) TIMER Rinnai DRCi R32 Wired Controller OIM... -
Page 21: Settings Prior To Operation
To complete the setting, press the CONFIRM button or do not press button for 10 seconds. Time scale selection Press the buttons “ ” and “ ” for 2 seconds. This will alternate the clock display between the 12hr & 24hr scale. Rinnai DRCi R32 Wired Controller OIM... -
Page 22: Operation
NOTE To set the operation mode Operation mode setting (Heat mode is invalid for cooling only type unit). Press this button to select the operation mode: Rinnai DRCi R32 Wired Controller OIM... -
Page 23: Room Temperature Setting
Press the “Fan speed button” to set the fan speed. (This button is unavailable under Auto or Dry mode.) Keypad tone setting Press the buttons “Swing” and “FUNC” together for 3 seconds to turn the keypad tone on or off. Rinnai DRCi R32 Wired Controller OIM... -
Page 24: Child Lock Function
” symbol appears. Press again to stop. 2 Left-Right Swing Press the “SWING” button for 2 seconds to activate Left-Right Swing function. The “ ” symbol appears. To stop, press again for 2 seconds. Rinnai DRCi R32 Wired Controller OIM... -
Page 25: Swing Function
Each time you push the button, the louver will be selected in a sequence as: means the four louvers move at the same time.) 3. Use Swing button to adjust the Up-Down airflow direction of the selected louver. Rinnai DRCi R32 Wired Controller OIM... -
Page 26: Turbo Function
When the follow me function symbol appears, the room temperature is detected by the wired controller. Press the button again to cancel the follow me function. Rinnai DRCi R32 Wired Controller OIM... -
Page 27: Timer Functions
On and Off Timer Use this timer function to start and stop air conditioner operation. The timer operates and air conditioner operation starts and stops after the time has passed. Rinnai DRCi R32 Wired Controller OIM... -
Page 28: To Set The On Or Off Timer
Press the Confirm button, the Timer display will be blinking. Press buttons “ ” or “ ” to set the time. After the time is set, the timer will automatically start or stop. To complete the settings, press the Confirm button. Rinnai DRCi R32 Wired Controller OIM... -
Page 29: To Set The On And Off Timer
Then press the Confirm button to confirm the setting. Press the button “ ” or “ ” to set the time for Off timer. To complete the settings, press the Confirm button. The secondary wired controller cannot set the timer. NOTE Rinnai DRCi R32 Wired Controller OIM... -
Page 30: Weekly Timer
Confirm button to confirm the setting. ON timer setting of timer setting 1 Press the button “ ” or “ ” to select the time of the On timer, then press the Confirm button to confirm the setting. Rinnai DRCi R32 Wired Controller OIM... - Page 31 ‘Back’ button. The time on the Timer setting can be NOTE deleted by pressing ‘Day off’ button. If no interaction is recognised by the controller within 30 seconds, previous timer settings will be restored and withdrawn from the weekly timer setting. Rinnai DRCi R32 Wired Controller OIM...
-
Page 32: Weekly Timer Operation
By pressing the POWER button once and quickly at 10:00, the air conditioner will turn on at 14.00 2. By pressing the Power button for 2 seconds, the air conditioner will turn off completely, simultaneously cancelling the timing function. Rinnai DRCi R32 Wired Controller OIM... - Page 33 Press the Back button to return to the weekly timer. To cancel, follow the same procedure as those for setup. The DAY OFF setting is cancelled automatically after the set day has passed. NOTE Rinnai DRCi R32 Wired Controller OIM...
-
Page 34: Delay Function
The entire schedule of one selected day of the week can be copied. During the weekly timer, press the Confirm button. Press the button “ ” or “ ” to select which day to copy settings from. Rinnai DRCi R32 Wired Controller OIM... - Page 35 Press the Copy button to confirm. Other days can be copied by repeating Steps 4 and 5. Press the Confirm button to confirm the settings. Press the Back button to return to the weekly timer. Rinnai DRCi R32 Wired Controller OIM...
-
Page 36: Weekly Timer
ON timer setting of timer setting 1 Press the button “ ” or “ ” to select the setting time. The setting time, mode, temperature and fan speed appear on the LCD. Press the Confirm button to confirm the setting. Rinnai DRCi R32 Wired Controller OIM... - Page 37 Room temperature setting* Press the button “ ” or “ ” to set the room temperature, then press the Confirm button to confirm the setting. This setting is unavailable in the FAN or OFF modes. Rinnai DRCi R32 Wired Controller OIM...
- Page 38 The weekly timer setting can be returned to the previous step by pressing BACK. The current setting will be restored. The controller will not save the weekly timer settings if there is no NOTE operation within 30 seconds. Rinnai DRCi R32 Wired Controller OIM...
- Page 39 To set the DAY OFF (for a holiday) After setting the weekly timer, press the Confirm button to confirm the setting. Press the button “ ” or “ ” to select the day of the week. Rinnai DRCi R32 Wired Controller OIM...
- Page 40 A schedule once made may be copied from one day to another day of the week. The entire schedule of one selected day of the week can be copied. During the weekly timer, press the Confirm button. Rinnai DRCi R32 Wired Controller OIM...
- Page 41 Press the Copy button to confirm. Other days can be copied by repeating Steps 4 and 5. Press the Confirm button to confirm the settings. Press the Back button to return to the weekly timer. Rinnai DRCi R32 Wired Controller OIM...
-
Page 42: Delete The Time Scale In One Day
LCD. The setting time, mode, tempaerature and fan speed can be deleted by pressing the DEL (day off) button. ex. Delete the time scale 1 in Saturday Rinnai DRCi R32 Wired Controller OIM... -
Page 43: Fault Codes
Digital Display Error of communication between wired controller and indoor unit If the error code appears, please have a service technician attend for service. Technical Requirements EMC and EMI comply with the CE certification requirements. Rinnai DRCi R32 Wired Controller OIM... -
Page 44: Wireless Control Connection
Therefore, it may be necessary to repeat network configuration. • Due to different network set-ups, sometimes control process may return time-out. If this occurs, the display between board and App may not be the same. This is not an issue. Rinnai DRCi R32 Wired Controller OIM... -
Page 45: Download And Install App
Rinnai will not be liable for any issues and problems caused by Internet, Wi-Fi Router and Smart Devices. Please contact the NOTE original provider for assistance. Download and Install APP The APP system is subject to update without prior notice for product function improvement. -
Page 46: User Registration
You can log in with the third party account details. Android 1. If you do not have an account Click “Select 2. Enter your email Account”. address and password, then click “Register”. Rinnai DRCi R32 Wired Controller OIM... - Page 47 If your device was previously connected to the Wireless Network and needs to reconnect, please click “+” on app Home page, then add your device again by the device category and model according to the instructions on app. Rinnai DRCi R32 Wired Controller OIM...
-
Page 48: Network Configuration
Alternatively, you need to wait 8 minutes to let the AC quit ‘AP’ mode automatically. There are two ways to complete the network configuration: • Network configuration by Bluetooth scan NOTE • Network configuration by select appliance type Rinnai DRCi R32 Wired Controller OIM... -
Page 49: Network Configuration By Bluetooth Scan
Network configuration by Bluetooth scan Make sure the bluetooth function of your mobile device is switched on and working. NOTE 1. Open the APP and press “+ Add 2. Press “Scan for nearby devices”. Device”. Rinnai DRCi R32 Wired Controller OIM... - Page 50 3. Wait for smart device to complete 4. Select home Wi-Fi, enter your search, then click to Add Device. own Wi-Fi router password and click OK. Rinnai DRCi R32 Wired Controller OIM...
- Page 51 5. Wait for connection to the 6. Configuration Success, you can network. now modify the default name. Rinnai DRCi R32 Wired Controller OIM...
- Page 52 7. You can choose an existing 8. Bluetooth network configuration name or customise a new name. is successful, now you can see the device in the list. Rinnai DRCi R32 Wired Controller OIM...
-
Page 53: Network Configuration By Selecting Appliance Type
Network configuration by selecting appliance type 1. If the bluetooth 2. Please follow the above steps to enter “AP” network mode. configuration has failed, please select the appliance type. Rinnai DRCi R32 Wired Controller OIM... - Page 54 3. If choosing the network 4. If choosing the “Scan the QR configuration method. code” method. Steps 3 and 4 are applicable to Android system only. iOS system does not need these two steps. NOTE Rinnai DRCi R32 Wired Controller OIM...
- Page 55 5. If choosing the “Manual Setup” 6. Please enter password. method (Android). Connect to the wireless network (iOS). Rinnai DRCi R32 Wired Controller OIM...
- Page 56 7. Network configuration is 8. Configuration Success, you can successful. The App is now fully see the device on the list. You configured for use. can now operate your system from anywhere with an internet connection. Rinnai DRCi R32 Wired Controller OIM...
- Page 57 “offline”. If this occurs, refresh the device list on the APP and make sure the device status shows “online”. Alternatively, user can turn off the AC power and turn it back on again. The device status will become “online” after few minutes. Rinnai DRCi R32 Wired Controller OIM...
-
Page 58: How To Use App
Wi-Fi router is connected to the internet before using the App to control the air conditioner via internet. Please follow the next steps. 1. Type your account and password 2. Select your appliance. and sign in. Rinnai DRCi R32 Wired Controller OIM... - Page 59 3. Touch to turn on. The user can control the AC on/off status, operation mode, fan speed, temperature, etc. Depending on your specific air conditioning system, some functions may not be controllable. NOTE Rinnai DRCi R32 Wired Controller OIM...
-
Page 60: Special Functions
■ Schedule User can schedule daily to turn air conditioner ON/OFF at any specific time of day during the week. User also can choose circulation to keep the AC under schedule control every week. Rinnai DRCi R32 Wired Controller OIM... - Page 61 ■ Sleep User can customise their own comfortable sleep by setting an overnight target temperature. To access Sleep, system must already be operating in heating or cooling mode. Rinnai DRCi R32 Wired Controller OIM...
- Page 62 This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possibility of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20cm (8 inches) during normal operation. Rinnai DRCi R32 Wired Controller OIM...
- Page 63 Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. Rinnai DRCi R32 Wired Controller OIM...
-
Page 64: Warranty
18. WARRANTY TERMS OF WARRANTY – AUSTRALIA Rinnai Australia Pty. Ltd. ABN 74 005 138 769, 100 Atlantic Drive, Keysborough VIC 3173. NOTICE TO CONSUMERS UNDER AUSTRALIAN CONSUMER Our goods and services come with guarantees that cannot be excluded under the Australian Consumer Law. - Page 65 IMPORTANT – TO BE READ IN CONJUNCTION WITH THE TERMS AND CONDITIONS OF WARRANTY • The fitness for purpose of the Rinnai DRCi R32 Wired Controller and ensuring suitable Wi-Fi connectivity is the sole responsibility of the Qualified Installer and or Purchaser.
- Page 66 NOTES Rinnai DRCi R32 Wired Controller OIM...
- Page 67 NOTES Rinnai DRCi R32 Wired Controller OIM...
-
Page 68: Contacts
Monday to Friday, 8.00 am to 5.00 pm EST. *Cost of a local call may be higher from a mobile phone. (National calls from public phones in Australia are free.) For further information visit www.rinnai.com.au or email enquiry@rinnai.com.au innai has a Service and Spare Parts network with personnel who are fully trained and equipped to give the best service on your innai appliance.
