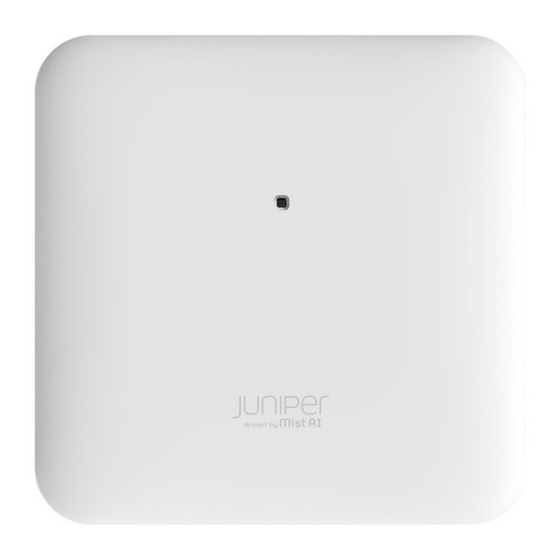

Juniper AP34 Access Point Deployment
Guide
Published
2023-12-21

Advertisement

Table of Contents
loading

Related Manuals for Juniper AP34

Summary of Contents for Juniper AP34

  • Page 1 Juniper AP34 Access Point Deployment Guide Published 2023-12-21...
  • Page 2 The Juniper Networks product that is the subject of this technical documentation consists of (or is intended for use with) Juniper Networks software. Use of such software is subject to the terms and conditions of the End User License Agreement ("EULA") posted at https:/ /support.juniper.net/support/eula/.

  • Page 3: Table Of Contents

    Mount an Access Point on a 1.5-Inch T-Bar | 25 Mount an Access Point on a 1/2-Inch Threaded Rod | 26 Mount an AP24 or AP34 on a 5/8-Inch Threaded Rod | 28 Mount an AP24 or AP34 on a 16-mm Threaded Rod | 30...
  • Page 4 Troubleshoot Contact Customer Support | 36...

  • Page 5: About This Guide

    About This Guide Use this guide to install, manage, and troubleshoot the Juniper® AP34 High-Performance Access Point. After completing the installation procedures covered in this guide, refer to the Juniper Mist™ Wi-Fi Assurance documentation for information about further configuration.

  • Page 6: Overview

    C HAPTER Overview AP34 Access Points Overview | 2 AP34 Components | 4...

  • Page 7: Ap34 Access Points Overview

    The AP34 has three IEEE 802.11ax data radios, which deliver up to 2x2 multiple input, multiple output (MIMO) with two spatial streams. The AP34 also has a fourth radio that is dedicated for scanning. The AP uses this radio for radio resource management (RRM) and wireless security. The AP can operate in either multi-user or single-user mode.
  • Page 8 Internal Outside of United States NOTE: Juniper products are manufactured in accordance with electrical and environmental regulations specific to certain regions and countries. Customers are responsible for ensuring that any regional or country-specific SKUs are used only in the specified authorized area. Failure to do...

  • Page 9: Ap34 Components

    Marvis can identify issues such as offline APs and APs with insufficient capacities and coverage issues. • Improved performance through automatic RF optimization—Juniper radio resource management (RRM) automates dynamic channel and power assignment, which helps to reduce interference and enhance user experience.
  • Page 10 (Continued) Table 2: AP34 Components Component Description USB 2.0 port Eth0+PoE 100/1000/2500/5000BASE-T RJ-45 port that supports an 802.3at or 802.3bt PoE-powered device Safety tie Slot for a safety tie that you can use to either secure or hold the AP in place...

  • Page 11: Requirements And Specifications

    C HAPTER Requirements and Specifications AP34 Specifications | 7 AP34 Power Requirements | 8...

  • Page 12: Ap34 Specifications

    AP34 Specifications Table 3 on page 7 lists the specifications for the AP34. Table 3: Specifications for AP34 Parameter Description Physical Specifications Dimensions 9.06 in. (230 mm) x 9.06 in. (230 mm) x 1.97 in. (50 mm) Weight 2.74 lb (1.25 kg)

  • Page 13: Ap34 Power Requirements

    Maximum devices supported on each radio AP34 Power Requirements The AP34 requires 802.3at (PoE+) power. The AP34 requests 20.9-W power to provide wireless functionality. However, the AP34 is capable of running on 802.3af (PoE) power with reduced functionality as described below: •...
  • Page 14 We recommend that you use an Ethernet cable with a maximum length of 100 m to connect the access point (AP) to the switch port. If you use an Ethernet cable that is longer than 100 m by placing an Ethernet PoE+ extender in the path, the AP might power up, but the Ethernet link does not transmit data across such a long cable.

  • Page 15: Installation And Configuration

    C HAPTER Installation and Configuration Mount an AP34 Access Point | 11 Connect an AP34 to the Network and Power It On | 33...

  • Page 16: Mount An Ap34 Access Point

    Mount an AP24 or AP34 on a 16-mm Threaded Rod | 30 This topic provides the various mounting options for the AP34. You can mount the AP on a wall, ceiling or junction box. The AP ships with a universal mounting bracket that you can use for all mounting options.

  • Page 17: Universal Mounting Bracket (Apbr-U) For Juniper Access Points

    APBR-ADP-WS15 Bracket adapter for mounting the AP on a recessed 1.5-in. T-bar NOTE: Juniper APs ship with the universal bracket APBR-U. If you need other brackets, you must order them separately. Universal Mounting Bracket (APBR-U) for Juniper Access Points You use the universal mounting bracket APBR-U for all types of mounting options—for example, on a wall, a ceiling, or a junction box.
  • Page 18 Figure 3: Universal Mounting Bracket (APBR-U) for Juniper Access Points If you're mounting the AP on a wall, use screws with the following specifications: • Diameter of the screw head: ¼ in. (6.3 mm) • Length: At least 2 in. (50.8 mm) The following table lists the bracket holes that you need to use for specific mounting options.

  • Page 19: Mount An Access Point On A Single-Gang Or 3.5-Inch Or 4-Inch Round Junction Box

    (Continued) Hole Number Mounting Option • US double-gang junction box • Wall • Ceiling • US 4-in. square junction box • EU junction box Video: Mount an Access Point on a Single-Gang or 3.5-Inch or 4-Inch Round Junction Box You can mount an access point (AP) on a US single-gang or a 3.5-in. or 4-in. round junction box by using the universal mounting bracket (APBR-U) that we ship along with the AP.
  • Page 20 Figure 4: Attach the APBR-U Mounting Bracket to the Single-Gang Junction Box 2. Extend the Ethernet cable through the bracket. 3. Position the AP such that the shoulder screws on the AP engage with the keyholes of the mounting bracket. Slide and lock the AP in place. Figure 5: Mount the AP on the Single-Gang Junction Box...

  • Page 21: Mount An Access Point On A Double-Gang Junction Box

    Video: Video: Mount an Access Point on a Double-Gang Junction Box You can mount an access point (AP) on a double-gang junction box by using the universal mounting bracket (APBR-U) that we ship along with the AP. To mount an AP on a double-gang junction box: 1.

  • Page 22: Mount An Access Point On An Eu Junction Box

    Figure 7: Mount the AP on the Double-Gang Junction Box Video: Mount an Access Point on an EU Junction Box You can mount an access point (AP) on an EU junction box by using the universal mounting bracket (APBR-U) that ships with the AP. To mount an AP on an EU junction box: 1.
  • Page 23 Figure 8: Attach the APBR-U Mounting Bracket to an EU Junction Box 2. Extend the Ethernet cable through the bracket. 3. Position the AP such that the shoulder screws on the AP engage with the keyholes of the mounting bracket. Slide and lock the AP in place. Figure 9: Mount an Access Point on an EU Junction Box...

  • Page 24: Mount An Access Point On A Us 4-Inch Square Junction Box

    Mount an Access Point on a US 4-Inch Square Junction Box To mount an access point (AP) on a US 4-in. square junction box: 1. Attach the mounting bracket to the 4-in. square junction box by using two screws. Ensure that you insert the screws in the holes marked 3 as shown in Figure 10 on page Figure 10: Attach the Mounting Bracket (APBR-U) to a US 4-Inch Square Junction Box...

  • Page 25: Mount An Access Point On A 9/16-Inch Or 15/16-Inch T-Bar

    Figure 11: Mount the AP on a US 4-Inch Square Junction Box Video: Mount an Access Point on a 9/16-Inch or 15/16-Inch T-Bar To mount an access point (AP) on a 9/16-in. or 15/16-in. ceiling T-bar: 1. Attach the universal mounting bracket (APBR-U) to the T-bar. Figure 12: Attach the Mounting Bracket (APBR-U) to a 9/16-in.

  • Page 26: Mount An Access Point On A Recessed 15/16-Inch T-Bar

    Figure 13: Lock the Mounting Bracket (APBR-U) to a 9/16-in. or 15/16-in. T-Bar 3. Position the AP such that the keyholes of the mounting bracket engage with the shoulder screws on the AP. Slide and lock the AP in place. Figure 14: Attach the AP to a 9/16-in.
  • Page 27 Figure 15: Attach the ADPR-ADP-RT15 Adapter to the T-Bar 2. Attach the universal mounting bracket (APBR-U) to the adapter. Rotate the bracket until you hear a distinct click, which indicates that the bracket is locked in place. Figure 16: Attach the Mounting Bracket (APBR-U) to the ADPR-ADP-RT15 Adapter 3.

  • Page 28: Mount An Access Point On A Recessed 9/16-Inch T-Bar Or Channel Rail

    Figure 17: Attach the AP to a Recessed 15/16-Inch T-Bar Mount an Access Point on a Recessed 9/16-Inch T-Bar or Channel Rail To mount an access point (AP) on a recessed 9/16-in. ceiling T-bar, you'll need to use the ADPR-ADP- CR9 adapter along with the mounting bracket (APBR-U).
  • Page 29 Figure 19: Attach the ADPR-ADP-CR9 Adapter to a Recessed 9/16-Inch Channel Rail 2. Attach the universal mounting bracket (APBR-U) to the adapter. Rotate the bracket until you hear a distinct click, which indicates that the bracket is locked in place. Figure 20: Attach the APBR-U Mounting Bracket to the ADPR-ADP-CR9 Adapter 3.

  • Page 30: Mount An Access Point On A 1.5-Inch T-Bar

    Figure 21: Attach the AP to a Recessed 9/16-in. T-Bar or Channel Rail Video: Mount an Access Point on a 1.5-Inch T-Bar To mount an access point (AP) on a 1.5-in. ceiling T-bar, you'll need the ADPR-ADP-WS15 adapter. You need to order the adapter separately. 1.

  • Page 31: Mount An Access Point On A 1/2-Inch Threaded Rod

    Figure 23: Attach the APBR-U Mounting Bracket to the ADPR-ADP-WS15 Adapter 3. Position the AP such that the keyholes of the mounting bracket engage with the shoulder screws on the AP. Slide and lock the AP in place. Figure 24: Attach the AP to a 1.5-Inch T-Bar Mount an Access Point on a 1/2-Inch Threaded Rod To mount an access point (AP) on a 1/2-in.
  • Page 32 Figure 25: Attach the APBR-ADP-T12 Bracket Adapter to the APBR-U Mounting Bracket 2. Secure the adapter to the bracket using a screw. Figure 26: Secure the APBR-ADP-T12 Bracket Adapter to the APBR-U Mounting Bracket 3. Attach the bracket assembly (bracket and adapter) to the ½-in. threaded rod by using the lock washer and nut provided...

  • Page 33: Mount An Ap24 Or Ap34 On A 5/8-Inch Threaded Rod

    Slide and lock the AP in place. Figure 28: Mount the AP on a 1/2-in. Threaded Rod Mount an AP24 or AP34 on a 5/8-Inch Threaded Rod To mount an access point (AP) on a 5/8-in. threaded rod, you'll need to use the APBR-ADP-T58 bracket...
  • Page 34 1. Attach the APBR-ADP-T58 bracket adapter to the APBR-U mounting bracket. Rotate the bracket until you hear a distinct click, which indicates that the bracket is locked in place. Figure 29: Attach the APBR-ADP-T58 Bracket Adapter to the APBR-U Mounting Bracket 2.

  • Page 35: Mount An Ap24 Or Ap34 On A 16-Mm Threaded Rod

    Slide and lock the AP in place. Figure 32: Mount the AP on a 5/8-in. Threaded Rod Mount an AP24 or AP34 on a 16-mm Threaded Rod To mount an access point (AP) on a 16-mm threaded rod, you'll need to use the APBR-ADP-M16 bracket...
  • Page 36 1. Attach the APBR-ADP-M16 bracket adapter to the APBR-U mounting bracket. Rotate the bracket until you hear a distinct click, which indicates that the bracket is locked in place. Figure 33: Attach the APBR-ADP-M16 Bracket Adapter to the APBR-U Mounting Bracket 2.
  • Page 37 Figure 35: Attach the APBR-ADP-M16 and APBR-U Bracket Assembly to the ½-Inch Threaded Rod 4. Position the AP such that the shoulder screws on the AP engage with the keyholes of the mounting bracket. Slide and lock the AP in place. Figure 36: Mount the AP on a 16-mm Threaded Rod...

  • Page 38: Connect An Ap34 To The Network And Power It On

    • The Mist cloud then provisions the AP by pushing the required configuration once the AP is assigned to a site. To ensure that your AP has access to the Juniper Mist cloud, ensure that the required ports on your Internet firewall are open. See Firewall Configuration.
  • Page 39 VLAN. You can reconfigure the AP to assign it to a different VLAN after you've onboarded the AP (that is, the AP state shows as Connected in the Juniper Mist portal. Ensure that you reassign the AP to a valid VLAN because, on rebooting, the AP sends DHCP requests only on that VLAN.
  • Page 40 C HAPTER Troubleshoot Contact Customer Support | 36...
  • Page 41 If you are unable to resolve the issue, you can create a support ticket on the Juniper Mist portal. The Juniper Mist Support team will contact you to help resolve your problem. If needed, you can request a Return Material Authorization (RMA).
  • Page 42 4. Select the appropriate ticket type depending on the severity of your problem. NOTE: Selecting Questions/Other will open a search box and redirect you to available documentation and resources related to your issue. If you cannot resolve your issue by using the suggested resources, click I still need to create a ticket.
  • Page 43 • The system logs from the device NOTE: To share device logs: a. Navigate to the Access Points page in the Juniper Mist portal. Click the impacted device. b. Select Utilities > Send AP Log to Mist in the top right corner of the device page.
