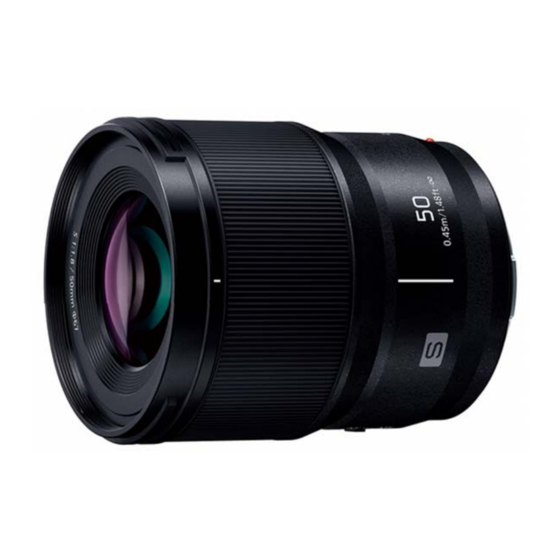

Panasonic Lumix S-S50 Service Training Manual

Hide thumbs Also See for Lumix S-S50:
Table of Contents

Advertisement

Quick Links

Download this manual
Service Training Manual
Specifications
INTERCHANGEABLE LENS FOR DIGITAL CAMERA
"LUMIX S 50 mm F1.8"
Mount
Focal length
Lens construction
Aperture type
Maximum aperture
Minimum aperture value
Angle of view
Recording range
Maximum image magnification
Image stabiliser
Filter diameter
Maximum diameter
Overall length
Mass (Weight)
Dust and splash resistant
Recommended operating
temperature
Permissible relative humidity
S-S50
Component Repair
Leica Camera AG L-Mount
f=50 mm
9 elements in 8 groups
(3 aspherical lenses, 1 ED lens, 1 UHR lens)
9 diaphragm blades/Circular aperture diaphragm
F1.8
F22
47°
0.45 m (1.48 feet) to ∞ (from the focus distance reference line)
0.14×
No
67 mm
Φ73.6 mm (2.9 inch)
Approx. 82.0 mm (3.2 inch)
(from the tip of the lens to the base side of the lens mount)
Approx. 300 ｇ (0.66 lb)
Yes
－10 ℃ to 40 ℃ (14 ℉ to 104 ℉)
10%RH to 80%RH
ⓒ Panasonic Corporation 2021 Unauthorized copying and distribution is a violation of law.
Ver.1.0
Internal use only

Advertisement

Table of Contents
loading

Related Manuals for Panasonic Lumix S-S50

Summary of Contents for Panasonic Lumix S-S50

  • Page 1 Approx. 300 ｇ (0.66 lb) Dust and splash resistant Recommended operating －10 ℃ to 40 ℃ (14 ℉ to 104 ℉) temperature Permissible relative humidity 10%RH to 80%RH ⓒ Panasonic Corporation 2021 Unauthorized copying and distribution is a violation of law.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS PAGE 1 Service Navigation ・　・　・　・　・　・　・　・　・　・ 1.1. Introduction ・　・　・　・　・　・　・　・　・　・ 1.2. Important Notice ・　・　・　・　・　・　・　・　・　・ 1.2.1. Overview of Cleaning and Replacing parts ・　・　・　・　・　・　・　・　・　・ 1.2.2. How to treat LENS MAIN UNIT (Ref. No. 220) ・　・　・　・　・　・　・　・　・　・ 2 Exploded View ・　・　・　・　・　・　・　・　・　・ 2.1. Exploded View of Lens Unit ・　・　・　・　・　・　・　・　・　・...

  • Page 3: Service Navigation

    1 Service Navigation 1.1. Introduction This manual contains technical information, which allow service personnel's to understand and service this model. Please place an order using the parts list and not the drawing reference numbers. 1.2. Important Notice Perform lens cleaning and repair in the clean room (class 10,000) since lens is delicate product and it dislikes a dust. 1.2.1.

  • Page 4: How To Treat Lens Main Unit (Ref. No. 220)

    1.2.2. How to treat LENS MAIN UNIT (Ref. No. 220) 1. LENS MAIN UNIT (Ref. No. 220) is not eligible for service part, use LENS UNIT (Ref. No. 200) instead. 2. Reuse SHADING FRAME (Ref. No. 205) because it put serial number. B221 B222 B212...

  • Page 5: Exploded View

    2 Exploded View 2.1. Exploded View of Lens Unit B221 B222 B212 B210 B215 B202 B213 B216 B223 B211 B201 B207 B203 B214 B208 B206 B209 B204 B205 2.2. Precautions for Supply Part To avoid transportation troubles, the following parts come with extra parts. Please discard the extra part when the part is received.

  • Page 6: Replacement Parts

    3 Replacement Parts ・All parts are supplied from PAVCX Ref.No. Part No. Part Name & Description Remarks DVQL1138Z CE/WEEE LABEL VQL1W22 TEN YEARS LABEL 1 GK LOU4SS50CSFCZ LENS UNIT DDE1SS50Z DECORING UNIT DVGE1890Z FILTER RING DVHG1238ZKIT FOCUS RING RUBBER KIT 6SE4SS85Z MOUNT CONTACT UNIT 9DE2Z286Z...

  • Page 7: Service Jigs & Tools

    T3 type Rp-Chart L-size SUKZ000034 600mm x 800mm Lens Cleaning Kit VFK1900BK Collimeter RFKZ0422 Master Body Purchased locally DC-S1R (Panasonic) Tweezers Purchased locally Plastic or bamboo (Do not use metal) Nipper Purchased locally Tripod Purchased locally Locking glue Purchased locally...

  • Page 8: Maintenance

    5 Maintenance 5.1. Dust / Dirt on the outer casing part(s) 1. Blow off the dust first, then sweep out the dust from narrower spaces with soft cleaning brush. 2. Wipe up the outer casing part with the dry fuzz-free cloth. 5.2.

  • Page 9: Disassembly And Assembly Procedures

    6 Disassembly and Assembly Procedures 6.1. Disassembly Procedures 6.1.1 Disassembly Flowchart Lens Unit 1 L Mount 2 Mount Rubber 3 Rear Frame Unit 4 Shading Frame Mount Contact Unit Lens P.C.B. Unit Attention For optical axis adjustment only,perform No.6 and No.7. 6 Decoring Unit Filter Ring Adjustment Screw...

  • Page 10: Disassembly Procedure

    6.1.2. Disassembly Procedure Important Notice： Perform lens disassembly in the clean room (class 10,000/ Federal Standard 209D) since lens is delicate product and it dislikes a dust. 6.1.2.1. Removal of L Mount 1. Remove 2 screws (A). Screw (A) Screw (A) ｘ 2 2.
  • Page 11 6.1.2.3. Removal of Rear Frame Unit 1. Remove 3 screws (C) and Rear Frame Unit. Screw (C) Screw (C) ｘ 3 Rear Frame Unit 6.1.2.4. Removal of Shading Frame 1. Remove 3 screws (D) and Shading Frame. Screw (D) Shading Frame Screw (D) ｘ...
  • Page 12 2. Remove Lens P.C.B. Unit with Mount Contact Unit. 3. Remove Mount Contact Unit from Lens P.C.B. Unit. Lens P.C.B. Unit Connector Mount Contact Unit 6.1.2.6. Removal of Decoring Unit 1. Decoring Unit is sticked on Filter Ring. 2. Put the sheet so that the lens glass is fullty covered. 3.
  • Page 13 6.1.2.8. Removal of Adjustment Screw and 1st A Lens Frame Unit 1. Remove 3 screws (F) and 3 1st Lens Frame Springs. Screw (F) 1st Lens Frame Spring Screw (F) ｘ 3 BLACK 2. Pull out 1st Lens Frame Shaft using a nipper with a fine tip since the shaft is small. 1st Lens Frame Shaft 3.
  • Page 14 4. Pull out 2 Adjustment Screws using a nipper with a fine tip since the screw is small. 5. Remove glue around 2 Adjustment Screws. ※ Be careful the dust don't enter in Lens Unit. Adjustment Screw Adjustment Screw 6. Turn 1st A Lens Frame Unit in the direction of the arrow until the phase mark (□) A and B are aligned. mark(□) 7.

  • Page 15: Assembly Procedure

    6.2. Assembly Procedure 6.2.1 Assembly Flowchart Mount Contact Unit Lens P.C.B. Unit 2 Shading Frame 3 Rear Frame Unit 4 Mount Rubber 5 L Mount 1st A Lens Frame Unit Adjustment Screw Attention Perform adjustment before assembling of No.6 and then proceed assembly of No.7 and No.8. 7 Filter Ring 8 Decoring Unit Lens Unit...

  • Page 16: Assembly Procedure

    6.2.2. Assembly Procedure Important notice： When tightening the screw, use a torque driver (RFKZ0542) with specified torque described in each step. 6.2.2.1. Installation of Mount Contact Unit. 1. Connect FPC of Mount Connect Unit to connector. 2. Installation Lens P.C.B. Unit with Mount Contact Unit. Connector Lens P.C.B.
  • Page 17 6.2.2.3. Installation of Rear Frame 1. Install Rear Frame Unit. 2. Tighten 3 screws (C) in numerical order by using the torque driver with specified torque. Screw (C) ② ① ③ Screw (C) ｘ 3 Rear Frame Unit ① → ② → ③ Screw Order Torque 14.0 ±...
  • Page 18 6.2.2.5. Installation of L Mount 1. Install L Mount. 2. Tighten 5 screws (B) in numerical order by using the torque driver with specified torque. Screw (B) ② ③ ① ④ L Mount ⑤ Screw (B) ｘ 5 ① → ② → ③ → ④ → ⑤ Screw Order Torque 20.0 ±...
  • Page 19 6.2.2.6. Installation of 1st A Lens Frame Unit and Adjustment Screw 1. Install 1st A Lens Frame Unit. 2. Turn 1st A Lens Frame Unit in the direction of the arrow until the screw tighteningphase holes are aligned. 1st A Lens Frame Unit mark(□) 3.
  • Page 20 5. Glue Adjustment Screw for 1st A Lens Frame Unit with "Three Bond 1401B or 1401C". Note: The glue does not come out above Adjustment Screw. 6. Insert 1st Lens Frame Shaft using a nipper with a fine tip since the shaft is small. 1st Lens Frame Shaft 7.
  • Page 21 6.2.2.7. Installation of Filter Ring 1. Install Filter Ring. 2. Tighten 3 screws (E) in numerical order by using the torque driver with specified torque. Screw (E) ① ③ ② Filter Ring Screw (A) ｘ 3 ① → ② → ③ Screw Order Torque 10.0 ±...

  • Page 22: Adjustment

    7 Adjustment 7.1. Matrix Table of Necessary Adjustment when Replacing Parts The table shows necessary adjustment when replacing parts. Necessary Adjustment Simple Simple Replacement Part Resolution Resolution Electrical Real Time Real Time Adjustment Tilt Adjustment Coma Adjustment - - - - - - - - - DECORING UNIT...

  • Page 23: Flowchart Of Adjustment

    7.3. Flowchart of Adjustment Check for Defective Parts and Internal Dust Disassembly Replacement or Cleaning Assembly Setting to Simple Resolution Real Time Tilt Adjustment - Check the brightness and settings of camera Simple Resolution - Begin again after body and test chart Real Time Tilt disassembly/assembly Adjustment...

  • Page 24: Procedure Of Adjustment

    7.4. Procedure of Adjustment 7.4.1. Equipment and Chart Setting (2) Checking Chart (5) Monitor HDMI cable USB cable (1) LED lamps (4) Capture Board (6) PC Software (3) Lens and Master Body(DC-S1R) Install LED lights left and right symmetrically as uneven illumination does not occur.

  • Page 25: Checking Chart Image

    7.4.2. Checking Chart Image <Preparation> - Checking Chart (Part No. SUKZ000059) that consisted of 5 charts No.1 - No.5. and 4 black charts. - White plastic matte board /Size: 1,440mm(W) x 960mm(H) or above Guide Line - Length: 500mm or more - Thickness: 5mm or more No.2 No.5...
  • Page 26 7.4.2.1 Coma Chart Setting <Preparation> - A Coma Chart is posted at the end of this service training manual, so copy it from there. Coma Chart <How to set up Coma Chart > - Paste the Coma Chart near the bottom of the Checking Chart No.1. No.2 No.5 210mm...

  • Page 27: Master Body(Dc-S1R) Setting And Position

    7.4.3. Master Body(DC-S1R) Setting and Position 7.4.3.1 Master Body(DC-S1R) Setting - Cancel the Initial Setting - Set the function parameter to below setting Setting Item Setting value Mode dial A (Aperture-Priority AE Mode) Aperture F 1.8 (Maximum aperture) 【S】([AFS]) Focus mode Image stabilizer White balance AF mode...
  • Page 28 For more accurate checking, hang the hand glass installed from the upper part of the center of the Checking Chart to the string down, and adjust it to come to the chart center. And If the lens of oneself reflecting in the mirror is displayed in the center of the LCD monitor, placing is correctly.

  • Page 29: Lens Unit Setting

    7.4.4. Lens Unit Setting - Set the function parameter to below setting Setting Item Setting value AF/MF switch 7.4.5. PC Software 7.4.5.1 Required PC Specification - OS ： Windows 10 - Processor ：Pentium 4/M or equivalent - Memory ：512 MB RAM - Display ：1,024 ×...

  • Page 30: Simple Resolution Real Time Tilt Adjustment

    7.4.6. Simple Resolution Real Time Tilt Adjustment Simple Resolution Real Time Tilt Adjustment is useful for models which have adjustment screws. Results are shown in real time, by rotating Adjustment Screws by using Torx Driver (RFKZ0609). ※ Check the visual of Chart on the monitor. 1st A Lens Frame Torx driver Unit...

  • Page 31: Simple Resolution Real Time Coma Adjustment

    7.4.7. Simple Resolution Real Time Coma Adjustment This Lens Unit is equipped with Coma aberration adjustments. There are Adjustment Screws where the Coma aberration adjusted, locates in the 1st A Lens Frame Unit. Results are shown in real time, by rotating Adjustment Screws by using Torx Driver (RFKZ0609). ※...

  • Page 32: Electrical Adjustment

    7.4.8. Electrical Adjustment Make Electrical Adjustment using PC with Adjustment Software. As for Adjustment conditions/procedure, consult the "Adjustment Manual" which is available in Adjustment Software. Note: - Download the software package from TSN. - The first time to implement all item - The second time to implement the only BF Adjustment 7.4.9.
  • Page 33 RP Chart L-Size 600x800mm (SUKZ000034)

  • Page 35: Revision History

    8 Revision History Ver. Date History 2021.10.18 ・First Issue...
