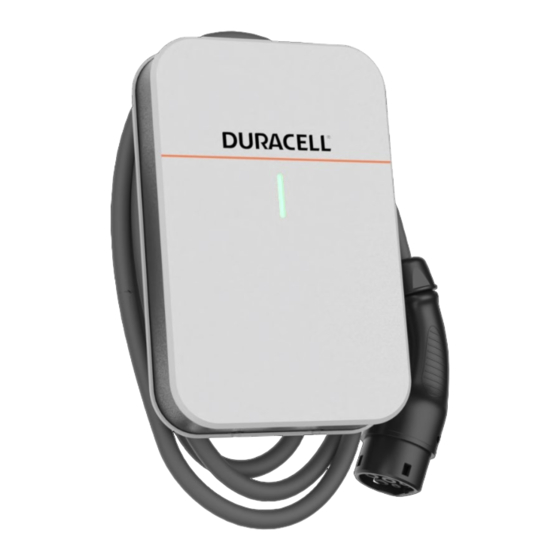

- Page 1 DURACELL EV (1P-T) INSTALLATION GUIDE Version 1.0...
-
Page 2: Table Of Contents
7 App Registration ....................15 7.1 Register the homeowner on the PureCharger app ..........15 7.2 Load balancing set up ....................22 7.3 Register the homeowner on the Duracell app...........23 7.4 Charging operations on PureCharger App ............26 7.5 Charging with RFID Card ..................27 8 Configuration and Operation ................ -
Page 3: Safety And Warning
1 Safety and Warning Save these instructions. Read all instructions before installing or using the charger. Keep the charger away from explosive or flammable materials, chemicals, vapours, and other hazardous objects. Keep the charger socket clean and dry. If it gets dirty, please wipe it with clean, dry cloth. Touching the socket core with fingers or foreign objects is strictly forbidden when the power is on. -
Page 4: Introduction
2 Introduction 2.1 Technical Specifications Product specification Duracell EV (1P-T) Single Phase Power Supply 7.4kW Rated Power Rated Voltage AC 230V ± 20% Rated Current Electrical Frequency 50Hz/60Hz Parameter Mode 3 (EN/IEC 61851-1) Charging Mode IEC 62196 Type 2 (Tethered) -
Page 5: External Structure
Electrical Protection Over current protection Residual current protection Ground protection Surge protection Over/Under voltage protection Over/Under frequency protection Over/Under temperature protection Warranty 3 years 2.2 External Structure 38 mm 180 mm Page 5 of 33... -
Page 6: Package Content
2.3 Package Content User Manual Ø 6 Expansion M4*32 Screw Mounting (x1) Pipe (x6) (x6) Template (x1) Duracell EV (1P- M4 Wrench (x1) Sealed Cap (x1) Insulated CT Clamp (x1) T) Charger (x1) Terminal (x3) Page 6 of 33... -
Page 7: Installation Instructions
3 Installation Instructions 3.1 Installation Preparation 3.1.1 Required Tools Tool Name Photo Function Check the electrical Multimeter connection and electrical parameter Phillips Screwdriver (PH2x150mm, PH3x250mm) Tighten the screws Insulated Torque Wrench Tighten the bolts Electric Drill Hole in the wall Diagonal Pliers Cut cables 3.1.2 Recommended Cables... -
Page 8: Checks Before Starting The Installation Process
out of the use of this device. A qualified person is one who has certified skills and knowledge related to the construction, installation, and operation of this type of electrical device and who has received safety training to recognise and avoid the hazards involved. - Page 9 Connect wires to the connectors (refer to Section 4.3), close the upper cover, and lock it with 2 M4x12mm screws. 3-M4*32 SCREW Ø6 EXPANSION PIPE SEALED CAP 2-M4*12 SCREW Page 9 of 33...
-
Page 10: Electrical Connection
4 Electrical Connection Note: Before inserting the power supply cable, cut the silicon-sealed loop as required to maintain the IP55 rating. Cut along this circle Remove a length of 40mm of the cable jacket and strip the wire insulation to a length of 8~15mm. -
Page 11: Ct Connection For Dlb & Solar Integration
CT connection for DLB & Solar integration Screw in the CT wire (red and white) into the provided connector as shown below. Ensure the red and white are terminated as below. Insert the terminal block into CN13 (CT2) of the main PCB Board. LED PCB Connection CT Connection... - Page 12 After the CT is installed, Dynamic Load Balancing can be setup on the App. CT Connection Diagram (Single Phase Charger 7kW) Page 12 of 33...
-
Page 13: Ev Charger App
Google play store. Scan the shown QR codes to download the app. PureCharger app: For the installer to set up the charger. Apple Android Duracell app: For the user, please download this Duracell app to operate the charger. DISCLAIMER: QR CODES WILL BE AVAILABLE UPON APPLICATION LAUNCH Android... - Page 14 PureCharger Duracell Energy Page 14 of 33...
-
Page 15: App Registration
App Registration 7.1 Register the homeowner on the PureCharger app Use the PureCharger App to register the EV charger, the RFID cards, and to set up the dynamic load balancing. Download the PureCharger App from the App store Sign up with the homeowner’s phone number to register the EV charger Confirm that your Bluetooth and location services are turned on for the App... - Page 16 Wait for Charger Charger Select user to appear Management Please select the available charger Page 16 of 33...
- Page 17 Please confirm the serial Please open your number on the side panel phone’s Wi-Fi setting of your EV charger Page 17 of 33...
- Page 18 Connect to your Password: Please type in the Charger’s Hotspot. This admin123 provided Pin Code is usually the serial number of your Charger Once you have successfully connected to the Charger’s Hotspot, please open the PureCharger app and follow the next steps. Page 18 of 33...
- Page 19 Complete the Wi-Fi Configuration Finished! setup Page 19 of 33...
- Page 20 Scan the barcode on To register your RFID card, Select Add a Card. your card select Cards Management Page 20 of 33...
- Page 21 Your card should then be added here in Cards Management Page 21 of 33...
-
Page 22: Load Balancing Set Up
7.2 Load balancing set up Please select CT (7kW) and type in the Max Load Current, then click submit. Page 22 of 33... -
Page 23: Register The Homeowner On The Duracell App
7.3 Register the homeowner on the Duracell app Use the Duracell app for the integration of products and additional charging modes. Download the Duracell Please select the If a Duracell Homeowner App from the App Store battery system is Registration for EV installed, please Enter the installer’s... - Page 24 If you have selected Modify the existing site, please enter the app ID of the battery system. Then please select the site. For the Duracell 5+, the app ID is the Solis Datalogger serial number. Enter the homeowner Enter the EV charger...
- Page 25 EV mode page Page 25 of 33...
-
Page 26: Charging Operations On Purecharger App
7.4 Charging operations on PureCharger App Post-installation, the installer should test the EV Charger through the PureCharger app. To Start the charging Select your Max Select Start to session, select Max Charging Current and begin charging your Charging Current select Confirm vehicle Page 26 of 33... -
Page 27: Charging With Rfid Card
7.5 Charging with RFID Card You can also start the charging session by tapping your RFID card on the front of the EV charger. • Tap it on the area as highlighted by the green rectangle for approximately 3 seconds until a •... -
Page 28: Configuration And Operation
8 Configuration and Operation 8.1 Checks before Power-on Please check/re-check the following items prior to the initial power-on: The location of the installed charger is convenient for operational access for normal use and maintenance. The AC input components within the premises’ s power supply are correctly fitted with required protection items prior to installation of the charger. -
Page 29: Charging Operation
& play mode, meaning after plugging in the connector, the charging session will be initiated and after plugging out the connector, the charging session will be stopped, please contact Duracell Energy Ltd to enable this function. By App: The charger can be monitored and controlled by either PureCharger App or Duracell Energy App. -
Page 30: Troubleshooting
9 Troubleshooting 9.1 Indicator status State Description LED Status In standby Normal Flashing green, 1S on, 4S Charging status Normal Breathing green, 1S on, 1S off Plugged In gun Normal Breathing yellow, 1S on, 1S state Software upgrade Normal Green light flash Ground warning Normal Flashing yellow, 2S on,... -
Page 31: Error Code And Resolutions
9.2 Error code and resolutions Error Code Problems Possible Causes Solutions 1. Check the input voltage from Input over The AC input the backend. OverVolt voltage may be voltage 2. If the voltage is over 253Vac too high. for a short time, wait till the power supply recovers to the normal voltage range. - Page 32 1. Shut down the leakage current protection, then switch off the Reverse connection main power supply from the Reverse PhaseError of L/N input cable. distribution board immediately. connection 2. Check if AC input/output cables are normal and if inverse connection of L/N input cables. Charging Poor connection of 1.
- Page 33 For general inquiries, complaints, questions, or claims, please visit: duracellenergy.com/contact Duracell is a registered trademark of Duracell Batteries BV and Duracell U.S. Operations, Inc., used under license. All rights reserved. Manufactured under license by Puredrive Energy in units 18a & 18b, Orchard Industrial Estate, Evesham rd, Toddington, Cheltenham, GL54 5EB.
