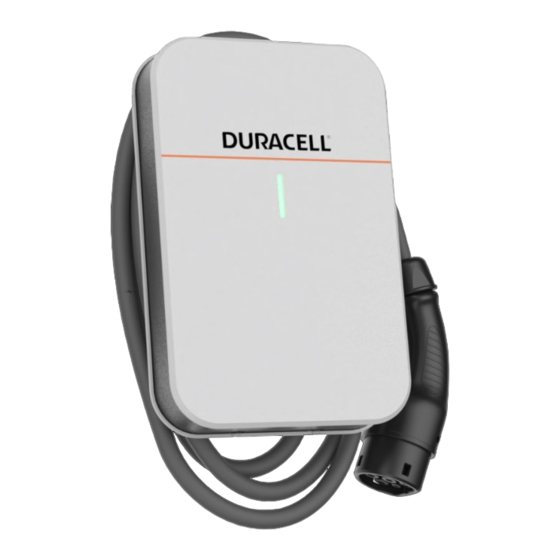

- Page 1 DURACELL EV (1P-T) USER MANUAL Version 1.0 Page 15 of 13...
-
Page 2: Table Of Contents
2 EV Charger App ............3 3 Charging Operations on PureCharger App ....5 3.1 Charging with RFID Card ................ 6 3.2 Charging modes on the Duracell app............ 7 4 Troubleshooting ............11 4.1 Indicator Status ..................11 4.2 Fault Code and Resolution ..............12... -
Page 3: Safety And Warning
1 Safety and Warning Save these instructions. Read all instructions before installing or using the charger. Keep the charger away from explosive or flammable materials, chemicals, vapours, and other hazardous objects. Keep the charger socket clean and dry. If it gets dirty, please wipe it with a clean, dry cloth. Touching the socket core with fingers or foreign objects is strictly forbidden when the power is on. -
Page 4: Ev Charger App
Google play store. Scan the shown QR codes to download the app. PureCharger app: For the installer to set up the charger. Apple Android Duracell app: For the user, please download this Duracell app to operate the charger. DISCLAIMER: QR CODES WILL BE AVAILABLE UPON APPLICATION LAUNCH... - Page 5 PureCharger Duracell Energy app Page 4 of 13...
-
Page 6: Charging Operations On Purecharger App
3 Charging Operations on PureCharger App Post-installation, test the EV Charger through the PureCharger App. To Start the charging Select your Max Select Start to session, select Max Charging Current and begin charging your Charging Current select Confirm vehicle Page 5 of 13... -
Page 7: Charging With Rfid Card
3.1 Charging with RFID Card • You can also start the charging session by tapping your RFID card on the front of the EV charger. • Tap it on the area as highlighted by the green rectangle for approximately 3 seconds until a clicking sound is heard. -
Page 8: Charging Modes On The Duracell App
3.2 Charging modes on the Duracell app. Charge your EV purely from green energy. At least 1.4kW PureGreen of excess solar is required to initiate a charge. Use excess green energy and top up with grid energy to ensure you have enough charge. Must use Timed Boost to GreenBoost set your total kWh required by the set time. - Page 9 TIMED BOOST Select ‘Timed boost’ Select the time for when Move the slider to select you’d like the charging the amount of kWh session to be finished you’d like to charge your vehicle Then select ‘Go’ Page 8 of 13...
- Page 10 PUREGREEN To begin the ‘PureGreen’ charging mode, tap the ‘PureGreen’ icon To de-select ‘PureGreen’ mode, tap the ‘PureGreen’ icon again ‘PureGreen’ mode cannot be selected alongside any other mode GREENBOOST TIMED BOOST To begin the GreenBoost charging mode, tap the ‘GreenBoost’...
- Page 11 SMART TIMED BOOST To de-select ‘Smart’ mode, tap the mode again To start this charging session, please follow the process shown in section 3.2 and adjust your requirements for the slider and time accordingly ‘Smart’ mode can be used with ‘GreenBoost’ mode ‘GreenBoost’...
-
Page 12: Troubleshooting
4 Troubleshooting 4.1 Indicator Status State Description Status In standby Normal Flashing green, 1S on, 4S Charging status Normal Breathing green, 1S on, 1S Plugged gun state Normal Breathing yellow, 1S on, 1S Software upgrade Normal Green light flash Ground warning Normal Flashing yellow, 2S on, 2S off... -
Page 13: Fault Code And Resolution
4.2 Fault Code and Resolution Error Code Problems Possible Solutions Causes 1. Check the input voltage on your app. Input over voltage AC input voltage OverVolt may be too high. 2. If the voltage is over 253Vac for a short time, wait till the grid supply recovers to normal voltage range. - Page 14 Duracell is a registered trademark of Duracell Batteries BV and Duracell U.S. Operations, Inc., used under license. All rights reserved. Manufactured under license by Puredrive Energy in unit 18a & 18b, Orchard Industrial Estate, Evesham rd, Toddington, Cheltenham, GL54 5EB.
