Summary of Contents for Fortinet FortiManager 410G
- Page 1 QuickStart Guide FortiManager 410G FMG-410G...
-
Page 2: Before You Begin
Fortinet. For absolute clarity, any such warranty will be limited to performance in the same ideal conditions as in Fortinet’s internal lab tests. -
Page 3: Package Contents
To access our Resource Center, Professional Services and Technical Support Services, visit https://www.fortinet.com/support 1x Console Cable 1x Ethernet Cable (USB to RJ45) Thank you for choosing Fortinet 2x Sliding Rails 2x Handles, 4x Screws 8x Storage Devices 4x Rubber Feet... -
Page 4: Setup Options
Data bits: Stop bits: Parity: None Console Cable Flow Control: None Port 1 Console Port Management Computer Management Computer Ethernet Cable Note: For static IP configuration, use 192.168.1.1 with subnet mask Note: For a detailed CLI guide, visit docs.fortinet.com 255.255.255.0... -
Page 5: Sfp Modules
Philips screwdriver, level & tape measure Lock • Rack-provided cage nuts and screws • A lifting device or additional support • ESD antistatic gear Support For video support on installing these slide rails, please visit: https://video.fortinet.com For additional support, please visit: https://docs.fortinet.com... - Page 6 Rail Assembly Installation Rack Mount Installation 1. Press the trigger down to unlock and pull out the inner chassis rail 1. Release the safety lock, then mount the rails onto the rack Release safety lock Press the trigger before mounting down to release Pull chassis (inner) member out...

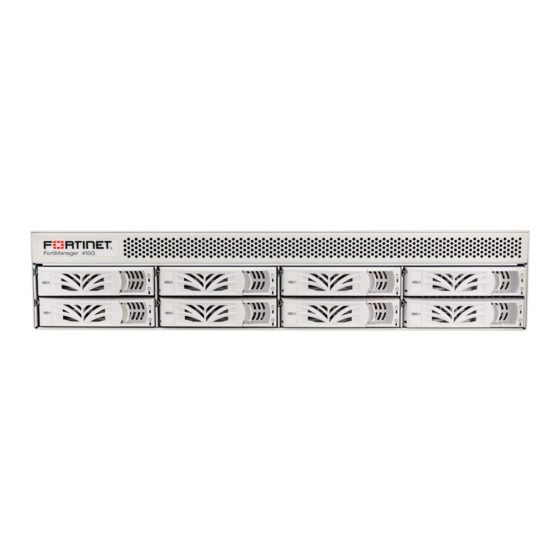

- Page 7 Front FMG-410G Storage Slots 1 to 8 (SED HDD) 4TB per slot, RAID-50, 24TB usable capacity, hot-swappable Storage Status Red: Storage device error Blue: Storage device location : No power to storage device Storage Activity Green : Storage device operating normally Flashing Green : Storage device in use : No power to storage device...
- Page 8 Rear FMG-410G Power Button SFP Activity LED (Ports 1 & 2) Green: Connected at 1Gbps Top Port Flashing Green: Data activity Bottom Port System Alarm Button press to silence alarm Off: No link established Power Supplies (1+0) 100-240VAC, 4A max, 50-60Hz (2x) Ethernet Activity LED (Ports 3 to 6) Ethernet Speed LED (Ports 3 to 6) Green: PSU operating normally...
-
Page 9: Cautions And Warnings
The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: piles usagées conformément aux réglementations locales. IMPORTANT: Suisse: l’annexe 4.10 de SR814.013 s’appliquent aux batteries. 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 警告 本電池如果更換不正確會有爆炸的危險 警告： 為避免電磁干擾，本產品不應安裝或使用於住宅環境。... - Page 11 Fortinet.com...
