Summary of Contents for Fortinet FortiAI 3500F

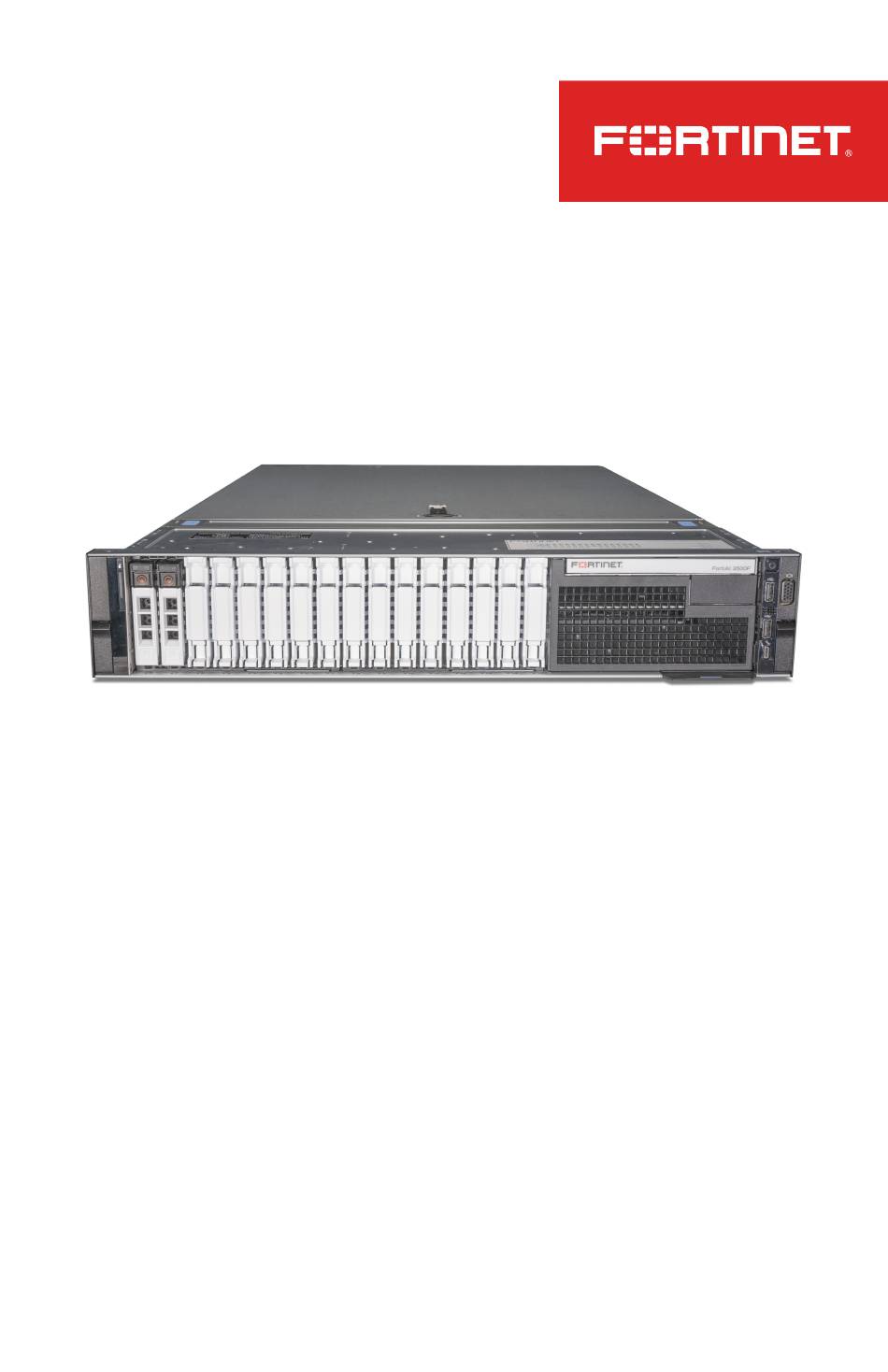

- Page 1 FortiAI 3500F QuickStart Guide...
-
Page 2: Product Registration
Copyright© 2019 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners. -
Page 3: Box Includes
Box Includes Front Panel - System FortiAI 3500F 1 2 3 System Status LED indicators Hard Drive Off: Operating normally Hard Drive Amber: Hard drive error Temperature Off: Operating normally QuickStart Guide 2x Power Cables Temperature Amber: Fan failure or ambient temperature out of range... -
Page 4: Front Panel Control
Hard Drive Power LED indicators Blue: ID function is on Off: ID function is off Green: Operating normally IPMI Port not in use. Vist http://cookbook.fortinet.com/changing-ipmi-password, to Off: Hard drive off change the default password CLI Console Port (DB9) optional connection to the management computer. -
Page 5: Basic Connections
Basic Connections Deployment Options FortiAI support standalone sniffer, integrated mode, or both simultaneously. Power Outlet Power Connection or UPS Supplied Power Cable Power Outlet Power Connection or UPS Supplied Power Cable Plug in your device to a power outlet using the provided power adapter &... -
Page 6: Setup Options
Setup Options Set up your device locally using the GUI or CLI. Choose an option to complete your setup, then configure your device. easy-to-use GUI, compatible with most web browsers. To minimize scrolling, the screen resolution should be at least Local Setup 1280 x 1024 pixels. - Page 7 Cautions and Warnings Environmental Specifications Ambient operating temperature: 0°C to 40°C Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions: Instructions de montage en rack - Les instructions de montage en rack suivantes ou similaires sont incluses avec les instructions d’installation: Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the operating ambient temperature of the rack environment may be greater than room ambient.
- Page 8 Product Safety Electrical Appliance & Material (PSE) – Japan 日本では電気用品安全法(PSE)の規定により、同梱している電源コードは本製品の専用電源コードとして利用し、他の製品に使用しないでください。 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 此為甲類資訊技術設備，於居住環境中使用時，可能會造成射頻擾動，在此種情況下，使用者會被要求採取某些適當的對策。 英屬蓋曼群島商防特網股份有限公司台灣分公司 地址：台北市內湖區行愛路176號2樓 電話：(02) 27961666 China 此为A级产品，在生活环境中，该产品可能会造成无线电干扰。这种情况下，可能需要用户对其采取切实可行的措施。...
- Page 9 Create a support account, register and manage your products, download updates, firmware images and release notes, and create technical support tickets. https://support.fortinet.com Fortinet Document Library Up-to-date versions of Fortinet publications for the entire family of Fortinet products. https://docs.fortinet.com Training Services Course descriptions, availability, schedules, and location of training programs in your area.
