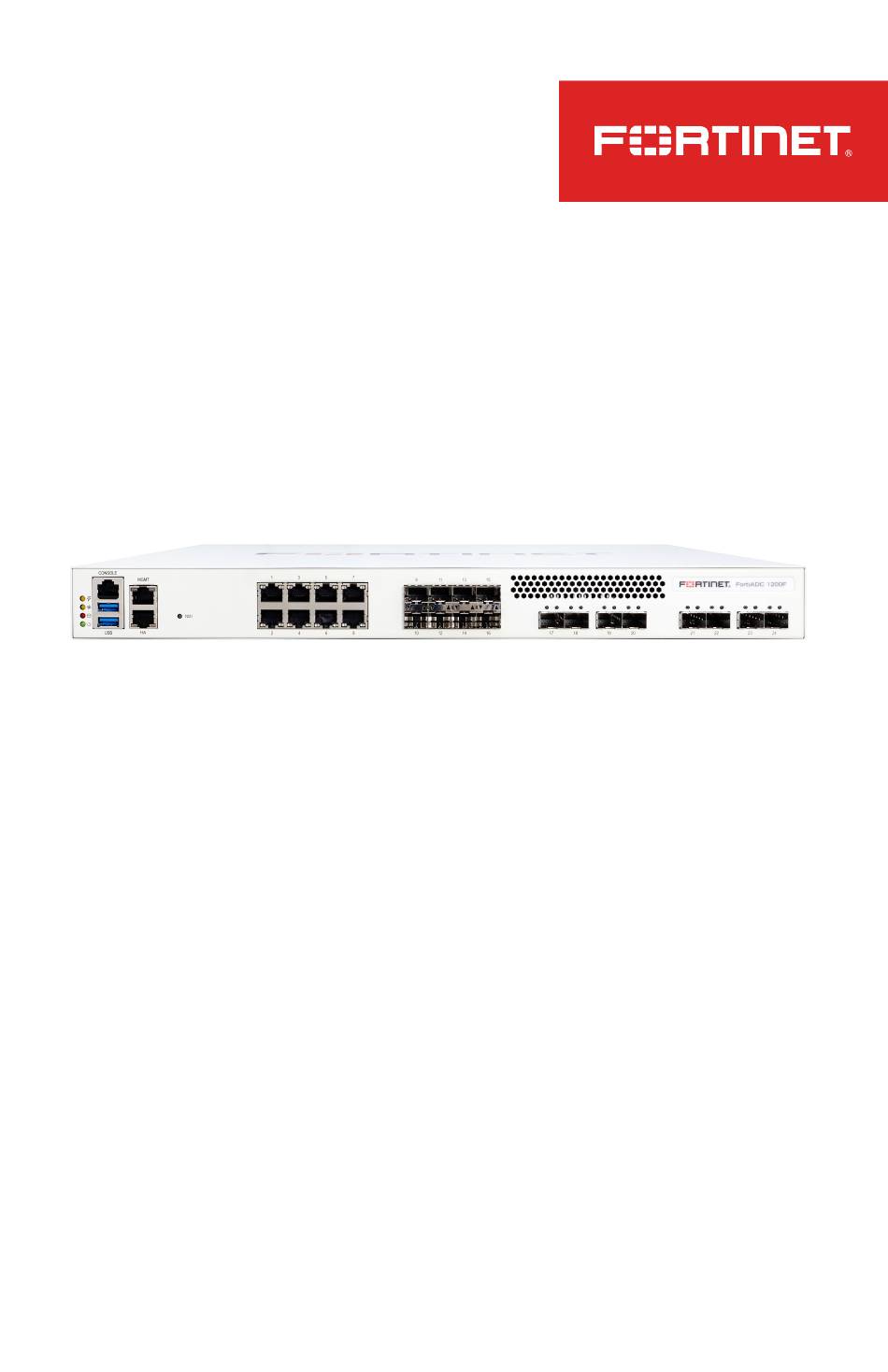

- Page 1 FortiADC 1200F QuickStart Guide...
- Page 2 Copyright© 2020 Fortinet, Inc. All rights reserved. Fortinet®, FortiGate®, FortiCare® and FortiGuard®, and certain other marks are registered trademarks of Fortinet, Inc., in the U.S. and other jurisdictions, and other Fortinet names herein may also be registered and/or common law trademarks of Fortinet. All other product or company names may be trademarks of their respective owners.
- Page 3 Contents - FAD 1200F Front Panel - FAD 1200F FortiADC 1200F System LED Indicators Power Supply Alarm Power Supply Fan Alarm Amber: Power supply failure Amber: Fan failure Off: Normal operation Off: Normal operation Hard Disk Alarm System Power Indicator...
- Page 4 Rear Panel - FAD 1200F Rear Panel - FAD 1200F-DC CAUTION/ATTENTION SHOCK HAZARD. DISCONNECT ALL POWER SOURCES. RISQUE D’ÉLECTROCUTION. DÉBRANCHEZ TOUTES LES SOURCES D’ALIMENTATION. Power Switch turns the power ON/OFF Power Switch turns the power ON/OFF Power Alarm Button resets a power supply error Power Alarm Button resets a power supply error Redundant Power Supplies (x2) 100 to 240V AC, 7-3.5A, 50/60Hz Redundant Power Supplies (x2) -48V DC to -60V DC, 20A...
- Page 5 AC Installation DC Cable Installation Pin 3 ( Pin 1 (-) Pin 1 (-) Power Outlet Power Connection or UPS Supplied Power Cable Pin 2 (+) Pin 2 (+) Pin 3 ( Assemble the power cables using the supplied power connector.
- Page 6 • A lifting device or additional support • ESD antistatic gear Lock Out Tab Support For video support on installing these slide rails, please visit: https://video.fortinet.com Outer Rails Inner Rails For additional support, please visit: http://support.fortinet.com Locking Keyhole Release Tab...
- Page 7 Attach the Inner Rails to the Appliance Attach the Outer Rails to the Rack 1. Detach the inner rail from the rail assembly by pressing the lock out tab Front Outer Rail 2. Place an inner rail against a side of the appliance 1.
- Page 8 Deployment Install the Appliance Safety Precautions Fully integrate with Fortinet's Security Fabric to optimize network visibility, 1. Check that the inner rails are secured to the appliance load balancing, and user authentication with your new FortiADC. 2. Inspect that the rack posts and outer rails are secured and level Rail Installation 3.
-
Page 9: Setup Options
Setup Options Set up your device locally using the GUI or CLI. Choose an option to complete your setup, then configure your device. easy-to-use GUI, compatible with most web browsers. To minimize scrolling, the screen resolution should be at least Local Setup 1280 x 1024 pixels. -
Page 10: Basic Settings
Basic Settings docs.fortinet.com Please refer to the admin guide found on for detailed instruction on configuring your FortiADC. Basic Network Settings 1. Once you have installed your FortiADC and configured your management interface, Console Port we recommend setting the following: Serial Port Administrative password... - Page 11 Surtension - Il convient de prendre l’ensemble des précautions nécessaires lors du branchement de l’équipement au circuit d’alimentation et être Up-to-date versions of Fortinet publications for the entire family particulièrement attentif aux effets de la suralimentation sur le dispositif assurant une protection contre les courts-circuits et le câblage. Ainsi, il est recommandé...
- Page 12 Product Safety Electrical Appliance & Material (PSE) – Japan 日本では電気用品安全法(PSE)の規定により、同梱している電源コードは本製品の専用電源コードとして利用し、他の製品に使用しないでください。 Bureau of Standards Metrology and Inspection (BSMI) – Taiwan The presence conditions of the restricted substance (BSMI RoHS table) are available at the link below: 限用物質含有情況表 (RoHS Table) 請到以下 網址下載： https://www.fortinet.com/bsmi 警告： 為避免電磁干擾，本產品不應安裝或使用於住宅環境。 請仔細閱讀以下說明 本設備勿置於潮濕處。 連接至電源前，請先檢查電壓。...
