Summary of Contents for Synology DiskStation DS718+

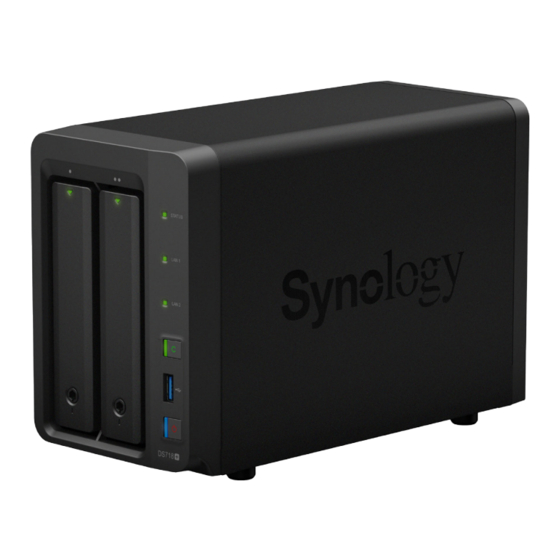

- Page 1 Synology DiskStation DS718+ Hardware Installation Guide...
-
Page 2: Table Of Contents
Table of Contents Chapter 1: Before You Start Package Contents Synology DiskStation at a Glance Safety Instructions Chapter 2: Hardware Setup Tools and Parts for Drive Installation Install Drives Start Up Your DiskStation Add a Memory Module on DiskStation Chapter 3: Install DSM on DiskStation... -
Page 3: Package Contents
Chapter Before You Start Thank you for purchasing this Synology product! Before setting up your new DiskStation, please check the package contents to verify that you have received the items below. Also, make sure to read the safety instructions carefully to avoid harming yourself or damaging your DiskStation. -
Page 4: Synology Diskstation At A Glance
Connect external hard drives, USB printers, or other USB devices to the USB 3.0 Port DiskStation here. eSATA Port Connect Synology Expansion Unit here. For more information about Synology Expansion Unit supported by your DiskStation, please visit www.synology.com. 4 Chapter 1: Before You Start... -
Page 5: Safety Instructions
Safety Instructions Keep away from direct sunlight and away from chemicals. Make sure the environment does not experience abrupt changes in temperature or humidity. Place the product right side up at all times. Do not place near any liquids. Before cleaning, unplug the power cord. Wipe with damp paper towels. Do not use chemical or aerosol cleaners. -
Page 6: Chapter 2: Hardware Setup
Tools and Parts for Drive Installation • A screwdriver (only for 2.5" drives) • At least one 3.5” or 2.5” SATA drive (please visit www.synology.com for compatible drive models) Warning: If you install a drive that contains data, the system will format the drive and erase all existing data. Please back up any important data before installation. - Page 7 3 Load drives in the drive trays. • For 3.5” drives: Remove the fastening panels from the sides of the drive tray. Place the drive in the drive tray. Then insert the fastening panels to secure the drive in place. •...
-
Page 8: Start Up Your Diskstation
6 Insert the hard drive tray key into the hard drive tray lock, turn the key clockwise (to the "I" position) to lock the handle of the hard drive tray, and then remove the key. 7 Repeat the steps above to assemble the other drives you have prepared. 8 Drives are numbered as shown below. -
Page 9: Add A Memory Module On Diskstation
Congratulations! Your DiskStation is now online and detectable from a network computer. Add a Memory Module on DiskStation The optional Synology memory module is designed for DiskStation memory expansion. Follow the steps below to install, check, or remove a memory module on your DiskStation. - Page 10 Hold the memory module by its edge, and do not touch the gold contacts. Important: Note: Synology will not provide complete product warranty or technical support if a non-Synology memory module is used for memory upgrade. 5 Insert the two hard drive trays back into the hard drive bays.
- Page 11 3 Hold the memory module by its notches and remove it from the slot. 4 Insert the hard drive trays back into the hard drive bays. 5 Reconnect the cables removed in step 1. Now you may turn on your DiskStation. 11 Chapter 2: Hardware Setup...
-
Page 12: Chapter 3: Install Dsm On Diskstation
Chapter Install DSM on DiskStation After hardware setup is finished, please install DiskStation Manager (DSM) – Synology’s browser-based operating system – on your DiskStation. Install DSM with Web Assistant Your DiskStation comes with a built-in tool called Web Assistant that helps you download the latest version of DSM from the Internet and install it on your DiskStation. -
Page 13: Appendix A: Specifications
• External: Btrfs, ext4, ext3, FAT, NTFS, HFS+, exFAT • Basic • JBOD • RAID 0 • RAID 1 Supported RAID Types • Synology Hybrid Raid (1-Disk Fault Tolerance) Agency Certifications • FCC Class B • CE Class B • BSMI Class B... -
Page 14: Appendix B: Led Indicator Table
If you can log into DSM, please run the built-in S.M.A.R.T. test to scan the drive(s). If the problem remains unresolved, please contact Synology Technical Support for help. For models with Copy Button, the USB Copy package is installed on your DSM by default. - Page 15 IMPORTANT–READ CAREFULLY: THIS END USER LICENSE AGREEMENT ("EULA") IS A LEGAL AGREEMENT BETWEEN YOU (EITHER AN INDIVIDUAL OR A LEGAL ENTITY) AND SYNOLOGY, INC. ("SYNOLOGY") FOR THE SYNOLOGY SOFTWARE INSTALLED ONTO THE SYNOLOGY PRODUCT PUCHASED BY YOU (THE “PRODUCT”), OR LEGALLY DOWNLOADED FROM WWW.SYNOLOGY.COM, OR ANY OTHER CHANNEL PROVIDED BY SYNOLOGY...
- Page 16 Section 15. Termination. Without prejudice to any other or other legal action or proceeding to enforce rights or rights, Synology may terminate this EULA if you do not abide remedies under this EULA, the prevailing party will be by the terms and conditions contained herein. In such event,...
- Page 17 SYNOLOGY, INC. LIMITED PRODUCT WARRANTY THIS LIMITED WARRANTY ("WARRANTY") APPLIES TO THE PRODUCTS (AS DEFINED BELOW) OF SYNOLOGY, INC. AND ITS AFFILIATES, INCLUDING SYNOLOGY AMERICA CORP, (COLLECTIVELY, "SYNOLOGY"). YOU ACCEPT AND AGREE TO BE BOUND BY THE TERMS OF THIS WARRANTY BY OPENING THE PACKAGE CONTAINING AND/OR USING THE PRODUCT.
- Page 18 Product specifications; (b) has been repaired, modified Limitation of Liability. SYNOLOGY'S AND ITS or altered by anyone other than Synology or its agent or designee; (c) has been in any way misused, abused, or SUPPLIERS' LIABILITY ARISING OUT OF OR RELATING damaged;...
- Page 19 Nothing in this Section shall be deemed to prohibit or restrict arbitration and will not be conducted on a class-wide or class Synology from seeking injunctive relief or seeking such other action basis. The arbitration shall be held in King County, rights and remedies as it may have at law or equity for any Washington, U.S.A.
- Page 20 FCC Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
