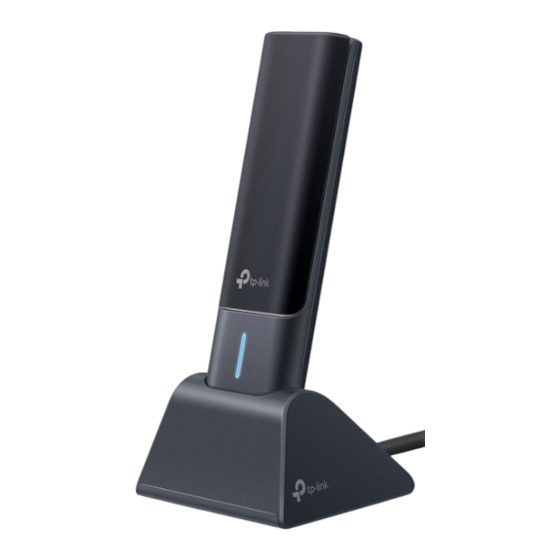

- Page 1 User Guide AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter Archer TXE70UH © 2023 TP-Link 1910013465 REV1.0.0...
-
Page 2: Table Of Contents
Contents About This Guide Chapter 1 Get to Know About Your Adapter 1. 1. Product Overview ........... . . 3 1. -
Page 3: About This Guide
*Use of Wi-Fi 6 (802.11ax), Wi-Fi 6E, and features including OFDMA, MU-MIMO, Beamforming, 1024-QAM, or HE160 require APs to also support the corresponding features. *Functionality of Archer TXE70UH may be restricted on some operating systems and platforms. Please try to update the device’s driver for feature compatibility. -
Page 4: Chapter 1 Get To Know About Your Adapter
Chapter Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status... -
Page 5: Product Overview
Chapter 1 Get to Know about Your Adapter Product Overview TP-Link Wireless USB Adapter connects your computer to a Wi-Fi network for smooth HD video, voice streaming and online gaming. • The high-gain antennas greatly enhance the reception and transmission signal strength of the USB adapter. -
Page 6: Chapter 2 Use The Adapter
Chapter Use the Adapter This chapter introduces how to install your adapter’s driver, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the installation process. -
Page 7: Install Driver
SetupInstall.exe Note: 1. If you cannot find the setup program, please download the driver at www.tp-link.com/support. 2. If an unknown publisher message pops up, select Yes to continue. 3. If Windows User Account Control requires admin credentials, type user name and password of your Windows administrator account. -
Page 8: Appendix: Troubleshooting
Archer TX3000E only supports Windows 10 (64bit). • Make sure you use the latest driver for your specific adapter. The latest drivers can be found at the product’s Support page at https://www.tp-link.com. • Try restarting the computer or try the adapter on a different computer. - Page 9 There is a character string “Ver:X. Y ” (for example, Ver:1.0) in the Serial Number field, and the number X is the hardware version of the adapter. For more detailed instructions: • Can’t find the hardware version of the adapter: https://www.tp-link.com/faq-46.html • Can’t find or connect to the wireless networks: https://www.tp-link.com/faq-2253.html • Can’t install the driver:...
- Page 10 FCC compliance information statement Product Name: AXE5400 Wi-Fi 6E High Gain Wireless USB Adapter Model Number: Archer TXE70UH Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com...
- Page 11 10000 feet. Operation of transmitters in the 5.925-7.125 GHz band is prohibited for control of or communications with unmanned aircraft systems. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15.
- Page 12 Canadian Compliance Statement This device contains licence-exempt transmitter(s)/receiver(s) that comply with Innovation, Science and Economic Development Canada’s licence-exempt RSS(s). Operation is subject to the following two conditions: (1) This device may not cause interference. (2) This device must accept any interference, including interference that may cause undesired operation of the device.
- Page 13 sauf que l’utilisation de cet appareil est autorisée dans les avions long courrier en vol au-dessus de 10 000 pieds. L’exploitation d’émetteurs dans la bande 5,925-7,125 GHz est interdite pour le contrôle ou les communications avec des systèmes d’avions sans pilote. Radiation Exposure Statement: This EUT is compliance with SAR for general population/uncontrolled exposure limits in RSS-102 and had been tested in accordance with the measurement...
- Page 14 低功率射頻器材須忍受合法通信或工業、科學及醫療用電波輻射性電機設備之干 擾。 應避免影響附近雷達系統之操作。 BSMI Notice 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋 開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位 置中。 • 請不要私自打開機殼，不要嘗試自行維修本產品，請由授權的專業人士進行此項 工作。 限用物質含有情況標示聲明書 限用物質及其化學符號 產品元件 鉛 鎘 汞 六價鉻 多溴聯苯 多溴二苯醚 名稱 PBDE ○ ○ ○ ○ ○ ○ USB線 ○ ○...
- Page 15 • Do not attempt to disassemble, repair, or modify the device. If you need service, please contact us. • Do not use the device where wireless devices are not allowed. • This product can be powered only by computers that comply with Power Source Class 2 ( PS2) or Limited Power Source(LPS) of IEC 62368-1.
- Page 16 Energy efficiency Marking Protective earth Earth Frame or chassis Functional earthing Caution, hot surface Caution Operator’s manual Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
- Page 17 Disconnection, all power plugs Switch of mini-gap construction Switch of micro-gap construction (for US version) µ Switch of micro-gap / micro-disconnection construction (for other versions except US) Switch without contact gap (Semiconductor switching ε device)
