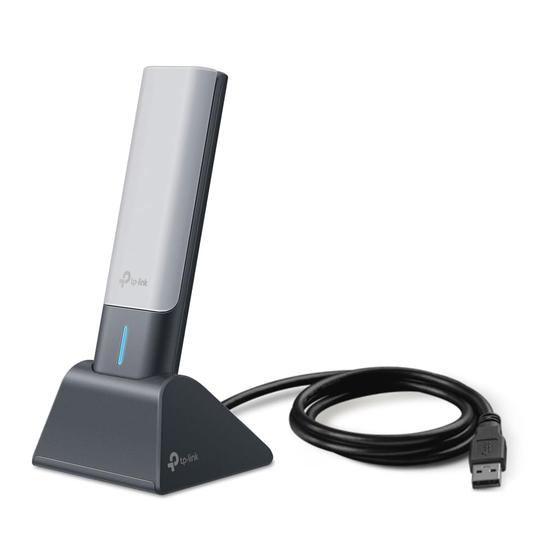

- Page 1 User Guide AX3000 High Gain Wireless USB Adapter Archer TX50UH © 2023 TP-Link 1910013482 REV1.0.0...
-
Page 2: Table Of Contents
Contents Chapter 1. About This Guide ........1 Chapter 2. -
Page 3: Chapter 1. About This Guide
‡Use of Wi-Fi 6 (802.11ax), and features including OFDMA, MU-MIMO, 1024-QAM, or HE160 require APs to also support the corresponding features. §Functionality of Archer TX50UH may be restricted on some operating systems and platforms. Please try to update the device’s driver for feature compatibility. -
Page 4: Chapter 2. Get To Know About Your Adapter
Chapter Get to Know About Your Adapter This chapter introduces what the adapter can do and shows its appearance. This chapter contains the following sections: • Product Overview • LED Status... -
Page 5: Product Overview
HD video, voice streaming and online gaming. The latest Wi-Fi 6 standard guarantees extreme speeds, ultra-low latency, and uninterrupted connections. Archer TX50UH arms your PC with Wi-Fi 6 to ensure powerful, continuous signal reception, unlocking your Wi-Fi 6 router’s full potential.†... - Page 6 Chapter 1 Get to Know about Your Adapter Tips: If the LED is off, try these troubleshooting tips: 1. Check if the adapter is recognized and enabled or not. Refer to Appendix: Troubleshooting for detailed instructions. 2. Remove and reinsert the adapter. 3.
-
Page 7: Chapter 3. Use The Adapter
Chapter Use the Adapter This chapter introduces how to install your adapter’s driver, use your adapter to join a wireless network, and uninstall your adapter in a Windows system. The adapter is equipped with a Setup Wizard, which can guide you through the installation process. -
Page 8: Install Driver
3. Double click the TP-Link disk then run SetupInstall.exe to install driver Note: 1. If you cannot find the setup program, please download the driver at www.tp-link.com/support. 2. If an unknown publisher message pops up, select Yes to continue. 3. If Windows User Account Control requires admin credentials, type user name and password of your Windows administrator account. -
Page 9: Chapter 4. Appendix: Troubleshooting
1. On your computer, please right click Computer icon and go to Manage; 2. Open the Device Manager and go to Network adapters, and then find the corresponding TP-Link adapter, right click it and then go to Properties;... - Page 10 3. If you can see “This device is working properly.” in the red box, you have already installed the driver successfully. T3. What should I do if can’t connect to the Wi-Fi after installing the driver? • Refer to to check if you have installed the driver for your adapter successfully . •...
- Page 11 There is a character string “Ver:X. Y ” (for example, Ver:2.0) in the Serial Number field, and the number X is the hardware version of the adapter. • Visit https://www.tp-link.com/faq-46.html and follow the second method to find the hardware version of the adapter. For more detailed instructions: •...
- Page 12 FCC compliance information statement Product Name: AX3000 High Gain Wireless USB Adapter Model Number: Archer TX50UH Responsible party: TP-Link USA Corporation Address: 10 Mauchly, Irvine, CA 92618 Website: https://www.tp-link.com/us/ Tel: +1 626 333 0234 Fax: +1 909 527 6804 E-mail: sales.usa@tp-link.com This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
- Page 13 5mm spacing from the body and that compliance is achieved at that distance. We, TP-Link USA Corporation, has determined that the equipment shown as above has been shown to comply with the applicable technical standards, FCC part 15.
- Page 14 5470 MHz -5725 MHz (23dBm) EU declaration of conformity TP-Link hereby declares that the device is in compliance with the essential requirements and other relevant provisions of directives 2014/53/EU, 2011/65/ EU and (EU)2015/863. The original EU declaration of conformity may be found at https://www.tp-link.com/en/ce...
- Page 15 National restrictions Frequency band: 5150 - 5250 MHz: Indoor use: Inside buildings only. Installations and use inside road vehicles and train carriages are not permitted. Limited outdoor use: If used outdoors, equipment shall not be attached to a fixed installation or to the external body of road vehicles, a fixed infrastructure or a fixed outdoor antenna.
- Page 16 Caution: 1 ) The device for operation in the band 5150–5250 MHz is only for indoor use to reduce the potential for harmful interference to co-channel mobile satellite systems; DFS (Dynamic Frequency Selection) products that operate in the bands 5250- 5350 MHz, 5470-5600MHz, and 5650-5725MHz.
- Page 17 BSMI Notice 安全諮詢及注意事項 • 請使用原裝電源供應器或只能按照本產品注明的電源類型使用本產品。 • 清潔本產品之前請先拔掉電源線。請勿使用液體、噴霧清潔劑或濕布進行清潔。 • 注意防潮，請勿將水或其他液體潑灑到本產品上。 • 插槽與開口供通風使用，以確保本產品的操作可靠並防止過熱，請勿堵塞或覆蓋 開口。 • 請勿將本產品置放於靠近熱源的地方。除非有正常的通風，否則不可放在密閉位 置中。 • 不要私自拆開機殼或自行維修，如產品有故障請與原廠或代理商聯繫。 限用物質含有情況標示聲明書 限用物質及其化學符號 產品元件 鉛 鎘 汞 六價鉻 多溴聯苯 多溴二苯醚 名稱 PBDE ○ ○ ○ ○ ○ ○ 外殼 ○ ○ ○ ○ ○ ○...
- Page 18 • This product uses radios and other components that emit electromagnetic fields. Electromagnetic fields and magnets may interfere with pacemakers and other implanted medical devices. Always keep the product and its power adapter more than 15 cm (6 inches) away from any pacemakers or other implanted medical devices.
- Page 19 Frame or chassis Functional earthing Caution, hot surface Caution Operator’s manual Stand-by “ON”/”OFF” (push-push) Fuse Fuse is used in neutral N RECYCLING This product bears the selective sorting symbol for Waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.
- Page 20 Switch without contact gap (Semiconductor switching ε device)
