Assembly Instructions

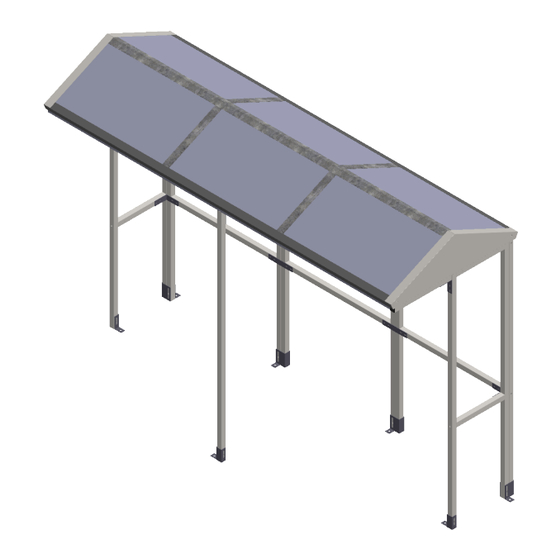

Shelter type: SR8302
SR8302-01-16092021-USA

Advertisement

Table of Contents
loading

Related Manuals for NBB SR8302

Summary of Contents for NBB SR8302

  • Page 1 Assembly Instructions Shelter type: SR8302 SR8302-01-16092021-USA...
  • Page 2 EXPLODED VIEW...

  • Page 3: Table Of Contents

    PARTS LIST ITEM PART NAME Size (inch) IMAGE QTY. NUMBER 78.74 x 40.74 S1 Frame 78.74 x 20.3 S3 Frame 20 (M3) S3/20 4.33 x 1.57 JF1 Bracket 4.3 x 4.3 x 1.57 CB1 Bracket 20.15 x 1.57 x ST15 Tie Bar ST15 1.57 60.75...
  • Page 4 FIXINGS Fittings Bolt set M10 BTANCM12100 1.5" M10/12 x 100 mm 1" Tech Black M10 x 60mm Washer Tech screw Caps Concrete Bolt screw Pack A+B Image Tools required: Drill/Screwdriver 17mm Wrench Mallet T25 Torx bit...
  • Page 5 Step 1 Assemble S1 and S3 frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Please note 1.5" Tech Screws are for roof panels only MEASURE THE WIDTH AND DEPTH OF THE SHELTER TO CHECK CORRECT ALIGNMENT.

  • Page 6: Cb1

    Step 2 Attach ST15 Tie bars to SC3 frames using CB1 Brackets. Fix the ST5 Tie bars to the ST15 bars using CB1 Brackets and attach to the P5 Post using the JFT Plate. Fix a JF1 Bracket to the top of the two ST5 Bars. ST15 ST15 ST15...

  • Page 7: Ar1R

    Step 3 Attach AR1R rafters using DR brackets. Secure the AR1IS End Panels to S1C frames using tec screws. The end rafters need to be placed in position at the same time as the AR1IS End Panels. AR1R AR1R END PANEL AR1R AR1R END PANEL...

  • Page 8: Arfso

    Step 4 Attach the AR1CLTO and the AR1CTLI to the top of the rafters with the AR1CLTO on the outside and the AR1CTL on the inside. The ARFSO and ARFSI parts are to be attached to the lower part of the rafters as shown below.

  • Page 9: Ar1Poa

    Step 5 Attach the AR1POA and AR1PIA roof panels to the top of the rafters. Cap off the top using AR1CUTO and AR1CUTI trim as shown. Use the AR1TS strips to cover the gaps between the panels. Once the shelter is in the final position and square, it can be secured to the ground using the FT3 and FT1 brackets.
  • Page 10 NOTES:...
  • Page 11 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 8" oversized on all 4 sides. 20.35 21.93 42.28 45.3...
  • Page 12 THANK YOU FOR PURCHASING THIS PRODUCT MAINTENANCE: To ensure your products give you many years of use we recommend that you: • Clean panels regularly with soapy water • Ensure all fittings are tight (for example after a big storm) •...
