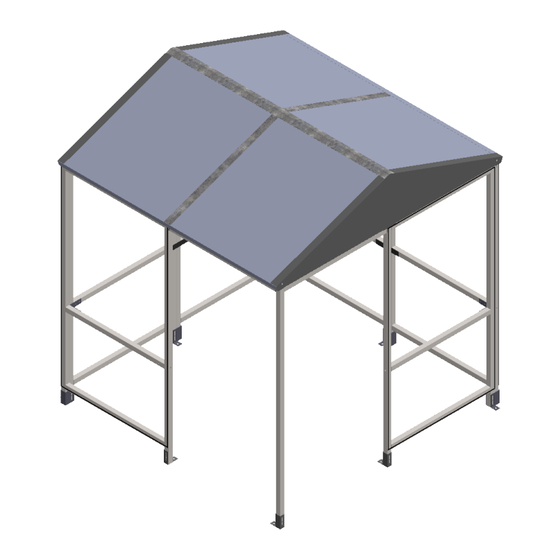

- Page 1 Assembly Instructions Shelter type: SR8062-F SR8062-F-01-011121-USA...
- Page 2 Exploded Parts...
-
Page 3: Parts List
PARTS LIST Size (inch) IMAGE ITEM NO. PART NUMBER QTY. NUMBER S1C Frame 78.74 x 40.74 Post P1 78.75 x 40.5 ST1 Roof Tie 40.35 CB1 Bracket - Slotted 4.3 x 4.3 x 1.57 JF1 Bracket 8.7 x 1.6 FT1 BRACKET 4.3 x 3.9 x 1.6 DR Bracket 4.3 x 1.6 x 2... - Page 4 FIXINGS...
- Page 5 Step 1 Assemble S1C frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Please note 1.5" Tec Screws are for roof panels only MEASURE THE WIDTH AND DEPTH OF THE SHELTER TO CHECK CORRECT ALIGNMENT.
- Page 6 Step 2 Use JF1 and CB1 brackets to attach the P1 post and ST1 Tie bar . INSERT PLASTIC END CAPS (EC40) INTO ST1 AND P1 EC40 EC40 EC40...
- Page 7 Step 3 Attach A2R2 rafters using DR brackets. Secure the AR2IS End Panels to S1C frames using 1" TECH Screws. The end rafters need to be placed in position at the same time as the AR2IS. AR2R AR2R DR Bracket AR2R AR2IS AR2IS...
- Page 8 Step 4 Attach the AR2CLT2 to the top of the rafters. The ARFS2 parts are to be attached to the lower part of the rafter as shown below. ARFS2 AR2CLT2 ARFS2...
- Page 9 Step 5 Align the outer roof panels AR2POA with the outer edges of the shelter. Use the AR2TS strips to seal the gap between the roof panels and cap off the top with the AR2CUT2. Once the shelter is in its final position it can be secured to the ground using FT3 and FT1 brackets and concrete bolts.
- Page 10 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 8" oversized on all 4 sides. 86 ROOF WIDTH...
-
Page 11: Maintenance
THANK YOU FOR PURCHASING THIS PRODUCT MAINTENANCE: To ensure your products give you many years of use we recommend that you: • Clean panels regularly with soapy water • Ensure all fittings are tight (for example after a big storm) •...
