Assembly Instructions
Shelter type: SR8064-F
SR8064F-01-03112021-USA

Advertisement

loading

Related Manuals for NBB SR8064-F

Summary of Contents for NBB SR8064-F

  • Page 1 Assembly Instructions Shelter type: SR8064-F SR8064F-01-03112021-USA...

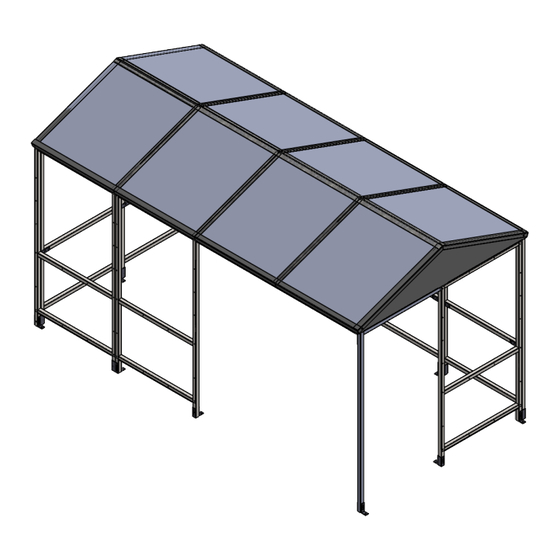

  • Page 2 Exploded View...

  • Page 3: Parts List

    PARTS LIST ITEM DRG number Size (inch) IMAGE PART NUMBER QTY. S1C Frame 78.74 x 40.74 Post P1 78.75 x 40.5 JF1 Bracket 4.33 x 1.57 FT1 BRACKET 1.57 x 1.57 x 3.94 DR Bracket 4.3 x 1.6 x 2 AR2R AR2R 2m Pitch Rafter 85.75...
  • Page 4 FIXINGS...
  • Page 5 Step 1 Assemble S1C frames to make up the main structure using CB1 brackets for the corners and JF1 brackets for the straight joints. Please note 1.5" Tech Screws are for roof panels only MEASURE THE WIDTH AND DEPTH OF THE SHELTER TO CHECK CORRECT ALIGNMENT.
  • Page 6 Step 2 Use JF1 and CB1 brackets to attach the P1 post and ST3 Tie bar .

  • Page 7: Front View

    Step 3 Attach A2R2 rafters unsing DR brackets. Secure the AR2IS End Panels to the frames using Tech Screws. The end rafters need to be placed in position at the same time as 1" the AR2IS. AR2R AR2R AR2R AR2R AR2R AR2IS AR2IS...
  • Page 8 Step 4 Attach the AR2CLTI and AR2CLTO to the top of the rafters. The ARFSI and ARFSO parts are to be attached to the lower part of the rafter as shown below. AR2CLTO AR2CLTI AR2CLTI ARFSO ARFSI AR2CLTO ARFSI ARFSO ARFSO ARFSI ARFSI...
  • Page 9 Step 5 Align the outer roof panels AR2POA with the outer edges of the shelter and space the AR2PIA panels central. Use the AR2TS strips to seal the gap between the roof panels and cap off the top with the AR2CUT2. Once the shelter is in the final position it can be secured to the ground using concrete bolts and brackets FT3/FT1.
  • Page 10 PLAN VIEW OVERALL DIMENSIONS AND GROUND FIXING POSITIONS Suggested size for concrete base: 8" oversized on all 4 sides.

  • Page 11: Maintenance

    THANK YOU FOR PURCHASING THIS PRODUCT MAINTENANCE: To ensure your products give you many years of use we recommend that you: • Clean panels regularly with soapy water • Ensure all fittings are tight (for example after a big storm) •...
