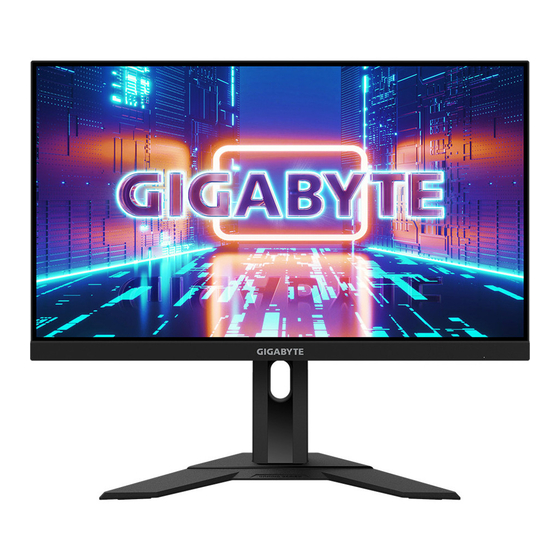

Gigabyte G24F User Manual

Gaming monitor
Hide thumbs Also See for G24F:
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte G24F

Summary of Contents for Gigabyte G24F

  • Page 2 GIGABYTE. Changes to the specications and eatures in this manual may be made by GIGABYTE without prior notice. No part o this manual may be reproduced, copied, translated, transmitted, or published in any orm or by any means without GIGABYTE’s prior written permission.

  • Page 3: SaEty InOrmation

    Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: LCD monitor Trade Name: GIGABYTE Model Number: G24F Responsible Party – U.S. Contact Inormation: G.B.T. Inc. Address: 17358 Railroad street, City O Industry, CA91748 Tel.: 1-626-854-9338 Internet contact inormation: https://www.gigabyte.com FCC Compliance Statement: This device complies with Part 15 o...
  • Page 4 European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and sae rom hazardous substances (Cd, Pb, Hg, Cr , PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been careully selected to meet RoHS...
  • Page 5 Gaming Monitor User Guide WEEE Symbol Statement The symbol shown below is on the product or on its packaging, which indicates that this product must not be disposed o with other waste. Instead, the device should be taken to the waste collection centers or activation o the treatment, collection, recycling and disposal procedure.
  • Page 6 Gaming Monitor User Guide CE declaração de conformidade Este produto com a marcação CE estão em conormidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/UE e a declaração 2015/863. A conormidade com estas diretivas é...
  • Page 7 Gaming Monitor User Guide ES Prohlášení o shodě Toto zařízení splňuje požadavky Směrnice o Elektromagnetické kompatibilitě 2014/30/EU, Směrnice o Nízkém napětí 2014/35/EU, Směrnice ErP 2009/125/ES, Směrnice RoHS 2011/65/EU a 2015/863. Tento produkt byl testován a bylo shledáno, že splňuje všechny základní požadavky směrnic.
  • Page 8 Gaming Monitor User Guide Japan VCCI Class B Statement クラスB VCCI 基準について この装置は、クラスB情報技術装置です。この装置は、家庭環境で使 用することを目的としていますが、この装置がラジオやテレビジョン 受信機に近接して使用されると、受信障害を引き起こすことがありま す。 取扱説明書に従って正しい取り扱いをして下さい。 VCCI-B China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球当用户不再需要此产品或产品寿命终止时 请遵守国家废弃电器电子产品回收处理相关法律法规将其交给当地具有 国家认可的回收处理资质的厂商进行回收处理。 环保使用期限 Environment-friendly Use Period 此标识指期限十年电子电气产品中含有的有害物质不会 发生外泄或突变、电子电气产品用户正常使用该电子电气产品 不会对环境造成严重 污染或对其人身、财产造成严重损害的 期限。 ٛ൰፩቏ࣷ႘፣ܿಚ‫څ‬ঽࣽ஢Ļ ቏ࣷ႘፣ ‫ؠ‬਋ಚ‫څ‬ ௜২ࢊ ޹ᢢ஍‫׀‬ ޹ᢢߗ‫׀‬౰...
  • Page 9 Gaming Monitor User Guide 攎䏦䄧宨⋩㗇⾃㭿㣗䟸估㓌㖶 Declaration of the Presence Condition of the Restricted Substances Marking 姕⁁⎵䧙烉㵚㘞栗䣢☐炻✳嘇炷✳⺷炸烉ġġG24F Equipment name Type designaon (Type) 旸䓐䈑岒⍲℞⊾⬠䫎嘇 Restricted substances and its chemical symbols ╖⃫ ℕ₡戣 ⣂㹜倗劗 ⣂㹜Ḵ劗慂 戃 㰆 捀 Unit Hexavalent Polybrominated Polybrominated Lead...

  • Page 10: SaEty Precautions

    Gaming Monitor User Guide Safety Precautions Read through the ollowing Safety Precautions beore using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manuacturer. • Keep the plastic packaging bag or the product in a place that cannot be reached by children.

  • Page 11: Table Of Contents

    Quick Menu ........................24 Congure the Device Settings .................. 29 Appendices ..........................38 Specications ........................38 Supported Timing List ....................39 Troubleshooting ......................40 Basic Care .......................... 41 Notes on USB Charging ....................41 GIGABYTE Service Inormation ................. 41 - 11 -...

  • Page 12: Introduction

    Gaming Monitor User Guide INTRODUCTION Unpacking Open the upper cover o the packaging box. Then observe the unpacking label attached on the inner cover. Making sure the box is in the correct orientation, careully lay the box on the stable surace. Open the inner cover.
  • Page 13 Gaming Monitor User Guide Remove the items rom the upper EPS oam. Remove the upper EPS oam. Then you can remove the monitor rom the lower EPS oam. - 13 -...

  • Page 14: Package Contents

    Monitor Monitor Base Stand Power Cable HDMI Cable USB Cable Multilingual Installation Guide G24F DP Cable Quick Start Guide Warranty Card Note: Please keep the packaging box and packing materials or uture transportation o the monitor. - 14 -...

  • Page 15: Product Overview

    Gaming Monitor User Guide Product Overview Front View Power LED - 15 -...
  • Page 16 Gaming Monitor User Guide Rear View HDMI-1 HDMI-2 USB 3.0 HDMI-1 HDMI-2 USB 3.0 Control button Headphone jack Kensington lock USB upstream port DisplayPort USB 3.0 ports (x2) HDMI ports (x2) AC IN jack Note: HDMI, the HDMI logo and High-Denition Multimedia Interace are trademarks or registered trademarks o...

  • Page 17: Getting Started

    Gaming Monitor User Guide GETTING STARTED Installing the Monitor Base Place the monitor on the lower EPS oam, with the screen acing down. Align and slide the upper hooks on the stand into the mounting slots on the rear o the monitor. Push the locking latch orward and then release to secure the lower hooks on the stand into the mounting slots on the rear o...
  • Page 18 Gaming Monitor User Guide Lit the screw ring and turn it clockwise to secure the monitor base in place. Lit the monitor to an upright position and place it on a table. - 18 -...

  • Page 19: Adjusting The Viewing Angle

    Gaming Monitor User Guide Adjusting the Viewing Angle Note: Hold the monitor base so that the screen does not topple when you make the adjustment. Adjusting the Tilt Angle Tilt the screen orward or backward to the desired viewing angle (5˚...

  • Page 20: Installing A Wall-Mount Bracket (Optional)

    Gaming Monitor User Guide Installing a Wall-Mount Bracket (Optional) Use only the 100 x 100 mm wall mount kit recommended by the manuacturer. Place the monitor on the lower EPS oam, with the screen acing down. While pushing the locking latch orward, slide the stand backward to release the upper hooks rom the mounting slots on the rear o...

  • Page 21: Making Connections

    Gaming Monitor User Guide Making Connections HDMI-1 HDMI-2 USB 3.0 DisplayPort cable USB (A-Male to B-Male) cable HDMI cable USB cable Headphone cable Power cable - 21 -...

  • Page 22: Using The Device

    Gaming Monitor User Guide USING THE DEVICE Turning the Power On/O Power On Connect one end o the power cable to the AC IN jack at the rear o the monitor. Connect other end o the the power cable to a power outlet. Control Press the button to turn on the monitor.

  • Page 23: User ComOrt Recommendations

    Gaming Monitor User Guide User Comfort Recommendations The ollowing are some tips or comortable viewing o your monitor: • Optimal viewing distances or monitors range rom approximately 510 mm to 760 mm (20 in to 30 in). • A general guideline is to position the monitor such that the top o...

  • Page 24: Operations

    Gaming Monitor User Guide OPERATIONS Quick Menu Hot Key Control By deault, the button has been assigned with the specic unction. Note: To change the preset hot key unction, reer to the “Quick Switch” section on page 35. To access the hot key unction, do the ollowing: Control ) to enter the Black Equalizer • Move the...
  • Page 25 Gaming Monitor User Guide Control ) to enter the Picture Mode • Move the button down ( menu. Control Move the button up/down ( ) to select the Picture Mode desired option and press the Control button to conrm. Standard RTS/RPG Movie Reader...
  • Page 26 Gaming Monitor User Guide Function Key Guide Control button to display the Main menu. Press the Settings SETTING Dashboard Game Assist DASHBOARD EXIT GAME ASSIST Exit Power O POWER OFF Control Then use the button to select the desired unction and congure the related settings.
  • Page 27 Gaming Monitor User Guide Once the Dashboard conguration is complete, it will transer the system data to the SOC through the USB port and display the value o the selected unction(s) on the screen. CPU Temperature CPU Frequency CPU Fan Speed CPU Usage Rate GPU Temperature GPU Frequency...
  • Page 28 Gaming Monitor User Guide • Game Info: Congure the FPS (First Person Shooting) game related settings. √ Select Gaming Timer to select countdown timer mode. To disable this unction, set the setting to OFF. √ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time reresh rate setting.

  • Page 29: ConGure The Device Settings

    Gaming Monitor User Guide Congure the Device Settings When the Main menu appears on the screen, move the Control button ) to enter the Settings menu. up ( Note: Use the Control button to navigate through the menu and make adjustments.
  • Page 30 Gaming Monitor User Guide Item Description Super Sharpen the low resolution images. Resolution Display Mode Select the aspect ratio o the screen. • Full: Scale the input image to ll the screen. Ideal or 16:9 aspect images. • Aspect: Display the input image without geometric distortion lling as much o...
  • Page 31 Gaming Monitor User Guide Picture Congure the image related settings. Brightness Contrast Sharpness Gamma Color Temperature Gamma 3 Normal Picture Mode Standard Gaming Standard Brightness Picture Contrast Display RTS/RPG Color Vibrance System Movie Sharpness Language Reader Gamma Save Settings sRGB Color Temperature Reset All Custom 1...
  • Page 32 Gaming Monitor User Guide Item Description Color Select the color temperature. Temperature Note: Select User Dene to customize the color temperature by adjusting the red (R), green (G), or blue (B) level according to your preerence. Low Blue Light Reduce the amount o blue light exposure rom the screen.
  • Page 33 Gaming Monitor User Guide Display Congure the display screen related settings. Brightness Contrast Sharpness Gamma Color Temperature Gamma 3 Normal Picture Mode Standard Gaming Input HDMI 1 Picture Overclock HDMI 2 Display HDMI RGB PC Range DisplayPort System Overscan Language Save Settings Reset All Exit...
  • Page 34 Gaming Monitor User Guide System Congure the system related settings. Brightness Contrast Sharpness Gamma Color Temperature Gamma 3 Normal Picture Mode Standard Gaming Audio Volume Picture OSD Setting Mute Display Quick Switch System Other Settings Language Save Settings Reset All Exit Move/Adjust Enter/Confirm...
  • Page 35 Gaming Monitor User Guide Item Description Quick Switch Assign the unction o the hot keys. Available options: Aim Stabilizer, Black Equalizer, Low Blue Light, Volume, Input, Contrast, Brightness, and Picture Mode. The deault setting o the hot keys as below: D Up ( ): Black Equalizer D Down (...
  • Page 36 Gaming Monitor User Guide Language Select an available language or the OSD menu. Brightness Contrast Sharpness Gamma Color Temperature Gamma 3 Normal Picture Mode Standard Gaming English Picture 互Ṿ Display 䯑Ṿ System Deutsch Language Français Save Settings 㘶㝽嫯 Reset All Exit 한국어...
  • Page 37 Gaming Monitor User Guide Reset All Restore the monitor to its actory deault settings. Brightness Contrast Sharpness Gamma Color Temperature Gamma 3 Normal Picture Mode Standard Gaming Picture Display System Language Save Settings Reset All Exit Move/Adjust Enter/Confirm - 37 -...

  • Page 38: Appendices

    Gaming Monitor User Guide APPENDICES Specications Item Specications Panel Size 24-inch Aspect Ratio 16:9 Resolution 1920 x 1080 Reresh Rate 165Hz LED Lie 30,000 hours Pixel Pitch 0.2745(H) x 0.2745(V) Brightness 300nits (typ.) Contrast Ratio 1000:1 (typ.) Dynamic Contrast Ratio 12M:1 (typ.) Color Depth 16.7M Active Display Area...

  • Page 39: Supported Timing List

    Gaming Monitor User Guide Supported Timing List Timing List HDMI DisplayPort 640x480@60Hz 640x480@75Hz 720x480@60Hz 800x600@60Hz 800x600@75Hz 1024x768@60Hz 1024x768@75Hz 1280x720@60Hz 1280x720@120Hz 1920x1080@60Hz 1920x1080@120Hz 1920x1080@144Hz 1920x1080@165Hz - 39 -...

  • Page 40: Troubleshooting

    Gaming Monitor User Guide Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connected to the power source and the monitor. • Check the cable and plug to make sure they are not broken. • Make sure the monitor is turned on. No image appears • Make sure the monitor and the computer on the screen...

  • Page 41: Basic Care

    When the Hub is connected to a PC, these devices cannot be charged using the USB cable. Vendor Device PID/VID Apple IPad PID_129A/VID_05AC Samsung Galaxy Tab2 10.1 PID_6860/VID_04E8 Samsung GALAXY TabPro PID_6860/VID_04E8 GIGABYTE Service Information More service inormation, please visit GIGABYTE ocial website: https://www.gigabyte.com/ - 41 -...
