Gigabyte G34WQC User Manual

Gaming monitor
Hide thumbs Also See for G34WQC:
Table of Contents

Advertisement

Quick Links

G R M I N G
M O N I T O R
U S E R
G U I D E

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte G34WQC

Summary of Contents for Gigabyte G34WQC

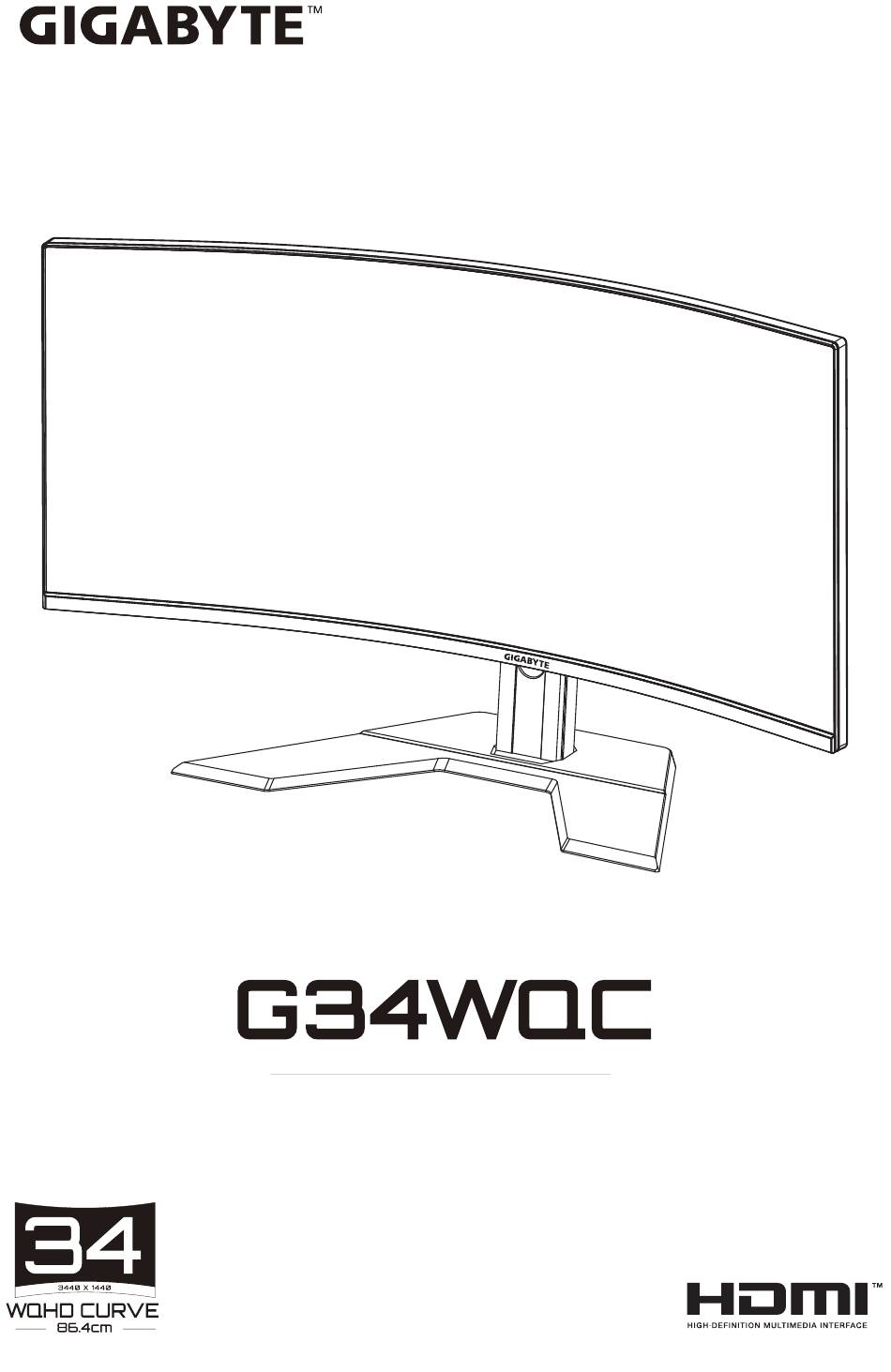

  • Page 1 G R M I N G M O N I T O R U S E R G U I D E...
  • Page 2 Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmit- ted, or published in any form or by any means without GIGABYTE’s prior written permission. •...

  • Page 3: Safety Information

    Supplier’s Declaration of Conformity 47 CFR § 2.1077 Compliance Information Product Name: LCD monitor Trade Name: GIGABYTE Model Number: G34WQC Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...

  • Page 4: Regulatory Notices

    European Union (EU) RoHS (recast) Directive 2011/65/EU & the European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and safe from hazard-ous substances (Cd, Pb, Hg, Cr , PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement.
  • Page 5 LCD Monitor User's Manual WEEE Symbol Statement The symbol shown below is on the product or on its pack- aging, which indicates that this product must not be dis- posed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
  • Page 6 LCD Monitor User's Manual CE declaração de conformidade Este producto que llevan la marca CE cumplen con las siguientes Directivas de la Unión Europea: Directiva EMC 2014/30/EU, Directiva de bajo voltaje 2014/35/EU, Directiva de Ecodiseño 2009/125/EC, Directiva RoHS 2011/65/EU y la Declaración 2015/863. El cumplimiento de estas directivas se evalúa mediante las normas europeas armonizadas.
  • Page 7 LCD Monitor User's Manual EK megfelelőségi nyilatkozata A termék megfelelnek az alábbi irányelvek és szabványok követelményeinek, azok a kiállításidőpontjában érvényes, aktuális változatában: EMC irányelv 2014/30/EU, Kisfeszültségű villamos berendezésekre vonatkozó irányelv2014/35/EU, Környezetbarát tervezésről szóló irányelv 2009/125/EK, RoHS irányelv 2011/65/EU és 2015/863. ∆ήλωση...
  • Page 8 LCD Monitor User's Manual China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终 止时，请遵守国家废弃电器电子产品回收处理相关法律法规，将其 交给当地具有国家认可的回收处理资质的厂商进行回收处理。 环保使用期限 Environment-friendly Use Period 此标识指期限（十年），电子电气产品中含有的有害物质 不会发生外泄或突变、电子电气产品用户正常使用该电子 电气产品不会对环境造成严重 污染或对其人身、财产造 成严重损害的期限。 产品中有害物质的名称及含量 : 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (PBB) (PBDE) 印刷电路板及其电 ○ ○ ○ ○...
  • Page 9 LCD Monitor User's Manual 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 設備名稱 ：液晶顯示器， 型號( 型式 )： G34WQC Equipment name Type designation (Type) 限用物質及其化學符號 Restricted substances and its chemical symbols 多溴二苯醚 六價鉻 單元 汞 Mer- Hexava- Poly- Polybrominat- 鉛...

  • Page 10: Safety Precautions

    LCD Monitor User's Manual Safety Precautions Read through the following Safety Precautions before using the moni- tor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that can- not be reached by children.

  • Page 11: Table Of Contents

    Turning the Power On/Off ..................20 User Comfort Recommendations ................21 Selecting the Input Source ..................22 OPERATIONS ..........................23 Quick Menu ........................23 Configure the Device Settings ..................27 APPENDICES ..........................37 Specifications ........................37 Supported Timing List....................38 Troubleshooting ......................39 Basic Care ..........................40 GIGABYTE Service Information .................40 -11-...

  • Page 12: Introduction

    LCD Monitor User's Manual INTRODUCTION Unpacking 1. Open the upper cover of the packaging box. Then observe the un- packing label attached on the inner cover. 2. Making sure the box is in the correct orientation, carefully lay the box on the stable surface. 3.
  • Page 13 LCD Monitor User's Manual 5. Remove the items from the upper EPS foam. 6. Remove the upper EPS foam. Then you can remove the monitor from the lower EPS foam. -13-...

  • Page 14: Package Contents

    LCD Monitor User's Manual Package Contents The following items come with your packaging box. If any of them is missing, please contact your local dealer. Monitor Monitor Base Stand Power Cable HDMI cable DP Cable Warranty Card Quick Start Guide Note: Please keep the packaging box and packing materials for future transportation of the monitor.

  • Page 15: Product Overview

    LCD Monitor User's Manual Product Overview Power LED -15-...
  • Page 16 LCD Monitor User's Manual HDMI ports (x2) AC IN jack DisplayPort port (x2) Control button Headphone jack Kensington lock -16-...

  • Page 17: Getting Started

    LCD Monitor User's Manual GETTING STARTED Installing the Monitor Base 1. Place the monitor on the lower EPS foam, with the screen facing down. 2. Align the monitor base with the two guide pins underneath the stand. Then install the base onto the stand. 3.

  • Page 18: Adjusting The Viewing Angle

    LCD Monitor User's Manual Adjusting the Viewing Angle Note: Hold the monitor base so that the screen does not topple when you make the adjustment. Adjusting the Tilt Angle Tilt the screen forward or backward to the desired viewing angle (-5° to 20°).

  • Page 19: Installing A Wall-Mount Bracket (Optional)

    LCD Monitor User's Manual Installing a Wall-Mount Bracket (Optional) Use only the 100 x 100 mm wall mount kit recommended by the manu- facturer. 1. Place the monitor on the lower EPS foam, with the screen facing down. 2. Push the locking clips inward to detach the stand from the monitor. 3.

  • Page 20: Making Connections

    LCD Monitor User's Manual Making Connections Headphone Computer Power outlet Headphone cable HDMI cable DisplayPort cable Power outlet -20-...

  • Page 21: Using The Device

    LCD Monitor User's Manual USING THE DEVICE Turning the Power On/Off Power On 1. Connect one end of the the power cable to a power outlet of the monitor. Control 2. Press the button to turn on the monitor. The Power LED will light in white, indicating the monitor is ready to use.

  • Page 22: User Comfort Recommendations

    LCD Monitor User's Manual User Comfort Recommendations The following are some tips for comfortable viewing of your monitor: • Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20” to 30”). • A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.

  • Page 23: Selecting The Input Source

    LCD Monitor User's Manual Selecting the Input Source Control 1. Move the button right ) to enter the the Input Input menu. Control 2. Move the button up/ down ( ) to select the desired input source. Then press the Control button to confirm.

  • Page 24: Operations

    LCD Monitor User's Manual OPERATIONS Quick Menu Hot Key Control By default, the button has been assigned with the specific func- tion. Note: To change the preset hot key function, refer to the “Quick Switch” section on page 34. To access the hot key function, do the following: Control •...
  • Page 25 LCD Monitor User's Manual Control • Move the button down ( ) to enter the Picture Mode menu. Control Move the button up/down ( ) to select the Picture Mode desired option and press Control button to con- Standard firm. RTS/RPG Movie Reader...
  • Page 26 LCD Monitor User's Manual Function Key Guide Control Press the button to display the Main menu. Settings GameAssist Crosshair Exit Power Off Control Then use the button to select the desired function and config- ure the related settings. GameAssist Control When the Main menu appears on the screen, move the button right (...
  • Page 27 LCD Monitor User's Manual Game Info: Configure the FPS (First Person Shooting) game related • settings. √ Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF. √ Select Refresh Rate to enable/disable real-time refresh rate setting. √...

  • Page 28: Configure The Device Settings

    LCD Monitor User's Manual Control When the Main menu appears on the screen, move the button up ( ) to enter the Settings menu. Note: Use the Control button to navigate through the menu and make adjustments. Exit Move/Adjust Button Guide Gaming Resolution Black Equalizer...
  • Page 29 LCD Monitor User's Manual Item Description Black Equalizer Adjust the brightness of the black areas. Super Resolution Sharpen the low resolution images. Display Mode Select the aspect ratio of the screen. • Full: Scale the input image to ll the screen. Ideal for 21:9 aspect images.
  • Page 30 LCD Monitor User's Manual Picture Configure the image related settings. Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 3440X1440 Gamma 3 Picture Mode Standard Gaming Standard Brightness Picture Contrast Ratio Display RTS/RPG Color Vibrance PIP/PBP Movie Sharpness System Reader Gamma Language sRGB Color Temperature...
  • Page 31 LCD Monitor User's Manual Item Description Gamma Adjust the middle level of luminance. Color Temperature Select the color temperature. Note: Select User Define to customize the color temperature by adjusting the red (R), green (G), or blue (B) level according to your preference. Low Blue Light Reduce the amount of blue light exposure from the screen.
  • Page 32 LCD Monitor User's Manual Display Configure the display related settings. Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 3440X1440 Gamma 3 Picture Mode Standard Gaming Input Picture HDMI RGB PC Range Display Overscan PIP/PBP System Language Exit Save Settings Move/Adjust Reset all Enter/Confirm Item...
  • Page 33 LCD Monitor User's Manual PIP/PBP Configure multi-image related settings. Brightness Contrast Sharpness Gamma Color Temp. Normal Gamma 3 Picture Mode Standard Gaming Picture Display PIP/PBP System Language Save Settings Exit Reset all Move/Adjust Enter/Confirm Item Description Disable PIP/PBP function. Divide the screen into two parts (main window and in- serted window) •...
  • Page 34 LCD Monitor User's Manual System Configure the system related settings. Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 3440X1440 Gamma 3 Picture Mode Standard Gaming Audio Volume Picture OSD Settings Mute Display Quick Switch PIP/PBP Other Settings System Language Exit Save Settings Move/Adjust Reset all...
  • Page 35 LCD Monitor User's Manual Item Description Quick Switch Assign the function of the hot keys. Available options: Aim Stabilizer, Black Equalizer, Low Blue Light, Volume, Input, Contrast, Bright- ness, and Picture Mode. The default setting of the hot keys as below: D Up ( ): Black Equalizer D Down (...
  • Page 36 LCD Monitor User's Manual Language Language-related settings Brightness Contrast Sharpness Gamma Color Temp. Normal Gamma 3 Picture Mode Standard Gaming Picture Display PIP/PBP System Language Save Settings Exit Reset all Move/Adjust Enter/Confirm Item Description Language Select an available language for the OSD menu. -36-...
  • Page 37 LCD Monitor User's Manual Save Settings Set the personalized OSD configurations for Setting1, Setting2, or Setting3. Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 3440X1440 Gamma 3 Picture Mode Standard Gaming Setting1 Picture Setting2 Display Setting3 PIP/PBP System Language Exit Save Settings Reset all Move/Adjust...

  • Page 38: Appendices

    LCD Monitor User's Manual APPENDICES Specifications Item Specifications Panel Size 34-inch Aspect Ratio 21:9 Resolution 3440 x 1440 Refresh Rate 144Hz LED Life 30000 hours (min.) Pixel Pitch 0.23175(H) x 0.23175(V) (mm) Response Time 1ms (MPRT) Brightness 350nits (typ.) / 320nits (min.) Contrast Ratio 3000:1 (typ.) Dynamic Contrast Ratio 12M:1 (typ.)

  • Page 39: Supported Timing List

    LCD Monitor User's Manual Supported Timing List Timing List HDMI 640x480@60Hz √ √ 640x480@75Hz √ √ 720x480@60Hz √ √ 800x600@60Hz √ √ 800x600@75Hz √ √ 1024x768@60Hz √ √ 1024x768@75Hz √ √ 1280x720@60Hz √ √ 1280x720@120Hz √ √ 1440x900@60Hz √ √ 1600x900@60Hz √...

  • Page 40: Troubleshooting

    LCD Monitor User's Manual Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connect- ed to the power source and the monitor. • Check the cable and plug to make sure they are not broken. •...

  • Page 41: Basic Care

    Make sure that the cloth is damp, but not wet. • When wiping, avoid applying excessive pressure on the screen. • Acidic or abrasive cleaners can damage the screen. GIGABYTE Service Information More service information, please visit GIGABYTE official website: https://www.gigabyte.com/ -41-...
