Gigabyte G27F User Manual

Gaming monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

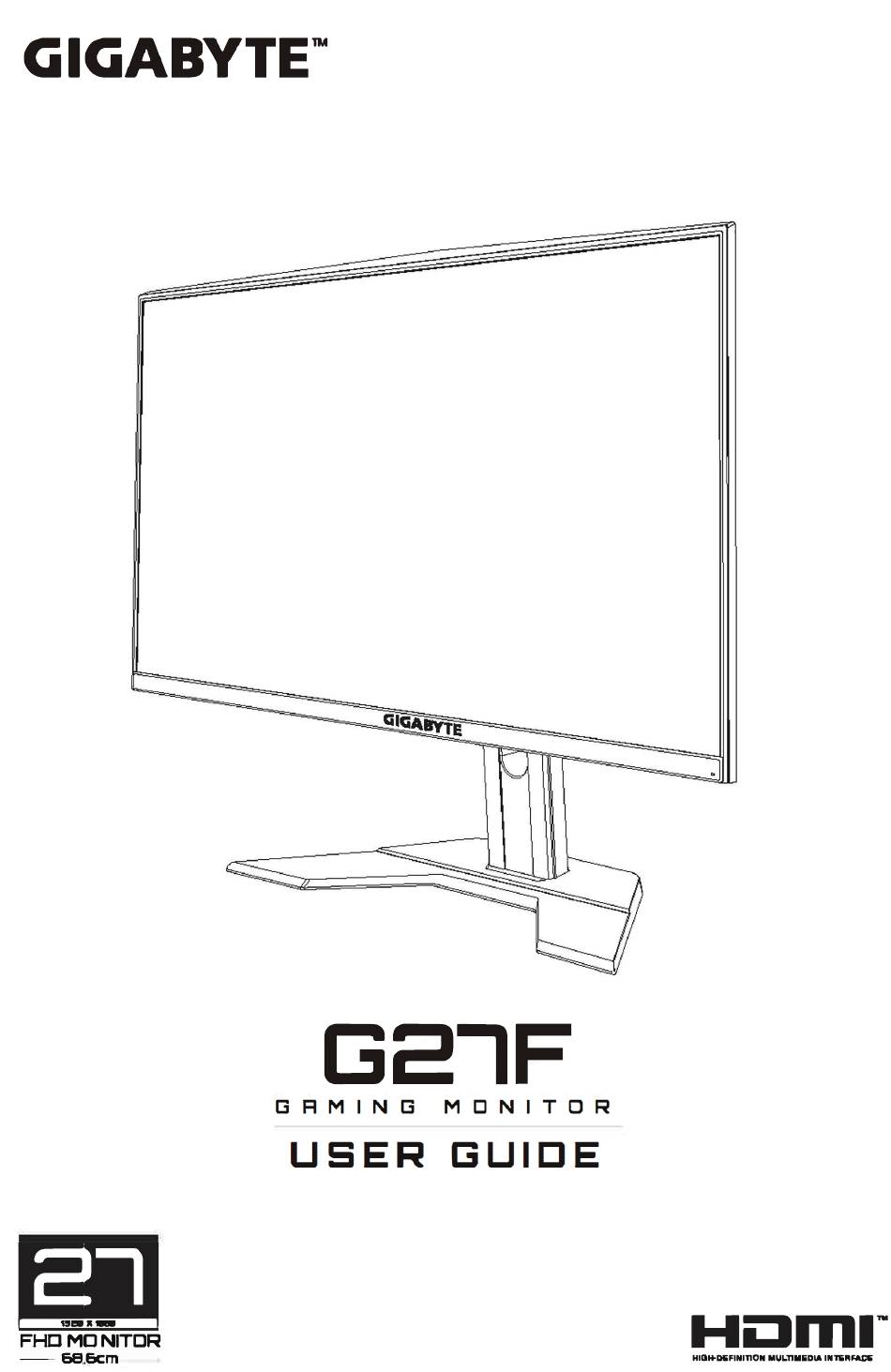

LCD Monitor User's Manual
G R M I N G
M O N I T O R
U S E R
G U I D E
-1-

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte G27F

Summary of Contents for Gigabyte G27F

  • Page 1 LCD Monitor User's Manual G R M I N G M O N I T O R U S E R G U I D E...
  • Page 2 GIGABYTE. Changes to the specifications and features in this manual may be made by GIGABYTE without prior notice. No part of this manual may be reproduced, copied, translated, transmitted, or published in any form or by any means without GIGABYTE’s prior written permission.

  • Page 3: Safety Information

    Supplier’s Declaration of Conformity 47 CfR § 2.1077 Compliance Information Product Name: LCD monitor Trade Name: GIGABYTE Model Number: G27F Responsible Party – U.S. Contact Information: G.B.T. Inc. Address: 17358 Railroad street, City Of Industry, CA91748 Tel.: 1-626-854-9338 Internet contact information: https://www.gigabyte.com...
  • Page 4 European Commission Delegated Directive (EU) 2015/863 Statement GIGABYTE products have not intended to add and safe from hazardous substances (Cd, Pb, Hg, Cr+6, PBDE, PBB, DEHP, BBP, DBP and DIBP). The parts and components have been carefully selected to meet RoHS requirement.
  • Page 5 LCD Monitor User's Manual WEEE Symbol Statement The symbol shown below is on the product or on its pack- aging, which indicates that this product must not be dis- posed of with other waste. Instead, the device should be taken to the waste collection centers for activation of the treatment, collection, recycling and disposal procedure.
  • Page 6 LCD Monitor User's Manual CE declaração de conformidade Este produto com a marcação CE estão em conformidade com das seguintes Diretivas UE: Diretiva Baixa Tensão 2014/35/EU; Diretiva CEM 2014/30/EU; Diretiva Conceção Ecológica 2009/125/CE; Diretiva RSP 2011/65/UE e a declaração 2015/863. A conformidade com estas diretivas é...
  • Page 7 LCD Monitor User's Manual China RoHS Compliance Statement 中国《废弃电器电子产品回收处理管理条例》提示性说明 为了更好地关爱及保护地球，当用户不再需要此产品或产品寿命终 止时，请遵守国家废弃电器电子产品回收处理相关法律法规，将其 交给当地具有国家认可的回收处理资质的厂商进行回收处理。 环保使用期限 Environment-friendly Use Period 此标识指期限（十年），电子电气产品中含有的有害物质 不会发生外泄或突变、电子电气产品用户正常使用该电子 电气产品不会对环境造成严重 污染或对其人身、财产造 成严重损害的期限。 产品中有害物质的名称及含量 : 有害物质 部件名称 铅 汞 镉 六价铬 多溴联苯 多溴二苯醚 (Pb) (Hg) (Cd) (Cr+6) (PBB) (PBDE) 印刷电路板及其电 ○ ○ ○...
  • Page 8 LCD Monitor User's Manual 限用物質含有情況標示聲明書 Declaration of the Presence Condition of the Restricted Substances Marking 液晶顯示器型號 ( 型式 ): G27F 設備名稱 : Equipment name: Typedesignation (Tape): 限用物質及其化學符號 Restricted substances and its chemical symbols 單元 多溴二苯醚 Poly- 六价铬 汞 Mer- 多溴联苯 Poly- 铅...

  • Page 9: Safety Precautions

    LCD Monitor User's Manual Safety Precautions Read through the following Safety Precautions before using the monitor. • Only use the accessories that are provided with the monitor or that which are recommended by the manufacturer. • Keep the plastic packaging bag for the product in a place that cannot be reached by children.

  • Page 10: Table Of Contents

    User Comfort Recommendations ................21 Selecting the Input Source ..................22 OPERATIONS ..........................23 Quick Menu ........................23 Configure the Device Settings ..................28 APPENDICES ..........................37 Specifications ........................37 Supported Timing List....................38 Troubleshooting ......................39 Basic Care ..........................40 Notes on USB Charging ....................40 GIGABYTE Service Information .................40 -10-...

  • Page 11: Introduction

    LCD Monitor User's Manual INTRODUCTION Unpacking 1. Open the upper cover of the packaging box. Then observe the unpacking label attached on the inner cover. 2. Making sure the box is in the correct orientation, carefully lay the box on the stable surface. 3.
  • Page 12 LCD Monitor User's Manual 5. Remove the items from the upper EPS foam. 6. Remove the upper EPS foam. Then you can remove the monitor from the lower EPS foam. -12-...

  • Page 13: Package Contents

    HDMI Cable USB Cable Multilingual Installation Guid e G27F Read this manual carefully before you use this machine and keep it handy for future reference. For safe and correct use, be sure to read the Safety Precautions in the User’s Manual before using the machine.

  • Page 14: Product Overview

    LCD Monitor User's Manual Product Overview front View Power LED -14-...
  • Page 15 LCD Monitor User's Manual Rear View USB upstream port DisplayPort USB 3.0 ports (x2) Headphone jack DC IN jack Control button HDMI ports (x2) Kensington lock -15-...

  • Page 16: Getting Started

    LCD Monitor User's Manual GETTING STaRTED Installing the Monitor Base 1. Place the monitor on the lower EPS foam, with the screen facing down. 2. Align the monitor base with the two guide pins underneath the stand. Then install the base onto the stand. 3.

  • Page 17: Adjusting The Viewing Angle

    LCD Monitor User's Manual adjusting the Viewing angle Note: Hold the monitor base so that the screen does not topple when you make the adjustment. adjusting the Tilt angle Tilt the screen forward or backward to the desired viewing angle (-5° to 20°).

  • Page 18: Installing A Wall-Mount Bracket (Optional)

    LCD Monitor User's Manual Installing a Wall-Mount Bracket (Optional) Use only the 100 x 100 mm wall mount kit recommended by the manu- facturer. 1. Place the monitor on the lower EPS foam, with the screen facing down. 2. Push the locking clips inward to detach the stand from the monitor. 3.

  • Page 19: Making Connections

    LCD Monitor User's Manual Making Connections Headphone Computer Keyboard Mouse Computer disk drive Headphone cable USB (A-Male to B-Male) cable HDMI cable USB cable DisplayPort cable -19-...

  • Page 20: Using The Device

    LCD Monitor User's Manual USING THE DEVICE Turning the Power On/Off Power 1. Connect one end of the power cable to the adapter and connect the output cable of the adapter to the DC IN jack of the monitor. 2. Connect other end of the the power cable to a power outlet. Control 3.

  • Page 21: User Comfort Recommendations

    LCD Monitor User's Manual User Comfort Recommendations The following are some tips for comfortable viewing of your monitor: • Optimal viewing distances for monitors range from approximately 510 mm to 760 mm (20” to 30”). • A general guideline is to position the monitor such that the top of the screen is at or slightly below your eye-height when you are comfortably seated.

  • Page 22: Selecting The Input Source

    LCD Monitor User's Manual Selecting the Input Source Control 1. Move the button right ) to enter the the Input Input menu. Control 2. Move the button up/ down ( ) to select the desired input source. Then press the Control button to confirm.

  • Page 23: Operations

    LCD Monitor User's Manual OPERaTIONS Quick Menu Hot Key Control By default, the button has been assigned with the specific function. Note: To change the preset hot key function, refer to the “Quick Switch” section on page 34. To access the hot key function, do the following: Control •...
  • Page 24 LCD Monitor User's Manual Control • Move the button down ( ) to enter the Picture Mode menu. Control Move the button Picture Mode up/down ( ) to select the desired option and press Standard Control button to con- firm. RTS/RPG Movie Reader...
  • Page 25 LCD Monitor User's Manual function Key Guide Control Press the button to display the Main menu. Settings Dashboard GameAssist Exit Power Off Control Then use the button to select the desired function and configure the related settings. Dashboard Control When the Main menu appears on the screen, move the button left ( ) to enter the Dashboard menu.
  • Page 26 LCD Monitor User's Manual Once the Dashboard configuration is complete, it will transfer the system data to the SOC through the USB port and display the value of the selected function(s) on the screen. CPU Temperature CPU frequency CPU fan Speed CPU Usage Rate GPU Temperature GPU frequency...
  • Page 27 LCD Monitor User's Manual Game Info: Configure the FPS (First Person Shooting) game related • settings. √ Select Gaming Timer to select countdown timer mode. To disable this function, set the setting to OFF. √ Select Gaming Counter or Refresh Rate to enable/disable the gaming counter or real-time refresh rate setting.

  • Page 28: Configure The Device Settings

    LCD Monitor User's Manual Configure the Device Settings Control When the Main menu appears on the screen, move the button up ( ) to enter the Settings menu. Note: Use the Control button to navigate through the menu and make adjustments.
  • Page 29 LCD Monitor User's Manual Item Description Black Equalizer Adjust the brightness of the black areas. Super Resolution Sharpen the low resolution images. Display Mode Select the aspect ratio of the screen. • Full: Scale the input image to fill the screen. Ideal for 16:9 aspect images.
  • Page 30 LCD Monitor User's Manual Picture Configure the image related settings. Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 1902x1080 Gamma 3 Picture Mode Standard Gaming Standard Brightness Picture Contrast Ratio Display RTS/RPG Color Vibrance System Movie Sharpness Language Reader Gamma Save Settings sRGB Color Temperature...
  • Page 31 LCD Monitor User's Manual Item Description Gamma Adjust the middle level of luminance. Color Temperature Select the color temperature. Note: Select User Define to customize the color temperature by adjusting the red (R), green (G), or blue (B) level according to your preference. Low Blue Light Reduce the amount of blue light exposure from the screen.
  • Page 32 LCD Monitor User's Manual Display Configure the display related settings. Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 1902x1080 Gamma 3 Picture Mode Standard Gaming Input Picture HDMI RGB PC Range Display Overscan System Language Save Settings Exit Reset all Move/adjust Enter/Confirm Item...
  • Page 33 LCD Monitor User's Manual System Configure the system related settings. Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 1902x1080 Gamma 3 Picture Mode Standard Gaming audio Volume Picture OSD Settings Mute Display Quick Switch System Other Settings Language Save Settings Exit Reset all Move/adjust...
  • Page 34 LCD Monitor User's Manual Item Description Quick Switch Assign the function of the hot keys. Available options: Aim Stabilizer, Black Equalizer, Low Blue Light, Volume, Input, Contrast, Bright- ness, and Picture Mode. The default setting of the hot keys as below: D Up( ):Black Equalizer D Down(...
  • Page 35 LCD Monitor User's Manual Language Language-related settings Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 1902x1080 Gamma 3 Picture Mode Standard Gaming English English Picture Display System Deutsch Language Français Save Settings Exit Reset all Move/adjust Enter/Confirm Item Description Language Select an available language for the OSD menu.
  • Page 36 LCD Monitor User's Manual Save Settings Set the personalized OSD configurations for Setting1, Setting2, or Setting3. Resolution Brightness Contrast Sharpness Gamma Color Temp. Normal 1902x1080 Gamma 3 Picture Mode Standard Gaming Setting1 Picture Setting1 Display Setting1 System Language Save Settings Exit Reset all Move/adjust...

  • Page 37: Appendices

    LCD Monitor User's Manual aPPENDICES Specifications Item Specifications Panel Size 27-inch Aspect Ratio 16:9 Resolution 1920 x 1080 Refresh Rate 144Hz LED Life 30000 hours (min.) Pixel Pitch 0.31125 x 0.31125 Response Time 1ms (MPRT) Brightness 300nits (typ.) / 250nits (min.) Contrast Ratio 1000:1 (typ.) Dynamic Contrast Ratio 12M:1 (typ.)

  • Page 38: Supported Timing List

    LCD Monitor User's Manual Supported Timing List Timing List HDMI 640x480@60Hz √ √ 640x480@75Hz √ √ 720x480@60Hz √ √ 800x600@60Hz √ √ 800x600@75Hz √ √ 1024x768@60Hz √ √ 1024x768@75Hz √ √ 1280x720@60Hz √ √ 1280x720@120Hz √ √ 1280x720@144Hz √ √ 1920x1080@60Hz √...

  • Page 39: Troubleshooting

    LCD Monitor User's Manual Troubleshooting Problem Possible Solution(s) No power • Make sure the power cable is properly connected to the power source and the monitor. • Check the cable and plug to make sure they are not broken. • Make sure the monitor is turned on. •...

  • Page 40: Basic Care

    When the Hub is connected to a PC, these devices cannot be charged using the USB cable. Vendor Device PID/VID Apple IPad PID_129A/VID_05AC Samsung Galaxy Tab2 10.1 PID_6860/VID_04E8 Samsung GALAXY TabPro PID_6860/VID_04E8 GIGaByTE Service Information More service information, please visit GIGABYTE official website: https://www.gigabyte.com/ -40-...
