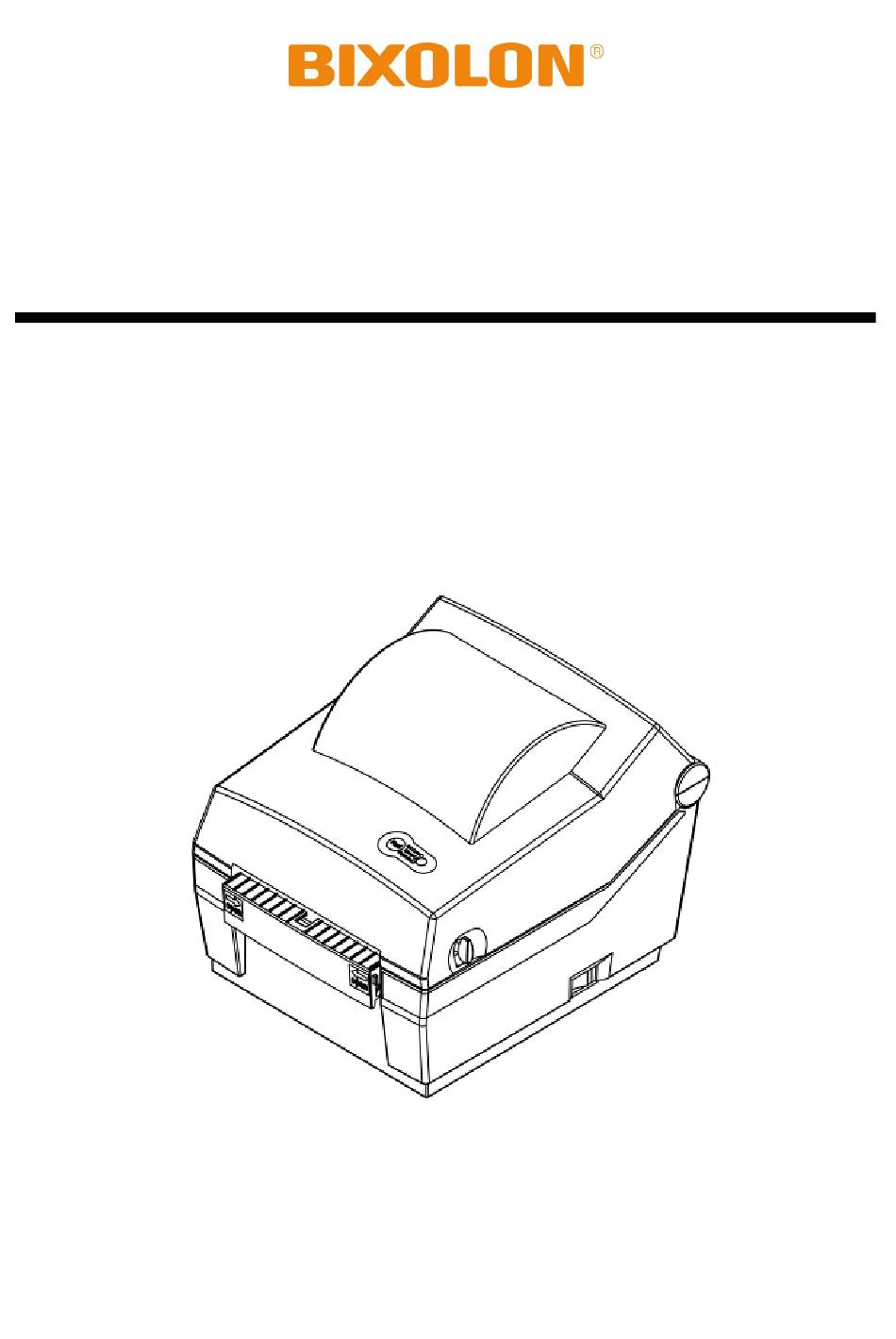

User's Manual
SRP-770III
Rev. 1.01
http://www.bixolon.com

Advertisement

Table of Contents
loading

Related Manuals for BIXOLON SRP-770III

Summary of Contents for BIXOLON SRP-770III

  • Page 1 User's Manual SRP-770III Rev. 1.01 http://www.bixolon.com...

  • Page 2: Table Of Contents

    SRP-770III ■ Table of Contents ※ Manual Information & Usage Precautions ························································ 3 1. Content Confirmation ····················································································· 7 2. Product Part Names ······················································································· 8 3. Installation & Usage ······················································································ 10 3-1 Power Connection ······················································································· 10 3-2 Interface Cable Connection ··········································································· 11 3-3 Paper Installation ························································································...

  • Page 3: Manual Information & Usage Precautions

    This manual provides information on the usage of the Windows PC program that can make labels by adding text, graphics, or barcodes at desired positions. We at BIXOLON maintain ongoing efforts to enhance and upgrade the functions and quality of all our products. In following, product specifications and/or user manual content may be changed without prior notice.
  • Page 4 SRP-770III ■ Safety Precautions In using the present appliance, please keep the following safety regulations in order to prevent any hazard or material damage. WARNING Violating following instructions can cause serious injury or death. Do not plug several products in one multi-outlet.
  • Page 5 SRP-770III CAUTION Violating following instructions can cause slight wound or damage the appliance. If you observe a strange smoke, odor or noise from Be careful not to get your fingers pinched when the printer, unplug it before taking following opening or closing the paper cover. Also be careful measures.
  • Page 6 This manual has been prepared with utmost care and attention to detail but may contain certain errors and/or omissions. BIXOLON Co., Ltd. is not legally liable for any damages resulting from the use of the information in this manual. BIXOLON Co., Ltd. and its affiliates are not legally liable for any damages, loss, costs,...

  • Page 7: Content Confirmation

    SRP-770III 1. Content Confirmation The following items should all be contained in the printer package. Contact the dealer from which the purchase was made if any item is damaged and/or missing. SRP-770III Power Cord AC Adapter Quick Manual ※ Optional items...

  • Page 8: Product Part Names

    SRP-770III 2. Product Part Names Feed Button Power Switch Cover Peel-off Cover Lever Printer Head Paper Cover Paper Holder Paper Gap Sensor Paper Guide Peel-off Sensor - 8 - Rev. 1.01...
  • Page 9 SRP-770III Fan-Fold RS-232C (Serial) Power Jack IEEE1284 (Parallel) - 9 - Rev. 1.01...

  • Page 10: Installation & Usage

    SRP-770III 3. Installation & Usage 3-1 Power Connection Connect power to the printer as shown below. AC Adapter Power Switch Power Cord 1) Turn off the printer power switch. 2) Check to see that the AC adapter voltage matches that of the power source.

  • Page 11: Interface Cable Connection

    SRP-770III 3-2 Interface Cable Connection 3-2-1 Standard Model Connect the interface cable as shown below. This printer supports the following communications interface standards. - RS-232C (Serial) - IEEE1284 (Parallel) - USB B-Type Cable USB B-Type Cable RS-232 (Serial) Cable IEEE1284 (Parallel) Cable 1) Turn off the power switch.
  • Page 12 SRP-770III 3-2-2 Ethernet Model Connect the interface cable as shown below. This printer supports the following communications interface standards. - RS-232C (Serial) - LAN(Ethernet) Cable - USB Host - USB B-Type Cable USB B-Type Cable RS-232 (Serial) Cable USB Host LAN(Ethernet) Cable 1) Turn off the power switch.

  • Page 13: Paper Installation

    SRP-770III 3-3 Paper Installation 1) Open the Paper Cover. 2) Spread the paper holder and insert paper as shown. Paper Cover Paper Holder 3) Whether the paper label is wound 4) Adjust the paper guide to the width of inwards or outwards, its printing the paper.

  • Page 14: Led Display

    SRP-770III 3-4 LED Display Feed button Paper feed or cancel the print job. The current printer status can be viewed. (Refer to below) The current printer status can be viewed via the printer’s LED display. 1) Green LED on - The printer waits for the data from Host (PC) in normal mode.

  • Page 15: Feed Button Operations

    SRP-770III 3-5 Feed Button Operations Feed Button can be used for various purposes as follows. 1) Feed Label In Print Standby mode, pressed for shorter than 3 seconds, the printer feed one label. 2) Stand-alone Configuration Mode In Print Standby mode, pressed for longer than 3 seconds, the printer enters into Stand- alone Configuration Mode.

  • Page 16: Detailed Features

    SRP-770III 5. Detailed features 5-1 Stand-alone Configuration Mode Various modes can be executed by using button and LED status. Please take following steps to start Stand-alone Configuration Mode and execute each function. 1) Make sure that a printer is in Print Standby Mode.

  • Page 17: Pause/Resume

    SRP-770III 5-3 Pause/Resume Press FEED button to pause at the middle of labels printing. 1) Press FEED once. 2) Printer stops after on-going printing and Red LED becomes on. 3) Press FEED once again. It resumes printing in a queue.

  • Page 18: Gap Sensor Manual-Calibration

    The utility can be obtained from the enclosed CD or downloaded from the Internet via the BIXOLON website www.bixolon.com Please make sure the printer is connected and execute the utility program. Please the Calibration Setting Manager Button after setting the interface type.

  • Page 19: Data Dump Mode

    SRP-770III 5-6 Data Dump Mode This function can be used to diagnose the communication issues when the printer does not work correctly. In this mode, the received data are not analyzed and printed, instead they are dumped in hex format without processing.
  • Page 20 SRP-770III 3) Remove the paper and insert the paper through the slot. Remove 4) Adjust the paper guides and close the cover. ( O ) ( X ) 5) Close the Paper Cover until a click sound is heard. 6) Turn the printer off and back on.

  • Page 21: Using Fan-Fold Paper

    SRP-770III 5-8 Using Fan-Fold Paper Supplying paper to the printer externally is done as follows. 1) Insert the paper at the rear of the printer and then open the Paper Cover. 2) Adjust Paper Holders to the paper width 3) Adjust Paper Guides and close the Paper by using the Fix Tool.

  • Page 22: Cleaning Head

    SRP-770III 6. Cleaning Head Printing quality might be degraded by dust, foreign substance, adhesive substance, or other pollution materials stuck in the printer head or inside the printer. When dirty, clean the print head as follows: ※ CAUTION - Make sure to turn the printer power off prior to cleaning.

  • Page 23: Replacing Roller

    SRP-770III 6-2 Replacing Roller 1) Open the Paper Cover and remove the paper. 2) Use some tool such as a flat-head screwdriver to rotate ‘Bush Roller’ to forward direction until seeing lever. Lever Bush Roller 3) Remove ‘Bush Roller’ from a printer by holding up lever on it.

  • Page 24: Cleaning Sensors, Roller Or/And Paper Path

    SRP-770III 6-3 Cleaning Sensors, Roller or/and Paper Path 1) Open the Paper Cover and remove the paper. 2) Remove any dust or foreign substance using dry cloth or cotton swab. 3) Soak the cloth or cotton swab in alcohol for medical use and use it to remove adhesive foreign substances or other pollution materials.

  • Page 25: Appendix

    SRP-770III 7. Appendix 7-1 Specifications Item Description Printing Method Direct Thermal Printing Dot Density 203 dpi (8 dot/mm) Printer Max. 104 mm(Max. 4.09”) Printing Width Printing Speed Max. 127 mm/sec(Max. 5ips) 42 ~ 106mm(1.65 ~ 4.17”) Paper Roll Width SMPS Input Voltage...
