User Guide
User Guide

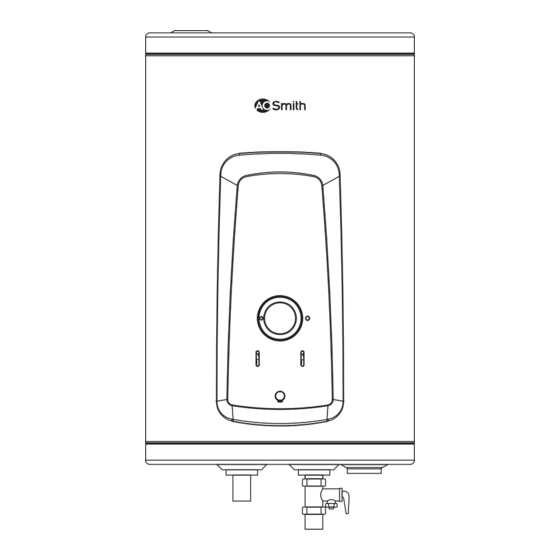

Water Heater
HSE-VAS 15, 25, 35 and 50 Litres
Advertisement
Table of Contents
Related Manuals for A.O. Smith HSE-VAS-025
Summary of Contents for A.O. Smith HSE-VAS-025

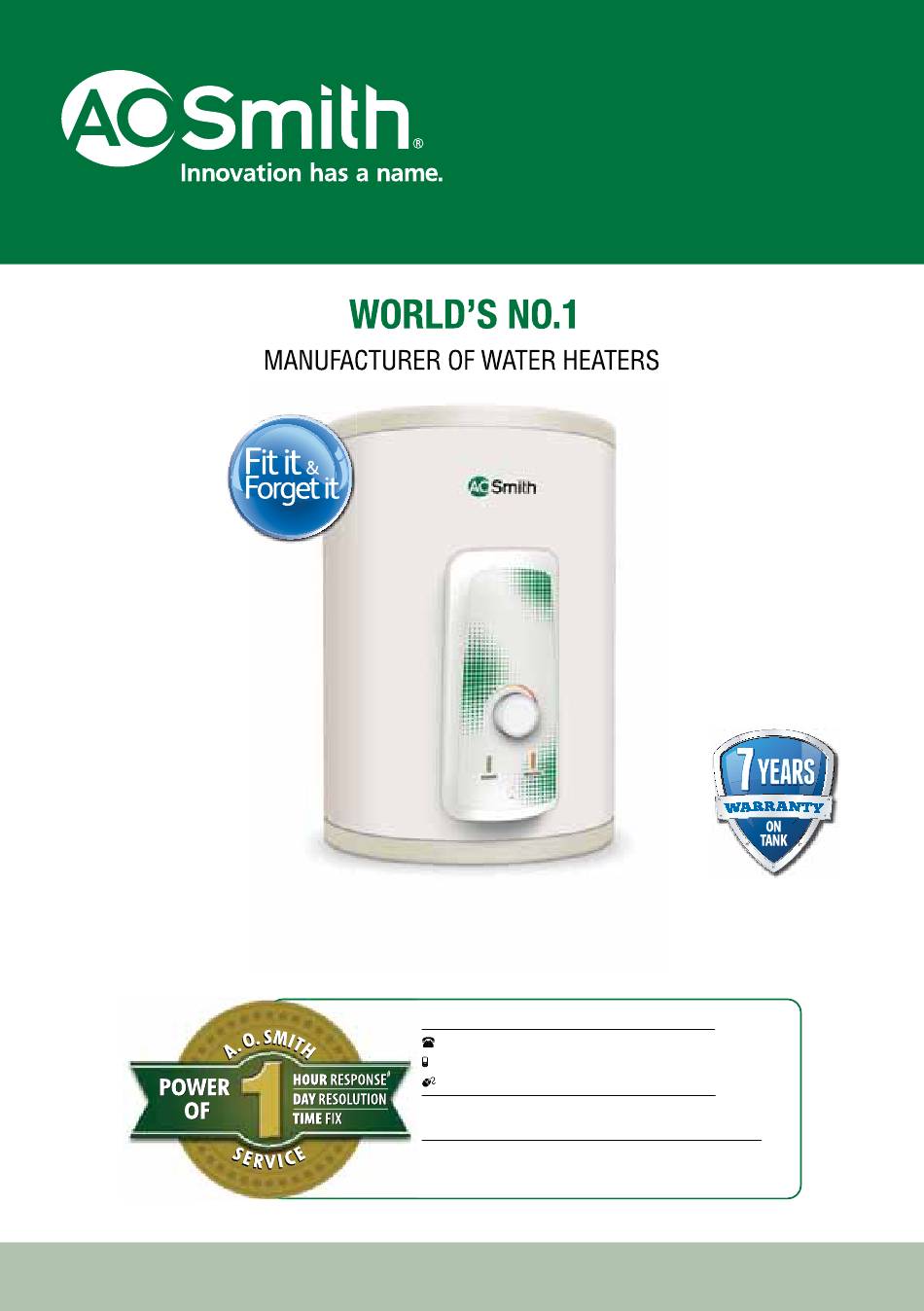

- Page 1 Water Heater HSE-VAS 15, 25, 35 and 50 Litres Higher energy rating. Longer warranties. E X P E R T S E R V I C E 1800-103-2468/1860-500-2468 +91 99410 32468 (Send SMS) or aosmithcs@aosmithindia.com Monday to Friday: 9 am to 8 pm. Saturday &...
- Page 2 Congratulations! And welcome to the A. O. Smith family. We would like to thank you for the trust you have shown in choosing an A. O. Smith water heater. You can be sure it will live up to your expectations. Thousands of delighted users all over the world trust A.
-
Page 3: Table Of Contents
What's in the box? Electric User Guide Mounting Water Heater Accessories Multi-function Discharge Tube Safety Valve Contents Read Before Operation............1 General .................. 2 Specifications ................ 3 Key Features ................5 Safety Precautions..............6 Installation ................6 Connecting Multi-function Safety Valve ....... 8 Connecting to Water Supply.......... -
Page 4: Read Before Operation
Read Before Operation On Receipt It is our policy to promote safe delivery of all orders. This product shipment has been thoroughly checked, packed and quality certified before leaving our factory. Visible Loss or Damage If any of the goods called for on the bill of lading or express receipt are damaged or the quantity is short, do not accept them until the freight or express delivery agent makes an appropriate notation on your freight bill or receipt. -
Page 5: General
General Safety Your safety and the safety of your loved ones is paramount. There are several safety related messages in this manual, which have been provided during various steps such as the installation, operation and maintenance of your HSE-VAS water heater. These messages point out potential hazards and also educate on how to reduce any potential risks. -
Page 6: Specifications
Specifications Model (Vertical Wall Mounted) HSE-VAS-015 HSE-VAS-025 HSE-VAS-035 HSE-VAS-050 Volume [L] Power [W] 2000 Voltage/Frequency [V/Hz] 230~/50 Actual Stdg. Loss 0.450 0.540 0.615 0.724 [kWh/24h/45°C diff.] Reheating Time for 35ºC rise [in min.] Temperature range [ºC] 25-75* Rated water N/cm... - Page 7 Figure 2 With Service Cover Without Service Cover Part Description Service Cover Temperature Control Knob Power indicator lamp Heating indicator lamp Anode Cold water inlet pipe with diffuser Hot water outlet pipe Blue Cap Red Cap Thermal Cut-out Thermostat Heating Element Wall Mount Bracket Support...
-
Page 8: Key Features
Key Features Blue Diamond ® Glass Lining Blue Diamond ® technology increases the life of the inner tank. The lining is stronger and more corrosion resistant than any other in the industry. Glass Coated Heating Element Scale and sediment build-up on the surface of the element can lead to prema- ture failure. -
Page 9: Safety Precautions
Safety Precautions During Installation Do not install the water heater where there is Do not install the water heater where water direct sunlight or rain. It is has to be installed splashes on the water heater. indoor only. Figure 4 Figure 3 CAUTION CAUTION... - Page 10 Mounting the Water Heater It is recommended as per IS302-1 to have 6inches clearance from wall. 3-1/2ft. (approx.) from a 230V electrical outlet with proper grounding. Select a place to mount water heater vertically with water connection at the bottom. at least twice the weight of the water heater when completely filled with Figure 6...
-
Page 11: Connecting Multi-Function Safety Valve
Place the water heater on the Hanging screw Figure 10 Hanging through wall mount bracket. (Fig. 10) Screw Wall mount bracket Tug downwards on the water heater to ensure that the water heater is fixed steadily. Water Heater Wall Concrete Wall Water Heater... - Page 12 Connect one end of the discharge tube to Figure 13 the Multi-function Safety valve and connect the other end to the drain. Blue Cap Multi-function Safety Valve Discharge Tube To Drain Note: The Multi-function Safety valve may drip during the usage of the heater. As the water is heated, it expands and tries to flowback through the inlet pipe but is prevented by the presence of the non-return valve.
-
Page 13: Connecting To Water Supply
Connecting to Water Supply to the Installation Diagram. (Fig. 14) Steel (SS) braided hoses (Flexible Hoses) having a minimum pressure rating of 8 Bar and hoses should be compatible for Blue Cap hot water applications. **Multi-function Safety valve Discharge Lever [Blue Cap]. -
Page 14: Operation
Operation Filling the Water Heater Tank 1. Open a nearby hot water faucet to permit Figure 15 air to escape. 2. Open the cold water inlet valve fully, filling the water heater and the piping. 3. Close hot water faucet when water flows. 4. -
Page 15: Temperature Conrol Knob
Temperaute Conrol Knob Switch on the water heater’s power supply. Figure 17 The Power indicator lamp glows. Temperature setting Turn the Temperature control knob clockwise for the device to commence heating and change the set temperature. The Heating indicator lamp will glow. [The set temperature increases if the Temperature control knob is turned clockwise]. - Page 16 Draining the Water Heater Tank Whenever the water heater is not used for an Figure 20 extended period, unplug the unit and drain. If Multi-function it is below freezing temperature, you will Safety Valve Port need to unplug the unit and drain it. Discharge Lever Switch OFF the electric supply to the water heater.
-
Page 17: Troubleshooting
Troubleshooting The water heater may not operate as desired if used incorrectly or there is a minor cause, even though the product has no fault. In these cases, check the following issues to solve simple problems without the help from the Customer care centre. If the problem does not solve after checking the following issues, call Customer care centre. -
Page 18: Circuit Diagram
Circuit Diagram Figure 21 Thermostat Thermal Cutout Green Brown Green/Yellow Green light Red light Element Tank+Body Black Black... -
Page 19: Warranty
Warranty Product Warranty Your A. O. Smith water heater is warranted against defects arising from faulty design, workmanship and materials for a period of 24 months from the date of the invoice, subject to the following conditions: 1. The customer will notify the Company promptly about defects noticed and give the Company or its Authorised service provider Warranty adequate opportunity to inspect, test and remedy them, for... -
Page 20: Jurisdiction
General Terms of Warranty 1. The “goods” shall mean the goods described in the purchase agreement. 2. “The customer” shall mean the original purchaser under the purchase agreement. 3. “The Company” shall mean A. O. Smith India Water Products Private Limited. 4. - Page 21 Warranty Card Customer Copy to be retained by the Customer Invoice Number: ___________________________ Dated: _________________________ Unit Serial Number: __________________________________ Model: _________________________ Capacity: ______________________ Customer's Name and Address: ______________________________________________ ___________________________________________________________________________ ___________________________________________________________________________ Ph: _______________ Mobile: _____________________ E-mail: ___________________ Dealer’s Stamp and Signature Warranty Card Company Copy to be sent back to the Company Invoice Number: ___________________________ Dated: _________________________...
-
Page 22: Service And Maintenance
Service and Maintenance For Service needs: Please contact our A. O. Smith Customer Care No. : 1800-103-2468/1860-500-2468. SMS us : +91 99410 32468 E-mail us : aosmithcs@aosmithindia.com Registered Office A. O. Smith India Water Products Private Limited (formerly known as A. O. Smith India Water Heating Private Limited) Plot 300, Phase - II, KIADB Industrial Area, Harohalli, Kanakapura Taluk, Ramanagara District, Karnataka –... - Page 24 Manufactured by A. O. Smith India Water Products Private Limited (formerly known as A. O. Smith India Water Heating Private Limited) Plot 300, Phase - II, KIADB Industrial Area, Harohalli, Kanakapura Taluk, Ramanagara District, Karnataka – 562 112, India. Customer Care No. 1800-103-2468/1860-500-2468 Website: www.aosmithindia.com CIN: U31909KA2006PTC040282...
