114mm Newtonian Reflector Telescope
(#8734)
Instruction Manual
WARNING!
NEVER USE A TELESCOPE TO LOOK AT THE SUN!
Looking at or near the Sun will cause instant and irreversible damage to your eye.
Children should always have adult supervision while observing.
1
Advertisement
Related Manuals for iOptron N114mm OTA
Summary of Contents for iOptron N114mm OTA
- Page 1 114mm Newtonian Reflector Telescope (#8734) Instruction Manual WARNING! NEVER USE A TELESCOPE TO LOOK AT THE SUN! Looking at or near the Sun will cause instant and irreversible damage to your eye. Children should always have adult supervision while observing.

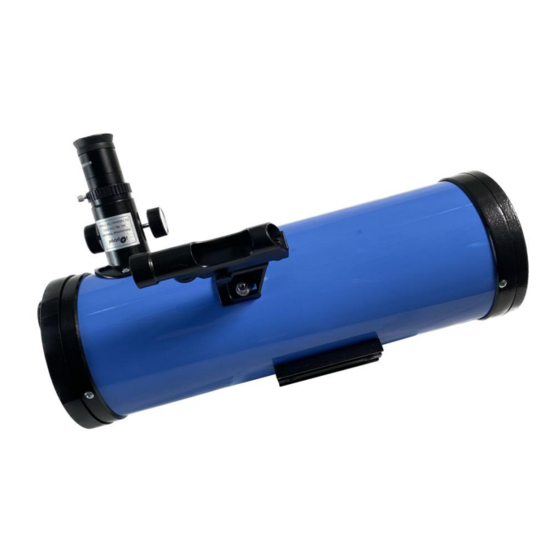

- Page 2 1. Description Eye Piece Red dot Finder Focuser Lens Cover Telescope Main Tube Dovetail Figure 1. N114 Newtomian Reflector 2. Telescope Setup The N114 telescope comes with a Vixen-type dovetail. It can be mounted onto any telescope mount that accepts a Vixen-type dovetail. Just simply release the dovetail locking knob on the dovetail saddle.
- Page 3 Dovetail lock knob Figure 2. Install the N114 telescope onto a telescope mount Attach the red dot finder scope to the telescope tube: Point toward open end of telescope Bolts Switch Figure 3. Install a red dot finder First remove the two thumb nuts from the scope body. Then place the finder scope onto the two bolts and re-attach the nuts.
- Page 4 3. Telescope Operation 3.1. Imaging Orientation The image orientation of in an N114 scope is inverted, as shown in the following. The image is upside-down and reversed from left-to-right. Practice your telescope mount on the moving directions during the day time. Actual image Inverted image, as orientation as seen...
- Page 5 Mow you have the red dot finder aligned to the main telescope. Use the red dot to find the object and it should also located into your main scope. 4. Specifications: Product Name iOptron N114mm OTA (#8734) Optical Design Newtonian Reflector Clear Aperture...
