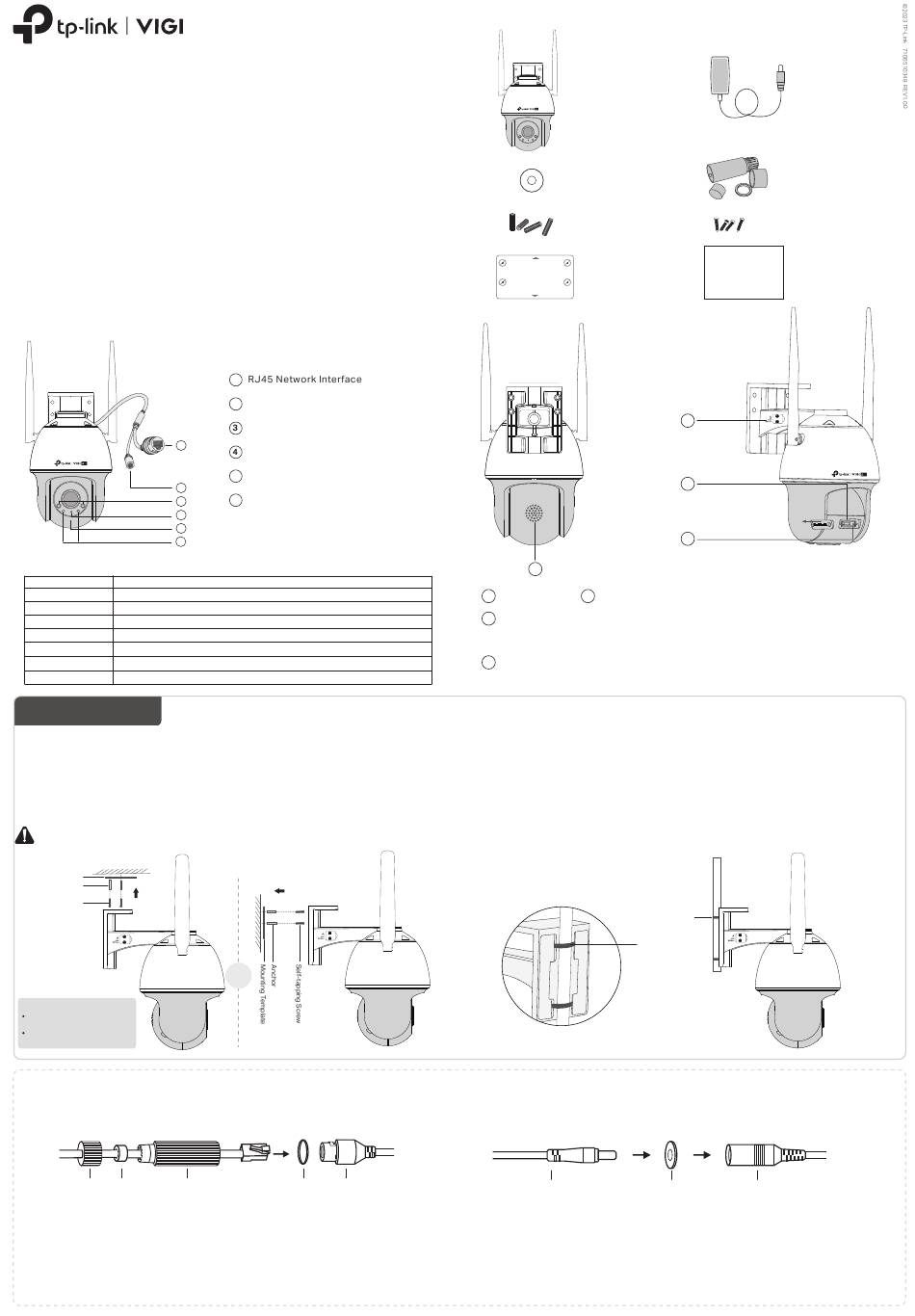

Quick Start Guide

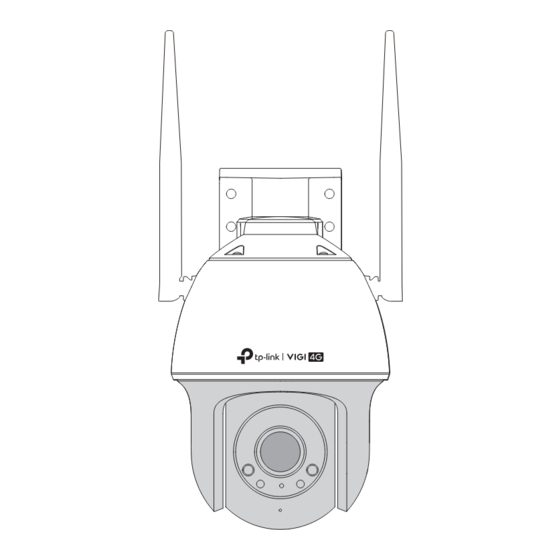

VIGI 4G Network Camera
*Images may differ from actual products.
Appearance
1
2
3
4
5
6
Status LED Indication
Status
Description
Solid red
Starting up
Blink red and green
Connecting to network, mobile data used up or 4G network signal unstable
Blink green
SIM card not detected
Solid green
Connected to network, or Ethernet cable plugged in (for wired connection)
Blink red
Mobile data disabled, or Ethernet cable unplugged (for wired connection)
Blink red quickly
Camera resetting
Blink green quickly
Camera updating
1
Mount Camera
Wall Mounting
Option 1: Wall/Ceiling Mounting
1. Stick the mounting template to the desired mounting place. Drill 4 screw holes
according to the template.
2. Insert the anchors into the holes, use the provided screws to fix the camera's
bracket to the wall or ceiling.
Note: Make sure that the wall is strong enough to withstand 3 times the
weight of the camera and mounting bracket .
Mounting Template
Anchor
Self-tapping Screw
Appropriate drilling size (Φ)
When installing with anchors
Φ = 6 mm (15/64 in.)
When installing with screws only
Φ = 3 mm (1/8 in.)
Installing Waterproof Cable Attachments
Install the waterproof cable attachments for the network interface when the
camera is installed outdoors.
Note: Make sure each part is securely attached and the waterproof rings are flush to keep out water.
Fix Nut Waterproof
Waterproof
Jacket
Ring
1. Route the network cable through the following components in order: fix nut,
waterproof ring, and then the waterproof jacket.
2. Fix the O-ring to the network interface of the camera and connect the network
cables.
3. Attach the network interface with the waterproof jacket, then twist to lock.
4. Insert the waterproof ring into the waterproof jacket. Rotate the fix nut to
secure it to the waterproof jacket.
1
Power Supply Interface
2
Infrared LED
Status LED
5
Built-in Microphone
White LED
6
OR
O-ring
Network
Interface
Package Contents
Network Camera
Waterproof Seal
Anchors x 4
Φ6 mm
Φ
Φ
Stick this side upward when mounting on the wall
Appropriate drilling size (Φ)
Mounting Template
When installing with anchors
Φ = 6 mm (15/64 in.)
When installing with screws only
Φ
Φ
Φ = 3 mm (1/8 in.)
Stick this side forward when mounting on the ceiling
7
Speaker
Nano SIM Card Slot
7
8
microSD Card Slot
9
Insert a microSD card for local storage. Initialize the SD card via VIGI app or other
management tools before recording videos.
Reset Button
10
Long press the button to reset the camera to factory settings.
Option 2: Pole Mounting
1. Thread each of the two cable ties through the slits on the back of the camera's
bracket indicated below.
2. Slip the two cable ties through the pole. Tighten them to firmly attach the pole.
Cable Tie
Install Waterproof Seal for Power Connectors
Install the waterproof seal for the power connectors when the camera is installed
outdoors.
Male Power Connector
Waterproof Seal
Power Adapter
Waterproof Cable
Attachments
Screws x 4
Φ3.5 mm
Quick
Start
Quick Start Guide
Guide
8
9
10
Note: Before inserting the micro SD card or resetting
the camera, rotate the sphere and unfasten the two
fixed screws to remove the cover.
Cable Tie
Female Power Connector
