TP-Link VIGI C540S Quick Start Manual

Quick Start Guide
*Images may differ from actual products.

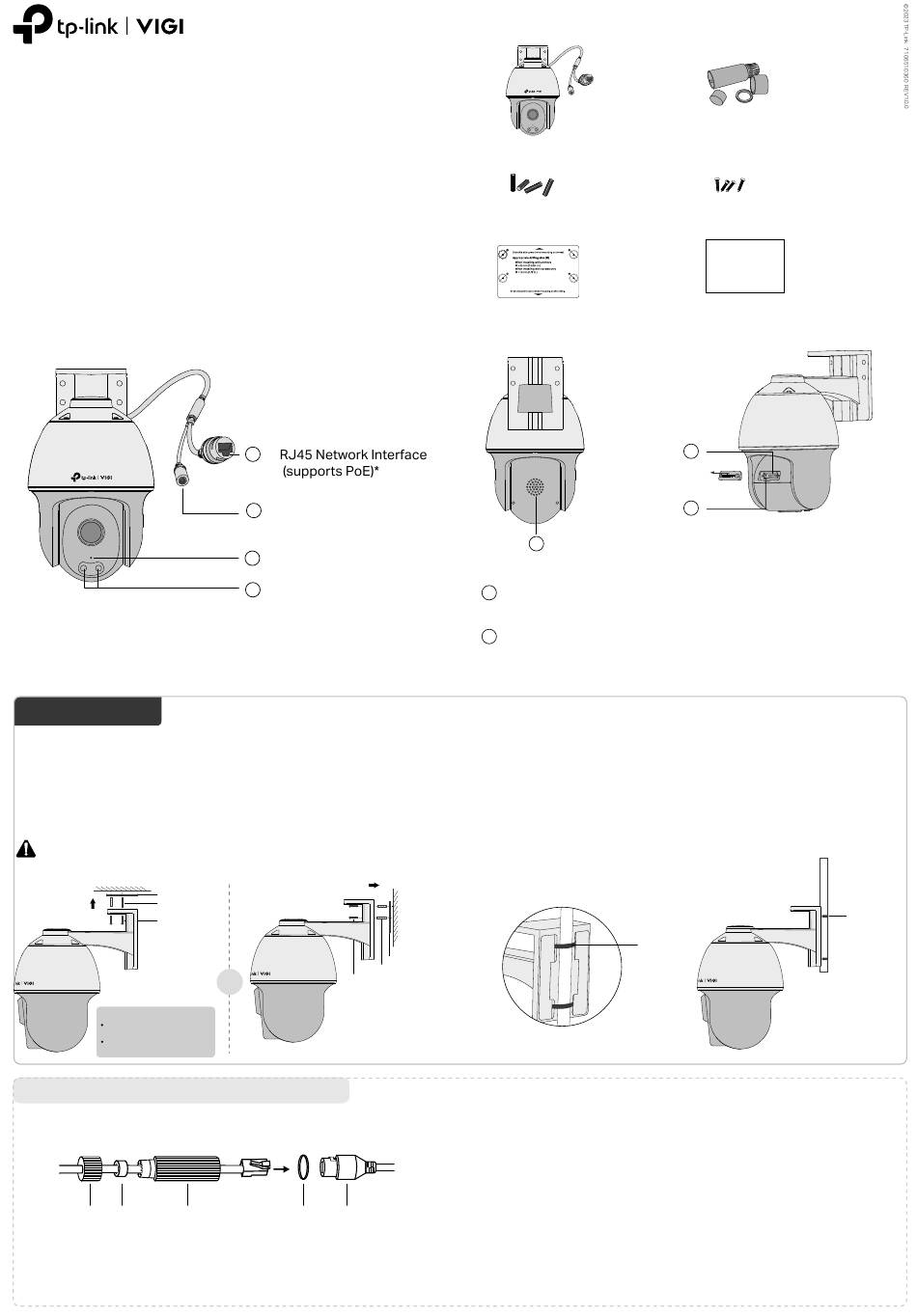

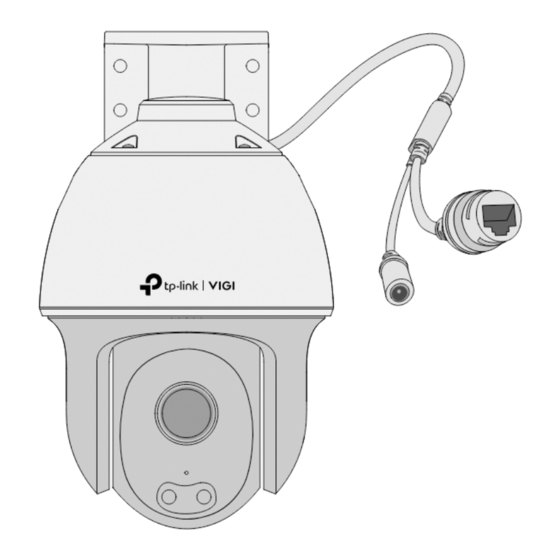

Appearance
1
Mount Camera
Wall Mounting
Option 1: Wall/Ceiling Mounting
1. Stick the mounting template to the desired mounting place. Drill 4 screw holes
according to the template.
2. Insert the anchors into the holes, use the provided screws to fix the camera's
bracket to the wall or ceiling.
Note: Make sure that the wall is strong enough to withstand 3 times the
weight of the camera and mounting bracket .
Mounting Template
Anchor
Self-tapping Screw
Appropriate drilling size (Φ)
When installing with anchors
Φ = 6 mm (15/64 in.)
When installing with screws only
Φ = 3 mm (1/8 in.)
Installing Waterproof Cable Attachments
Install the waterproof cable attachments for the network interface when the camera is installed outdoors.
Note: Make sure each part is securely attached and the waterproof rings are flush to keep out water.
Fix Nut Waterproof Waterproof
Ring Jacket
1. Route the network cable through the following components in order: fix nut,
waterproof ring, and then the waterproof jacket.
2. Fix the O-ring to the network interface of the camera and connect the network
cables.
1
Power Supply Interface
2
(12V DC)
Built-in Microphone
3
White LED
4
Mounting Template
Anchor
OR
Self-tapping Screw
O-ring Network
Interface
Package Contents
Network Camera
Anchors x 4
Φ6 mm
Mounting Template
Speaker
5
microSD Card Slot
6
Insert a microSD card for local storage. Initialize the SD card via VIGI app or other
management tools before recording videos.
Reset Button
7
Long press the button to reset the camera to factory settings.
Option 2: Pole Mounting
1. Thread each of the two cable ties through the slits on the back of the camera's
bracket indicated below.
2. Slip the two cable ties through the pole. Tighten them to firmly attach the pole.
Cable Tie
3. Attach the network interface with the waterproof jacket, then twist to lock.
4. Insert the waterproof ring into the waterproof jacket. Rotate the fix nut to secure
it to the waterproof jacket.
Waterproof Cable
Attachments
Screws x 4
Φ3.5 mm
Quick
Start Quick Start Guide
Guide
6
7
Note: Before inserting the microSD card or resetting the
camera, rotate the sphere and unfasten the two fixed
screws to remove the cover.
Cable Tie
