Gigabyte H262-NO1 User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

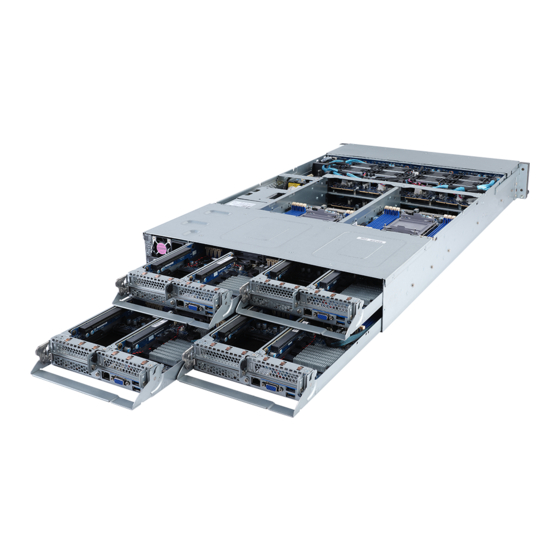

H262-NO1
H262-PC2
HCI Server – Intel DP 2U 4 Nodes Server - 24 x Gen4 NVMe, OCP 3.0
HCI Server – Intel DP 2U 4 Nodes Server - 8 x Gen4 NVMe, OCP 3.0
User Manual
Rev. 1.0

Advertisement

Table of Contents
loading

Related Manuals for Gigabyte H262-NO1

Summary of Contents for Gigabyte H262-NO1

  • Page 1 H262-NO1 H262-PC2 HCI Server – Intel DP 2U 4 Nodes Server - 24 x Gen4 NVMe, OCP 3.0 HCI Server – Intel DP 2U 4 Nodes Server - 8 x Gen4 NVMe, OCP 3.0 User Manual Rev. 1.0...
  • Page 2 GIGABYTE's prior written permission. Documentation Classifications In order to assist in the use of this product, GIGABYTE provides the following types of documentation:  User Manual: detailed information & steps about the installation, configuration and use of this product (e.g.
  • Page 3 Conventions The following conventions are used in this user's guide: NOTE! Gives bits and pieces of additional information related to the current topic. CAUTION! Gives precautionary measures to avoid possible hardware or software problems. WARNING! Alerts you to any damage that might result from doing or not doing specific actions.
  • Page 4 Server Warnings and Cautions Before installing a server, be sure that you understand the following warnings and cautions. WARNING! To reduce the risk of electric shock or damage to the equipment: • Do not disable the power cord grounding plug. The grounding plug is an important safety feature.
  • Page 5 Electrostatic Discharge (ESD) CAUTION! ESD CAN DAMAGE DRIVES, BOARDS, AND OTHER PARTS. WE RECOMMEND THAT YOU PERFORM ALL PROCEDURES AT AN ESD WORKSTATION. IF ONE IS NOT AVAILABLE, PROVIDE SOME ESD PROTECTION BY WEARING AN ANTI-STATIC WRIST STRAP AT- TACHED TO CHASSIS GROUND -- ANY UNPAINTED METAL SURFACE -- ON YOUR SERVER WHEN HANDLING PARTS.
  • Page 6 CAUTION! Risk of explosion if battery is replaced incorrectly or with an incorrect type. Replace the battery only with the same or equivalent type recommended by the manufacturer. Dispose of used bat- teries according to the manufacturer’s instructions.

  • Page 7: Table Of Contents

    Intel Optane DCPMM DIMM Population Rule ............38 Installing the PCI Expansion Card ..............39 Replacing the Fan Assembly ................41 3-10 Replacing the Power Supply ................42 3-11 Replacing Power Distribution Board Cage ............. 43 3-12 Cable Routing ....................44 3-12-1 H262-NO1 ......................44 - 7 -...
  • Page 8 Chapter 4 Motherboard Components ................57 Motherboard Components ................57 Jumper Setting ....................58 Backplane Board Storage Connector ............. 59 4-3-1 CBPH7O0 (H262-NO1) ..................59 4-3-2 CBPH080 (H262-PC2) ...................60 Chapter 5 BIOS Setup ....................61 The Main Menu ....................63 Advanced Menu ..................... 66 5-2-1 Trusted Computing ....................67...
  • Page 9 5-5-1 Secure Boot ......................112 Boot Menu ....................115 Save & Exit Menu ..................117 BIOS POST Beep code (AMI standard) ............119 5-8-1 PEI Beep Codes ....................119 5-8-2 DXE Beep Codes ....................119 - 9 -...
  • Page 10 This page intentionally left blank - 10 -...

  • Page 11: Chapter 1 Hardware Installation

    Chapter 1 Hardware Installation Installation Precautions The motherboard/system contain numerous delicate electronic circuits and components which can become damaged as a result of electrostatic discharge (ESD). Prior to installation, carefully read the user manual and follow these procedures: • Prior to installation, do not remove or break motherboard S/N (Serial Number) sticker or warranty sticker provided by your dealer.

  • Page 12: Product Specifications

    Product Specifications NOTE: We reserve the right to make any changes to the product specifications and product-related information without prior notice. 3rd Generation Intel® Xeon® Scalable Processors Š Intel® Xeon® Platinum Processor, Intel® Xeon® Gold Processor, Intel® Xeon® Š Silver Processor 10nm technology, CPU TDP up to 270W Š...
  • Page 13 Per node: Storage (H262-NO1) 6 x SATA/SAS/Gen4 NVMe hot-swappable bays Š Total: 24 x SATA/SAS/Gen4 NVMe hot-swappable bays Š Per node: (H262-PC2) 2 x SATA/SAS/Gen4 NVMe hot-swappable bays Š Total: 8 x SATA/SAS/Gen4 NVMe hot-swappable bays Š RAID Intel® SATA RAID 0/1/5/10 Š...
  • Page 14 *Only one CMC global management port per system Backplane I/O Front side_CBPH7O0: 24 x SATA/SAS/Gen4 NVMe ports Speed and bandwidth: Š (H262-NO1) SATA 6Gb/s or SAS 12Gb/s or PCIe Gen4 x4 per port (H262-PC2) Front side_CBPH080: 8 x SATA/SAS/Gen4 NVMe ports Speed and bandwidth: Š...
  • Page 15 System Aspeed® AST2600 management controller Š Management GIGABYTE Management Console (AMI MegaRAC SP-X) web interface Š Dashboard Š Security HTML5 KVM Š Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.) Š Sensor Reading History Data Š FRU Information Š SEL Log in Linear Storage / Circular Storage Policy Š...
  • Page 16 Operating Operating temperature: 10°C to 30°C Š Operating humidity: 8-80% (non-condensing) Properties Š Non-operating temperature: -40°C to 60°C Š Non-operating humidity: 20%-95% (non-condensing) Š Please leave one PCIe slot empty if using processor with 270W TDP System 2U 4 Nodes - Rear access Š...

  • Page 17: System Block Diagram

    System Block Diagram 1-3-1 H262-NO1 1-3-2 H262-PC2 • Please Go to Chapter 4 Motherboard Components for Riser Slot information. - 17 - Hardware Installation...
  • Page 18 This page intentionally left blank Hardware Installation - 18 -...

  • Page 19: Chapter 2 System Appearance

    Chapter 2 System Appearance Front View H262-NO1 H262-PC2 Decription Front Panel LEDs and buttons Green HDD Latches Support NVMe • Please Go to Chapter 2-3 Front Panel LED and Buttons for detail description of function LEDs. - 19 - System Appearance...

  • Page 20: Rear View

    Rear View PSU2 PSU1 Decription CMC LAN Port PCIe Card Slot #1 PCIe Card Slot #2 Mezzanine Card Slot (Option/OCP 3) 10/100/1000 Server Management LAN Port VGA Port USB 3.0 Port x 2 ID Button with LED System Appearance - 20 -...

  • Page 21: Front Panel Led And Buttons

    Front Panel LED and Buttons NODE1 NODE3 NODE2 NODE4 No. Name Color Status Description Green System is operating normally. Critical condition, may indicate: System fan failure System temperature Amber Non-critical condition, may indicate: System Redundant power module failure Blink Status LED Temperature and voltage issue Chassis intrusion System is not ready, may indicate:...

  • Page 22: Rear System Lan Leds

    Rear System LAN LEDs Name Color Status Description Yellow 1Gbps data rate 1GbE Green 100 Mbps data rate Speed LED 10 Mbps data rate Link between system and 1GbE Green network or no access Link/ Blink Data transmission or receiving is occurring Activity LED No data transmission or receiving is occurring System Appearance...

  • Page 23: Power Supply Unit Led

    Power Supply Unit LED PSU LED State Description No AC power to all power supplies 0.5Hz Green Blinking AC present / only standby on / Cold redundant mode 2Hz Green Blinking Power supply firmware updateing mode AC cord unplugged or AC power lost; with a second power supply in parallel still with AC input power Amber Power supply critical event causing shut down:...

  • Page 24: Hard Disk Drive Leds

    Hard Disk Drive LEDs HDD Present RAID SKU Rebuilding LED1 Locate HDD Fault Access (No Access) Disk LED Green ON(*1) BLINK (*2) (LED on Back Panel) Amber No RAID configuration Green ON(*1) (via PCH/HBA) Removed HDD Slot (LED on Back Panel) Amber Green BLINK (*2)

  • Page 25: Chapter 3 System Hardware Installation

    Chapter 3 System Hardware Installation Pre-installation Instructions Computer components and electronic circuit boards can be damaged by electrostatic discharge. Working on computers that are still connected to a power supply can be extremely dangerous. Follow the simple guidelines below to avoid damage to your computer or injury to yourself.

  • Page 26: Installing The Hard Disk Drive

    Installing the Hard Disk Drive Read the following guidelines before you begin to install the Hard disk drive: • Take note of the drive tray orientation before sliding it out. • The tray will not fit back into the bay if inserted incorrectly. •...
  • Page 27 Follow these instructions to install a 2.5" hard disk drive: Press the release latch from the top and bottom side of the dummy cover, At the same time pull out the dummy cover Align the hard disk drive with the positioning stud on the HDD tray. Slide the hard disk drive into the HDD tray.

  • Page 28: Removing The Node

    Removing the Node The image below shows the top rear cover removal process for H262-NO0. The same process applies to H262-PC2. Follow these instructions to remove a node: Press the release latch while simultaneously pushing down the tray handle for the node. Pull the node out of the system.

  • Page 29: Removing Chassis Cover

    Removing Chassis Cover Before you remove or install the system cover • Make sure the system is not turned on or connected to AC power. Follow these instructions to remove the system cover: Loosen and remove the six screws securing the back cover. Slide the cover to the rear of the system and remove the cover in the direction of the arrow.

  • Page 30: Removing And Installing The Fan Duct

    Removing and Installing the Fan Duct Follow these instructions to remove/install the fan duct: Remove the two screws securing the fan ducts. Lift up to remove the fan ducts To install the fan duct, align the fan duct with the guiding groove. Push down the fan duct into chassis until its firmly seats, then install the four screws to secure the fan ducts in place.

  • Page 31: Removing And Installing The Heatsink

    Removing and Installing the Heatsink Read the following guidelines before you begin to install the heatsink: • Always turn off the computer and unplug the power cord from the power outlet before installing the heatsink to prevent hardware damage. • Unplug all cables from the power outlets. •...
  • Page 32 CPU1 Heatsink: To install the heatsink, reverse the steps above while ensuring that you tighten the captive screws in sequential order (1g2g3g4) as seen in the image below. CPU0 Heatsink CPU1 Heatsink: System Hardware Installation - 32 -...

  • Page 33: Installing The Cpu

    Installing the CPU Read the following guidelines before you begin to install the CPU: • Make sure that the motherboard supports the CPU. • Always turn off the computer and unplug the power cord from the power outlet before installing the CPU to prevent hardware damage. •...
  • Page 34 System Hardware Installation - 34 -...

  • Page 35: Installing Memory

    Installing Memory Read the following guidelines before you begin to install the memory: • Make sure that the motherboard supports the memory. It is recommended that memory of the same capacity, brand, speed, and chips be used. • Always turn off the computer and unplug the power cord from the power outlet before installing the memory to prevent hardware damage.

  • Page 36: Installing The Memory

    3-7-2 Installing the Memory Before installing a memory module, make sure to turn off the computer and unplug the power cord from the power outlet to prevent damage to the memory module. Be sure to install DDR4 DIMMs on this motherboard. Follow these instructions to install the Memory: Insert the DIMM memory module vertically into the DIMM slot, and push it down.

  • Page 37: Processor And Memory Module Matrix Table

    3-7-4 Processor and Memory Module Matrix Table Memory Q’ty CPU0 CPU1 for each CPU 1 DIMM 2 DIMM 4 DIMM 6 DIMM 8 DIMM NOTE! l There should be at least one DDR4 DIMM per socket. l If only one DIMM is populated in a channel, then populate it in the slot furthest away from CPU of that channel. l Channel 0's on each memory controller (A/E/C/G, I/M/K/O) must be populated with same total capacity per channel (if populated). l Channel 1's on each memory controller (B/F/D/H, J/N/L/P) must be populated with same total capacity per channel (if populated). - 37 - System Hardware Installation...

  • Page 38: Intel Optane Dcpmm Dimm Population Rule

    The ambient temperature must be at or below 35°C • The 3rd Generation Intel® Xeon® Scalable Processors used must have a maximum TDP of : • 225W (H262-NO1) • 270W (H262-PC2) • A maximum of 4 pcs 512G DCPMM may be installed (per node).

  • Page 39: Installing The Pci Expansion Card

    Installing the PCI Expansion Card • The PCI riser assembly does not include a riser card or any cabling as standard. To install a PCI card, a riser card must be installed. Follow these instructions to install the left PCI Expansion card: Remove the three screws on the riser bracket to the system.
  • Page 40 Follow these instructions to install the right PCI Expansion card: Remove the two screws securing the riser bracket to the system. Lift up the riser bracket out of system. Align the PCI-E card to the riser guide slot and push in the direction of the arrow until the PCI-E card sits in the PCI card connector.

  • Page 41: Replacing The Fan Assembly

    Replacing the Fan Assembly • Voltages can be present within the server whenever an AC power source is connected. This voltage is present even when the main power switch is in the off position. Ensure that the system is powered-down and all power sources have been disconnected from the server prior to replacing a system fan.

  • Page 42: Replacing The Power Supply

    3-10 Replacing the Power Supply Follow these instructions to replace the power supply: Pull up the power supply handle and press the retaining clip on the right side of the power supply along the direction of the arrow. At the same time, pull out the power supply by using its handle. Insert the replacement power supply firmly into the chassis.

  • Page 43: Replacing Power Distribution Board Cage

    3-11 Replacing Power Distribution Board Cage Before you remove or install the power distribution board cage: • Make sure the system is not turned on or connected to AC power. The image below shows the top rear cover removal process for H262-NO0. The same process applies to H262-PC2.

  • Page 44: Cable Routing

    3-12 Cable Routing 3-12-1 H262-NO1 Front Switch Cable/Front LED Cable System Main Power Cable System Hardware Installation - 44 -...
  • Page 45 Power Distribution Board to Middle Board Cable (Top/Bottom Tray) System Rear Lan Cable - 45 - System Hardware Installation...
  • Page 46 Top Middle Board to HDD Back Plane Board Cable (SATA1/3) SATA3 SATA1 Bottom Middle Board to HDD Back Plane Board Cable (SATA2/4) SATA4 SATA2 System Hardware Installation - 46 -...
  • Page 47 Top Middle Board to HDD Back Plane Board Cable (NVMe/Node1) Bottom Middle Board to HDD Back Plane Board Cable (NVMe/Node2) - 47 - System Hardware Installation...
  • Page 48 Top Middle Board to HDD Back Plane Board Cable (NVMe/Node3) Bottom Middle Board to HDD Back Plane Board Cable (NVMe/Node4) System Hardware Installation - 48 -...
  • Page 49 On-board SATA Cable - 49 - System Hardware Installation...

  • Page 50: H262-Pc2

    3-12-2 H262-PC2 Front Switch Cable/Front LED Cable System Main Power Cable System Hardware Installation - 50 -...
  • Page 51 Power Distribution Board to Middle Board Cable (Top/Bottom Tray) System Rear Lan Cable - 51 - System Hardware Installation...
  • Page 52 Top Middle Board to HDD Back Plane Board Cable (SATA1/3) SATA3 SATA1 Bottom Middle Board to HDD Back Plane Board Cable (SATA2/4) SATA4 SATA2 System Hardware Installation - 52 -...
  • Page 53 Top Middle Board to HDD Back Plane Board Cable (NVMe/Node1) Bottom Middle Board to HDD Back Plane Board Cable (NVMe/Node2) - 53 - System Hardware Installation...
  • Page 54 Top Middle Board to HDD Back Plane Board Cable (NVMe/Node3) Bottom Middle Board to HDD Back Plane Board Cable (NVMe/Node4) System Hardware Installation - 54 -...
  • Page 55 On-board SATA Cable - 55 - System Hardware Installation...
  • Page 56 This page intentionally left blank System Hardware Installation - 56 -...

  • Page 57: Chapter 4 Motherboard Components

    Chapter 4 Motherboard Components Motherboard Components DIMM_P0_B0 DIMM_P1_N0 DIMM_P0_A0 DIMM_P1_M0 DIMM_P0_D0 DIMM_P1_P0 DIMM_P0_C0 DIMM_P1_O0 CPU0 CPU1 BIOS1 BIOS2 BMC1 BMC2 DIMM_P0_G0 DIMM_P1_K0 DIMM_P0_H0 DIMM_P1_L0 DIMM_P0_E0 DIMM_P1_I0 DIMM_P0_F0 DIMM_P1_J0 Item Description OCP Mezzanine 3.0 Connector Proprietary PCIe Slot #2 (Gen 4/x16 slot/GENZ_2) BMC Readiness LED Serial Port Cable Connector SlimLine SAS Connector (SL4_SATA0/PCIe/SATA)

  • Page 58: Jumper Setting

    Jumper Setting MB_SW Stop initial power on S3_MASK Normal [Default] when BMC is not ready PMBUS_SEL BMC [Default] SMB_SEL PCH [Default] ME_UPDATE Force ME update Normal [Default] Default Enable Default Enable Default Enable Default Enable BIOS Password Force Recovery Clear CMOS Clear Update 1 2 3...

  • Page 59: Backplane Board Storage Connector

    Backplane Board Storage Connector 4-3-1 CBPH7O0 (H262-NO1) Item Description SlimLine SAS Connector (N1 U.2 A) SlimLine SAS Connector (N1 SATA) SlimLine SAS Connector (N1 U.2 B) SlimLine SAS Connector (N2 U.2 A) SlimLine SAS Connector (N2 SATA) SlimLine SAS Connector (N2 U.2 B) SlimLine SAS Connector (N3 U.2 A)

  • Page 60: Cbph080 (H262-Pc2)

    4-3-2 CBPH080 (H262-PC2) Item Description SlimLine SAS Connector (N1 SATA) SlimLine SAS Connector (N1 U.2 A) SlimLine SAS Connector (N2 U.2 A) SlimLine SAS Connector (N2 SATA) SlimLine SAS Connector (N3 U.2 A) SlimLine SAS Connector (N3 SATA) SlimLine SAS Connector (N4 U.2 A) SlimLine SAS Connector (N4 SATA) Motherboard Components - 60 -...

  • Page 61: Chapter 5 Bios Setup

    Chapter 5 BIOS Setup BIOS (Basic Input and Output System) records hardware parameters of the system in the EFI on the motherboard. Its major functions include conducting the Power-On Self-Test (POST) during system startup, saving system parameters, loading the operating system etc. The BIOS includes a BIOS Setup program that allows the user to modify basic system configuration settings or to activate certain system features.
  • Page 62  Main This setup page includes all the items of the standard compatible BIOS.  Advanced This setup page includes all the items of AMI BIOS special enhanced features. (ex: Auto detect fan and temperature status, automatically configure hard disk parameters.) ...

  • Page 63: The Main Menu

    The Main Menu Once you enter the BIOS Setup program, the Main Menu (as shown below) appears on the screen. Use arrow keys to move among the items and press <Enter> to accept or enter other sub-menu. Main Menu Help The on-screen description of a highlighted setup option is displayed on the bottom line of the Main Menu.
  • Page 64 Parameter Description BIOS Information Project Name Displays the project name information. Project Version Displays version number of the BIOS setup utility. Build Date and Time Displays the date and time when the BIOS setup utility was created. BMC Information (Note1) BMC Firmware Version Displays BMC firmware version information.
  • Page 65 Parameter Description Memory Frequency Displays the frequency information of the installed memory. (Note2) CPLD Boot Information Boot Status Displays the boot status information. System Date Sets the date following the weekday-month-day-year format. System Time Sets the system time following the hour-minute-second format. (Note2) This section will display capacity and frequency information of the memory that the customer has installed.

  • Page 66: Advanced Menu

    Advanced Menu The Advanced Menu displays submenu options for configuring the function of various hardware components. Select a submenu item, then press <Enter> to access the related submenu screen. BIOS Setup - 66 -...

  • Page 67: Trusted Computing

    5-2-1 Trusted Computing Parameter Description Configuration Enable/Disable BIOS support for security device. OS will not show security device. TCG EFI protocol and INT1A interface will not be Security Device Support available. Options available: Enable, Disable. Default setting is Enable. - 67 - BIOS Setup...

  • Page 68: Serial Port Console Redirection

    5-2-2 Serial Port Console Redirection Parameter Description Console redirection enables the users to manage the system from a COM1 Console remote location. Redirection (Note) Options available: Enabled, Disabled. Default setting is Disabled. Press [Enter] to configure advanced items. Please note that this item is configurable when COM1 Console Redirection is set to Enabled.
  • Page 69 Parameter Description Parity Š – A parity bit can be sent with the data bits to detect some transmission errors. – Even: parity bit is 0 if the num of 1's in the data bits is even. – Odd: parity bit is 0 if num of 1's in the data bits is odd. –...
  • Page 70 Parameter Description Legacy Console Redirection Press [Enter] to configure advanced items. Redirection COM Port Š – Selects a COM port for Legacy serial redirection. – Default setting is COM1. Resolution Š – Selects the number of rows and columns used in Console Redirection for legacy OS support.
  • Page 71 Parameter Description Flow Control EMS Š – Flow control can prevent data loss from buffer overflow. When sending data, if the receiving buffers are full, a 'stop' signal can Serial Port for Out-of-Band be sent to stop the data flow. Once the buffers are empty, a 'start' EMS Console Redirection signal can be sent to re-start the flow.

  • Page 72: Sio Configuration

    5-2-3 SIO Configuration Description Parameter Displays the AMI SIO driver version information. AMI SIO Driver Version Super IO Chip Logical Device(s) Configuration Press [Enter] to configure advanced items. Use This Device Š – When set to Enabled allows you to configure the serial port settings. When set to Disabled, displays no configuration for the serial port.

  • Page 73: Pci Subsystem Settings

    5-2-4 PCI Subsystem Settings Parameter Description PCI Bus Driver Version Displays the PCI Bus Driver version information. Change the PCIe lanes. Slot_# Lanes Configuration (Note1) Options available: Disabled, Auto, x16, x8x8, x8x4x4, x4x4x8, OCP 3.0 Lanes Configuration x4x4x4x4. Default setting is Auto. When enabled, this setting will initialize the device expansion Slot_# I/O ROM (Note1)

  • Page 74: Usb Configuration

    5-2-5 USB Configuration Parameter Description USB Configuration USB Devices: Displays the USB devices connected to the system. Enable/Disable the XHCI (USB 3.0) Hand-off support. XHCI Hand-off Options available: Enabled, Disabled. Default setting is Enabled. USB Mass Storage Driver Enable/Disable the USB Mass Storage Driver Support. Support Options available: Enabled, Disabled.

  • Page 75: Network Stack Configuration

    5-2-6 Network Stack Configuration Parameter Description Enable/Disable the UEFI network stack. Network Stack Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 PXE feature. Ipv4 PXE Support Options available: Enabled, Disabled. Default setting is Enabled. Enable/Disable the Ipv4 HTTP feature. Ipv4 HTTP Support Options available: Enabled, Disabled.

  • Page 76: Post Report Configuration

    5-2-7 Post Report Configuration Parameter Description Post Report Configuration Error Message Report Enable/Disable the POST Error Message support. Post Error Message Options available: Enabled, Disabled. Default setting is Enabled. BIOS Setup - 76 -...

  • Page 77: Nvme Configuration

    5-2-8 NVMe Configuration Parameter Description NVMe Configuration Displays the NVMe devices connected to the system. Options available: BIOS Build-In, NVMe Device. Default setting is BIOS NVMe OPROM Select Build-In. - 77 - BIOS Setup...

  • Page 78: Chipset Configuration

    5-2-9 Chipset Configuration Parameter Description Defines the power state to resume to after a system shutdown that is due to an interruption in AC power. When set to Last State, the system will return to the active power state prior to shutdown. When set to Restore on AC Power Loss (Note) Power Off, the system remains off after power shutdown.

  • Page 79: Tls Auth Configuration

    5-2-10 Tls Auth Configuration Parameter Description Press [Enter] for configuration of advanced items. Enroll Cert Š – Press [Enter] to enroll a certificate • Enroll Cert Using File • Cert GUID Server CA Configuration Input digit character in 1111111-2222-3333-4444-1234567890ab format. –...

  • Page 80: Iscsi Configuration

    5-2-11 iSCSI Configuration Parameter Description Press [Enter] configure advanced items. Attempt Priority Š Attempt Priority – Options available: Host Attempt, Redfish Attempt. Default setting is Host Attempt. Commit Changes and Exit Š Press [Enter] to configure advanced items. iSCSI Initiator Name Š...

  • Page 81: Chipset Menu

    Chipset Menu Chipset Setup menu displays submenu options for configuring the function of Platform Controller Hub(PCH). Select a submenu item, then press <Enter> to access the related submenu screen. - 81 - BIOS Setup...
  • Page 82 5-3-1 Processor Configuration BIOS Setup - 82 -...

  • Page 83: Processor Configuration

    Description Parameter Processor Configuration Press [Enter] to configure advanced items. CPU Socket 0/1 Configuration Š – Core Disable Bitmap(Hex) • Number of Cores to enable. 0 means all cores. FFFFFFF Pre-Socket Configuration means to disable all cores. The maximum value depends on the number of CPUs available.
  • Page 84 Description Parameter Options available: Enable, Disable. Default setting is Disable. Debug Consent Enable/Disable total memory encryption (TME). Total Memory Encryption (TME) Options available: Enabled, Disabled. Default setting is Disabled. BIOS Setup - 84 -...

  • Page 85: Common Refcode Configuration

    5-3-2 Common RefCode Configuration Parameter Description Common RefCode Configuration Selects the MMIO High Base setting. MMIO High Base Options available: 56T, 40T, 32T, 24T, 16T, 4T, 2T, 1T, 512G, 3584T. Default setting is 56T. Selects the allocation size used to assign memory-mapped I/O (MMIO) resources.
  • Page 86 Parameter Description Divide physical NUMA nodes into evenly sized virtual NUMA nodes in ACPI table. This may improve Windows performance on CPUs Virtual Numa with more than 64 logical processors. Options available: Enable, Disable. Default setting is Disable. UMA Based Clustering option include Disable (ALL2ALL), Hemisphere (2cluster), and Quardrant ( cluster, not supported on UMA-Based Clustering ICX).

  • Page 87: Upi Configuration

    5-3-3 UPI Configuration Description Parameter Press [Enter] to configure advanced items. Uncore Status Š – Press [Enter] to view the Uncore status. Link Frequency Select Š – Selects the UPI link frequency. – Options available: 9.6GT/s, 10.4GT/s, 11.2GT/s, Auto. Default setting is Auto.

  • Page 88: Memory Configuration

    5-3-4 Memory Configuration Description Parameter Integrated Memory Controller (iMC) When set to Enable, the system enforces Plan Of Record restrictions for DDR4 frequency and voltage programming. Enforce POR Options available: POR, Disable. Default setting is Disable. Configures the maximum memory frequency. If Enforce POR is disabled, user will be able to run at higher frequencies than the Memory Frequency memory support (limited by processor support).
  • Page 89 Description Parameter Enable/Disable Automatic restoring of NVDIMMs. Restore NVDIMMs Options available: Enable, Disable. Default setting is Enable. Controls if NVDIMMs are interleaved together or not. Interleave NVDIMMs Options available: Enable, Disable. Default setting is Enable. Enable/Disable Assert ADR on Reset. Assert ADR on Reset Options available: Enabled, Disabled.
  • Page 90 Description Parameter Leaky bucket time window based interface Š – Enable/Disable leaky bucket time window based interface. – Options available: Disabled, Enabled. Default setting is Disabled. Leaky bucket low bit Š – Configures leaky bucket low bit (1-63). – Press the <+> / <-> keys to increase or decrease the desired values.

  • Page 91: Iio Configuration

    5-3-5 IIO Configuration Description Parameter IIO Configuration Press [Enter] to configure advanced items. ® Intel VT for Directed I/O Š – Enable/Disable the Intel VT for Directed I/O (VT-d) support function by reporting the I/O device assignment to VMM through DMAR ACPI Tables.
  • Page 92 Description Parameter Press [Enter] to configure advanced items. ® Intel VMD Configuration Š ® – Enable/Disable Intel VMD technology. ® – Options available: Enable, Disable. Default setting is Disable. Intel VMD technology ® Intel VMD for Non-Hotplug NVMe (Note) Š ®...

  • Page 93: Advanced Power Management Configuration

    5-3-6 Advanced Power Management Configuration Description Parameter Advanced Power Management Configuration Press [Enter] to configure advanced items. SpeedStep (Pstates) Š – Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor load. –...
  • Page 94 Description Parameter Press [Enter] to configure advanced items. Hardware P-States Š – When this item is disabled, the processor hardware chooses a P-state based on OS Request (Legacy P-States). – In Native mode, the processor hardware chooses a P-state based Hardware PM State Control on OS guidance.

  • Page 95: Pch Configuration

    5-3-7 PCH Configuration (Note 1) Only appears when HDD sets to RAID Mode. - 95 - BIOS Setup...
  • Page 96 Description Parameter PCH Configuration Press [Enter] to configure advanced items. SATA Controller Š – Enable/Disable SATA controller. – Options available: Enable, Disable. Default setting is Enable. Configure SATA as Š – Configures on chip SATA type. – AHCI Mode: When set to AHCI, the SATA controller enables its AHCI functionality.
  • Page 97 sSATA Controller Š – Enable/Disable sSATA controller. – Options available: Enable, Disable. Default setting is Enable. Configure sSATA as Š – Configures on chip SATA type. – AHCI Mode: When set to AHCI, the SATA controller enables its AHCI functionality. Then the RAID function is disabled and cannot be access the RAID setup utility at boot time.

  • Page 98: Miscellaneous Configuration

    5-3-8 Miscellaneous Configuration Description Parameter Miscellaneous Configuration Selects the active video type. Options available: Auto, Onboard Device, PCIE Device, Specific PCIE Active Video Device. Default setting is Auto. BIOS Setup - 98 -...

  • Page 99: Server Me Configuration

    5-3-9 Server ME Configuration Parameter Description General ME Configuration Oper. Firmware Version Displays the operational firmware version. ME Firmware Status #1/#2 Displays ME Firmware status information. Current State Displays ME Firmware current status information. Error Code Displays ME Firmware status error code. Recovery Cause Displays ME Firmware recovery cause.

  • Page 100: Runtime Error Logging Settings

    5-3-10 Runtime Error Logging Settings Description Parameter Runtime Error Logging Enable/Disable system error logging function. System Errors Options available: Enable, Disable. Default setting is Enable. Enable/Disable software injection error logging function. S/W Error Injection Support Options available: Enable, Disable. Default setting is Disable. Press [Enter] to configure advanced items.
  • Page 101 Description Parameter Press [Enter] to configure advanced items. PCIE Error Š PCIe Error Enabling – Enable/Disable PCIE error. – Options available: Enable, Disable. Default setting is Disable. - 101 - BIOS Setup...

  • Page 102: Power Policy

    5-3-11 Power Policy Description Parameter Selects a Power Policy Quick Setting. Options available: Standard, Best Performance, Energy Efficient, Turbo Power Policy Quick Settings Lock. Default setting is Standard. Conventional Intel SpeedStep Technology switches both voltage and frequency in tandem between high and low levels in response to processor SpeedStep (Pstates) load.
  • Page 103 Description Parameter The Hyper Threading Technology allows a single processor to execute two or more separate threads concurrently. When hyper-threading is enabled, multi-threaded software applications can execute their threads, Hyper-Threading [ALL] thereby improving performance. Options available: Enabled, Disabled. Default setting is Enabled. Options available: Enabled, Disabled.

  • Page 104: Server Management Menu

    Server Management Menu Parameter Description Enable/Disable FRB-2 timer (POST timer). FRB-2 Timer Options available: Enabled, Disabled. Default setting is Disabled. FRB-2 Timer (Note1) Configures the FRB2 Timer timeout. The value is between 1 to 30 minutes. timeout Default setting is 6 minutes. Configures the FRB2 Timer policy.
  • Page 105 Parameter Description System Event Log Press [Enter] to configure advanced items. View FRU Press [Enter] to view the FRU information. Information BMC VLAN Press [Enter] to configure advanced items. Configuration BMC network Press [Enter] to configure advanced items. Configuration IPv6 BMC Network Press [Enter] to configure advanced items.

  • Page 106: System Event Log

    5-4-1 System Event Log Parameter Description Enabling / Disabling Options Change this item to enable or disable all features of System Event SEL Components Logging during boot. Options available: Enabled, Disabled. Default setting is Enabled. Erasing Settings Choose options for erasing SEL. Options available: No, Erase SEL Yes, On next reset,...

  • Page 107: View Fru Information

    5-4-2 View FRU Information The FRU page is a simple display page for basic system ID information, as well as System product information. Items on this window are non-configurable. (Note) The model name will vary depends on the product you purchased - 107 - BIOS Setup...

  • Page 108: Bmc Vlan Configuration

    5-4-3 BMC VLAN Configuration Description Parameter BMC VLAN Configuration Select to configure BMC VLAN ID. The valid range is from 0 to 4094. When BMC VLAN ID set to 0, BMC VLAN ID will be disabled. Select to configure BMC VLAN Priority. The valid range is from 0 to 7. BMC VLAN Priority When BMC VLAN ID is set to 0, BMC VLAN Priority will not be selected.

  • Page 109: Bmc Network Configuration

    5-4-4 BMC Network Configuration Parameter Description BMC network configuration Lan Channel 1 Selects to configure LAN channel parameters statically or dynamically (DHCP). Do nothing option will not modify any BMC network parameters Configuration Address source during BIOS phase. Options available: Unspecified, Static, DynamicBmcDhcp. Default setting is DynamicBmcDhcp.

  • Page 110: Ipv6 Bmc Network Configuration

    5-4-5 IPv6 BMC Network Configuration Parameter Description IPv6 BMC network configuration IPv6 BMC Lan Channel 1 Enable/Disable IPv6 BMC LAN channel function. When this item is disabled, the system will not modify any BMC network during BIOS IPv6 BMC Lan Option phase.

  • Page 111: Security Menu

    Security Menu The Security menu allows you to safeguard and protect the system from unauthorized use by setting up access passwords. There are two types of passwords that you can set: • Administrator Password Entering this password will allow the user to access and change all settings in the Setup Utility. •...

  • Page 112: Secure Boot

    5-5-1 Secure Boot The Secure Boot submenu is applicable when your device is installed the Windows 8 (or above) operating ® system. Parameter Description System Mode Displays if the system is in User mode or Setup mode. Enable/ Disable the Secure Boot function. Secure Boot Options available: Enabled, Disabled.
  • Page 113 Parameter Description Press [Enter] to configure advanced items. Please note that this item is configurable when Secure Boot Mode is set to Custom. Factory Key Provision Š – Allows to provision factory default Secure Boot keys when system is in Setup Mode.
  • Page 114 Parameter Description Authorized TimeStamps (DBT) Š – Displays the current status of the Authorized TimeStamps Database. – Press [Enter] to configure a new DBT or load additional DBT from storage devices. Key Management – Options available: Update, Append. (continued) OsRecovery Signatures Š...

  • Page 115: Boot Menu

    Boot Menu The Boot menu allows you to set the drive priority during system boot-up. BIOS setup will display an error message if the legacy drive(s) specified is not bootable. Parameter Description Boot Configuration Number of seconds to wait for setup activation key. 65535 (0xFFFF) Setup Prompt Timeout means indefinite waiting.
  • Page 116 Parameter Description FIXED BOOT ORDER Priorities Press [Enter] to configure the boot order priority. By default, the server searches for boot devices in the following sequence: Hard drive. Boot Option #1 / #2 / #3 / #4 / #5 CD-COM/DVD drive. USB device.

  • Page 117: Save & Exit Menu

    Save & Exit Menu The Save & Exit menu displays the various options to quit from the BIOS setup. Highlight any of the exit options then press <Enter>. Parameter Description Save Options Saves changes made and closes the BIOS setup. Save Changes and Exit Options available: Yes, No.
  • Page 118 Parameter Description Loads the default settings for all BIOS setup parameters. Setup Defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components Restore Defaults and you choose to load these settings, the system might not function properly.

  • Page 119: Bios Post Beep Code (Ami Standard)

    BIOS POST Beep code (AMI standard) 5-8-1 PEI Beep Codes # of Beeps Description Memory not Installed. Memory was installed twice (InstallPeiMemory routine in PEI Core called twice) Recovery started DXEIPL was not found DXE Core Firmware Volume was not found Recovery failed S3 Resume failed Reset PPI is not available...
