- Page 1 Quick Installation Guide TU2-IDSA...
- Page 2 Table of Contents Table of Contents English ... 1. Before You Start 2. How to Install ... Troubleshooting ... Version 06.05.2006...
-
Page 3: English

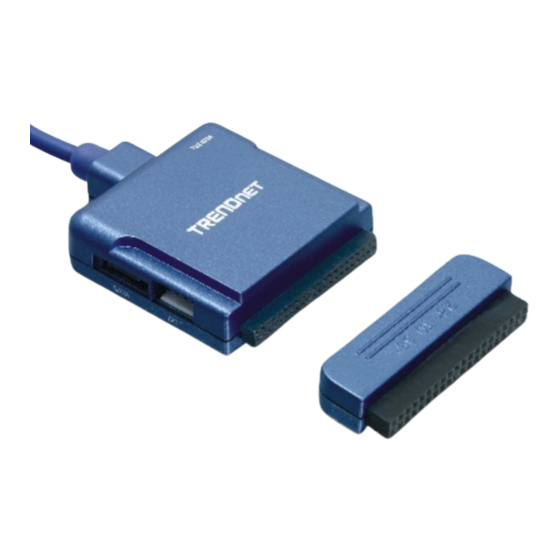

Windows 98SE/ME/2000/XP/2003 Server/MAC OS X IDE or SATA 1.0a device Application USB 2.0 to SATA/IDE Converter Adapter Notebook SATA Hard Drive TU2-IDSA Quick Installation Guide 2.5" to 3.5" IDE converter AC Power Adapter SATA Cable Hard Drive Power Cable (TU2-IDSA) -
Page 4: How To Install
2. How to Install Note: It is recommended that you format a brand new hard drive first. Please refer to question 2 in the troubleshooting section for more information. Connecting SATA Drive 1. Connect the provided SATA cable to the SATA receptacle on your SATA hard drive and the adapter. - Page 5 Connecting IDE Drive 3. Connect your IDE device to the IDE connector of the adapter. To connect to a 3.5” IDE hard drive or 5.25” CD/DVD drive, connect the 2.5" to 3.5" IDE converter first. 4. If a 3.5” or 5.25” IDE device is connected, use the provided power cable, connect the mini 4- pin end to the adapter's DC...
- Page 6 AC outlet. Note: The hard drive connected to the TU2-IDSA must be formatted in FAT-16 or FAT-32 in order for Windows 98SE or Windows ME to recognize it. Note: For Windows 98SE users, please refer to the question 1 in the troubleshooting section.
-
Page 7: Troubleshooting
Please refer to question 2 for more information. Third, the hard drive that is connected to the TU2-IDSA must be formatted in FAT-16 or FAT-32 in order for Windows 98SE or ME to recognize it Can I connect a SATA drive and an IDE drive simultaneously? Yes. - Page 8 Return Material Authorization (RMA) number, accompanied by a copy of the dated proof of the purchase. Products returned to TRENDnet must be pre- authorized by TRENDnet with RMA number marked on the outside of the package, and...
- Page 9 ANY OTHER LIABILITY IN CONNECTION WITH THE SALE, INSTALLATION, MAINTENANCE OR USE OF TRENDNET’S PRODUCTS. TRENDNET SHALL NOT BE LIABLE UNDER THIS WARRANTY IF ITS TESTING AND EXAMINATION DISCLOSE THAT THE ALLEGED DEFECT IN THE PRODUCT DOES NOT EXIST OR WAS CAUSED BY CUSTOMER’S OR ANY THIRD PERSON’S...
- Page 10 English/Espanol - 24/7 Francais/Deutsch - 11am-8pm, Monday - Friday MET Product Warranty Registration Please take a moment to register your product online. Go to TRENDnet’s website at http://www.trendnet.com 3135 Kashiwa Street Torrance, CA 90505 Copyright ©2006. All Rights Reserved. TRENDnet.
