- Page 1 Forza 720 USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd.
-
Page 2: Product Diagram

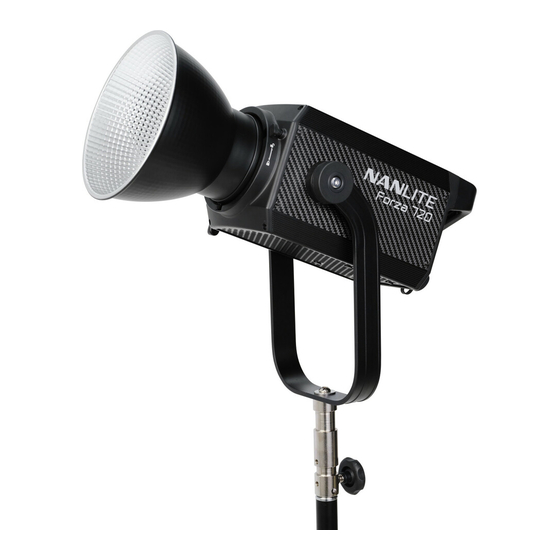

Forza 720 LED Spot Light Product Diagram Technical Data Rated power: 800W Input: DC48V/16.67A Max AC100-240V 50/60Hz Color Temperature: 5600K CRI: 95 TLCI: 96... -
Page 3: Product Details
Product Details 3. Umbrella Hole 1. Fixture Body Handle 4. Reflector 5. Adjustable Handle 2. Fixture Body Input Socket 6. Yoke 7. Lock Catch... - Page 4 10. AC Power Input Socket 8. Control Unit Output Socket 11. Power Switch 9. DMX OUT 12.DMX IN 13. USB Port 14. Control Panel 16. Control Unit Handle 17. Quick Release Plate 15. Battery Holder 15. Battery Holder...
-
Page 5: Detailed Description
Detailed Description 1. Fixture body handle: For lifting the fixture body and adjusting the direction of the illumination. 2. Fixture body input socket: For connecting the fixture body with control unit. 3. Umbrella hole: For installing/removing an umbrella. 4. Reflector: For concentrating light to improve the central illumination. 5. - Page 6 Usage 1. Connection between the Light Fixture, Control Unit and the Power Outlet.
- Page 7 Note: ① When connecting the power supply, please make sure the power, voltage and frequency are consistent with the control unit. ② Make sure to use the provided power cable and DC connecting cable. The connection between the DC plug and the fixture body input socket should be connected as following 6GND 6GND...
- Page 8 2. Connection between the Light Fixture and Control Unit with Battery Battery Note: ① When powered by two 14.8V batteries, the maximum output is 40%. ② When powered by two 26V batteries, the maximum output is 70%. ③ Do not use the 14.8V and 26V batteries at the same time, or use only one battery of either kind to power the fixture.
- Page 9 3. Quick Release Clamp Installation ① ② Rotate the adjustable handle to release the clamp. Mount the quick release clamp on the light stand, then rotate the adjustable handle to tighten the clamp. ③ ④ Align the quick release plate on the control unit When removing the control unit, press the lock with the quick release mount on the clamp, a catch on the clamp and release the control unit...
- Page 10 4. Reflector Installation ① ② Align the reflector to the fixture's Bowens mount, Press the lock catch and rotate the reflector until rotate the reflector in the direction shown on the it is free to be removed from the fixture. fixture until it clicks into place.
-
Page 11: Remote Control
Remote Control Forza 720 supports DMX, 2.4G, RDM remote control, and includes a built-in Bluetooth as well. · ▲Address code need to be pre-set for DMX, 2.4G, RDM remote control solutions. 1. ADDRESS/DMX, including ADDRESS, DMX MODE and DMX DIMMING CURVE settings. - Page 12 MENU MENU CH: 512 CH: 512 ADDRESS/DMX ADDRESS RESET BLUETOOTH DMX MODE WIRELESS PROTOCOL DMX DIMMING CURVE FAN CONTROL ROTATE SCREEN SCREEN BRIGHTNESS PRESS “MENU” TO RETURN Rotate the "right knob" to ADDRESS/DMX. Press the "right knob" to enter the corresponding secondary menu. MENU MENU CH: 512...
-
Page 13: Dmx Mode
② DMX MODE MENU MENU CH: 512 CH: 512 ADDRESS DAYLIGHT 8bit DMX MODE DAYLIGHT 16bit DMX DIMMING CURVE ULTIMATE DMX 8bit PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to DMX MODE. Press the "right knob" to enter the corresponding tertiary menu. MENU MENU CH: 512... - Page 14 ③ DMX DIMMING CURVE MENU MENU CH: 512 CH: 512 ADDRESS LINEAR DMX MODE EXPONET DMX DIMMING CURVE LOGARITHM S CURVE PRESS “MENU” TO RETURN PRESS “MENU” TO RETURN Rotate the "right knob" to DMX DIMMING CURVE. Press the "right knob" to enter the corresponding tertiary menu. MENU MENU CH: 512...
- Page 15 2. DMX Remote Control ① Connect the fixture to the DMX/RDM consoles via DMX cable as shown below: DMX IN DMX OUT 1 GND GND 1 2 DATA- DATA- 2 3 DATA+ DATA+ 3 5-pin shielded cable with a diameter not less than 0.3mm must be used for connection between light fixture and ·...
- Page 16 Address Setting of the Light Fixtutre. ④ Refer to the DMX reference guide and control the light via DMX/RDM console. (For detailed operation please refer to the DMX/RDM console operation manual.) Note: DMX reference guide "Forza_720B_DMX_REFERENCE_GUIDE_EN" is downloadable from www.nanlite.com.
- Page 17 3. 2.4G Remote Control Set the address of the 2.4G remote controller to be consistent with the light fixture, enabling the fixture to be · remotely controlled by 2.4G remote controller or by APP via the transmitter box. ① Note: 2.4G remote controller and transmitter box are sold separately.
- Page 18 Operating Instructions 1. Be sure that the power switch of the control unit is in the "off " position. Now it is safe to connect the control unit and power the unit on, the screen will display "NANLITE". Powered by...
- Page 19 ① DAYLIGHT button: Press the DAYLIGHT button to enter the DAYLIGHT MODE, rotate "left knob", clockwise to increase brightness while counterclockwise to reduce the brightness. The screen shows the percentage of brightness, DIM range: 0.0-100.0%. DAYLIGHT DAYLIGHT CH: 512 CH: 512 100.0% 0.0% 0.0%...
- Page 20 PRESS “MENU” TO RETURN DAYLIGHT EFFECT MENU LOCK Forza 720 has built-in effects including: INT LOOP, FLASH, PULSE, STORM AUTO, STORM MANUAL, TV, · PAPARAZZl, CANDLE/FIRE, BAD BULB, FIREWORK, EXPLOSION AUTO, EXPLOSION MANUAL and WELDING. EFFECT MODE EFFECT MODE CH: 512...
- Page 21 EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: INT LOOP EFFECT: INT LOOP DIM: 0.0% - 100.0% DIM: 0.0%-100.0% DECAY: 8s DECAY: 8s Rotate the "left knob" to select the EFFECT. EFFECT MODE EFFECT MODE CH: 512 CH: 512 EFFECT: INT LOOP EFFECT: INT LOOP DIM:...
- Page 22 3. MENU button: Press the MENU button to enter the menu. MENU CH: 512 ADDRESS/DMX RESET BLUETOOTH WIRELESS PROTOCOL FAN CONTROL ROTATE SCREEN Left knob Right knob SCREEN BRIGHTNESS DAYLIGHT EFFECT MENU LOCK Rotate the "right knob" to select the setting item and press the "right knob" to enter the corresponding secondary menu. ·...
-
Page 23: Wireless Protocol
① ADDRESS/DMX For more operation details please refer to P14. ② RESET BLUETOOTH MENU MENU CH: 512 CH: 512 ADDRESS/DMX RESET BLUETOOTH RESET BLUETOOTH WIRELESS PROTOCOL BACK RESET FAN CONTROL ROTATE SCREEN SCREEN BRIGHTNESS PRESS “MENU” TO RETURN Rotate the "right knob" to RESET BLUETOOTH. Press the "right knob" to enter the corresponding tertiary menu. MENU MENU CH: 512... -
Page 24: Fan Control
④ FAN CONTROL MENU MENU CH: 512 CH: 512 ADDRESS/DMX RESET BLUETOOTH WIRELESS PROTOCOL FAN CONTROL ROTATE SCREEN SCREEN BRIGHTNESS FULL PRESS “MENU” TO RETURN Rotate the "right knob" to FAN CONTROL. Press the "right knob" to enter the corresponding secondary menu. MENU MENU CH: 512... -
Page 25: Rotate Screen
⑤ ROTATE SCREEN MENU MENU CH: 512 CH: 512 ADDRESS/DMX RESET BLUETOOTH DO YOU WANT ROTATE WIRELESS PROTOCOL SCREEN FAN CONTROL ROTATE SCREEN SCREEN BRIGHTNESS Rotate the "right knob" to ROTATE SCREEN. Press the "right knob" to enter the corresponding secondary menu. MENU CH: 512 DO YOU WANT ROTATE... -
Page 26: Screen Brightness
⑥ SCREEN BRIGHTNESS MENU MENU CH: 512 CH: 512 ADDRESS/DMX RESET BLUETOOTH SCREEN BRIGHTNESS WIRELESS PROTOCOL FAN CONTROL ROTATE SCREEN SCREEN BRIGHTNESS PRESS “MENU” TO RETURN Rotate the "right knob" to SCREEN BRIGHTNESS. Press the "right knob" to enter the corresponding secondary menu. MENU MENU CH: 512... -
Page 27: Button Backlight
⑦ BUTTON BACKLIGHT MENU MENU CH: 512 CH: 512 RESET BLUETOOTH WIRELESS PROTOCOL FAN CONTROL ROTATE SCREEN SCREEN BRIGHTNESS BUTTON BACKLIGHT PRESS “MENU” TO RETURN Rotate the "right knob" to BUTTON BACKLIGHT. Press the "right knob" to enter the corresponding secondary menu. MENU MENU CH: 512... - Page 28 ⑧ LANGUAGE MENU MENU CH: 512 CH: 512 WIRELESS PROTOCOL ENGLISH FAN CONTROL 简体中文 ROTATE SCREEN SCREEN BRIGHTNESS BUTTON BACKLIGHT LANGUAGE FULL PRESS “MENU” TO RETURN Rotate the "right knob" to LANGUAGE. Press the "right knob" to enter the corresponding secondary menu. MENU MENU CH: 512...
-
Page 29: Firmware Update
⑨ FIRMWARE UPDATE Store the firmware files of the lamp head and the controller in the root directory of the USB flash drive at the same · time (make sure the versions of the two firmware files are matched), and then Insert the USB flash drive into the USB port of of the controller. - Page 30 To upgrade, please switch off the SCREEN BRIGHTNESS light, plug in USB drive that has BUTTON BACKLIGHT new firmware, and restart the light. LANGUAGE www.nanlite.com VERSION PRESS “MENU” TO RETURN Rotate the "right knob" to VERSION. Press the "right knob" to check the current version.
- Page 31 4. LOCK button: Press and hold the LOCK button to lock all functions. Operation buttons or adjustment knobs can not change the current function. Press and hold the LOCK button again to release the Lock status. DAYLIGHT DAYLIGHT CH: 512 CH: 512 100.0% 100.0%...
-
Page 32: Safety Precautions
Safety Precautions 1. Please check for possible damage caused in transit after opening the package. Please do not use if damage is found. And contact with the distributor or manufacturer as soon as possible. 2. Please do not use a power cable with damaged insulation. Please do not unplug too hard or drag the power cable directly. - Page 33 General Fault Detection and Diagnosis Diagnosis Fault Detection 1. Please check whether the connection between control unit and cable or fixture are loose. The light won't boot up properly 2. Please check whether the voltage value is within the specified parameters.
- Page 34 What's in the box? Please kindly check. Forza 720×1 Control Unit×1 Power Cable×1 Connecting Cable×1 Quick Release Clamp×1 Reflector×1 Carrying Bag×1 COB Protective Cap×1 DMX Reference Guide×1 User Manual×1 Forza 720 Forza 720 DMX REFERENCE GUIDE USER MANUAL Guangdong NanGuang Photo&Video Systems Co., Ltd...
- Page 35 Guangdong NanGuang Photo&Video Systems Co., Ltd This manual has been compiled according to the rigorous testing for Nanlite products. Product designs are subject to change without prior notice. The latest version of the manual for this product is downloadable at www.nanlite.com.
- Page 36 Version: V4 2022-10-10 +86-754-85751187 +86-754-85300887 service@nanlite.com Dongli Section, Highway 324, Chenghai, Shantou City, Guangdong Province, China www.nanlite.com...
