Gigabyte H270-T70 Quick Installation Manual

43
42 41 39
44
1
2
40
3
4 45
5
6
47
46
7
8 48
9
10
11
12
13 14 15
No. Code Description
1 VGA_1 Rear VGA port
2 F_VGA1 Front VGA header
3 COM1 Rear serial port
4 COM2 Front serial port header
5 SW_PWR Power button w/LED
6 SW_ID ID switch button w/LED
7 SW_RST_NMI Reset button (top)
8 LED_LAN QSFP LAN link/activity/speed LED for port #1 and port #2
9 QSFP_1 QSFP LAN port #1
10 QSFP_2 QSFP LAN port #2
11 LED_STA System status LED
12 USB3_MLAN BMC management LAN port (top)/USB 3.0 ports (buttom)
13 SATA_SGP1 SATA SGPIO header
14 SATA3/SATA2/SATA1 SATA 6Gb/s connectors
15 SATA_DOM0 SATA0 port DOM support jumper
16 SATA0 SATA 6Gb/s connector
17 DIMM_P0_A0 Channel 1 slot 0 (for primary CPU)
18 DIMM_P0_A1 Channel 1 slot 1 (for primary CPU)
19 DIMM_P0_C0 Channel 3 slot 0 (for primary CPU)
20 DIMM_P0_C1 Channel 3 slot 1 (for primary CPU)
/
Power Supply Board Cage 电源箱
1
2
CAUTION!
Before you remove or install power
supply board cage cover:
Make sure the system is not turned on
10
or connected to AC power.
注意！
在替换或安装电源主板前，请注意下列事
项：
确保系统未开启且未连接到交流电源。
Fan Duct/ 导风罩
System Fan/ 系统风扇 Hard Disk Drive and Back Plane Board/
HDD Installtion
CAUTION!
Before you remove or install the system fan:
 Make sure the system is not turned on or
HDD Backplane Board Components
connected to the AC power.
 Disconnect all necessary cable connections.
Failure to observe these
warnings could result in personal injury or
damage to the equipment.
注意！
确保系统未开机且未连接到交流电源。
No
断开所有必要的线缆连接。若不遵循
1
这些警告，可能造成人员伤害或设备
2
损坏。
3
PCI Express Expansion Card/PCI Express 扩展卡
3
2
4
1
CAUTION!
Before you remove or install the PCI express card:
 Voltages can be present within the server whenever an AC power source is connected.
This voltage is present even when the main power switch is in the off position. Ensure that the system is
powered-down and all power sources have been disconnected from the server prior to installing a
PCI express card.
注意！
连接了交流电源时，服务器内可能存在电压。甚至在主电源开关处于关闭位置时，也
存在此电压。在安装PCI卡之前，确保系统处于关机状态并且断开服务器的所有电源。
若不遵循这些警告，可能造成人员伤害或设备损坏。
Attach the rails to the rack.
Click!
P U
S H
2
1
P U
Click!
S H
CAUTION!
!
Post Square stud must
be fully attached inside
the square hole on the
rack rail.
PN:25ME0-H27000-CLR
H270-T70 Quick Installation Guide/H270-T70 快速安装说明
38
34
35
36
37
33
49
21
20
19
18
17 26
16
No. Code Description
21 CPU0 Cavium ThunderX CN88xx ARMv8 SoC processor (Primary CPU)
22 CPU1 Cavium ThunderX CN88xx ARMv8 SoC processor (Secondary CPU)
23 DIMM_P1_H1 Channel 4 slot 1 (for secondary CPU)
24 DIMM_P1_H0 Channel 4 slot 0 (for secondary CPU)
25 DIMM_P1_F1 Channel 2 slot 1 (for secondary CPU)
26 DIMM_P1_F0 Channel 2 slot 0 (for secondary CPU)
27 ATX1 18 pin power connector
28 FP_1 Front panel header
29 ATX2 18 pin power connector
30 DIMM_P1_E0 Channel 1 slot 0 (for secondary CPU)
31 DIMM_P1_E1 Channel 1 slot 1 (for secondary CPU)
32 DIMM_P1_G0 Channel 3 slot 0 (for secondary CPU)
33 DIMM_P1_G1 Channel 3 slot 1 (for secondary CPU)
34 DIMM_P0_B0 Channel 2 slot 0 (for primary CPU)
35 DIMM_P0_B1 Channel 2 slot 1 (for primary CPU)
36 DIMM_P0_D0 Channel 4 slot 0 (for primary CPU)
37 DIMM_P0_D1 Channel 4 slot 1 (for primary CPU)
38 BMC_SGPIO1 BMC SGPIO header
39 IPMB IPMB connector
40 F_USB3 USB 3.0 header
/
系统组件
System Components
2
1
4 3
5
3
No Description
1 Power module
4
2 Power supply board cage
5
9 5 3 PCI Express card
8
7
6
4 Fan duct
9
8
7 5 Memory module
6 5
10
6 System fan #1/#2 (FAN1/FAN2)
7 System fan #3/#4 (FAN3/FAN4)
8 System fan #5/#6 (FAN5/FAN6)
9 System fan #7/#8 (FAN7/FAN8)
10 HDD bays
Heat Sink/ 散热装置
CPU0:
2
1
CPU0
硬盘驱动器与硬盘驱动器底板
2
3
4
4
1
6
3 1
5
4 2
Description No Description
SATA0 4 SATA4
SATA1 5 IPMB
SATA2 6 SATA_SGPIO
Add-on Card (Optional)/ 附加卡 ( 选购 )
5
4
3
1
CAUTION!
Before you remove or install the Add-on card:
 Voltages can be present within the server whenever an AC power source is connected.
This voltage is present even when the main power switch is in the off position. Ensure that the system is
powered-down and all power sources have been disconnected from the server prior to installing an
add-on card.
注意！
连接了交流电源时，服务器内可能存在电压。甚至在主电源开关处于关闭位置时，也存
在此电压。在安装附加卡之前，确保系统处于关机状态并且断开服务器的所有电源。
若不遵循这些警告，可能造成人员伤害或设备损坏。
Rail Kit/ 导轨
Install into the chassis.
Two persons lift required.
Insert the chassis directly on the L bracket.
Motherboard Components/ 主板组件
No.
29
41
30
31
288 42
32 287
143
28
43
44
22
45
46
47
23
24
48
25
49
27
/
PDB Components 配电板组件
Power Distribution Board Components
No Description
1 System fan #1 (FAN1)
2 System fan#2 (FAN2)
3 System fan #3(FAN3)
4 System fan #4 (FAN4)
5 System fan #5 (FAN5)
6 System fan #6 (FAN6)
7 System fan #7 (FAN7)
8 System fan #8 (FAN8)
1 5
2 6
3 7
4 8
CPU1:
3
CPU1
Power Supply/ 电源
CAUTION!
Before you remove or install the power
supplies:
Make sure the system is not turned on or
connected to AC power.
注意！
在替换或安装电源前，请注意下列事项：
确保系统未开启且未连接到交流电源。
2
Tighten the positioning screws
2
1
2
Code Description
S3_MASK S3 Power On Select jumper
1-2 Close: Stop an initial power on when BMC is not ready.
2-3 Close: Keep initial power on. (Default setting)
BIOS_PWD Clearing Supervisor Password jumper
1-2 Close: Normal operation. (Default setting)
2-3 Close: Skip supervisor password.
CASE_OPEN Chassis intrusion alert header
PCIE_1 Half-length low-profile slot with PCIe x16
(Gen3 x16 bus) connector
LED_BMC BMC frmware readiness LED
MEZZ_1 Mezzanine PCIe x8 (Gen3 x8 bus) connector
BIOS_RCVR BIOS recovery jumper
1-2 Close: Normal operation. (Default setting)
2-3 Close: BIOS recovery mode.
BAT1 Battery socket
CLR_CMOS Clear CMOS jumper
1-2 Close: Normal operation (Default setting)
2-3 Close: Clear CMOS data.
Front Panel Header/ 前面板接头
1211
No. Pin Define No. Pin Define
1 PS_ON_N_LF 2 SMBus Clock
3 FP_PSU 4 SMBus Data
5 BMC_FCB_N 6 System Status LED (Green)
7 Power Button 8 System Status LED (Amber)
9 ACK_BMC_N 10 ID LED
2 1
11 GND 12 ID Button
Memory Population Configuration/ 安装内存
#DIMM per channel 1 DIMM per channel
Rank(s) 1 Rank
Data Width x4 x8
Per DIMM Capacity (GB) 8,16 4,8
1600MTS  
1866MTS
 
2133MTS  
 DIMM must be populated starting from DIMM_P0_A0/DIMM_P0_B0 socket and must be installed in
matched pairs.
 One CPU only supports the population of 2/4 (1DPC)/8 (2DPC) in the same time.
 System will not boot normally with incorrect populated sequence.
 DIMM必须从DIMM_P0_A0//DIMM_P0_B0插槽开始按顺序安装。DIMM必须成对安装。
 只能支持一個CPU同時上2/4 (1DPC)/8(2DPC)數量的DIMM。
 若安装顺序有误，系统将无法正常开机。
Front & Rear/ 系统前部与后部概览

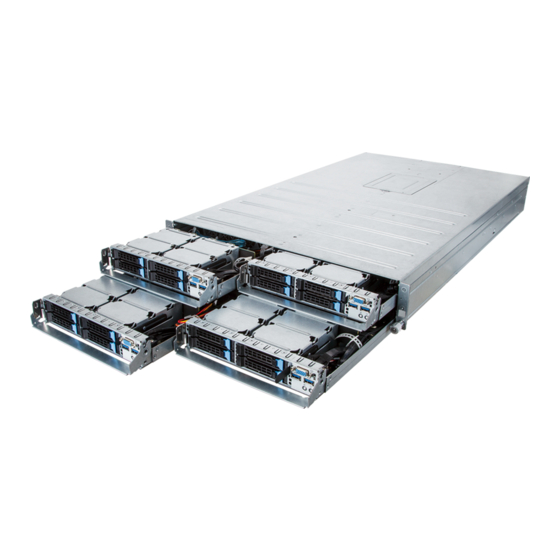

System Front View/系统前部概览
6
5 7 8
1 3
2 4
No Description
1 HDD Node#1
2 HDD Node#2
3 HDD Node#3
4 HDD Node#4
5 ID button w/LED
6 VGA port
7 USB 3.0 ports
8 Power button w/LED
Power button/LED:
State Description
Green On System is powered on
Off System is powered off
ID button/LED:
State Description
Blue On Unit selected for identification.
Off System is powered off
Front Panel LEDs and Buttons/ 前面板 LED 说明
No. Name
1 Power Button and
Status LED
1
2
ID Button w/LED
2
编号 名称
1 Power Button and
Status LED
2
ID按钮和LED
SATA SGPIO Header/SATA SGPIO 接头
No. Pin Define
1 SGPIO_SATA_DATAOUT_R
2 GND
1 5
3 SGPIO_SATA_DIN
4 SGPIO_SATA_LOAD_R
5 SGPIO_SATA_CLOCK_R
DDR4 UDIMM Configuration
#DIMM per channel 1 DIMM per channel 2 DIMM per channel
Rank(s) 1 Rank 2 Rank 1 Rank 2 Rank
Data Width x8,x16 x8,x16 x8,x16 x8,x16
Per DIMM Capacity (GB) 8 8,16 8 8,16
1600MTS
   
1866MTS
   
2133MTS
   
DDR4 RDIMM Configuration
2 DIMM per channel
2 Rank 1 Rank 2 Rank
x4 x8 x4 x8 x4 x8
16,32 8,16 8,16 4,8 16,32 8,16
     
     
 
System Rear View/系统后部概览
5
4 6
7
3 9
8
1 2 10 11 12
No Description
1 VGA port
2 Serial port
3 Power button w/LED
4 ID button w/LED
5 NMI button
6 Reset button
7 System status LED
8 QSFP+ LAN ports
9 10/100/1000 Server management LAN port
10 USB 3.0 ports
11 Power supply fan
12 Power supply module cord socket
Speed LED Link/Activity QSFP+ LAN LED:
LED
State Description
Green On 40 Gbps data rate
Yellow On 10 Gbps data rate
Speed LED Link/Activity 10/100/1000 LAN LED:
LED
State Description
Yellow On 1Gbps data rate
Green On 100Mbps data rate
Off 10Mbps data rate
Link/Activity LED:
State Description
Link between system
Green On
and network
Blink LAN is active
Color Status Description
Description
Green Solid On System is operating normally.
Critical condition, may indicates:
Power module failure
Solid On System fan failure
Power supply voltage issue
System temperature
Amber
Non-critical condition, may indicates:
Redundant power module failure
Blink
Temperature and voltage issue
Chassis intrusion
System is not ready, may indicates:
POST error
N/A Off
NMI error
Processor or terminator missing
Blue On Unit selected for identification.
N/A Off No identification.
颜色 状态 说明
绿色 恒亮 系统正常运行。
严重情形，可能为下列状况：
电源模块故障
恒亮 系统风扇故障
电源电压问题
系统温度/电压问题
橙色
非严重情形，可能为下列状况：
冗余电源模块故障
闪烁
系统温度/电压问题
机箱侵入
系统未正常运行，可能为下列状况：
POST错误
无亮灯 不亮
NMI错误
处理器或终结器缺失
蓝色 恒亮 系统识别功能。
无亮灯 不亮 无系统识别功能。
