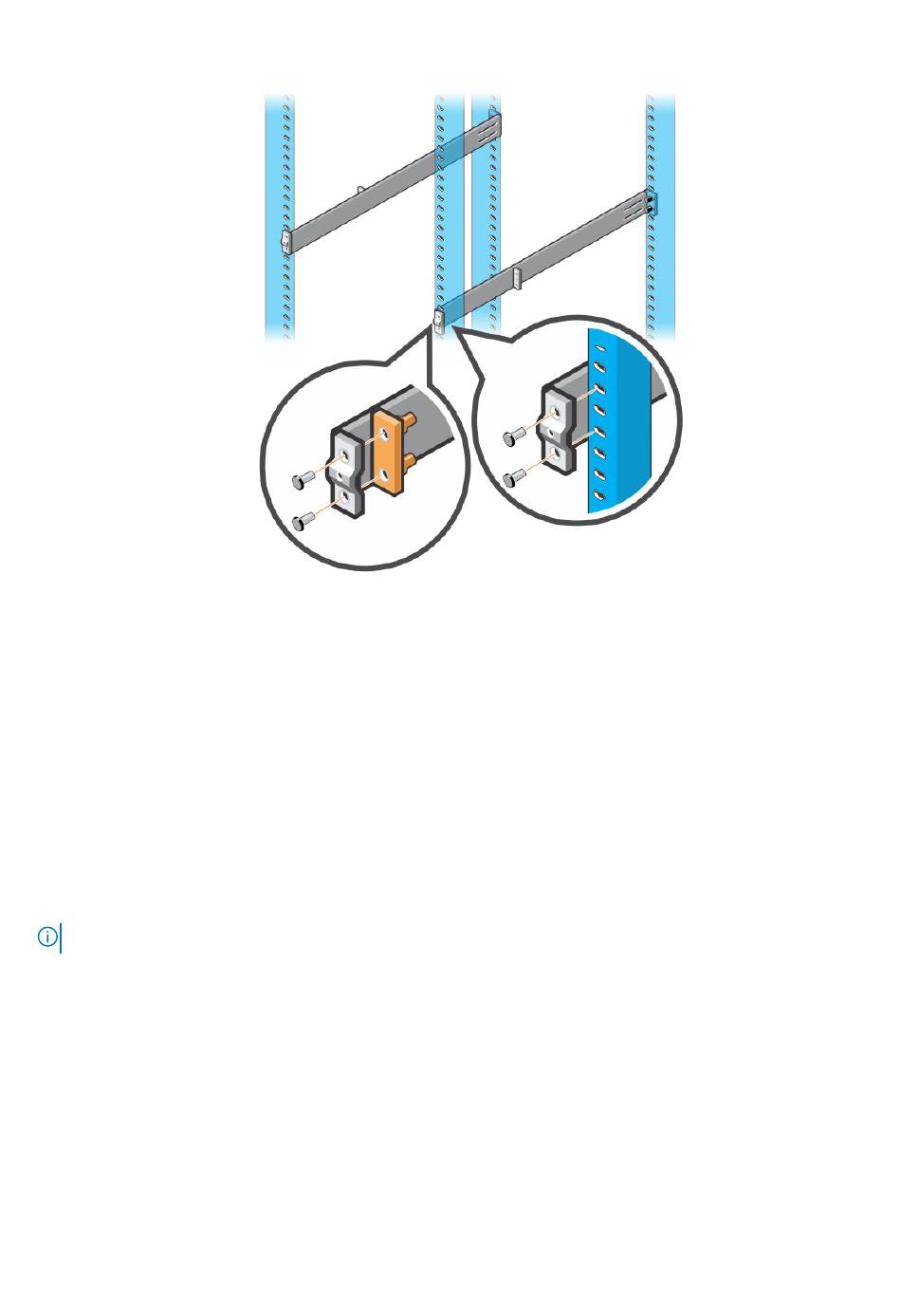

Figure 20. Four-post threaded installation

2. For each rail, attach the front and back flanges to the post flanges with two user-supplied screws at each end.

S4100-ON Series installation

You can mount the switch in the 1U front-rack two-post, flush or center configuration, or a four-post configuration. The

following is an example of a front-rack configuration:

For the 1U two-post configurations, slide the switch into the rails in the same manner as the four-post configurations.

Configure the rails that are attached to the switch.

NOTE:

For more information, see the installation instruction labels on the rail.

Attach the inner switch rails to the S4100F–ON Series (S4128F-ON, S4148F-ON, S4148FE-ON, S4128T-ON, S4148T-ON, or

S4148U-ON) switch.

Line up the rail with the mounting heads and attach the rail to the chassis. Slide the rail back until it locks into place. The

following shows the detail of the front standoff with the locking tab:
