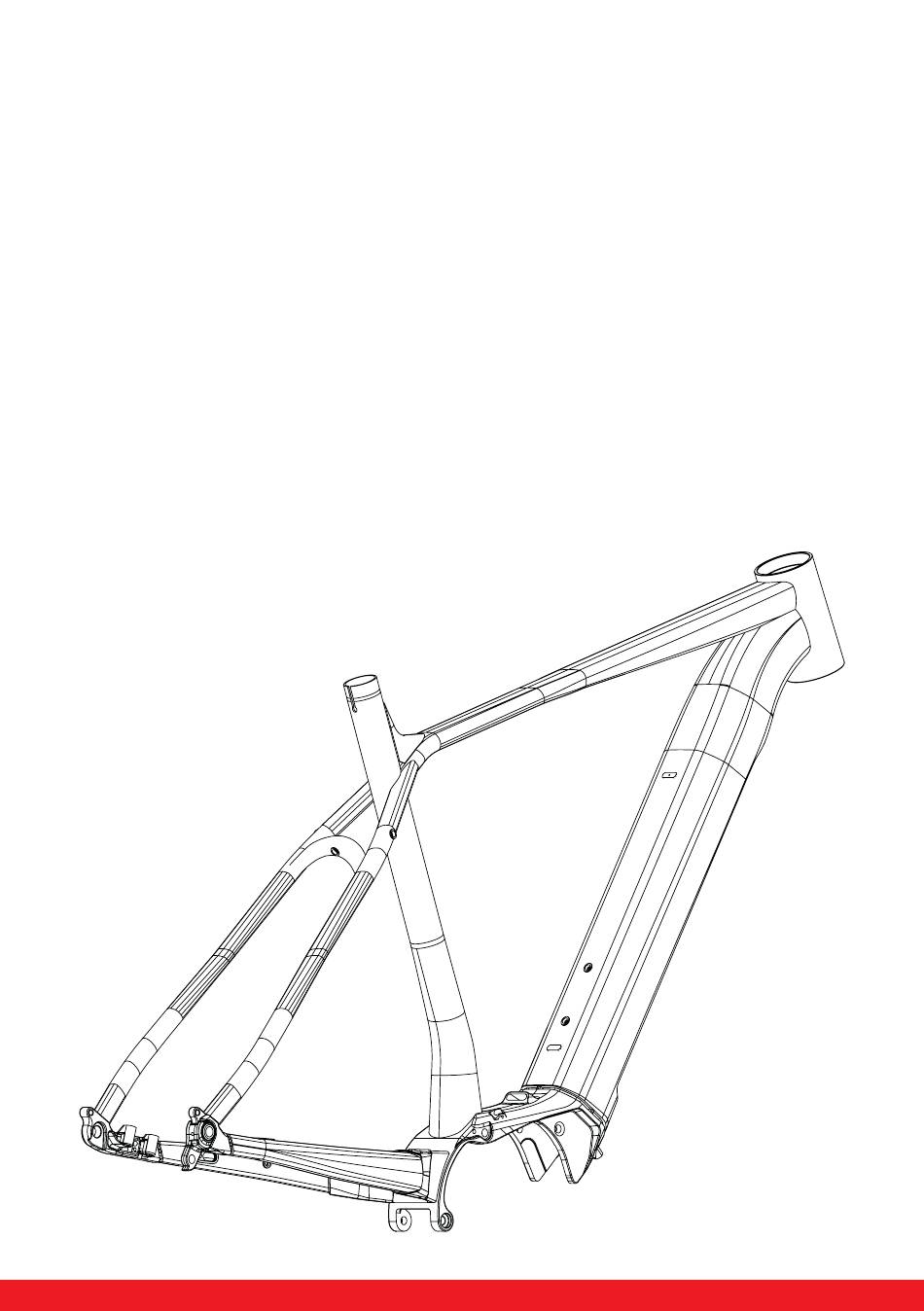

  • Page 1 SERVICE MANUAL SUPERIOR SUE-05...

  • Page 2: Preventing Damage

    This bikes are equipped with only front suspension fork with short travel and are constructed for “standard” rides, assuming adherence to type-2 operating conditions: Superior would like to congratulate you on the purchase of your new bicycle. We place great emphasis on the choice Type-2 operating conditions of materials and their processing so as to ensure the highest quality of our products, a long service life and great Riding on paved roads and unpaved and gravel roads and trails with moderate grades.

  • Page 3: Service Intervals

    SERVICE INTERVALS SETTING THE FORK Large-scale service – at an authorized service centre, at least 1× per year or after 200 hours of riding. CONFIGURING THE FORK STIFFNESS (SAG) • Check the tightening of moving parts before and after each ride. The prescribed torques of individual joints The fork must always be unlocked while being configured.
  • Page 4 SERVICE 2 REPLACING THE HYDRAULIC HOSE OF THE REAR BRAKE 2.1 Slide the old hose out from the guide in the frame. 2.2 Slide a new hose in the left chain stay through hole B1. 2.3 Put the hose from the inner side under the main pivot. 2.4 Insert the hose through the hole B2 in the frame and slide the head tube out upwards.
  • Page 5 SERVICE 5 PULLING THE CABLES, HYDRAULIC HOSE AND DISPLAY CABLE THROUGH THE HEADSET AND SPACER RINGS 5.1 Pull the cables, hydraulic hose and display cable through the headset bearing lid and spacer rings so that the telescopic seatpost cable and display cable would be positioned on the right-hand side when viewing from the front (1).

  • Page 6: Smart Tips

    13 7 ORIGINAL ACCESSORIES ITEM BFI PRODUCT CODE ART. NO. DERAILLEUR HANGER 598.1303.00010 MOTOR SCREW SET 598.1303.00022 COVER LOCKHOLD 013.0017.00016-372 DOCK PLATE 095.0010.00018-372 POWER SWITCH HANGER 095.0010.00019-372 SKID PLATE 013.0019.00001-372 STEM 60 MM 036.2553.00036-196 STEM 80 MM 036.2433.00021-196 E-THRU AXLE 598.1303.00019 FRAME PROTECTOR CH/S 087.8000.00022-196...
  • Page 7 #BEFASTER Superior is a registered trade mark of BIKE FUN International Areál Tatry 1445/2 742 21 Kopřivnice www.superiorbikes.eu...
