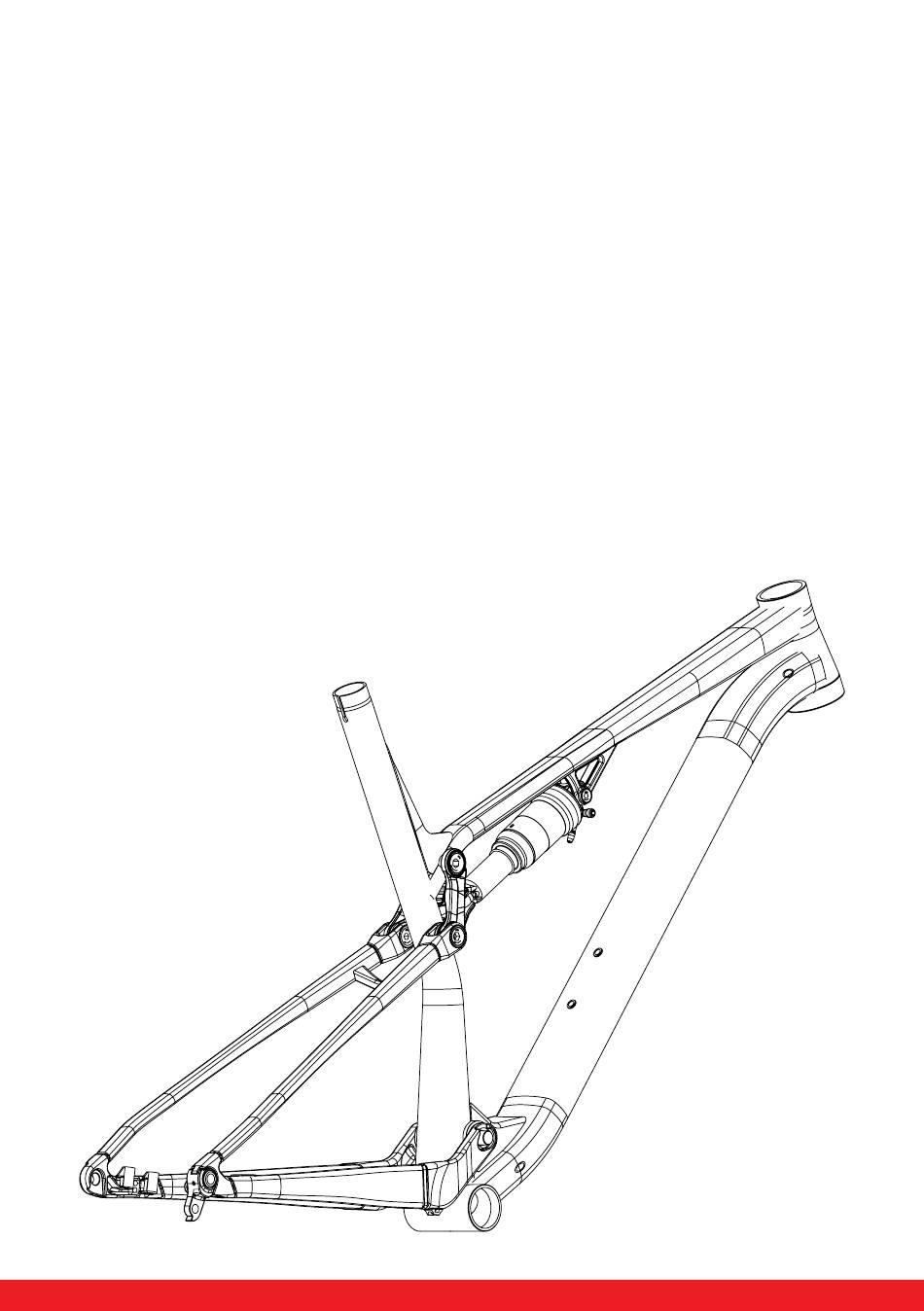

- Page 1 SERVICE MANUAL SUPERIOR SU-02...
-
Page 2: Preventing Damage
Mountain bikes are equipped with a rear suspension with short travel and are constructed for “standard,” “racing”, “cross-country” or “singletrack-trail” rides, assuming adherence to type-3 operating conditions: Superior would like to congratulate you on the purchase of your new bicycle. We place great emphasis on the choice Type-3 operating conditions... -
Page 3: Service Intervals
SERVICE INTERVALS SETTING THE FORK AND REAR SHOCK Large-scale service – At an authorized service centre, at least 1× per year or after 200 hours of riding. • Check the tightening of moving parts before and after each ride. The prescribed torques of individual joints •... - Page 4 SERVICE 3 REPLACING THE TELESCOPIC SEATPOST CABLE 3.1 Slide the old cable out from the guide in the frame. 3.2 Slide a new cable in the frame through the hole C1. 3.3 Slide the cable through the hole C2 in the seat tube. REPLACING THE CABLES AND HOSES Ducts are made using guiding tunnels inside of the bicycle frame.
- Page 5 COMPATIBILITY Front Ø 160 -180 mm Brake Rotors Rear Ø 140 -180 mm Tyre max. 29 x 2.35” Chainring 1× max. number of teeth 38 Crankset Q factor min. 168 mm Headset BC 1-1/8” *1.5” FSA NO.57/ACB; Orbit ZS Bottom Bracket Pressfit BB 92 mm Seatpost Clamp Ø...
-
Page 6: Smart Tips
ORIGINAL ACCESSORIES ART. NO. ITEM BFI PRODUCT CODE DERAILLEUR HANGER 598.1303.00010 BEARING SET 598.1303.00011 BEARING SET 598.1303.00015 BEARING SET 598.1303.00017 SEAT STAY PIVOT 598.1303.00014 MAIN PIVOT 598.1303.00013 LINK 013.0003.00104-372 SCREW 013.0003.00102-372 PIVOT 013.0003.00107-372 LINK 013.0003.00103-372 SCREW 013.0003.00101-372 E-THRU AXLE 598.1303.00019 CHAIN DEVICE 067.0012.00001-196 SHOCK... - Page 7 #BEFASTER Superior is a registered trade mark of BIKE FUN International Areál Tatry 1445/2 742 21 Kopřivnice www.superiorbikes.eu...
