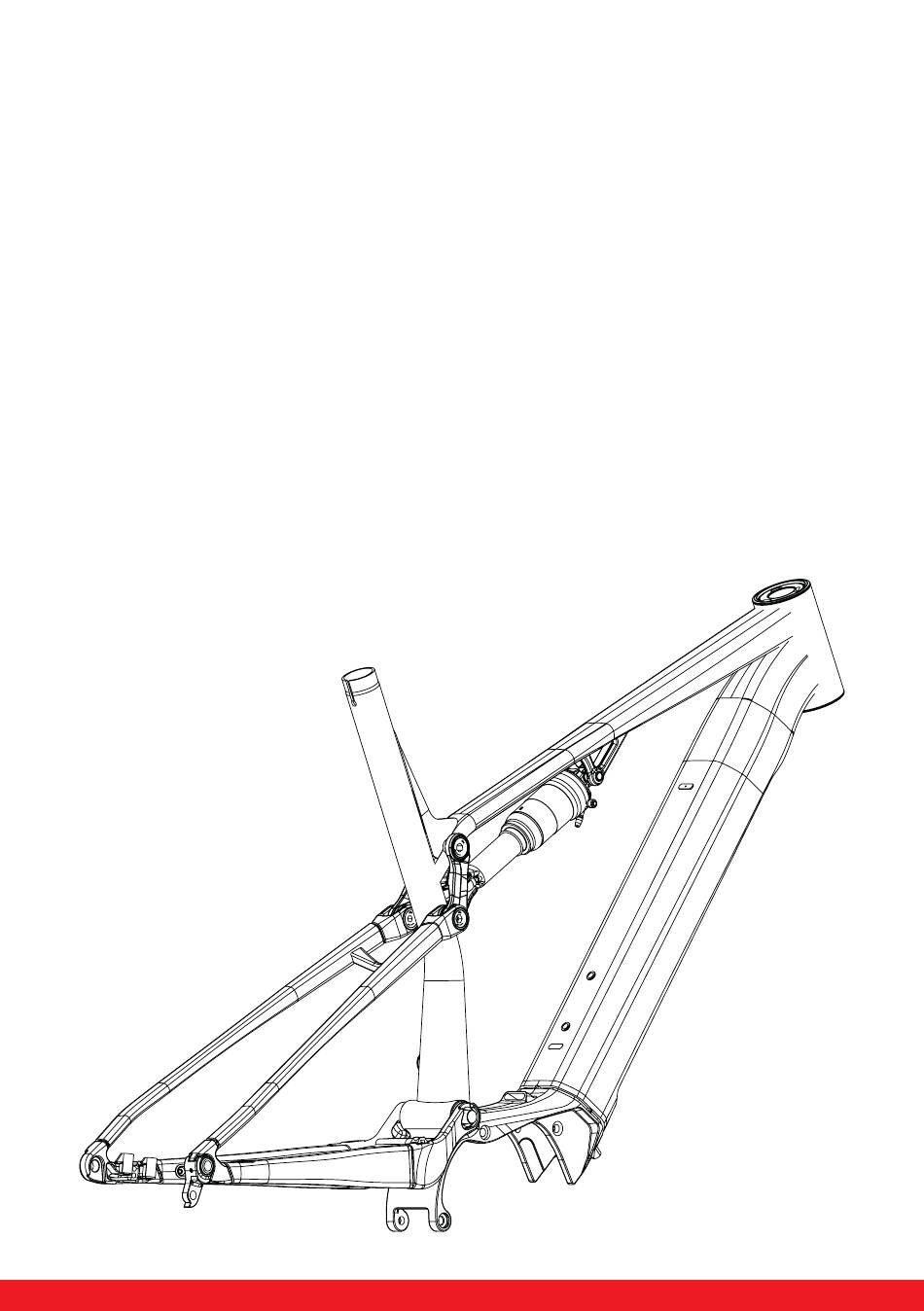

- Page 1 SERVICE MANUAL SUPERIOR SUE-03...
-
Page 2: Preventing Damage
Superior supplies high-quality bicycles exclusively for specialized shops. These products are already partially pre- assembled. The final assembly of a bike can only be carried out by an authorized Superior dealer. This particularly applies to the basic configuration of suspension components, the front and back derailleurs and braking systems. This will ensure maximum safety when using the product. -
Page 3: Service Intervals
SERVICE INTERVALS SETTING THE FORK AND REAR SHOCK Large-scale service – at an authorized service centre, at least 1× per year or after 200 hours of riding. • Check the tightening of moving parts before and after each ride. The prescribed torques of individual joints •... - Page 4 SERVICE 2 REPLACING THE HYDRAULIC HOSE OF THE REAR BRAKE 2.1 Slide the old hose out from the guide in the frame. 2.2 Slide a new hose in the rear swingarm through hole B1. 2.3 Insert the hose through the hole B2 in the frame and slide the head tube out upwards. REPLACING THE CABLES AND HOSES Ducts are made using guiding tunnels inside of the bicycle frame.
- Page 5 SERVICE 5 PULLING THE CABLES, HYDRAULIC HOSE AND DISPLAY CABLE THROUGH THE HEADSET AND SPACER RINGS 5.1 Pull the cables, hydraulic hose and display cable through the headset bearing lid and spacer rings so that the telescopic seatpost cable and display cable would be positioned on the right-hand side when viewing from the front (1).
-
Page 6: Smart Tips
ORIGINAL ACCESSORIES ART. NO. ITEM BFI PRODUCT CODE 26 17 23 24 DERAILLEUR HANGER 598.1303.00010 BEARING SET 598.1303.00011 BEARING SET 598.1303.00015 BEARING SET 598.1303.00017 SEAT STAY PIVOT 598.1303.00014 MAIN PIVOT 598.1303.00013 MOTOR SCREW SET 598.1303.00022 COVER LOCKHOLD 013.0017.00016-372 DOCKING PLATE 095.0010.00018-372 POWER SWITCH HANGER 095.0010.00019-372... - Page 7 #BEFASTER Superior is a registered trade mark of BIKE FUN International Areál Tatry 1445/2 742 21 Kopřivnice www.superiorbikes.eu...
