1.2.5

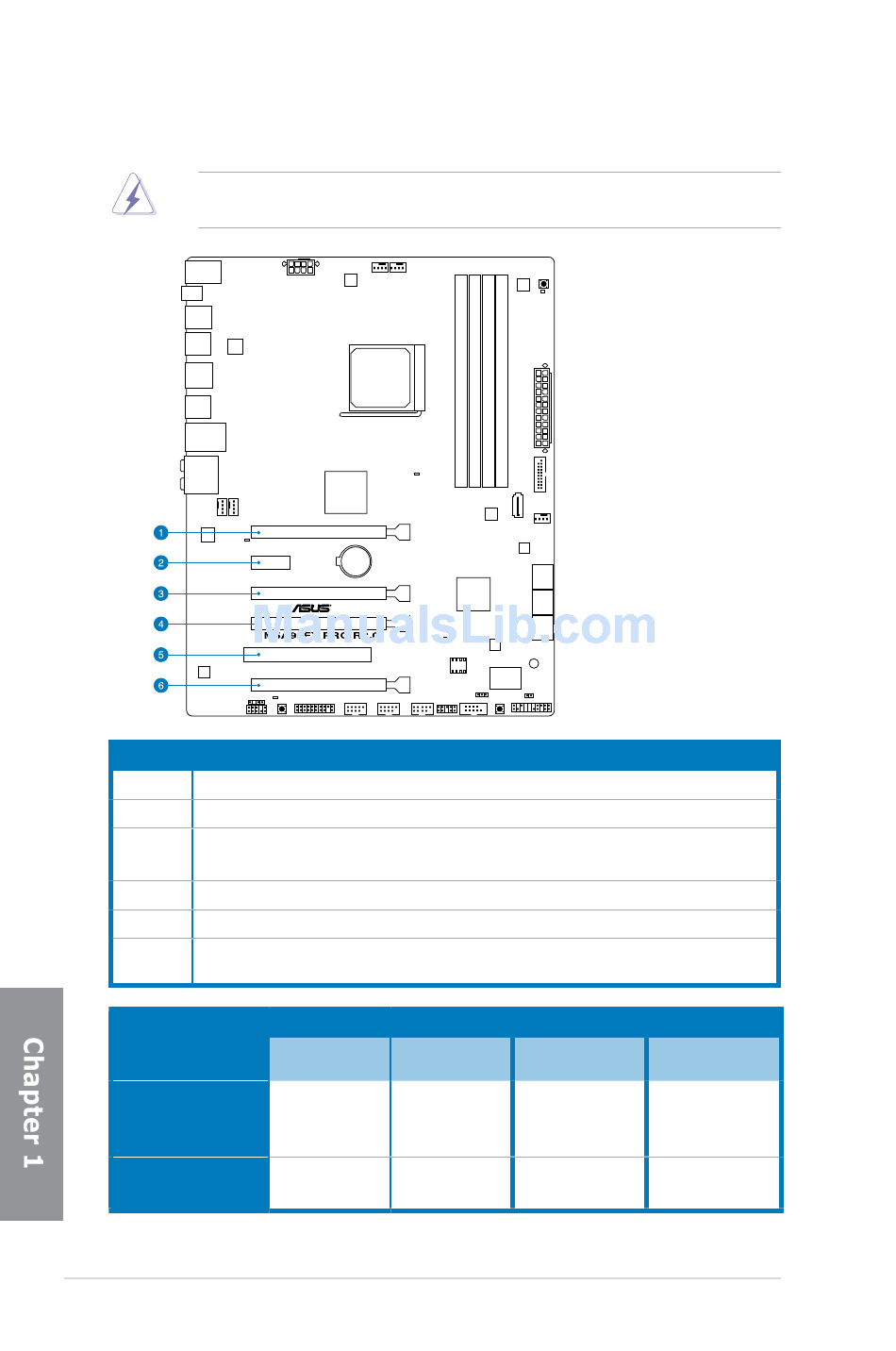

Expansion slots

Unplug the power cord before adding or removing expansion cards. Failure to do so may
cause you physical injury and damage motherboard components.
Slot No. Slot Description
1 PCIe 2.0 x16_1 slot (dual at x16/x16 mode)
2
PCIe 2.0 x1_1 slot
PCIe 2.0 x16_2 slot [black] (at x4 mode, compatible with PCIe x1 and
3
x4 devices)
4 PCIe 2.0 x16_3 slot (dual at x16/x16 mode)
5 PCI slot 1
PCIe 2.0 x16_4 slot [black] (at x4 mode, compatible with PCIe x1 and x4
6
devices)
VGA
configuration
Single VGA/PCIe
card
Dual VGA/PCIe
card
1-22
PCI Express operating mode
PCIe 2.0 PCIe 2.0
x16_1 x16_2
x16
(Recommend x4
for single
x16 x4
PCIe 2.0 x16_3 PCIe 2.0 x16_4
x16
x16
Chapter 1: Product introduction
x4
x4
