Ryobi 36V HP R36XCHS10 Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
R36XCHS10

Advertisement

Table of Contents
loading

Related Manuals for Ryobi 36V HP R36XCHS10

Summary of Contents for Ryobi 36V HP R36XCHS10

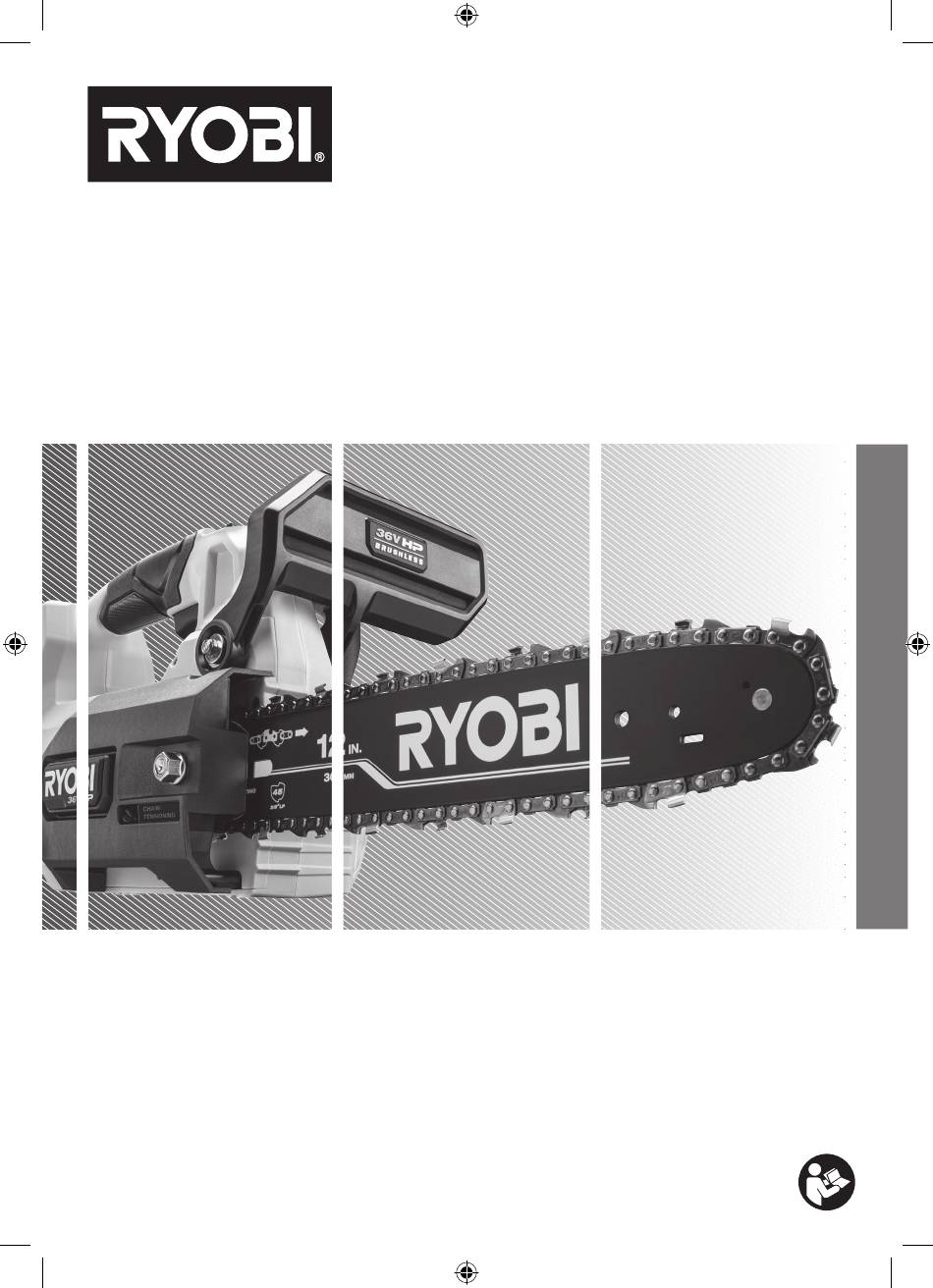

  • Page 1 R36XCHS10...

  • Page 2: Intended Use

    ■ When operating a power tool outdoors, use an IMPORTANT! extension cord suitable for outdoor use. Use of a It is essential that you read the instructions in this manual cord suitable for outdoor use reduces the risk of electric before assembling, operating, and maintaining the shock.

  • Page 3: General Chainsaw Safety Warnings

    Power tools are dangerous in the hands of untrained GENERAL CHAINSAW SAFETY WARNINGS users. ■ Keep all parts of the body away from the saw chain ■ Maintain power tools and accessories. Check for when the chainsaw is operating. Before you start the misalignment or binding of moving parts, breakage chainsaw, make sure the saw chain is not contacting of parts and any other condition that may affect the...

  • Page 4: Additional Safety Warnings

    CAUSES AND OPERATOR PREVENTION OF KICKBACK: ■ Do not use a back-and-forward sawing motion. Let the chain do the work. Keep the chain sharp, and do not try Kickback may occur when the nose or tip of the guide bar to push the chain through the cut.
  • Page 5 An escape path should be planned and cleared as necessary INSTRUCTIONS CONCERNING THE PROPER before cuts are started. The escape path should extend TECHNIQUES FOR BASIC FELLING, LIMBING, back and diagonally to the rear of the expected line of fall. AND CROSS-CUTTING UNDERSTANDING THE FORCES WITHIN THE WOOD When you understand the directional pressures and...

  • Page 6: Transportation And Storage

    LIMBING A TREE Limbing is removing the branches from a fallen tree. When limbing, leave larger lower limbs to support the log off the ground. Remove the small limbs in one cut. Branches under tension should be cut from the bottom up to avoid binding the chainsaw.

  • Page 7: Maintenance

    when transporting batteries by a third party. Ensure that bar, the chain should stop immediately. A chain brake does no batteries can come in contact with other batteries not prevent kickback. It only lowers the risk of injury should or conductive materials while in transport by protecting the chain bar contact the operator’s body during a kickback exposed connectors with insulating, non-conductive caps or event.

  • Page 8: Symbols On The Product

    SYMBOLS ON THE PRODUCT Shopping cart Safety alert Trash bin Read and understand all instructions before operating the product. Follow all warnings and safety instructions. Lock Wear eye, ear, and head protection. Unlock Beware of chainsaw kickback and avoid contact with bar tip. Do not expose the product to rain or damp conditions.
  • Page 9 R36XCHS10 Guide bar Saw chain Rear handle Front hand guard/ Chain brake Front handle Operator’s manual Chain lubricant Chain tensioning screw Switch trigger Trigger release Sprocket cover Bar mounting nut Guide bar cover Battery pack Charger Chain lubricating oil R36XCHS14 Know your product...
  • Page 10 Before and clothing at all times while operating the while using the chainsaw, check the oil NOTE: Use only RYOBI chainsaw product. Do not operate the product level in the oil level gauge. lubricating oil from an authorised when barefoot or wearing open sandals.
  • Page 11 4-5.5 mm Adjust the chain tension until the gap Loosen the bar mounting nut. Remove the guide bar cover. between the drive teeth and bar is between 4 and 5.5 mm. To increase the chain tension, turn the chain tensioning nut clockwise.
  • Page 12 Replacing the bar Adjusting the chain Cleaning the p.13 p.14 p.15 and chain tension product p.16 Storing the product Operation...

  • Page 13: Replacing The Bar And Chain

    REPLACING THE BAR AND CHAIN 1. Remove the battery pack. 2. Loosen the bar mounting nut. Remove the nut, sprocket cover, and bar and chain assembly. 3. Install the new chain on the bar. 4. Insert the chain drive links into the bar groove.

  • Page 14: Adjusting The Chain Tension

    6. Adjust the chain tension until the gap between the drive teeth and bar is between 4 and 5.5 mm. 4-5.5 mm To increase the chain tension, turn the chain tensioning screw clockwise. To reduce the chain tension, turn the chain tensioning screw counterclockwise.

  • Page 15: Cleaning The Product

    3. Adjust the chain tension until the gap between the drive teeth and bar is between 4 and 5.5 mm. 4-5.5 mm To increase the chain tension, turn the chain tensioning screw clockwise. To reduce the chain tension, turn the chain tensioning screw counterclockwise.

  • Page 16: Storing The Product

    WARNING: Do not use water to clean the product. STORING THE PRODUCT 1. Remove the battery pack. 2. Install the guide bar cover. 3. When transporting the product, secure it against movement or falling to prevent injury to persons or damage to the product.

  • Page 18: Product Specifications

    WARNING! The declared vibration total values and the PRODUCT SPECIFICATIONS declared noise emission values given in this instruction Cordless chainsaw manual have been measured in accordance with a standardised test and may be used to compare one tool with Model R36XCHS10 another.
  • Page 20 Unit C, 70 Business Parade South, Highbrook, Auckland 2013, New Zealand RYOBI is a trade mark of Ryobi Limited, and is used under license. TRILINK is a registered trade mark of Trilink Saw Chain, LLC. POWERFIT is a trade mark of Techtronic Outdoor Products Technology Limited in ANZ.
