  • Page 1 X11DSN-TS X11DSN-TSq USER’S MANUAL Revision 1.1b...
  • Page 2 State of California, USA. The State of California, County of Santa Clara shall be the exclusive venue for the resolution of any such disputes. Supermicro's total liability for all claims will not exceed the price paid for the hardware product.
  • Page 3 Notes: 1. UPI/memory speeds are dependent on the processors installed in your system. 2. The X11DSN-TSq supports the Intel C627 chipset, and the X11DSN-TS supports the C624 chipset. *3. Support for 2933 MHz memory is dependent on the CPU SKU.
  • Page 4 Super X11DSN-TS/X11DSN-TSq User's Manual Appendix C lists standardized warning statements in various languages. Appendix D provides UEFI BIOS Recovery instructions. Appendix E provides information on how to configure secure boot settings. Appendix F provides information on how to configure iSCSI settings.
  • Page 5 Super Micro Computer, Inc. 980 Rock Ave. San Jose, CA 95131 U.S.A. Tel: +1 (408) 503-8000 Fax: +1 (408) 503-8008 Email: marketing@supermicro.com (General Information) support@supermicro.com (Technical Support) Website: www.supermicro.com Europe Address: Super Micro Computer B.V. Het Sterrenbeeld 28, 5215 ML...

  • Page 6: Table Of Contents

    Super X11DSN-TS/X11DSN-TSq User's Manual Table of Contents Chapter 1 Introduction 1.1 Checklist ..........................8 1.2 Processor and Chipset Overview ..................17 1.3 Special Features ........................18 1.4 System Health Monitoring ....................18 1.5 ACPI Features ........................19 1.6 Power Supply ........................19 1.7 Advanced Power Management ..................19 Intel Intelligent Power Node Manager (IPNM)..............19...
  • Page 7 Table of Contents 4.4 Event Logs ........................108 4.5 IPMI ..........................110 4.6 Security Settings ......................113 4.7 Boot Settings ........................116 4.8 Save & Exit ........................118 Appendix A BIOS Codes Appendix B Software Installation B.1 Microsoft Windows OS Installation ...................122 B.2 Driver Installation ......................124 B.3 SuperDoctor 5 .........................125 ®...

  • Page 8: Chapter 1 Introduction

    Introduction Congratulations on purchasing your computer motherboard from an industry leader. Supermicro motherboards are designed to provide you with the highest standards in quality and performance. In addition to the motherboard, several important parts that are included with your shipment are listed below.

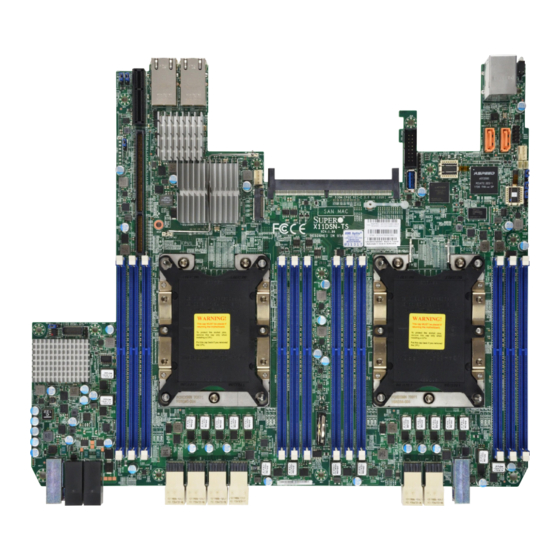

  • Page 9 Chapter 1: Introduction Figure 1-1. X11DSN-TS Motherboard Image Note: All graphics shown in this manual were based upon the latest PCB revision available at the time of publication of the manual. The motherboard you received may or may not look exactly the same as the graphics shown in this manual.
  • Page 10 2." " indicates the location of Pin 1. 3. Jumpers/components/LED indicators not indicated are used for internal testing only. 4. The X11DSN-TSq supports Intel C627 chipset, and the X11DSN-TS supports the C624 chipset. 5. To avoid causing interference with other components, please be sure to use an add-on card that is fully compliant with the PCI-standard on a PCI slot.
  • Page 11 S-SATA 3.0 connection ports 0/1 supported by the Intel SCU. These S-SATA ports have power S-SATA0/S-SATA1 pins built-in and support Supermicro SuperDOM (Disk On Module) devices PCIe 3.0 x8 (x16) slot supported by CPU2 (PCIe 3.0 x16: for X11DSN-TS, 3.0 x8: for X11DSN- SIOM1 TSq) (See the note below.) USB0/1 Back panel USB 3.0 ports...
  • Page 12 Note 2: For the latest CPU/memory updates, please refer to our website at http://www.supermicro.com/products/ motherboard. Chipset • Intel C627 chipset (for X11DSN-TSq only)/Intel C624 chipset (for X11DSN-TS only) Expansion Slots • One PCIe x32 riser card with support of two (2) PCIe 3.0 x16 slots •...
  • Page 13 Main switch override mechanism • Power-on mode for AC power recovery • Intel® Intelligent Power Node Manager 4.0 (available when the Supermicro Power Manager [SPM] is installed and a special power supply is used) • Management Engine (ME) System Health Monitoring •...
  • Page 14 User's Guide available at http://www.supermicro.com/support/manuals/. Note 3: It is strongly recommended that you change BMC login information upon initial system power-on. The manufacturer default username is ADMIN and the password is ADMIN. For proper BMC configuration, please refer to http://www.supermicro.com.
  • Page 15 Chapter 1: Introduction System Block Diagram for the X11DSN-TS Motherboard #F-0 #M-0 #E-0 #L-0 #D-0 #K-0 X11DSN-TS #C-0 #J-0 #B-0 #H-0 #A-0 #G-0 DDR4 DDR4 #2B #2A PCI-E X16 G3 Slot#1 LWIO Riser PCI-E X16 G3 (LANE REVERSE) Slot#2 PCI-E X16 G3...
  • Page 16 Super X11DSN-TS/X11DSN-TSq User's Manual System Block Diagram for the X11DSN-TSq Motherboard #F-0 #M-0 #E-0 #L-0 #D-0 #K-0 X11DSN-TSq #C-0 #J-0 #B-0 #H-0 #A-0 #G-0 DDR4 DDR4 #2B #2A PCI-E X16 G3 Slot#1 LWIO Riser PCI-E X16 G3 (LANE REVERSE) Slot#2...

  • Page 17: Processor And Chipset Overview

    Chapter 1: Introduction 1.2 Processor and Chipset Overview Built upon the functionality and capability of Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP processors ( Socket P) with support of C624/C627 chipset (Note 1 below), this motherboard provides superb system performance, efficient power management, and a rich feature set based on cutting edge technology to address the needs of next-generation computer users.

  • Page 18: Special Features

    Super X11DSN-TS/X11DSN-TSq User's Manual 1.3 Special Features This section describes the health monitoring features of the motherboard. The motherboard has an onboard ASPEED 2500 Baseboard Management Controller (BMC) that supports system health monitoring. Recovery from AC Power Loss The Basic I/O System (BIOS) provides a setting that determines how the system will respond when AC power is lost and then restored to the system.

  • Page 19: Acpi Features

    Windows operating systems. For detailed information on OS support, please refer to our website at www.supermicro.com 1.6 Power Supply As with all computer products, a stable power source is necessary for proper and reliable operation.

  • Page 20: Management Engine (Me)

    Super X11DSN-TS/X11DSN-TSq User's Manual Management Engine (ME) The Management Engine, which is an ARC controller embedded in the IOH (I/O Hub), provides Server Platform Services (SPS) to your system. The services provided by SPS are different from those provided by the ME on client platforms.

  • Page 21: Chapter 2 Installation

    Chapter 2: Installation Chapter 2 Installation 2.1 Static-Sensitive Devices Electrostatic Discharge (ESD) can damage electronic com ponents. To avoid damaging your motherboard and your system, it is important to handle it very carefully. The following measures are generally sufficient to protect your equipment from ESD. Precautions •...

  • Page 22: Motherboard Installation

    Super X11DSN-TS/X11DSN-TSq User's Manual 2.2 Motherboard Installation All motherboards have standard mounting holes to fit different types of chassis. Make sure that the locations of all the mounting holes for both the motherboard and the chassis match. Although a chassis may have both plastic and metal mounting fasteners, metal ones are highly recommended because they ground the motherboard to the chassis.
  • Page 23 Chapter 2: Installation Installing the Motherboard Follow the instructions below to install the motherboard into your system. 1. Locate the mounting holes on the motherboard. See the previous page for additional information. X11DSN-TS MAC CODE Rev. 1.01 IPMI CODE BAR CODE 2.

  • Page 24: Processor And Heatsink Installation

    CPU socket cap is in place and that none of the socket pins are bent; otherwise, contact your retailer immediately. • Refer to the Supermicro website for updates on CPU support. • Please follow the instructions given in the ESD Warning section on the first page of this chapter before handling, installing, or removing system components.
  • Page 25 Chapter 2: Installation Overview of the Processor Socket Assembly The processor socket assembly contains 1)Intel Xeon Scalable-SP or 2nd Gen Intel Xeon Scalable-SP processor, 2) the narrow processor clip, 3) the dust cover, and 4) the CPU socket. 1. Intel Processor 2.
  • Page 26 Super X11DSN-TS/X11DSN-TSq User's Manual Overview of the Processor Heatsink Module (PHM) The Processor Heatsink Module (PHM) contains 1) a heatsink, 2) a narrow processor clip, and 3) Intel Xeon Scalable-SP or 2nd Gen Intel Xeon Scalable-SP processor. 1. Heatsink 2. Narrow processor clip 3.
  • Page 27 Chapter 2: Installation Attaching the Processor to the Narrow Processor Clip to Create the Processor Package Assembly To properly install the CPU into the narrow processor clip, please follow the steps below. 1. Locate pin 1 (notch A), which is the triangle located on the top of the narrow processor clip.
  • Page 28 Super X11DSN-TS/X11DSN-TSq User's Manual Attaching the Processor Package Assembly to the Heatsink to Form the Processor Heatsink Module (PHM) After you have made a processor package assembly by following the instructions on the previous page, please follow the steps below to mount the processor package assembly onto the heatsink to create the Processor Heatsink Module (PHM).
  • Page 29 Chapter 2: Installation Preparing the CPU Socket for Installation This motherboard comes with the CPU socket pre-assembled in the factory. The CPU socket contains 1) a dust cover, 2) a socket bracket, 3) the CPU (P socket), and 4) a back plate. These components are pre-installed on the motherboard before shipping.
  • Page 30 Super X11DSN-TS/X11DSN-TSq User's Manual Installing the Processor Heatsink Module (PHM) 1. Once you have assembled the processor heatsink module (PHM) by following the instructions listed on page 28 or page 29, you are ready to install the processor heatsink module (PHM) into the CPU socket on the motherboard. To install the PHM into the CPU socket, follow the instructions below.
  • Page 31 Chapter 2: Installation Removing the Processor Heatsink Module (PHM) from the Motherboard Before removing the processor heatsink module (PHM), unplug power cord from the power outlet. 1. Using a T30 Torx-bit screwdriver, turn the screws on the PHM counterclockwise to loosen them from the socket, starting with screw marked #4 (in the sequence of 4, 3, 2, 2.

  • Page 32: Memory Support And Installation

    Super X11DSN-TS/X11DSN-TSq User's Manual 2.4 Memory Support and Installation Notes: Check the Supermicro website for recommended memory modules. Exercise extreme care when installing or removing DIMM modules to prevent any damage. Memory Support The motherboard supports up to 3TB of 3DS Load Reduced DIMM (3DS LRDIMM), Load...
  • Page 33 Chapter 2: Installation DDR4 Memory Support for Intel Xeon Scalable-SP Processors DDR4 Memory Support Speed (MT/s); Voltage (V); Slots Per Channel (SPC) and DIMMs Per Channel (DPC) DIMM Capacity (GB) Ranks Per 1 Slot Per Channel 2 Slots Per Channel Type DIMM &...
  • Page 34 Super X11DSN-TS/X11DSN-TSq User's Manual DIMM Population Guidelines for Optimal Performance For optimal memory performance, follow the instructions listed in the tables below when populating memory modules. Key Parameters for DIMM Configuration Key Parameters for DIMM Configurations Parameters Possible Values Number of Channels...
  • Page 35 Chapter 2: Installation DIMM Population Table Notes: Unbalanced memory configuration decreases memory performance and is not recommended for Supermicro motherboards. Memory Population Table for the Motherboards using Intel Xeon Scalable-SP and 2nd Gen Intel Xeon Scalable-SP Processors Memory Population Tables for X11DP Motherboards w/12 DIMM Slots...
  • Page 36 Super X11DSN-TS/X11DSN-TSq User's Manual Memory Rank Sparing Tables for the X11DSN-TS (w/12 Slots) Dual Rank Memory Rank Sparing (16GB DIMM) Memory Population Total RAM Detected One Rank Configuration Two Rank Configuration A1+B1 16GB 16GB A1+B1+C1 24GB 24GB A1+B1+C1+D1 32GB 32GB...
  • Page 37 Chapter 2: Installation DCPMM Memory Population Table for 2nd Gen Intel Xeon Scalable-SP Processors Note: Only 2nd Gen Intel Xeon Scalable-SP(82xx/62xx/52xx/4215 series) proces- sors support DCPMM memory. Symmetric Population within 1 CPU Socket Modes P1-DIMMF1 P1-DIMME1 P1-DIMMD1 P1-DIMMA1 P1-DIMMB1 P1-DIMMC1 Channel Config.
  • Page 38 Super X11DSN-TS/X11DSN-TSq User's Manual DIMM Installation 1. Please carefully follow the instructions provided in the previous section and properly insert DIMM modules on your X11DSN-TS MAC CODE Rev. 1.01 IPMI CODE BAR CODE motherboard. For the system to work properly, please use memory modules of the same type and speed on the motherboard.

  • Page 39: Rear I/O Ports

    Chapter 2: Installation 2.5 Rear I/O Ports See the layout below for the locations and descriptions of the various I/O ports on the rear of the motherboard. X11DSN-TS MAC CODE Rev. 1.01 IPMI CODE BAR CODE Back panel I/O Port Locations and Definitions...
  • Page 40 Super X11DSN-TS/X11DSN-TSq User's Manual Universal Serial Bus (USB) Ports There are two USB 3.0 port (USB 0/1) on the I/O back panel, and a Type A USB 3.0 header (USB 2) on the motherboard. Type A USB 2 (3.0) Back Panel USB 0/1 (3.0)
  • Page 41 GbE LAN is located above the USB 0/1 ports on the backplane. All Ethernet ports accept RJ45 type cables. Please refer to the LED Indicator Section for LAN LED information. 1. 10GbE LAN1 2. 10GbE LAN2 3. IPMI_LAN X11DSN-TS MAC CODE Rev. 1.01 IPMI CODE BAR CODE...

  • Page 42: Connectors And Headers

    2.6 Connectors and Headers Super I/O Module (SIOM) A Supermicro proprietary Super I/O module is located at JSIOM1. This I/O module supports PCIe 3.0 x 8 add-on card on the X11DSN-TSq and PCIe 3.0x 16 add-on card on the X11DSN- TS.
  • Page 43 +12V (Red) Tachometer PWM Control 1. FAN1 USB0/1(3.0) IPMI_LAN 2. FAN2 LAN1 LAN2 10 GbE SIOM:CPU2 PCI-E 3.0 X8 (X16) JSIOM1 BIOS X11DSN-TS JM2_1 MAC CODE Rev. 1.01 IPMI CODE BIOS BAR CODE LICENSE JPX1 CPU1 CPU2 PEX8717 JBT1 Midplane Interface...
  • Page 44 The JTPM1 header is used to connect a Trusted Platform Module (TPM)/Port 80, which is available from Supermicro (optional). A TPM/Port 80 connector is a security device that supports encryption and authentication in hard drives. It allows the motherboard to deny access if the TPM associated with the hard drive is not installed in the system.
  • Page 45 Pin# Definition Ground Ground 1. JSD1 USB0/1(3.0) IPMI_LAN 2. JSD2 LAN1 LAN2 10 GbE SIOM:CPU2 PCI-E 3.0 X8 (X16) JSIOM1 BIOS X11DSN-TS JM2_1 MAC CODE IPMI CODE Rev. 1.01 BIOS BAR CODE LICENSE JPX1 CPU1 CPU2 PEX8717 JBT1 Midplane Interface...
  • Page 46 Super X11DSN-TS/X11DSN-TSq User's Manual PCIe M.2 Slot The X11DSN-TS/X11DSN-TSq motherboard has one PCIe M.2 slot. M.2 was formerly Next Generation Form Factor (NGFF) and serves to replace mini PCIe. M.2 allows for a variety of card sizes, increased functionality, and spatial efficiency. The M.2 socket on the motherboard supports PCIe 3.0 x4 (32 Gb/s) SSD cards in the 2280 form factor.
  • Page 47 These two S-SATA ports have power pins built in and can be used with Supermicro SuperDOMs which do not need external power cable support. Supermicro SuperDOMs are backward-compatible with regular SATA HDDs or SATA DOMs that need external power cables.

  • Page 48: Jumper Settings

    Super X11DSN-TS/X11DSN-TSq User's Manual 2.7 Jumper Settings Connector Pins How Jumpers Work To modify the operation of the motherboard, jumpers can Jumper be used to choose between optional settings. Jumpers create shorts between two pins to change the function of the connector.
  • Page 49 Do not use the PW_ON connector to clear CMOS. JBT1 contact pads 1. Clear CMOS USB0/1(3.0) IPMI_LAN LAN1 LAN2 10 GbE SIOM:CPU2 PCI-E 3.0 X8 (X16) JSIOM1 BIOS X11DSN-TS JM2_1 MAC CODE Rev. 1.01 IPMI CODE BIOS BAR CODE LICENSE JPX1 CPU1 CPU2...
  • Page 50 Super X11DSN-TS/X11DSN-TSq User's Manual ME Manufacturing Mode Close JPME2 to bypass SPI flash security and force the system to use the ME Manufacturing Mode, which will allow you to flash the system firmware from a host server to modify system settings.
  • Page 51 Pins 2-3 Disabled 1. JVRM1 USB0/1(3.0) IPMI_LAN 2. JVRM2 3. NTB Enable LAN1 LAN2 10 GbE SIOM:CPU2 PCI-E 3.0 X8 (X16) JSIOM1 BIOS X11DSN-TS JM2_1 MAC CODE IPMI CODE Rev. 1.01 BIOS BAR CODE LICENSE JPX1 CPU1 CPU2 PEX8717 JBT1...

  • Page 52: Led Indicators

    Super X11DSN-TS/X11DSN-TSq User's Manual 2.8 LED Indicators LAN LEDs The LAN ports are located on the IO Backplane on the motherboard. Each Ethernet LAN port has two LEDs. The yellow LED indicates activity. Link LED, located on the left side of the LAN port, may be green, amber or off indicating the speed of the connection.
  • Page 53 When the LED is blinking green, BMC is normal. See the table below for the LED status. BMC Heartbeat LED Indicator LED State Definition LEDH (the top LED) Green: Blinking BMC Normal 1. LEDL (Bottom LED): System Heartbeat LED 2. LEDH (Top LED): BMC Heartbeat LED X11DSN-TS MAC CODE Rev. 1.01 IPMI CODE BAR CODE...
  • Page 54 Super X11DSN-TS/X11DSN-TSq User's Manual PCIe M.2 Slot Activity LED (LEDM.2) The ActivIty LED indicator for onboard PCIe M.2 slot is located at LEDM.2. When this LED is on, M.2 is active. See the layout below for the location of LEDM.2.

  • Page 55: Chapter 3 Troubleshooting

    Chapter 3: Troubleshooting Chapter 3 Troubleshooting 3.1 Troubleshooting Procedures Use the following procedures to troubleshoot your system. If you have followed all of the procedures below and still need assistance, refer to the ‘Technical Support Procedures’ and/ or ‘Returning Merchandise for Service’ section(s) in this chapter. Always disconnect the AC power cord before adding, changing or installing any non hot-swap hardware components.
  • Page 56 Super X11DSN-TS/X11DSN-TSq User's Manual • If there is no error beep, try to turn on the system without DIMM modules installed. If there is still no error beep, replace the motherboard. • If there are error beeps, clear the CMOS settings by unplugging the power cord and con- tacting both pads on the CMOS Clear Jumper (JBT1).
  • Page 57 2. Memory support: Make sure that the memory modules are supported by testing the modules using memtest86 or a similar utility. Note: Refer to the product page on our website at http://www.supermicro.com memory and CPU support and updates. 3. HDD support: Make sure that all hard disk drives (HDDs) work properly. Replace the bad HDDs with good ones.

  • Page 58: Technical Support Procedures

    Super X11DSN-TS/X11DSN-TSq User's Manual component in question in another system. If the new system works, the component is good and the old system has problems. 3.2 Technical Support Procedures Before contacting Technical Support, please take the following steps. Also, note that as a motherboard manufacturer, we do not sell directly to end-users, so it is best to first check with your distributor or reseller for troubleshooting services.
  • Page 59 BIOS under UEFI Shell. Note: The SPI BIOS chip used on this motherboard cannot be removed. Send your motherboard back to our RMA Department at Supermicro for repair. For BIOS Recovery instructions, please refer to the AMI BIOS Recovery Instructions posted at http://www.
  • Page 60 Super X11DSN-TS/X11DSN-TSq User's Manual 4. The FLASH.NSH script will compare the Flash Descriptor Table (FDT) code in the new BIOS with the existing one in the motherboard: a. If a different FDT is found • A new file, STARTUP.NSH, will be created, and the system will automatically reboot in 10 seconds without you pressing any key.

  • Page 61: Battery Removal And Installation

    Chapter 3: Troubleshooting 3.4 Battery Removal and Installation Battery Removal To remove the onboard battery, follow the steps below: 1. Power off your system and unplug your power cable. 2. Using a tool such as a pen or a small screwdriver, push the battery lock outwards to unlock it.

  • Page 62: Returning Merchandise For Service

    Super X11DSN-TS/X11DSN-TSq User's Manual 3.5 Returning Merchandise for Service A receipt or copy of your invoice marked with the date of purchase is required before any warranty service will be rendered. You can obtain service by calling your vendor for a Returned Merchandise Authorization (RMA) number.

  • Page 63: Chapter 4 Uefi Bios

    UEFI BIOS 4.1 Introduction This chapter describes the AMIBIOS™ setup utility for the X11DSN-TS motherboard. The BIOS is stored on a chip and can be easily upgraded using a flash program. Note: Due to periodic changes to the BIOS, some settings may have been added or deleted and might not yet be recorded in this manual.

  • Page 64: Main Setup

    Super X11DSN-TS User's Manual 4.2 Main Setup When you first enter the AMI BIOS setup utility, you will see the Main setup screen. You can always return to the Main setup screen by selecting the Main tab on the top of the screen.
  • Page 65 Chapter 4: UEFI BIOS Memory Information Total Memory This feature displays the total size of memory available in the system.

  • Page 66: Advanced Setup Configurations

    Super X11DSN-TS User's Manual 4.3 Advanced Setup Configurations Use the arrow keys to select the Advanced submenu and press <Enter> to access the submenu items: Warning: Take Caution when changing the Advanced settings. An incorrect value, an improper DRAM frequency, or a wrong BIOS timing setting may cause the system to malfunction. When this occurs, restore the setting to the manufacturer default setting.
  • Page 67 Chapter 4: UEFI BIOS Wait For "F1" If Error Select Enabled to force the system to wait until the <F1> key is pressed if an error occurs. The options are Disabled and Enabled. INT19 (Interrupt 19) Trap Response Interrupt 19 is the software interrupt that handles the boot disk function. When this feature is set to Immediate, the ROM BIOS of the host adaptors will "capture"...
  • Page 68 Super X11DSN-TS User's Manual PCIe Reset Delay Select Delay to delay PCIe Reset for NVMe devices. The options are Delay and No Delay. CPU Configuration  Warning: Setting the wrong values in the following sections may cause the system to malfunc- tion.
  • Page 69 Chapter 4: UEFI BIOS Execute Disable Bit (Available if supported by the OS & the CPU) Select Enable for Execute Disable Bit support which will allow the processor to designate areas in the system memory where an application code can execute and where it cannot, thus preventing a worm or a virus from flooding illegal codes to overwhelm the processor, damaging the system during a virus attack.
  • Page 70 Super X11DSN-TS User's Manual LLC Prefetch If this feature is set to Enable, LLC (hardware cache) prefetching on all threads will be supported. The options are Disable and Enable. Extended APIC (Extended Advanced Programmable Interrupt Controller) Based on the Intel Hyper-Threading technology, each logical processor (thread) is assigned 256 APIC IDs (APIDs) in 8-bit bandwidth.
  • Page 71 Chapter 4: UEFI BIOS EIST PSD Function (Available when SpeedStep is set to Enable) Use this item to configure the processor's P-State coordination settings. During a P-State, the voltage and frequency of the processor will be reduced when it is in operation. This makes the processor more energy efficient, resulting in further energy gains.
  • Page 72 Super X11DSN-TS User's Manual Package C State Control (Available when "Power Technology" is set  to Custom) Package C State Use this feature to set the limit on the C-State package register. The options are C0/C1 state, C2 state, C6 (non-Retention) state, C6 (Retention) state, No Limit, and Auto.
  • Page 73 Chapter 4: UEFI BIOS Link L0p Enable Select Enable to enable Link L0p. The options are Disable, Enable, and Auto. Link L1 Enable Select Enable to enable Link L1 (Level 1 link). The options are Disable, Enable, and Auto. IO Directory Cache (IODC) Select Enable for the IODC (I/O Directory Cache) to generate snoops instead of generating memory lockups for remote IIO (InvIToM) and/or WCiLF (Cores).
  • Page 74 Super X11DSN-TS User's Manual and will not have to snoop, saving the latency and snoop bandwidth. Stale "AtoS" may be beneficial in a workload where there are many cross-socket reads. The options are Disable, Enable, and Auto. LLC Dead Line Alloc Select Enable to opportunistically fill the deadlines in the LLC.
  • Page 75 Chapter 4: UEFI BIOS Enable ADR Select Enable for ADR (Async DIMM Self-Refresh) support to enhance memory performance. The options are Disable and Enable. Data Scrambling for NVDIMM Select Enable to enable data scrambling support for onboard NVDIMM memory to improve system performance and security.
  • Page 76 Super X11DSN-TS User's Manual IMC Interleaving Use this feature to configure interleaving settings for the IMC (Integrated Memory Controller), which will improve memory performance. The options are 1-way Interleave, 2-way Interleave, and Auto. Memory Topology  This item displays the information of onboard memory modules as detected by the BIOS.
  • Page 77 Chapter 4: UEFI BIOS SDDC Plus One Select Enable for SDDC (Single Device Data Correction) Plus One support, which will activate memory ECC mode for memory error checking and correction. It will also protect against memory failures caused by 'single-bit' errors in the same memory rank. The options are Enable and Disable.
  • Page 78 Super X11DSN-TS User's Manual CPU1 Configuration/CPU2 Configuration IOU0 (IIO PCIe Br1) Use this feature to configure the PCIe Bifurcation setting for a PCIe port specified by the user. The options are x4x4x4x4, x4x4x8, x8x4x4, x8x8, x16, and Auto. IOU1 (IIO PCIe Br2) Use this feature to configure the PCIe Bifurcation setting for a PCIe port specified by the user.
  • Page 79 Chapter 4: UEFI BIOS Prioritize TPH (TLP Processing Hint) Select Yes to prioritize the TPL requests that will allow the "hints" to be sent to help facilitate and optimize the processing of certain transactions in the system memory. The options are Enable and Disable.
  • Page 80 Super X11DSN-TS User's Manual Intel® VMD Technology  This section describes the configuration settings for the Intel Volume Management Device (VMD) Technology. Note: After you’ve enabled VMD on a PCIe slot of your choice, this PCIe slot will be dedicated for VMD use only, and it will no longer support any PCIe device. To re-activate this slot for PCIe use, please disable VMD.
  • Page 81 Chapter 4: UEFI BIOS PCIe PLL SSC Select Enabled for PCH PCIe Spread Spectrum Clocking support, which will allow the BIOS to monitor and attempt to reduce the level of Electromagnetic Interference caused by the components whenever needed. The options are Enabled and Disabled. Server ME (Management Engine) Information ...
  • Page 82 Super X11DSN-TS User's Manual Aggressive Link Power Management When this feature is set to Enable, the SATA AHCI controller manages the power use of the SATA link. The controller will put the link in a low power mode during an extended period of I/O inactivity, and will return the link to an active state when I/O activity resumes.
  • Page 83 Chapter 4: UEFI BIOS MMIO High Base Use this feature to select the base memory size according to memory-address mapping for the IO hub. The options are 56T, 40T, 24T, 16T, 4T, 2T and 1T. MMIO High Granularity Size Use this feature to select the high memory size according to memory-address mapping for the IO hub.
  • Page 84 Super X11DSN-TS User's Manual Bus Master Enable Select Enabled to enables the Bus Master Attribute for DMA transactions. The options are Enabled and Disabled. Onboard LAN Device Select Enable to use onboard LAN devices. The options are Disabled and Enabled.
  • Page 85 Chapter 4: UEFI BIOS Ipv4 HTTP Support Select Enabled to enable Ipv4 HTTP boot support. If this feature is disabled, it will not create the Ipv4 HTTP boot option. The options are Enabled and Disabled. Ipv6 PXE Support Select Enabled to enable Ipv6 PXE boot support. If this feature is disabled, it will not create the Ipv6 PXE boot option.
  • Page 86 Super X11DSN-TS User's Manual  Serial Port 2 Configuration Serial Port 2 Select Enabled to enable Serial Port 2. The options are Enabled and Disabled. Device Settings (Available when the item above "Serial Port (2)" is set to Enabled) This feature displays the base I/O port address and the Interrupt Request address of a serial port specified by the user.
  • Page 87 Chapter 4: UEFI BIOS Bits Per second Use this feature to set the transmission speed for a serial port used in Console Redirection. Make sure that the same speed is used in the host computer and the client computer. A lower transmission speed may be required for long and busy lines.
  • Page 88 Super X11DSN-TS User's Manual Legacy OS Redirection Resolution Use this feature to select the number of rows and columns used in Console Redirection for Legacy OS support. The options are 80x24 and 80x25. Putty KeyPad This feature selects Function Keys and KeyPad settings for Putty, which is a terminal emulator designed for the Windows OS.
  • Page 89 Chapter 4: UEFI BIOS Data Bits Use this feature to set the data transmission size for Console Redirection. The options are 7 (Bits) and 8 (Bits). Parity A parity bit can be sent along with regular data bits to detect data transmission errors. Select Even if the parity bit is set to 0, and the number of 1's in data bits is even.
  • Page 90 Super X11DSN-TS User's Manual Redirection After BIOS POST Use this feature to enable or disable Legacy Console Redirection after BIOS POST. When the option-Bootloader is selected, Legacy Console Redirection is disabled before booting the OS. When the option-Always Enable is selected, Legacy Console Redirection remains enabled upon OS bootup.
  • Page 91 Chapter 4: UEFI BIOS Flow Control Use this feature to set the flow control for Console Redirection to prevent data loss caused by buffer overflow. Send a "Stop" signal to stop data-sending when the receiving buffer is full. Send a "Start" signal to start data-sending when the receiving buffer is empty. The options are None, Hardware RTS/CTS, and Software Xon/Xoff.
  • Page 92 Super X11DSN-TS User's Manual Trusted Computing (Available when a TPM device is installed  and detected by the BIOS) Configuration Security Device Support If this feature and the TPM jumper (JPT1) on the motherboard are both enabled, the onboard security (TPM) device will be enabled in the BIOS to enhance data integrity and system security.
  • Page 93 Chapter 4: UEFI BIOS held constant (-rarely changed) through reboots. This hierarchy can be cleared or changed independently of the other hierarchies. The options are Enabled and Disabled. Endorsement Hierarchy Select Enabled for Endorsement Hierarchy support, which contains separate controls to address the user's privacy concerns because the primary keys in this hierarchy are certified by the TPM or a manufacturer to be constrained to an authentic TPM device that is attached to an authentic platform.
  • Page 94 Super X11DSN-TS User's Manual Note 2: For more information on TPM, please refer to the TPM manual at http://www. supermicro.com/manuals/other. HTTP BOOT Configuration When this submenu is selected, the following items will be displayed: Http Boot One Time Select Enabled to enable HTTP Boot. The options are Enabled and Disabled. After create Http Boot Option, it will auto boot into HttpBoot for the first time.
  • Page 95 Chapter 4: UEFI BIOS Delete Certification  If this feature is set to Enable, the certificate enrolled in the system will be deleted. The options are Enable and Disable. • Discard & Exit: Select this feature when you want to abandon the changes you've made and to exit from the submenu.
  • Page 96 Super X11DSN-TS User's Manual DIMM ID  This submenu allows the user to view and to perform an action on a DCPMM module specified by the user. When this submenu is selected, the following items will display: • DIMM UID: This feature displays the unique ID of the DCPMM module.
  • Page 97 Chapter 4: UEFI BIOS • Device Locator • Subsystem Revision ID • Interface Format Code • Manufacturing Information Valid • Manufacturing Date • Manufacturing Location • Memory Type • Memory Bank Label • Data Width Label [b] • Total Width [b] •...
  • Page 98 Super X11DSN-TS User's Manual • Max Average Power Budget [mW] • Package Sparing Capable • Package Sparing Enabled • Package Spares Available • Configuration Status • SKU Violation • ARS Status • Overwrite DIMM Status • Last Shutdown Time •...
  • Page 99 Chapter 4: UEFI BIOS • Software Triggers Counter • Master Passphrase Enabled Monitor Health  Select this submenu to view the health status and thresholds of the DCPMM module specified by the user. • Sensor Type: This feature displays the type of health items that are being monitored. •...
  • Page 100 Super X11DSN-TS User's Manual • Staged Firmware Version: This feature indicates the staged firmware version of the DCPMM module specified by the user. Update  Select this feature to update the firmware settings. Back to Main Menu  Select this feature and press <Enter> to go back to the Intel® Optane® DC Persistent Memory Configuration menu.
  • Page 101 Chapter 4: UEFI BIOS Back to Main Menu  Select this feature and press <Enter> to go back to the Intel® Optane® DC Persistent Memory Configuration menu.
  • Page 102 Super X11DSN-TS User's Manual Regions  Current Configuration Region ID  When this submenu is selected, the following items will display: • Region ID: This feature displays the Region ID of the DCPMM module. • DIMM ID: This feature displays the DIMM ID of the DCPMM module.
  • Page 103 Chapter 4: UEFI BIOS Back to Regions Menu  Select this feature and press <Enter> to go back to the Regions submenu. Back to Main Menu  Select this feature and press <Enter> to go back to the Intel® Optane® DC Persistent Memory Configuration menu.
  • Page 104 Super X11DSN-TS User's Manual Create Namespace  Use this submenu to create a namespace. The following information will display: Name Region ID This feature displays the region ID of the DCPMM module. The options are 0x0001 and 0x0002. Mode Use this item to set the Namespace mode. The options are None and Sector.
  • Page 105 Chapter 4: UEFI BIOS Back to Main Menu  Select this feature and press <Enter> to go back to the Intel® Optane® DC Persistent Memory Configuration menu. Diagnostics  Perform Diagnostic Tests on DIMMs When you select this submenu and press <enter>, the following items will display: Choose Diagnostics Type: Quick Diagnostics Select Enabled for the quick diagnostics test to be performed on the DCPMM module installed...
  • Page 106 Super X11DSN-TS User's Manual Preferences  View and/or modify user preferences Default DIMM ID This feature allows the user to view and to modify the default DIMM ID as displayed on the screen. The options are Handle and UID. Capacity Units This feature allows the user to view and to set the default capacity unit of the selected DCPMM to be displayed on the screen.
  • Page 107 Chapter 4: UEFI BIOS HGST NVMe Device Configuration When this submenu is selected, the following items will be displayed: • Vendor ID • Serial Number • Default Capacity • Current Capacity • Firmware Ver. • UEFI ROM Ver. • PCI Bus: Device:Func Firmware Management Firmware Image This feature allows the user to select a firmware image to download.

  • Page 108: Event Logs

    Super X11DSN-TS User's Manual 4.4 Event Logs Use this feature to configure Event Log settings. Note: After you've made a change on a setting below, please be sure to reboot the system for the change to take effect. Change SMBIOS Event Log Settings...
  • Page 109 Chapter 4: UEFI BIOS SMBIOS Event Log Standard Settings Log System Boot Event Select Enabled to log system boot events. The options are Enabled and Disabled. MECI (Multiple Event Count Increment) Enter the increment value for the multiple event counter. Enter a number between 1 to 255. The default setting is 1.

  • Page 110: Ipmi

    Super X11DSN-TS User's Manual 4.5 IPMI Use this feature to configure Intelligent Platform Management Interface (IPMI) settings. When you select this submenu and press the <Enter> key, the following information will display: • IPMI Firmware Revision: This feature indicates the IPMI firmware revision used in your system.
  • Page 111 Chapter 4: UEFI BIOS When SEL is Full This feature allows the user to determine what the BIOS should do when the system event log is full. Select Erase Immediately to erase all events in the log when the system event log is full.
  • Page 112 Super X11DSN-TS User's Manual Configuration Address Source Use this feature to select the IP address source for this computer. If Static is selected, you will need to know the IP address of this computer and enter it to the system manually in the field.

  • Page 113: Security Settings

    Chapter 4: UEFI BIOS 4.6 Security Settings This menu allows the user to configure the following security settings for the system. Administrator Password Use this feature to set the administrator password which is required to enter the BIOS setup utility. The length of the password should be from 3 characters to 20 characters long. Password Check Select Setup for the system to check for a password at Setup.
  • Page 114 Super X11DSN-TS User's Manual CMS Support If this feature is set to Enabled, legacy devices will be supported by the system. The options are Enabled and Disabled. Key Management  Vendor Keys Provision Factory Defaults Select Yes to install manufacturer default keys for system security use. The options are Enabled and Disabled.
  • Page 115 Chapter 4: UEFI BIOS Secure Boot Variable/Size/Keys/Key Source Platform Key (PK)  This feature allows the user to enter and configure a set of values to be used as platform firmware keys for the system. The sizes, keys numbers, and key sources of the platform keys will be indicated as well.

  • Page 116: Boot Settings

    Super X11DSN-TS User's Manual 4.7 Boot Settings Use this feature to configure Boot Settings: Boot Mode Select Use this feature to select the type of devices from which the system will boot. The options are Legacy, UEFI (Unified Extensible Firmware Interface), and Dual.
  • Page 117 Chapter 4: UEFI BIOS  Delete Boot Option Use this feature to select a boot device to delete from the boot priority list. Delete Boot Option Use this feature to remove an EFI boot option from the boot priority list. ...

  • Page 118: Save & Exit

    Super X11DSN-TS User's Manual 4.8 Save & Exit Select the Save & Exit menu from the BIOS setup screen to configure the settings below. Save Options Discard Changes and Exit Select this option to exit from the BIOS setup utility without making any permanent changes to the system configuration and reboot the computer.
  • Page 119 Chapter 4: UEFI BIOS Default Options Restore Optimized Defaults To set this feature, select Restore Defaults from the Exit menu and press <Enter> to load manufacturer default settings which are intended for maximum system performance but not for maximum stability. Save As User Defaults To set this feature, select Save as User Defaults from the Exit menu and press <Enter>.

  • Page 120: Appendix A Bios Codes

    Super X11DSN-TS/X11DSN-TSq User's Manual Appendix A BIOS Codes A.1 BIOS Error POST (Beep) Codes (Available when an onboard speaker is available) During the POST (Power-On Self-Test) routines, which are performed each time the system is powered on, errors may occur.
  • Page 121 When BIOS performs the Power On Self Test, it writes checkpoint codes to I/O port 0080h. If the computer cannot complete the boot process, a diagnostic card can be attached to the computer to read I/O port 0080h (Supermicro p/n AOC-LPC80-20). For information on AMI updates, please refer to http://www.ami.com/products/.

  • Page 122: Appendix B Software Installation

    USB/SATA DVD drive, or a USB flash drive, or the IPMI KVM console. 2. Retrieve the proper RST/RSTe driver. Go to the Supermicro web page for your motherboard and click on "Download the Latest Drivers and Utilities", select the proper driver, and copy it to a USB flash drive.
  • Page 123 Appendix B: Software Installation 4. During Windows Setup, continue to the dialog where you select the drives on which to install Windows. If the disk you want to use is not listed, click on “Load driver” link at the bottom left corner. B-2.

  • Page 124: Driver Installation

    The Supermicro website contains drivers and utilities for your system at https://www. supermicro.com/wftp/driver. Some of these must be installed, such as the chipset driver. After accessing the website, go into the CDR_Images (in the parent directory of the above link) and locate the ISO file for your motherboard. Download this file to to a USB flash drive or a DVD.

  • Page 125: Superdoctor ® 5

    B.3 SuperDoctor ® The Supermicro SuperDoctor 5 is a program that functions in a command-line or web-based interface for Windows and Linux operating systems. The program monitors such system health information as CPU temperature, system voltages, system power consumption, fan speed, and provides alerts via email or Simple Network Management Protocol (SNMP).

  • Page 126: Ipmi

    When logging in to the BMC for the first time, please use the unique password provided by Supermicro to log in. You can change the unique password to a user name and password of your choice for subsequent logins.

  • Page 127: Appendix C Standardized Warning Statements

    The following statements are industry standard warnings, provided to warn the user of situations which have the potential for bodily injury. Should you have questions or experience difficulty, contact Supermicro's Technical Support department for assistance. Only certified technicians should attempt to install or configure components.
  • Page 128 Super X11DSN-TS/X11DSN-TSq User's Manual Attention Danger d'explosion si la pile n'est pas remplacée correctement. Ne la remplacer que par une pile de type semblable ou équivalent, recommandée par le fabricant. Jeter les piles usagées conformément aux instructions du fabricant. ¡Advertencia! Existe peligro de explosión si la batería se reemplaza de manera incorrecta.
  • Page 129 Appendix C: Standardized Warning Statements Product Disposal Warning! Ultimate disposal of this product should be handled according to all national laws and regulations. 製品の廃棄 この製品を廃棄処分する場合、 国の関係する全ての法律 ・ 条例に従い処理する必要があります。 警告 本产品的废弃处理应根据所有国家的法律和规章进行。 警告 本產品的廢棄處理應根據所有國家的法律和規章進行。 Warnung Die Entsorgung dieses Produkts sollte gemäß allen Bestimmungen und Gesetzen des Landes erfolgen.

  • Page 130: Appendix D Uefi Bios Recovery

    Warning: Do not upgrade the BIOS unless your system has a BIOS-related issue. Flashing the wrong BIOS can cause irreparable damage to the system. In no event shall Supermicro be liable for direct, indirect, special, incidental, or consequential damages arising from a BIOS update.

  • Page 131: Recovering The Main Bios Block With A Usb Device

    1. Please use a different machine to download the BIOS package for your motherboard or your system from the product page available on our website at www.supermicro.com. 2. Extract the BIOS package to a USB device and rename the BIOS ROM file [BIOSname#.###] that is included in the BIOS package to SUPER.ROM for BIOS...
  • Page 132 Super X11DSN-TS User Manual 5. After locating the SUPER.ROM file, the system will enter the BIOS Recovery menu as shown below. Note: At this point, you may decide if you want to start the BIOS recovery. If you decide to proceed with BIOS recovery, follow the procedures below.
  • Page 133 Appendix D: UEFI BIOS Recovery 7. After the BIOS recovery process is complete, press any key to reboot the system. Note: It is recommended that you update your BIOS after BIOS recovery. Please refer to Chapter 3 for BIOS update instructions. 8.
  • Page 134 Super X11DSN-TS User Manual 9. When the UEFI Shell prompt appears, type fs# to change the device directory path. Go to the directory that contains the BIOS package you extracted earlier from Step 1. Enter flash.nsh BIOSname#.### at the prompt to start the BIOS update process.

  • Page 135: Appendix E Secure Boot Settings

    Appendix F: Secure Boot Settings Appendix E Secure Boot Settings Secure boot is a feature of UEFI (Unified Extensible Firmware Interface) that ensures boot loaders are digitally signed and validated. The F.1, F.2, and F.3 sections provide instructions on how to enable the secure boot features. The F.4 section states Key Management settings. E.1 Boot mode select Feature Press <Del>...

  • Page 136: Secure Boot/ Secure Boot Mode/ Csm Support Features

    Super X11DSN-TS/X11DSN-TSq User's Manual E.2 Secure Boot/ Secure Boot Mode/ CSM Support Features Press <Del> during system boot to enter the BIOS Setup utility. Navigate to the Security tab as shown below. Use the arrow keys to select Secure Boot and press <Enter> to access the menu items. The following screen will appear.

  • Page 137: Secure Boot Settings

    Appendix F: Secure Boot Settings E.3 Secure Boot Settings To have the secure boot support, be sure to follow the steps below (Step 1 ~ Step 4). Step 1. Set Secure Boot Mode to Standard. Press Yes to install factory default keys as needed. Note: The Key Management menu will become unavailable when Secure Boot Mode is set to Standard.
  • Page 138 Super X11DSN-TS/X11DSN-TSq User's Manual Step 2. For the changes to take effect, press <F4> to save the settings and exit the BIOS Setup utility. Step 3. Press <Del> during system boot to enter the BIOS Setup utility. Navigate to the Security tab and enter the Secure Boot menu.
  • Page 139 Appendix F: Secure Boot Settings Step 4. Press <Del> during system boot to enter the BIOS Setup utility. Navigate to the Security tab and enter the Secure Boot menu. Set Secure Boot to Enabled. For the changes to take effect, press <F4> to save the settings and exit the BIOS Setup utility. Press <Del>...

  • Page 140: Key Management Settings

    Super X11DSN-TS/X11DSN-TSq User's Manual E.4 Key Management Settings The Key Management menu as shown below, which is available when Secure Boot Mode is set to Custom, allows the secure boot keys to be installed via the external device and be involved in the secure boot process.
  • Page 141 Appendix F: Secure Boot Settings Restore Factory Keys  Select and press Yes to restore factory default secure boot keys and key variables. Also, it will reset the system to the User mode. The options are Yes and No. Reset To Setup Mode (available when the System Mode is in User ...
  • Page 142 Super X11DSN-TS/X11DSN-TSq User's Manual Export Secure Boot variables  Use this feature to export NVRAM content of secure boot variables to files in a root folder on a file system device. Enroll Efi Image  This feature is to enroll SHA256 hash of the binary into the Authorized Signature Data-...
  • Page 143 Appendix F: Secure Boot Settings Remove 'UEFI CA' from DB (available when the system is not in Device  Guard Ready) Select and press Yes to remove Microsoft UEFI CA certificate from the DB. The options are Yes and No. Restore DB defaults ...
  • Page 144 Super X11DSN-TS/X11DSN-TSq User's Manual *Refer to the following settings for keys and signatures related to secure boot. Platform Key (PK)  The Platform Key (PK), which is pre-installed in firmware during manufacturing, provides full control of the secure boot key hierarchy. The options are Details, Export, Update, and Delete.
  • Page 145 Appendix F: Secure Boot Settings Export: Use the arrow keys to select Export. It is to save the current PKs to a FAT for- matted USB flash drive. Press <Enter> and the following screen will appear. Note: Refer to the right panel of the screen for the file formats accepted.
  • Page 146 Super X11DSN-TS/X11DSN-TSq User's Manual Update: Use the arrow keys to select Update. It is to load the factory defaults or load PKs from a file on the external device. Press <Enter> and the following screen will appear.
  • Page 147 Appendix F: Secure Boot Settings To load the factory defaults, navigate to Yes and press <Enter>. The following screen will appear. To load PKs from a file on the external device, navigate to No and press <Enter>.
  • Page 148 Super X11DSN-TS/X11DSN-TSq User's Manual When the following screen appears, select the USB flash drive that contains the desired file.
  • Page 149 Appendix F: Secure Boot Settings Press <Enter> and the following screen will appear. Delete: Use the arrow keys to select Delete and press <Enter> to clear the current PKs and reset the system to the Setup mode.
  • Page 150 Super X11DSN-TS/X11DSN-TSq User's Manual Key Exchange Key  The Key Exchange Key (KEK), which is held by the operating system vendor, can be updated by the holder of the PK and be used by secure boot to protect access to signa- tures databases.
  • Page 151 Appendix F: Secure Boot Settings Press <Enter> and the following screen will appear. To load the factory defaults, navigate to Yes and press <Enter>. The following screen will appear. To load KEKs from a file on the external device, navigate to No and press <Enter>. Refer to pages 148 and 149 on how to load KEKs from a file on the external device.
  • Page 152 Super X11DSN-TS/X11DSN-TSq User's Manual Delete: Use the arrow keys to select Delete and press <Enter>. Navigate to Yes and press <Enter> to clear the current KEKs. Navigate to No and press <Enter> to delete only one certificate from the key database.
  • Page 153 Appendix F: Secure Boot Settings Authorized Signatures  Authorized Signature Database (DB) contains authorized signing certificates and digital signatures. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of Authorized Signatures. Select Export to save the cur- rent DB to a FAT formatted USB flash drive.
  • Page 154 Super X11DSN-TS/X11DSN-TSq User's Manual Forbidden Signatures  Forbidden Signature Database (DBX), which is the inverse of DB, contains forbidden certificates and digital signatures. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of Forbidden Signatures. Select Export to save the current DBX to a FAT formatted USB flash drive.
  • Page 155 Appendix F: Secure Boot Settings Authorized TimeStamps  Authorized Timestamp Database (DBT) is used to issue and check signed time stamp certificates. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of Authorized Timestamps. Select Export to save the cur- rent DBT to a FAT formatted USB flash drive.
  • Page 156 Super X11DSN-TS/X11DSN-TSq User's Manual OsRecovery Signatures  OsRecovery Signatures Database (DBR) contains secure boot authorized recovery vari- ables. The options are Details, Export, Update, Append, and Delete. Select Details to display detailed information of OsRecovery Signatures. Select Export to save the current DBR to a FAT formatted USB flash drive.

  • Page 157: Appendix F Configuring Iscsi Settings

    Appendix G: Configuring iSCSI Settings Appendix F Configuring iSCSI Settings Internet small computer system interface (iSCSI) is a protocol that defines how block-level data transports between the iSCSI initiator and iSCSI target over an Internet protocol (IP) network. The iSCSI initiator (client/host) enables a connection to the iSCSI target and initiates I/O requests.
  • Page 158 Super X11DSN-TS/X11DSN-TSq User's Manual Onboard LAN1 Option ROM Use the arrow keys to select Onboard LAN1 Option ROM and press <Enter>. The options are Disabled, Legacy, and EFI. Set this feature to EFI. Note: If Onboard LAN1 Option ROM is set to EFI, all features for onboard LAN op- tion ROM will be set to EFI by the EFI driver.
  • Page 159 Appendix G: Configuring iSCSI Settings Ipv4 PXE Support/Ipv6 PXE Support To enable Ipv4/Ipv6 PXE boot support, use the arrow keys to select and set Ipv4 PXE Support/ Ipv6 PXE Support to Enabled. Note: Enable both Ipv4 PXE Support and Ipv6 PXE Support to have iSCSI settings available.

  • Page 160: Configuring Iscsi Settings

    Super X11DSN-TS/X11DSN-TSq User's Manual F.2 Configuring iSCSI Settings iSCSI Initiator Name Use this feature to enter the unique initiator name in iSCSI qualified name (IQN) format. Add an Attempt Use the arrow keys to select Add an Attempt.
  • Page 161 Appendix G: Configuring iSCSI Settings Press <Enter> and the following screen will appear. Use the arrow keys to select the desired media access control address (MAC address), network interface card (NIC) port. Press <Enter> and the following screen will appear. iSCSI Attempt Name This feature displays the iSCSI attempt name.
  • Page 162 Super X11DSN-TS/X11DSN-TSq User's Manual iSCSI Mode Use this feature to set the iSCSI mode. The options are Disabled, Enabled, and Enabled for MPIO. Multipath I/O (MPIO) is a feature that allows the system to route I/O through the available paths if the active path fails (be sure to have more than one physical path connected to the system).
  • Page 163 Appendix G: Configuring iSCSI Settings Connection Retry Count The valid range is 0~16. Use this feature to enter the number of logon sessions allowed for the iSCSI initiator to restart with the iSCSI target if the first logon connection fails. Connection Establishing Timeout Use this feature to set the logon connection establishing timeout (in milliseconds).
  • Page 164 Super X11DSN-TS/X11DSN-TSq User's Manual OUI-format ISID This feature displays the default ISID in OUI format. The value (in six bytes) is derived from the MAC address of the NIC port that you selected earlier. Configure ISID Press <Enter> to configure the ISID. The default value is derived from the last three bytes of...
  • Page 165 Appendix G: Configuring iSCSI Settings Enable DHCP Use this feature to disable/enable dynamic host configuration protocol (DHCP) server service for the iSCSI initiator. The options are Disabled and Enabled. Note: Set the feature, Enable DHCP, to Disabled if you would like to specify the iSCSI initiator IP address/subnet mask/gateway.
  • Page 166 Super X11DSN-TS/X11DSN-TSq User's Manual Initiator Subnet Mask (available when Enable DHCP is set to Disabled) Use this feature to enter the desired iSCSI initiator subnet mask. Gateway (available when Enable DHCP is set to Disabled) Use this feature to enter the desired iSCSI initiator gateway.
  • Page 167 Appendix G: Configuring iSCSI Settings Get target info via DHCP (available when Enable DHCP is set to Enabled) Use this feature to disable/enable dynamic host configuration protocol (DHCP) server service for the iSCSI target. The options are Disabled and Enabled. Note 1: Set the feature, Get target info via DHCP, to Disabled if you would like to specify the iSCSI target name/IP address/boot LUN.
  • Page 168 Super X11DSN-TS/X11DSN-TSq User's Manual Target Address Use this feature to enter the desired iSCSI target IP address. Target Port This feature displays the iSCSI target port. Boot LUN Use this feature to enter the LUN ID of boot LUN.
  • Page 169 Appendix G: Configuring iSCSI Settings Authentication Type Use this feature to set the authentication method. The options are CHAP and None. Note: Challenge handshake authentication protocol (CHAP) is a protocol used to verify the identity of the peer of a connection. CHAP Type (available when Authentication Type is set to CHAP) Use this feature to set the CHAP type.
  • Page 170 Super X11DSN-TS/X11DSN-TSq User's Manual CHAP Name (available when Authentication Type is set to CHAP) Use this feature to enter the CHAP name authenticated by the iSCSI target. CHAP Secret (available when Authentication Type is set to CHAP) Use this feature to enter the CHAP secret (12~16 characters) authenticated by the iSCSI...
  • Page 171 Appendix G: Configuring iSCSI Settings CHAP Status This feature displays the CHAP status. Reverse CHAP Name (available when CHAP Type is set to Mutual) Use this feature to enter the CHAP name authenticated by the iSCSI initiator.
  • Page 172 Super X11DSN-TS/X11DSN-TSq User's Manual Reverse CHAP Secret (available when CHAP Type is set to Mutual) Use this feature to enter the CHAP secret (12~16 characters) authenticated by the iSCSI initiator. Reverse CHAP Status (available when CHAP Type is set to Mutual)
  • Page 173 Appendix G: Configuring iSCSI Settings Save Changes Use the arrow keys to select Save Changes and press <Enter> to save settings shown on the screen. Note: For the changes to take effect, save settings and restart the system. Back to Previous Page Use the arrow keys to select Back to Previous Page and press <Enter>.
  • Page 174 Super X11DSN-TS/X11DSN-TSq User's Manual The user will be returned to the main screen of iSCSI Configuration as shown below. Delete Attempts Use the arrow keys to select Delete Attempts. Press <Enter> and the following screen will appear.
  • Page 175 Appendix G: Configuring iSCSI Settings Attempt 1 Use the feature to disable/enable Attempt 1. The options are Disabled and Enabled. Attempt 2 Use the feature to disable/enable Attempt 2. The options are Disabled and Enabled.
  • Page 176 Super X11DSN-TS/X11DSN-TSq User's Manual Commit Changes and Exit Press <Enter> to save changes and return to the main screen of iSCSI Configuration. Discard Changes and Exit Press <Enter> to return to the main screen of iSCSI Configuration without any change.
  • Page 177 Appendix G: Configuring iSCSI Settings Change Attempt Order Use the arrow keys to select Change Attempt Order. Press <Enter> and the following screen will appear.
  • Page 178 Super X11DSN-TS/X11DSN-TSq User's Manual Change Attempt Order This feature is to change the Attempt order. Use arrow keys to select the desired Attempt, then <+/-> keys to move up/down the selected Attempt. For instance, move up the selected Attempt by using <+> key. Move down the selected Attempt by using <-> key.

  • Page 179: Appendix G Configuring Network Interface Card (Nic) Settings

    Appendix H: Configuring Network Interface Card (NIC) Settings Appendix G Configuring Network Interface Card (NIC) Settings The appendix describes settings of onboard Intel® LAN devices via the BIOS Setup utility supported by the Unified Extensible Firmware Interface (UEFI) driver. G.1 Network Interface Card (NIC) Settings Press <Del>...
  • Page 180 Super X11DSN-TS/X11DSN-TSq User's Manual Onboard LAN1 Option ROM (available when NIC(s) is(are) detected by the system) Use the arrow keys to select Onboard LAN1 Option ROM and press <Enter>. The options are Disabled, Legacy, and EFI. Set this feature to EFI.
  • Page 181 Appendix H: Configuring Network Interface Card (NIC) Settings Use the arrow keys to select the desired onboard LAN device as shown below. Press <Enter> and the following screen will appear. It displays the detailed information for the selected onboard LAN device.
  • Page 182 Super X11DSN-TS/X11DSN-TSq User's Manual Blink LEDs This feature allows the user to set the LED blink duration (in seconds). The valid range is 0~15 (seconds). NIC Configuration Use the arrow keys to select NIC Configuration.
  • Page 183 Appendix H: Configuring Network Interface Card (NIC) Settings Press <Enter> and the following screen will appear. Wake on LAN Use the arrow keys to select Wake On LAN and press <Enter>. The following screen will appear. The options are Disabled and Enabled. Set this feature to support system wake-up via the selected LAN device.

This manual is also suitable for:

X11dsn-tsq

Table of Contents
