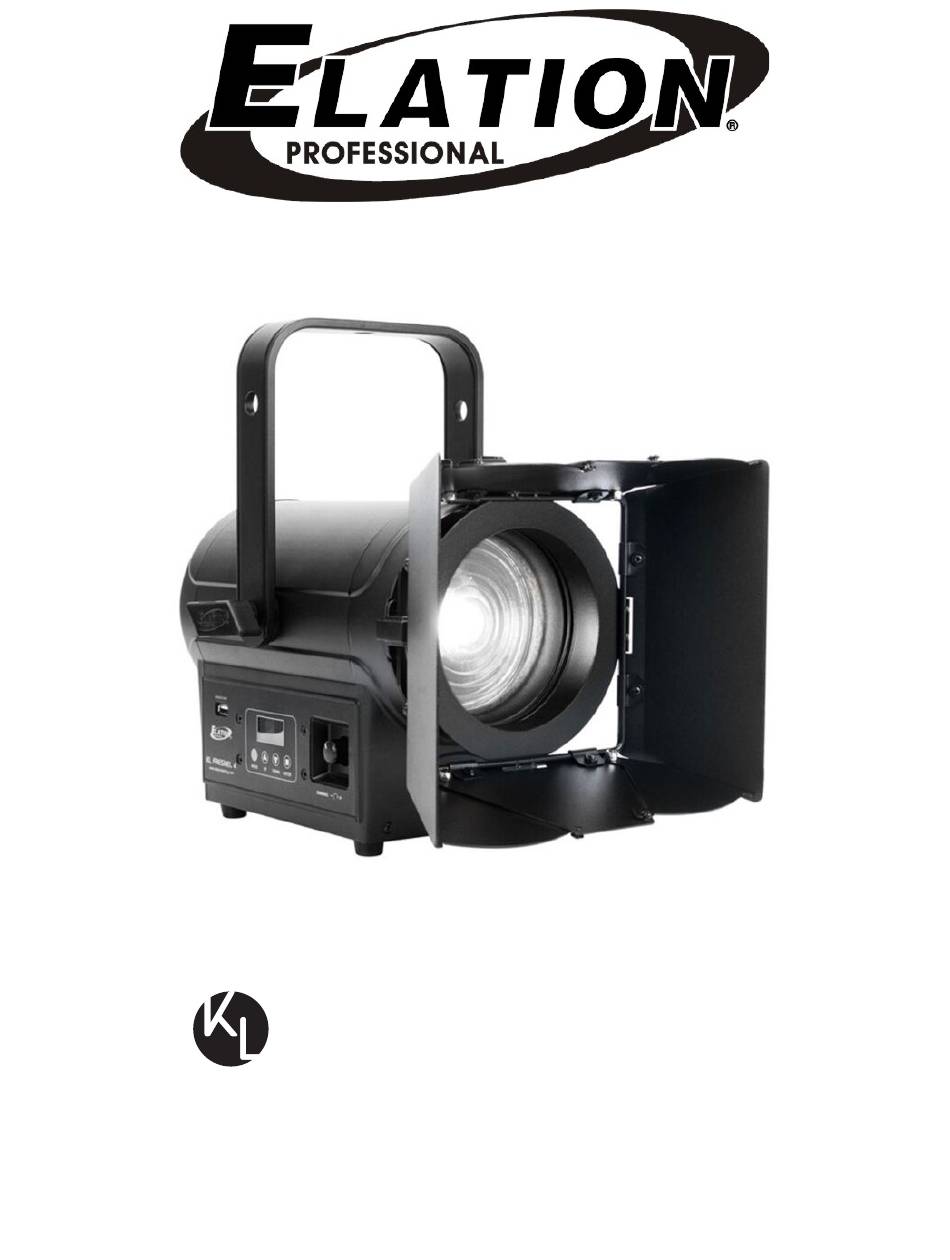

- Page 1 FRESNEL 4 CW™ user manual...
-
Page 2: Document Version
Elation Professional B.V . | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070 DOCUMENT VERSION Due to additional product features and/or enhancements, an updated version of this document may be available online. - Page 3 C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Installation Guidelines Fan Modes and Low Noise Operation Remote Device Management (RDM) System Menu | Software Update Manual Dimming Control Dimmer Curve Modes DMX Channel Functions And Values Specifications...
-
Page 4: Box Contents
Barn Door Gel Frame Barn Door Safety Cable (USA Only) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com... -
Page 5: L I M I T E D W A R R A N T Y ( U S A O N L Y )
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no liability whatsoever for loss and/or or damage to any such accessories, nor for the safe return thereof. -
Page 6: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 7 S A F E T Y G U I D E L I N E S DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before serving. DO NOT shake fixture, avoid brute force when installing and/or operating fixture.
-
Page 8: Maintenance
Regular inspections are recommended to insure proper function and extended life. There are no user serviceable parts inside this fixture, please refer all other service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer. -

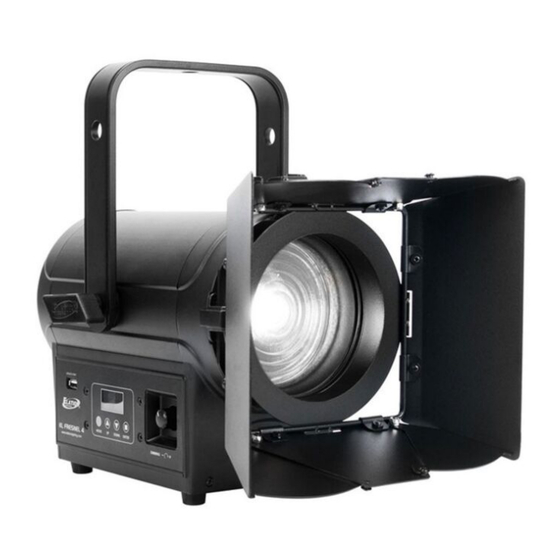

Page 9: Fixture Overview
F I X T U R E O V E R V I E W 1. Power Out 2. Power in 3. 5pin DMX In 4. 5pin DMX Out 5. USB Software Update Port 6. OLED Control Menu Display 7. MODE Button 8. -
Page 10: Installation Instructions
INSTALLATION INSTRUCTIONS FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. USE CAUTION WHEN POWER LINKING OTHER MODEL FIXTURES AS THE POWER CONSUMPTION OF OTHER MODEL FIXTURES MAY EXCEED THE MAX POWER OUTPUT ON THIS FIXTURE. - Page 11 INSTALLATION INSTRUCTIONS GEL FRAME AND BARN DOOR INSTALLATION The fixture has 2 slots on the front to hold the GEL FRAME and BARN DOOR . The first smaller slot is for the GEL FRAME and the second larger slot is for the BARN DOOR . The fixture also has a top lock that secures these accessories to the fixture.
-
Page 12: Clamp Installation
INSTALLATION INSTRUCTIONS CLAMP INSTALLATION When mounting the fixture to truss, be sure to secure an appropriately rated professional grade rigging clamp to the fixture using an M10 screw fitted through one of the 3 holes of the yoke bracket. The fixture provides a built-in rigging point for a SAFETY CABLE . Be sure to only use the designated rigging point for the safety cable and never secure a safety cable to a carrying handle. - Page 13 INSTALLATION INSTRUCTIONS R I G G I N G Overhead rigging requires extensive experience, including amongst others calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture. If you lack these qualifications, do not attempt the installation yourself.
- Page 14 FAN MODES AND LOW NOISE OPERATION The KL Fresnel 4 CW is a high-performance fixture suited for multiple applications. For noise critical environments such as Theater, Opera or Orchestra Halls, it offers various fan operation modes which remove any distraction for the audience and performers. Fan Modes can be changed remotely via the DMX control channel, allowing the fixture to offer high output or whisper silent operation at a moment’s notice.
-
Page 15: Remote Device Management (Rdm)
REMOTE DEVICE MANAGEMENT (RDM) NOTE: For RDM to work properly, RDM enabled equipment must be used throughout the entire system, including DMX data splitters and wireless systems. Remote Device Management (RDM) is a protocol that sits on top of the DMX512 data standard for lighting, allowing the DMX systems of the device to be managed, modified, and monitored remotely (hence, remote device management). - Page 16 A copy of the latest software can be obtained by contacting Elation Support. AN ELATION C-LOADER II CAN ALSO BE USED TO UPDATE THE FIXTURE TO THE LATEST SOFTWARE. To order this device, please contact Elation Support for further details.
-
Page 17: System Menu
SYSTEM MENU Supports Software Versions: ≥ 1.03 Features subject to change without notice. MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION (Default Settings in BOLD ) Address Address 001 ~ XXX Set DMX Address Setting UserMode User Mode Dimmer / Dimmer 16bit / 3CH / Standard / Extended Set DMX Channel / User Mode Status Lost Dmx... -
Page 18: Lcd Display
MANUAL DIMMING CONTROL u FEATURE IS DISABLED WHEN DMX INPUT CABLE IS CONNECTED TO FIXTURE! TO USE MANUAL DIMMING KNOB, DISCONNECT DMX CABLE IF CONNECTED. Follow steps below to enable manual DIMMING control knob. 1. Access fixture system menu navigating to Test menu then access ManCtrl sub menu. Test ManCtrl Dimmer, Strobe... - Page 19 DIMMER CURVE MODES - Dim Curve Select desired DIMMER MODE ( Standard , Stage, TV, Architectural, Theatre, Stage2).
-
Page 20: Dmx Traits
DMX TRAITS Supports Software Versions: ≥ 1.03 Features subject to change without notice. MODE / CHANNEL VALUE FUNCTION Dimmer Dimmer Standard Extended 16bit DIMMER INTENSITY 000-255 Dimmer 0 to 100% DIMMER INTENSITY FINE 000-255 Dimmer FINE Adjustment SHUTTER | STROBE 000-031 LED OFF 032-063... - Page 21 DMX TRAITS MODE / CHANNEL VALUE FUNCTION Dimmer Standard Extended Dimmer 16bit LED REFRESH RATE | DIMMER CURVES* *Hold selected DMX value for 5 seconds to set LED Refresh Rate. 000-100 IDLE 101-105 900 kHz* 106-110 1000 kHz* 111-115 1100 kHz* 116-120 1200 kHz* 121-125...
-
Page 22: Specifications
S P E C I F I C A T I O N S SOURCE SIZE / WEIGHT 50W Cool White LED Engine 5,600K, Length: 9.9” (251mm) Width: 7.9” (201mm) 97CRI Vertical Height: 11.4” (289mm) 50,000 Hour Average LED Life* Weight: 9.0 lbs. -
Page 23: Dimensional Drawings
DIMENSIONAL DRAWINGS Dimension drawings not to scale... - Page 24 FCC STATEMENT This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. FCC RADIO FREQUENCY INTERFERENCE WARNINGS &...
