Summary of Contents for Elation KL FRESNEL 8 CW

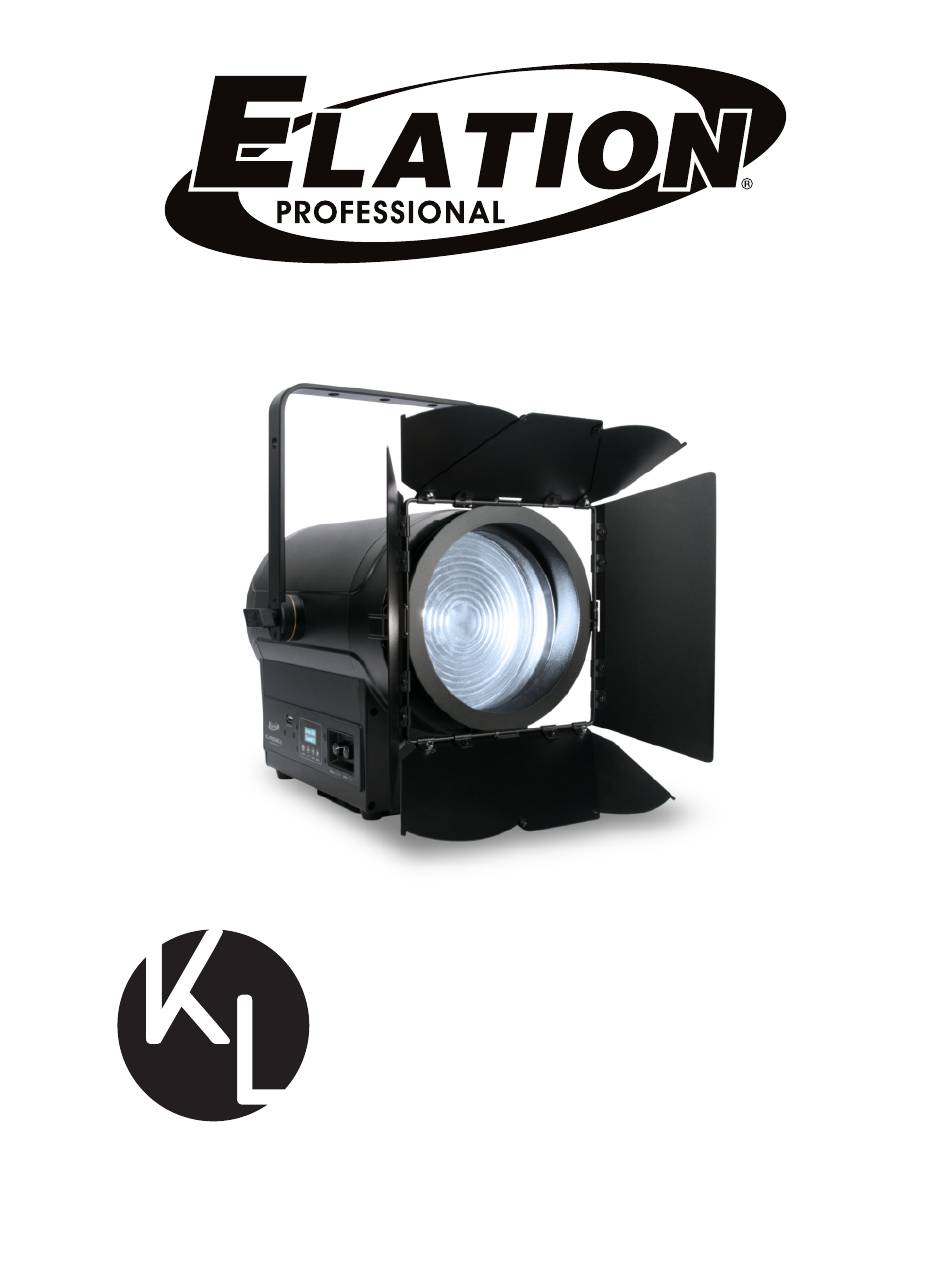

- Page 1 FRESNEL 8 CW User Manual...
- Page 2 Elation Professional B.V. | Junostraat 2 | 6468 EW Kerkrade, The Netherlands +31 45 546 85 66 | +31 45 546 85 96 fax | www.elationlighting.eu | info@elationlighting.eu Elation Professional Mexico | AV Santa Ana 30 | Parque Industrial Lerma, Lerma, Mexico 52000 +52 (728) 282-7070...
-
Page 3: Table Of Contents
C O N T E N T S General Information Limited Warranty (USA Only) Safety Guidelines Maintenance Guidelines Fixture Overview Installation Instructions Accessory Installation System Menu Dimmer Curve Modes Manual Dimming and Zoom Control DMX Channel Functions and Values Software Updates Specifications Dimensional Drawings FCC Statement... -
Page 4: General Information
Gel Frame (x1) Power Cable (x1) Barn Door Safety Cable - USA Only (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments, or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com... -
Page 5: Limited Warranty (Usa Only)
No accessories should be shipped with the product. If any accessories are shipped with the product, Elation Professional shall have no liability what so ever for loss and/or or damage to any such accesso- ries, nor for the safe return thereof. -
Page 6: Safety Guidelines
This fixture is a sophisticated piece of electronic equipment. To guarantee smooth operation, it is important to follow all instructions and guidelines in this manual. Elation Professional is not responsible for injury and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual. - Page 7 S A F E T Y G U I D E L I N E S • DO NOT TOUCH the fixture housing during operation. • Turn OFF the power and allow approximately 15 minutes for the fixture to cool down before servicing.
-
Page 8: Maintenance Guidelines
Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all service issues to an authorized Elation service technician. Should you need any spare parts, please order genuine parts from an authorized Elation dealer. -
Page 9: Fixture Overview
F I X T U R E O V E R V I E W 3pin DMX In 5pin DMX In 5pin DMX Out 3pin DMX Out Power In Power Out USB Software Update Port OLED Control Menu Display Mode Button Up Button Down Button Enter Button... -
Page 10: Installation Instructions
I N S TA L L AT I O N I N S T R U C T I O N S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyrotechnics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installations. - Page 11 I N S TA L L AT I O N I N S T R U C T I O N S CLAMP INSTALLATION The fixture features an adjustable mounting yoke and safety cable rigging point, as shown in the illustration below. When mounting this fixture to a truss, always secure an appropriately rated mounting clamp (not included) to the yoke using an M10 screw, and attach a SAFETY CABLE to the designated rigging point.
- Page 12 I N S TA L L AT I O N I N S T R U C T I O N S RIGGING Overhead rigging requires extensive experience, calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture itself, among other skills.
-
Page 13: Accessory Installation
A C C E S S O R Y I N S TA L L AT I O N GEL FRAME AND BARNDOOR The fixture has 2 slots on the front, which can be used for the installation of the Gel Frame and Barn Door. -
Page 14: System Menu
S YS T E M M E N U The fixture features an easy to navigate system menu. The control panel (see image below) is located on the back of the fixture and provides access to the main system menu where all necessary system adjustments are made. - Page 15 S YS T E M M E N U ELATION KL Fresnel 8 CW - System Menu Supports Software Versions: 1.02 ADDRESS Set DMX Address 001 - xxx Set DMX address settings Dimmer Dimmer 16bit USERMODE User Mode Set DMX channel mode...
- Page 16 S YS T E M M E N U Software update port; USB Data On / Off contact Elation Service FUNCTION for guidance (continued) Primary SW On / Off Set unit to primary mode DFSE On / Off Restore factory settings...
-
Page 17: Dimmer Curve Modes
D I M M E R C U R V E M O D E S Select desired DIMMER MODE (Standard, Stage, TV, Architectural, Theatre, Stage2). DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect... -
Page 18: Manual Dimming And Zoom Control
M A N U A L D I M M I N G A N D Z O O M C O N T R O L FEATURE IS DISABLED WHEN DMX INPUT CABLE IS CONNECTED TO FIXTURE! TO USE DIM- MING AND ZOOM KNOBS, DISCONNECT DMX CABLE IF CONNECTED. -
Page 19: Dmx Channel Functions And Values
D M X C H A N N E L F U N C T I O N S A N D VA L U E S ELATION KL Fresnel 8 CW - DMX Traits Supports Software Versions: 1.02 CHANNEL... - Page 20 D M X C H A N N E L F U N C T I O N S A N D VA L U E S CHANNEL FUNCTION Dimmer VALUES Dimmer 16bit Dimmer Modes / Dimmer Delay Times (contin- ued) Delay Time 8.0s Delay Time 9.0s...
-
Page 21: Software Updates
Using a USB Flash Drive loaded with the latest software, insert it into the USB Service Port, then navigate to FUNCTION > USB DATA, and toggle this setting to ON. Contact Elation service for additional instructions, or to obtain a copy of the latest software. -
Page 22: Specifications
S P E C I F I C AT I O N S SOURCE 350W Cool White LED Engine, 5,600K, 97CRI 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Pat- terns (On-Off Cycling), Control and Dimming. -
Page 23: Dimensional Drawings
D I M E N S I O N A L D R AW I N G S... -
Page 24: Fcc Statement
F C C S TAT E M E N T This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 25 This page intentionally left blank.
