Summary of Contents for Elation KL FRESNEL 6 CW PO

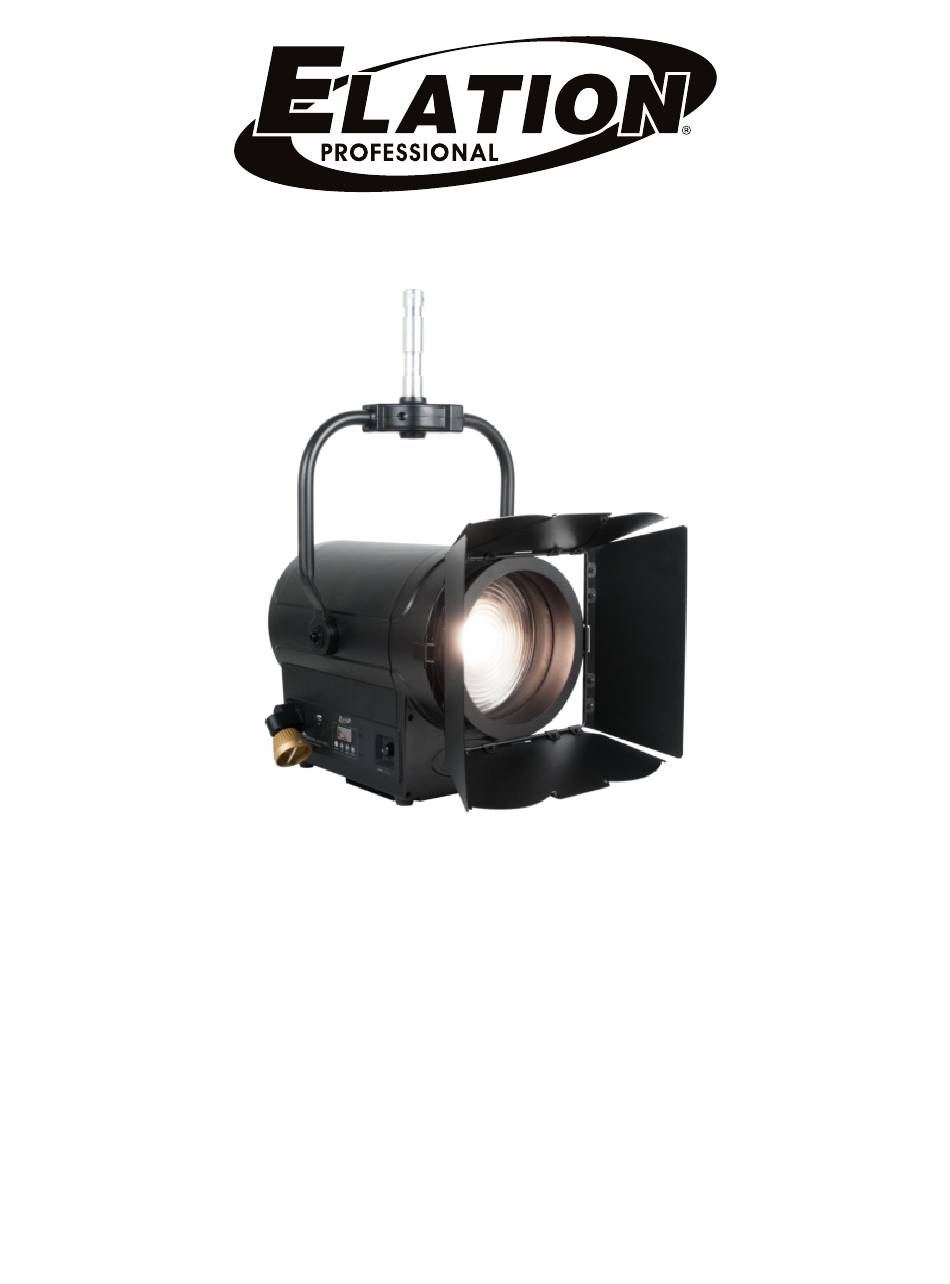

  • Page 1 KL FRESNEL 6 CW PO User Manual...
  • Page 2 ©2022 ELATION PROFESSIONAL all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ELATION PROFES- SIONAL logo and identifying product names and numbers herein are trademarks of ELATION PROFESSIONAL. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
  • Page 3: Table Of Contents

    TA B L E O F C O N T E N T S General Information Limited Warranty (USA Only) Safety Precautions Maintenance Guidelines Overview Installation Guidelines Accessory Installation Remote Device Management (RDM) Control Panel System Menu Fan Control Encoder Knob DMX Traits Dimmer Curves Software Updates...
  • Page 4: General Information

    Junior Pin (x1) Gel Frame (x1) Locking Power Cable (x1) CUSTOMER SUPPORT Contact ELATION Service for any product related service and support needs. Also visit forums.elationlighting.com with questions, comments or suggestions. ELATION SERVICE USA - Monday - Friday 8:00am to 4:30pm PST 323-582-3322 | Fax 323-832-9142 | support@elationlighting.com...
  • Page 5: Limited Warranty (Usa Only)

    If the requested repairs or service (including parts replacement) are within the terms of this warranty, Elation Professional will pay return shipping charges only to a designated point within the United States. If any product is sent, it must be shipped in its original package and packag-ing material.
  • Page 6: Safety Precautions

    This fixture is a sophisticated piece of electronic equipment. To guarantee a smooth opera- tion, it is important to follow all instructions and guidelines in this manual. Elation Profes- sional is not responsible for injuries and/or damages resulting from the misuse of this fixture due to the disregard of the information printed in this manual.
  • Page 7 S A F E T Y G U I D E L I N E S • DO NOT TOUCH the fixture housing during operation. Turn OFF the power and allow ap- proximately 15 minutes for the fixture to cool down before servicing. •...
  • Page 8: Maintenance Guidelines

    Regular inspections are recommended to ensure proper function and extended life. There are no user serviceable parts inside this fixture. Please refer all other service issues to an autho- rized Elation service technician. Should you need any spare parts, please order genuine parts from your local Elation dealer.
  • Page 9: Overview

    O V E R V I E W Barn Door Installation Slots Mounting Yoke Clamp Mounting Point Junior Pin (installed) Tilt Adjustment Knob Pan Adjustment Knob Dimmer Adjustment Knob Enter Button Display Screen 10. Down Button 11. Up Button 12. Mode Button 13.
  • Page 10 O V E R V I E W 15. Service Port 16. Fuse - T3A / 250V 17. Power In 18. Power Out 19. 3-pin DMX In 20. 5-pin DMX In 21. 3-pin DMX Out 22. 5-pin DMX Out...
  • Page 11: Installation Guidelines

    I N S TA L L AT I O N G U I D E L I N E S FLAMMABLE MATERIAL WARNING Keep fixture minimum 5.0 feet (1.5m) away from flammable materials and/or pyro- technics. ELECTRICAL CONNECTIONS A qualified electrician should be used for all electrical connections and/or installa- tions.
  • Page 12 I N S TA L L AT I O N G U I D E L I N E S CLAMP INSTALLATION This fixture includes an adjustable mounting yoke with an integrated clamp mounting point, as well as an additional safety cable rigging point attached to the body of the fixture (see the illustration below).
  • Page 13 I N S TA L L AT I O N G U I D E L I N E S RIGGING Overhead rigging requires extensive experience, including calculating working load limits, installation material being used, and periodic safety inspection of all installation material and the fixture, among other skills.
  • Page 14 LEDs. This issue is not specific only to Elation lighting fixtures, but rather it is a common issue with lighting fixtures from all manufacturers. Although there is no true way to fully prevent this issue from happening, the guidelines below can reduce the risk of potential damage.
  • Page 15: Accessory Installation

    A C C E S S O R Y I N S TA L L AT I O N GEL FRAME This fixture includes a removable gel frame, which can be installed by following the steps shown below. 1. Release the lock on the lens frame latch, 2.
  • Page 16 A C C E S S O R Y I N S TA L L AT I O N BARNDOORS This fixture includes removable set of barndoors, which can be installed by following the steps shown below. 1. Release the lock on the lens frame latch, 2.
  • Page 17: Remote Device Management (Rdm)

    R E M O T E D E V I C E M A N A G E M E N T ( R D M ) NOTE: In order for RDM to work properly, RDM enabled equipment must be used through- out the entire system, including DMX data splitters and wireless systems.
  • Page 18: Control Panel

    DOWN buttons to adjust the field. Pressing the ENTER button once more will confirm your setting. You may exit the main menu at any time without making any adjustments by pressing the MODE button. The display screen will automatically turn off after 30 seconds of inactivity. KL FRESNEL 6 CW PO...
  • Page 19: System Menu

    S Y S T E M M E N U ELATION KL FRESNEL 6 CW PO SYSTEM MENU Supports Software Versions: 1.04 Features subject to change without notice. Rotation direction (clockwise/counter-clockwise) and control of effects depend on head orientation and pan/tilt settings.
  • Page 20 S Y S T E M M E N U MAIN MENU SUB MENU OPTIONS / VALUES DESCRIPTION Power on USB port to update USB Data On / Off device FUNCTION Primary On / Off Primary mode switch (continued) DFSE On / Off Reset to default settings Current...
  • Page 21: Fan Control

    F A N C O N T R O L The KL Fresnel 6 CW PO is a high-performance fixture suited for multiple applications. For noise critical environments such as Theater, Opera, or Orchestral Halls, it offers various fan operation modes which remove unwanted noise distractions for the audience and performers.
  • Page 22: Encoder Knob

    E N C O D E R K N O B ENCODER KNOB This device features an encoder knob located on the side panel beside the display screen, as shown in the illustration above. This knob allows the user to quickly enter Manual Dimmer Mode by pressing on the knob. The dimming can then be adjusted by turning the knob.
  • Page 23: Dmx Traits

    D M X T R A I T S ELATION KL FRESNEL 6 CW PO DMX CHANNEL TRAITS Supports Software Versions: 1.04 Features subject to change without notice. Rotation direction (clockwise/counter-clockwise) and control of effects depends on head orientation and pan/tilt settings.
  • Page 24 D M X T R A I T S CHANNEL FUNCTION Dimmer VALUES Dimmer Standard Extended 16bit Dimmer Delay Time (continued) 4.0s 5.0s 6.0s 7.0s 8.0s 9.0s 10.0s 142 - 255 Default Control (hold for 3s) 000 - 100 Idle Refresh Rate 101 - 105 900 Hz 106 - 110 1000 Hz...
  • Page 25: Dimmer Curves

    D I M M E R C U R V E S DIMMER 100% Time (ms) 0 Sec Rise Time Down Time 0 sec Fade Time 1 sec Fade Time Dimming Curve Ramp Effect Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms) Standard (default)
  • Page 26: Software Updates

    PLEASE CONTACT ELATION SERVICE FOR FURTHER INFORMATION. ELATION C-LOADER An Elation C-Loader can be used to update the fixture to the latest software. Please visit the C-Loader product page at the Elation web site and download the product manual for step by step instructions.
  • Page 27: Specifications

    S P E C I F I C AT I O N S SOURCE 150W Cool White LED Engine, 5,600K, 97CRI 50,000 Hour Average LED Life* *May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Pat- terns (On-Off Cycling), Control and Dimming.
  • Page 28: Dimensional Drawings

    D I M E N S I O N A L D R A W I N G S FIXTURE WITH JUNIOR PIN INSTALLED 1.1in (20mm) 10.9in (276.6mm) 13.5in (344mm) 13.5in (344mm) 22.1in (561.2mm)
  • Page 29 D I M E N S I O N A L D R A W I N G S BARN DOOR AND JUNIOR PIN INSTALLED 1.3in (33mm) 14.8in (375.5mm)
  • Page 30: Error Codes

    E R R O R C O D E S When the unit is powered on, it will automatically enter a “Reset/Test” mode, in which the unit runs a brief self-evaluation. If an internal problem is detected, an error code will flash in the be displayed.
