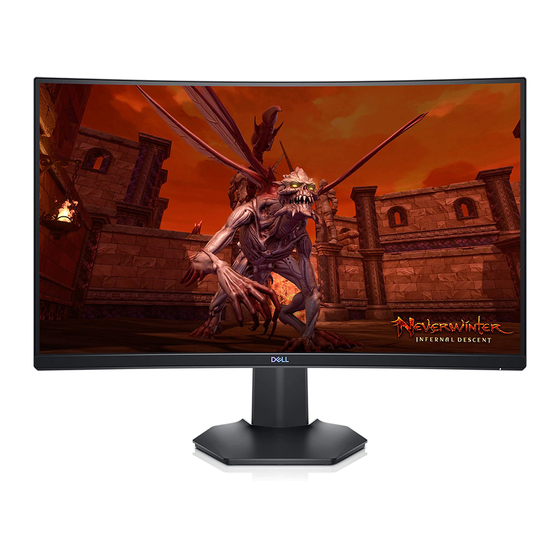

Dell S2721HGF Teardown Manual

1. Disassembly Procedures:
S1
Open the carton with a proper tool.
Take out all accessories including QSG, user's
manual, DP cable, USB cable, power cable and
S2
other packing materials from the carton.(Note: It
depends on whether users returning the
accessories)
DP cable
S3
Take out the base and molded pulp from the carton.
stand
Take out the monitor from EPE-bag and put the LCD
S4
monitor on a protective cushion.
User's manual
power cable
USB cable
base
monitor
Use a Philips-head screwdriver to remove four
S5
screws for unlocking mechanisms.
(No.1~4 screw size=M4x8; Torque=10~11kgfxcm)
2
4
Wedge your fingers between the rear cover and the
middle bezel on the corners of the top side of the
monitor to release the rear cover, then use one hand
S6
to press the middle bezel, the other hand to pull up
carefully the rear cover in order of arrow preference
for unlocking mechanisms of rear cover.
1
3
4
Lift the rear cover up carefully. Disconnect the
function key cable and power key cable from the
S7
connectors of the interface board, and then remove
the rear cover.
DELL S2721HGF
3
1
2
1
