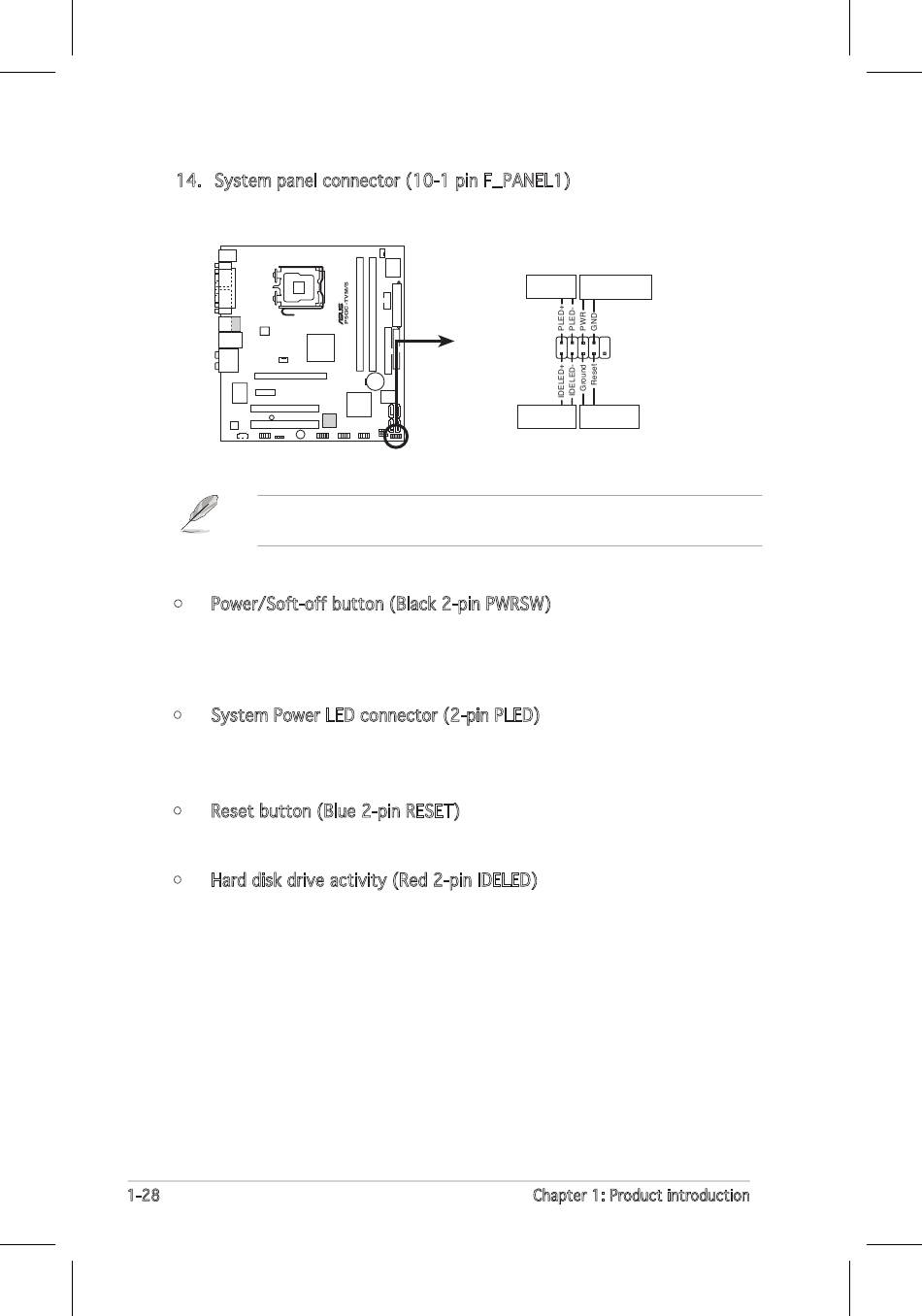

14. System panel connector (10-1 pin F_PANEL1)
This connector supports several chassis-mounted functions.
P5GC-TVM/S System panel connector
The sytem panel connector is color-coded for easy connection. Refer to
the connector description below for details.
Power/Soft-off button (Black 2-pin PWRSW)
This connector is for the system power button. Pressing the power
button turns the system ON or puts the system in SLEEP or SOFT-OFF
mode depending on the BIOS settings. Pressing the power switch for
more than four seconds while the system is ON turns the system OFF.
System Power LED connector (2-pin PLED)
This 2-pin connector is for the system power LED. The system power
LED lights up when you turn on the system power, and blinks when
the system is in sleep mode.
Reset button (Blue 2-pin RESET)
This 2-pin connector is for the chassis-mounted reset button for
system reboot without turning off the system power.
Hard disk drive activity (Red 2-pin IDELED)
This 2-pin connector is for the HDD Activity LED. Connect the HDD
Activity LED cable to this connector. The IDE LED lights up or flashes
when data is read from or written to the HDD.
1-28
PLED PWRSW
F_PANEL1
IDE LED RESET
Requires an ATX power supply.
*
Chapter 1: Product introduction
