Axis M3057-PLR Mk II User Manual

Hide thumbs Also See for M3057-PLR Mk II:
Table of Contents

Advertisement

Quick Links

Download this manual

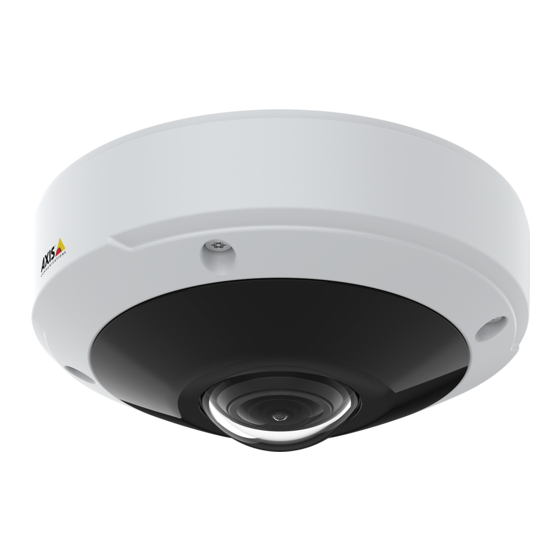

M3057-PLR Mk II Dome Camera
User manual

Advertisement

Table of Contents
loading

Related Manuals for Axis M3057-PLR Mk II

Summary of Contents for Axis M3057-PLR Mk II

  • Page 1 M3057-PLR Mk II Dome Camera User manual...

  • Page 2: Table Of Contents

    M3057-PLR Mk II Dome Camera Table of Contents Get started ..........

  • Page 3: Get Started

    Get started Find the device on the network To find Axis devices on the network and assign them IP addresses in Windows®, use AXIS IP Utility or AXIS Device Manager. Both applications are free and can be downloaded from axis.com/support.

  • Page 4: Verify That No One Has Tampered With The Firmware

    Verify that no one has tampered with the firmware To make sure that the device has its original Axis firmware, or to take full control of the device after a security attack: 1. Reset to factory default settings. See Reset to factory default settings on page 59.

  • Page 5: Installation

    M3057-PLR Mk II Dome Camera Installation Installation Preview mode Preview mode is ideal for installers when fine tuning the camera view during the installation. No login is required to access the camera view in preview mode. It is available only in factory defaulted state for a limited time from powering up the device.

  • Page 6: Configure Your Device

    M3057-PLR Mk II Dome Camera Configure your device Configure your device Basic settings Adjust the image This section includes instructions about configuring your device. If you want to learn more about how certain features work, go to Learn more on page 45.
  • Page 7 M3057-PLR Mk II Dome Camera Configure your device 3. Go to ImageSource/I0/Sensor > Low latency mode and select On. 4. Click Save. Select exposure mode To improve image quality for specific surveillance scenes, use exposure modes. Exposure modes lets you control aperture, shutter speed, and gain.
  • Page 8 M3057-PLR Mk II Dome Camera Configure your device Reduce noise in low-light conditions To reduce noise in low-light conditions, you can adjust one or more of the following settings: • Adjust the trade-off between noise and motion blur. Go to Video > Image > Exposure and move the Blur-noise trade-off slider toward Low noise.
  • Page 9 M3057-PLR Mk II Dome Camera Configure your device Maximize the details in an image Important If you maximize the details in an image, the bitrate will probably increase and you might get a reduced frame rate. • Make sure to select the capture mode that has the highest resolution.
  • Page 10 5. To set the amount of WDR, select Low, Medium or High from the WDR level list. 6. If you still have problems, go to Exposure and adjust the Exposure zone to cover the area of interest. Find out more about WDR and how to use it at axis.com/web-articles/wdr. Verify the pixel resolution To verify that a defined part of the image contains enough pixels to, for example, recognize the face of a person, you can use the pixel counter.

  • Page 11: View And Record Video

    M3057-PLR Mk II Dome Camera Configure your device 1. Go to Video > Overlays. 2. Select Image and click 3. Click Images. 4. Drag and drop an image. 5. Click Upload. 6. Click Manage overlay. 7. Select the image and a position. You can also drag the overlay image in the live view to change the position.

  • Page 12: Set Up Rules For Events

    M3057-PLR Mk II Dome Camera Configure your device Note Most web browsers don’t support H.265 decoding and because of this the device doesn’t support it in its web interface. Instead you can use a video management system or application that supports H.265 decoding.
  • Page 13 Make sure you have an SD card installed. Make sure that AXIS Object Analytics is running: Make sure that AXIS Video Motion Detection is running: 1. Go to Apps > AXIS Object Analytics. 2. Go to Apps > AXIS Video Motion Detection.
  • Page 14 Configure your device 1. Go to Apps > AXIS Object Analytics. 2. Go to Apps > AXIS Video Motion Detection. 3. Start the application if it is not already running. 4. Make sure you have set up the application according to your needs.
  • Page 15 M3057-PLR Mk II Dome Camera Configure your device 8. The camera doesn’t have it’s own email server, so it has to log into another email server to send mails. Fill in the rest of the information according to your email provider.

  • Page 16: The Device Interface

    Shows what kinds of access to the device that are active, and what encryption protocols are in use. Recommendations to the settings are based on the AXIS OS Hardening Guide. Hardening guide: Click to go to AXIS OS Hardening guide where you can learn more about how to apply cybersecurity best practices.

  • Page 17: Video

    M3057-PLR Mk II Dome Camera The device interface Recordings: Shows each ongoing recording and its source. For more information, see Recordings on page 25 Shows the storage space where the recording is saved. Device info Shows device information, including firmware version and serial number.
  • Page 18 M3057-PLR Mk II Dome Camera The device interface Click to manually turn on the heater for a selected period of time. Click to start a continuous recording of the live video stream. Click again to stop the recording. If a recording is ongoing, it will resume automatically after a reboot.
  • Page 19 M3057-PLR Mk II Dome Camera The device interface Scene profile : Select a scene profile that suits your surveillance scenario. A scene profile optimizes image settings, including color level, brightness, sharpness, contrast, and local contrast, for a specific environment or purpose.
  • Page 20 M3057-PLR Mk II Dome Camera The device interface : Turn on to make both bright and dark areas of the image visible. Local contrast : Use the slider to adjust the contrast of the image. A higher value makes the contrast higher between dark and light areas.
  • Page 21 • Move the slider towards Dark to increase the threshold for the IR-cut filter. The camera changes to night mode later. IR light If your device doesn’t have built-in illumination, these controls are only available when you have connected a supporting Axis accessory.
  • Page 22 M3057-PLR Mk II Dome Camera The device interface • Flicker-free 60 Hz : The camera adjusts the aperture and gain automatically, and uses the shutter speed 1/60 s. • Flicker-reduced : This is the same as flicker-free, but the camera might use shutter speeds faster than 1/100 s (50 Hz) and 1/120 s (60 Hz) for brighter scenes.
  • Page 23 Zipstream: A bitrate reduction technology, optimized for video surveillance, that reduces the average bitrate in an H.264 or H.265 stream in real time. Axis Zipstream applies a high bitrate in scenes where there are multiple regions of interest, for example in scenes with moving objects.
  • Page 24 M3057-PLR Mk II Dome Camera The device interface Dynamic FPS (frames per second): Turn on to allow the bandwidth to vary based on the level of activity in the scene. More activity requires more bandwidth. Lower limit : Enter a value to adjust the frame rate between minimal fps and the stream default fps based on scene motion.

  • Page 25: Recordings

    M3057-PLR Mk II Dome Camera The device interface To upload an image, click Images. Before you upload an image, you can choose to: Scale with resolution: Select to automatically scale the overlay image to fit the video resolution. Use transparency: Select and enter the RGB hexadecimal value for that color. Use the format RRGGBB.

  • Page 26: Apps

    • Activate license with a key: If the app requires a license, you need to activate it. Use this option if your device doesn’t have internet access. If you don’t have a license key, go to axis.com/products/analytics. You need a license code and the Axis product serial number to generate a license key.

  • Page 27: System

    M3057-PLR Mk II Dome Camera The device interface System Date and time The time format depends on the web browser’s language settings. Note We recommend you to synchronize the device’s date and time with an NTP server. Synchronization: Select an option for synchronizing the device’s date and time.
  • Page 28 One-click cloud connection One-click cloud connection (O3C) together with an O3C service provides easy and secure internet access to live and recorded video from any location. For more information, see axis.com/end-to-end-solutions/hosted-services. Allow O3C: • One-click: The default setting. Press and hold the control button on the device to connect to an O3C service over the internet.
  • Page 29 Authentication failed: Sends a trap message when an authentication attempt fails. Note All Axis Video MIB traps are enabled when you turn on SNMP v1 and v2c traps. For more information, see AXIS OS Portal > SNMP. • v3: SNMP v3 is a more secure version, which provides encryption and secure passwords. To use SNMP v3, we recommend you to activate HTTPS, as the password is then sent through HTTPS.
  • Page 30 When configured without a CA certificate, server certificate validation is disabled and the device tries to authenticate itself regardless of what network it is connected to. When using a certificate, in Axis' implementation, the device and the authentication server authenticate themselves with digital certificates using EAP-TLS (Extensible Authentication Protocol - Transport Layer Security).
  • Page 31 To install test firmware or other custom firmware from Axis on the device, you need a custom-signed firmware certificate. The certificate verifies that the firmware is approved by both the device owner and Axis. The firmware can only run on a specific device which is identified by its unique serial number and chip ID.
  • Page 32 M3057-PLR Mk II Dome Camera The device interface Events Rules A rule defines the conditions that must be met for the product to perform an action. The list shows all the currently configured rules in the product. Note You can create up to 256 action rules.
  • Page 33 M3057-PLR Mk II Dome Camera The device interface You can set up your device to notify recipients about events or send files. The list shows all the recipients currently configured in the product, along with information about their configuration. Note You can create up to 20 recipients.
  • Page 34 RSA is the preferred method during negotiation, followed by ECDSA, ED25519, and DSA. Make sure to enter the right MD5 host key that is used by your SFTP server. While the Axis device supports both MD5 and SHA-256 hash keys, we recommend using SHA-256 due to stronger security over MD5. For more information on how to configure an SFTP server with an Axis device, go to the AXIS OS Portal.
  • Page 35 IoT integration and is used in a wide variety of industries to connect remote devices with a small code footprint and minimal network bandwidth. The MQTT client in Axis device firmware can simplify integration of data and events produced in the device to systems which are not video management systems (VMS).
  • Page 36 M3057-PLR Mk II Dome Camera The device interface Specifies if a message should be sent out when a connection is established. Send message: Turn on to send messages. Use default: Turn off to enter your own default message. Topic: Enter the topic for the default message.
  • Page 37 M3057-PLR Mk II Dome Camera The device interface Add subscription: Click to add a new MQTT subscription. Subscription filter: Enter the MQTT topic that you want to subscribe to. Use device topic prefix: Add the subscription filter as prefix to the MQTT topic.
  • Page 38 M3057-PLR Mk II Dome Camera The device interface Use NAT (Network Address Translation) traversal when the device is located on an private network (LAN) and you want to make it available from outside of that network. Note For NAT traversal to work, the router must support it. The router must also support UPnP®.
  • Page 39 M3057-PLR Mk II Dome Camera The device interface • Name: Enter a descriptive name. This can, for example, be a first and last name, a role, or a location. The name is not unique. • User ID: Enter the unique extension or phone number assigned to the device.
  • Page 40 DNS. Windows SMB/CIFS names are not supported. • Network share: Enter the name of the shared location on the host server. Several Axis devices can use the same network share, since each device gets its own folder.
  • Page 41 When you create an ONVIF user, you automatically enable ONVIF communication. Use the username and password for all ONVIF communication with the device. For more information see the Axis Developer Community at axis.com. Add user: Click to add a new ONVIF user.
  • Page 42 M3057-PLR Mk II Dome Camera The device interface An ONVIF media profile consists of a set of configurations that you can use to change media stream settings. Add media profile: Click to add a new ONVIF media profile. profile_x: Click a profile to edit.

  • Page 43: Maintenance

    Severity: Select which messages to send when triggered. CA certificate set: See the current settings or add a certificate. Plain config Plain config is for advanced users with experience of Axis device configuration. Most parameters can be set and edited from this page. Maintenance Restart: Restart the device.
  • Page 44 Note All Axis device firmware is digitally signed to ensure that you only install verified firmware on your device. This further increases the overall minimum cybersecurity level of Axis devices. For more information, see the white paper “Signed firmware, secure boot, and security of private keys” at axis.com.

  • Page 45: Learn More

    The image shows how the field of view and aspect ratio can change between two different capture modes. What capture mode to choose depends on the requirements for the frame rate and resolution of the specific surveillance setup. For specifications about available capture modes, see the product’s datasheet at axis.com.

  • Page 46: Privacy Masks

    M3057-PLR Mk II Dome Camera Learn more Privacy masks A privacy mask is a user-defined area that prevents users from viewing a part of the monitored area. In the video stream, privacy masks appear as blocks of solid color. A privacy mask is a user-defined area that prevents users from viewing a part of the monitored area. In the video stream, privacy masks appear as blocks of solid color or blurred image elements.

  • Page 47: Streaming And Storage

    H.264 or MPEG-4 Part 10/AVC Note H.264 is a licensed technology. The Axis product includes one H.264 viewing client license. To install additional unlicensed copies of the client is prohibited. To purchase additional licenses, contact your Axis reseller. H.264 can, without compromising image quality, reduce the size of a digital video file by more than 80% compared to the Motion JPEG format and by as much as 50% compared to older MPEG formats.
  • Page 48 M3057-PLR Mk II Dome Camera Learn more Maximum bitrate (MBR) Maximum bitrate lets you set a target bitrate to handle bitrate limitations in your system. You might see a decline in image quality or frame rate as the instantaneous bitrate is kept below the specified target bitrate. You can choose to prioritize either image quality or frame rate.

  • Page 49: Applications

    Applications With applications you can get more out of your Axis device. AXIS Camera Application Platform (ACAP) is an open platform that makes it possible for third parties to develop analytics and other applications for Axis devices. Applications can be preinstalled on the device, available for download for free, or for a license fee.
  • Page 50 M3057-PLR Mk II Dome Camera Learn more To watch this video, go to the web version of this document. help.axis.com/?&piaId=76660&section=about-applications How to download and install an application To watch this video, go to the web version of this document. help.axis.com/?&piaId=76660&section=about-applications...

  • Page 51: Specifications

    M3057-PLR Mk II Dome Camera Specifications Specifications Product overview IR illumination Status LED indicator Control button I/O connector SD card slot Mounting bracket D-coded M12 connector, female LED indicators Note The Status LED can be configured to flash while an event is active.

  • Page 52: Sd Card Slot

    M3057-PLR Mk II Dome Camera Specifications Network LED Indication Green Steady for connection to a 100 Mbit/s network. Flashes for network activity. Steady for connection to a 1 Gbit/s network. Flashes for network activity. Amber Steady for connection to a 10 Mbit/s network. Flashes for network activity.

  • Page 53: Buttons

    The buzzer signal (see ) assist leveling of the camera. The camera is level when the buzzer beeps continuously. • Connecting to an AXIS Video Hosting System service. To connect, press and hold the button for about 3 seconds until the status LED flashes green.
  • Page 54 To comply with the IP66-rated design of the camera and maintain the IP66 protection, the supplied RJ45 Push-pull Connector (IP66) shall be used. Alternatively, use the RJ45 IP66-rated cable with premounted connector which is available from your Axis reseller. Do not remove the plastic network connector shield from the camera. I/O connector Use the I/O connector with external devices in combination with, for example, motion detection, event triggering, and alarm notifications.
  • Page 55 M3057-PLR Mk II Dome Camera Specifications Function Notes Specifications DC ground 0 V DC DC output Can be used to power auxiliary equipment. 12 V DC Note: This pin can only be used as power out. Max load = 25 mA...
  • Page 56 M3057-PLR Mk II Dome Camera Specifications DC ground DC output 12 V, max 25 mA Supervised input Digital output DC ground DC output 12 V, max 50 mA I/O configured as supervised input I/O configured as output DC ground DC output 12 V, max 50 mA...
  • Page 57 M3057-PLR Mk II Dome Camera Specifications I/O configured as output Configurable I/O Configurable I/O...

  • Page 58: Cleaning Recommendations

    M3057-PLR Mk II Dome Camera Cleaning recommendations Cleaning recommendations If the device gets grease stains or becomes heavily soiled, you can clean it with mild, solvent-free soap or detergent. NOTICE TICE TICE Never use harsh detergent, for example gasoline, benzene, or acetone.

  • Page 59: Troubleshooting

    If no DHCP server is available on the network, the default IP address is 192.168.0.90. 5. Use the installation and management software tools to assign an IP address, set the password, and access the device. The installation and management software tools are available from the support pages on axis.com/support. 6. Refocus the product.

  • Page 60: Firmware Options

    Using firmware from the active track is recommended if you want to access the newest features, or if you use Axis end-to-end system offerings. The LTS tracks are recommended if you use third-party integrations, which are not continuously validated against the latest active track.

  • Page 61: Upgrade The Firmware

    3. Go to Maintenance > Firmware upgrade and click Upgrade. When the upgrade has finished, the product restarts automatically. You can use AXIS Device Manager to upgrade multiple devices at the same time. Find out more at axis.com/products/axis-device-manager. Technical issues, clues, and solutions If you can’t find what you’re looking for here, try the troubleshooting section at axis.com/support.
  • Page 62 IP addresses obtained from a DHCP server are dynamic and may change. If the IP address has been changed by DHCP changed, use AXIS IP Utility or AXIS Device Manager to locate the device on the network. Identify the device using its model or serial number, or by the DNS name (if the name has been configured).

  • Page 63: Performance Considerations

    • An event that uses images on the camera, for example an event that sends an e-mail with an image every hour • An installed and running application, such as AXIS Video Motion Detection, will always consume a video stream, whether it is used or not.
  • Page 64 User manual Ver. M5.2 M3057-PLR Mk II Dome Camera Date: April 2023 © Axis Communications AB, 2022 - 2023 Part no. T10180944...
