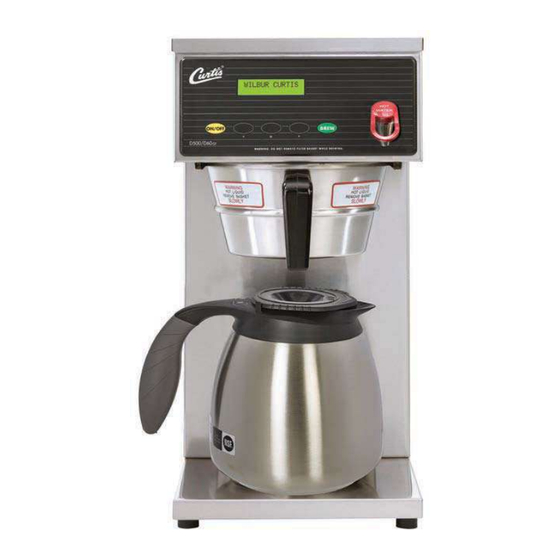

- Page 1 USER GUIDE G3 D60 Series Thermal Decanter Coffee Brewing System READ AND SAVE THESE INSTRUCTIONS NOTICE TO INSTALLER: Please leave this booklet with the machine. F-10030 revA...
-
Page 2: Table Of Contents
................IP59 ..........................ES58 ........................ES59 ..........................................................................................................EC4 ..............................Contact Information Wilbur Curtis Co., Inc. 6913 Acco Street | Montebello, CA 90640 US Phone: 323-837-2300 | Toll Free: 800-421-6150 Email: csrassistance@wilburcurtis.com | Web: www.wilburcurtis.com . - 4:00 . PT Email: techsupport@wilburcurtis.com... -
Page 3: Fs31
KEY FEATURES/SPECIFICATIONS/SYSTEM REQUIREMENTS FS31 Key Features • Easy-to-Use — Simple graphic design with color-coded buttons for all operating functions. • Saves Operating Costs — Energy save mode automatically reduces energy consumption when brewer is idle. • Reduces Downtime — G3 on-board self-diagnostics continually sense proper brewing operation. A service phone number and error code will be displayed in the rare event technical assistance is required. -
Page 4: Is2
• This appliance is designed for commercial use. Any service other than cleaning and preventive maintenance should be performed by an authorized Wilbur Curtis service technician. • To reduce the risk of re or electric shock, DO NOT open the service panels. There are no user serviceable parts inside. - Page 5 IMPORTANT SAFEGUARDS CE Requirements • This appliance must be installed in locations where it can be overseen by trained personnel. • For proper operation, this appliance must be installed where the temperature is between 5°C to 35°C. • This appliance is not suitable for outdoor use. •...
-
Page 6: Ii2
INSTALLATION INSTRUCTIONS WARNING: WARNING: Improper electrical connection may result in an electric shock hazard or damage the unit. This appliance must be properly grounded. NOTICE: DO NOT connect this appliance to a hot water supply. The water inlet valve is not rated for hot water. -
Page 7: Ii17
INSTALLATION INSTRUCTIONS II17 Installation Leveling WARNING: Use the leveling legs to level the brewer only. Do not use them to adjust brewer height. Do not extend them higher than necessary. Position the brewer on the counter top. Level it left to right and front to back by turning the bottom of the legs. - Page 8 INSTALLATION INSTRUCTIONS II17 Connecting the Water Supply Flush the water supply line prior to installation to purge the back of the brewer. Leave the water supply valve closed until the power is connected. Powering Up the Brewer Brewers With A Cord Set Attached 11 On brewers with a cord set attached, connect the power cord to the appropriate electrical outlet.
-
Page 9: Oi24
OPERATING INSTRUCTIONS OI24 Brewing Instructions WARNING - TO AVOID SCALDING, AVOID SPLASHING. The G3 Brewer is factory preset for optimal performance. The brewer should be ON. Center an empty thermal decanter (pourpot) under the the brew basket. brew basket. of ground coffee. Level the PROGRAMMING GUIDE... -
Page 10: Ci1
CLEANING INSTRUCTIONS WARNING: HOT SURFACES - To avoid injury, allow the brewer and dispenser(s) to cool before cleaning. NOTICE - Do not use cleaning liquids, compounds or powders containing chlorine (bleach) or corrosives. USE OF THESE PRODUCTS WILL VOID THE WARRANTY. Cleaning The Brewer - Daily WARNING: DO NOT immerse the brewer in water or any other liquid. -
Page 11: Ci9
CLEANING INSTRUCTIONS Cleaning the Airpot/Pour Pot (Daily) WARNING: DO NOT immerse the airpot/pour pot or lid assembly in water or any other liquid. Do not place the airpot/pour pot or lid in a dishwasher. Placing a airpot or pour pot in a dishwasher will void the warranty. Start by preparing a mild solution of detergent and warm water. - Page 12 PROGRAMMING GUIDE Curtis To enter programming mode: With unit OFF, press and hold Entering bottom right BREW button (4). Programming mode Then press and release ON/OFF button. Continue to hold down BREW button until Enter Code appears. Enter 4 digit code.
- Page 13 PROGRAMMING GUIDE Programming Options Some menus save and exit automatically when a parameter is updated. Other menus exit to the previous menu when a parameter is saved. To exit, press until EXIT appears on the display, then press Brew by Volume - place, press the appropriate BREW button.
- Page 14 Banner Name - changes the banner name that appears on the display (the factory default is Curtis to choose the letter to change. Then press to change the letter value.
- Page 15 PROGRAMMING GUIDE Programming Options (cont.) Display Brew Time - Once accessed, press to choose the desired setting, then press to exit. FreshTrac-Glass - to exit. Drip-out Mode - accessed, press to choose desired setting, then, press to exit. Display Messages - to choose the desired setting, then press to exit.
- Page 16 ROUGH-IN DRAWINGS RD37 D60 Thermal Decanter Coffee Brewers 20.38 in [51.8 cm] 9.11 in 19.25 in [23.1 cm] [48.9 cm] 16.63 in [42.2 cm] 17.75 in [45.1 cm] 12.51 in 8.11 in 8.13 in [31.8 cm] [20.6 cm] [20.7 cm] 1.20 in with WC-3621-101 with WC-3316...
- Page 17 ILLUSTRATED PARTS LIST IP56 D60GT - Main Chassis - Exploded View * Water tank assemblies: - 120 Volt, see section IP57 - Dual Voltage, see section IP58 - Export, see section IP59 D60, ILLUSTRATED PARTS/RECOMMENDED PARTS 052119B...
-
Page 18: Ip56
SWITCH, TOGGLE NON-LIT SPST 15A 125/6A WC-102 1 KIT, LABEL & UCM D500GT/H THERMAL ALPHA 250VAC RESISTIVE WC-37064 1,3 CURTIS (INCLUDES ITEMS 7A AND 8) SWITCH, TOGGLE NON-LIT DPST 25A WC-103 2,3 KIT, LABEL & UCM D500GT 220V (INCLUDES 125/250VAC RESISTIVE... -
Page 19: Ip57
ILLUSTRATED PARTS/RECOMMENDED PARTS IP57 WC-6289 - Tank Assembly - 120 Volt Water Level Probe Detail (Older Units) Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION TANK, COMPLETE ALPHA-GT 120V W/WC- 523 HI WC-1438-101* SENSOR, TEMPERATURE TANK WC-6289 LIMIT THERMOSTAT GUARD, SHOCK/HEATING ELEMENT FOR SINGLE... -
Page 20: Ip58
ILLUSTRATED PARTS/RECOMMENDED PARTS IP58 WC-6285 - Tank Assembly - Dual Voltage Water Level Probe Detail (Older Units) Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-6285 TANK, COMPLETE ALPHA-GT DV 120/220V GUARD, SHOCK/HEATING ELEMENT FOR SINGLE WC-4394* HEATING ELEMENT WC-5853-102... -
Page 21: Ip59
ILLUSTRATED PARTS/RECOMMENDED PARTS IP59 WC-6267(-34) - Tank Assembly - 220-240 Volt Water Level Probe Detail (Older Units) Parts List ITEM # PART # DESCRIPTION ITEM # PART # DESCRIPTION WC-6267 TANK, COMPLETE ALP-DS/GT 220V KIT,ELEMENT HEATING 3.5KW 220V W/JAM NUTS & WC-922-04* SILICONE WASHERS WC-6267-34... -
Page 22: Es58
ELECTRICAL SCHEMATICS ES58 D60GT12... -
Page 23: Es59
ELECTRICAL SCHEMATICS ES59 D60GT63 PIN ASSIGNMENTS PIN 01: NOT USED PIN 02: NOT USED PIN 03:NOT USED PIN 04: INLET VALVE / TANK PIN 05: DUMP VALVE PIN 06: TRIAC GATE PIN 07: TRIAC A2 PIN 08: 120VAC HOT PIN 09: TEMP SENSOR PIN 10: TEMP SENSOR PIN 11: UCM GROUND PIN 12: WATER LEVEL PROBE... - Page 24 ELECTRICAL SCHEMATICS ES60 D60GT30/34 UCM Pin Assignments 16 Pin Connector NOT USED NOT USED NOT USED INLET VALVE BREW VALVE TRIAC GATE ELECTRICAL RATING TABLE TRIAC A2 # of Tank Element Ladder Voltage Amps Wa s Hertz # of Tank 230V L1 Model Conductor...
- Page 25 TROUBLESHOOTING GUIDE WARNING: Electric Shock Hazard - Scald and Burn Hazard - IMPORTANT: always Valve Test Procedure ELECTRICAL SCHEMATIC Troubleshooting Guidelines ERROR CODES • • • Use this troubleshooting guide along with the appropriate ELECTRICAL SCHEMATIC. • Valve Test Procedure in either direction Water Not Hot Enough replace the temperature sensor...
- Page 26 TROUBLESHOOTING GUIDE During Brewing ELECTRICAL SCHEMATIC No Power - Display Not Lit Water Tank Does Not Fill Brewer Does Not Start When Brew Button is Pressed Brewing Brewing Sensor Error Message...
- Page 27 TROUBLESHOOTING GUIDE Water Tank Does Not Fill IMPORTANT: Coffee/Tea Too Strong Dispenser Not Filled To Normal Level During Brewing Dispenser Not Filled To Normal Level During Brewing SPECIFICATIONS sure that the spray head is correctly aligned and that the tubing is routed properly to allow for maximum water ELECTRICAL SCHEMATIC...
- Page 28 TROUBLESHOOTING GUIDE All Of The Time ELECTRICAL SCHEMATIC No Water/Tea Flows From Brewer During Brewing Water Tank Does Not Fill ELECTRICAL SCHEMATIC Low Water Flow Warning Water Level Error Message Water Level Error Message ERROR CODES SPECIFICATIONS...
- Page 29 TROUBLESHOOTING GUIDE TG39 Water Does Not Heat At All Check to see if the water level in the tank is in contact with the water level probe. If not, see Tank Does Not Fill. • The water will not heat unless it is in contact with the probe. If the water heats, but is not hot enough, see Water Not Hot Enough.
-
Page 30: Ec4
ERROR CODES System Fault Messages An error message will appear on the screen in the event of a malfunction under the following conditions: ERROR MESSAGE WARNING DESCRIPTION CAUSE Water Level Error G3 BREWER, ERROR CODES 042017A... - Page 31 Return Merchandise Authorization (RMA): All returned equipment must be properly re-packaged in the original carton and received by Curtis within 45 days following the issuance of a RMA. NO UNITS OR PARTS WILL BE ACCEPTED WITHOUT A RETURN MERCHANDISE AUTHORIZATION (RMA).
