Chuck Removal; General Maintenance - Craftsman 115 Operator's Manual

_I_ WARNING: When servicing, use on3y identical
Craftsman replar.sment parts. Use of any other paTt
may create a hazard or cause product damage.
_k WARN|NG: Always wear safety goggles or safety
gta.sess with side shields when using compressed air
to clean tools. ITthe operation is dusty,siso wear a
dust mask.
_lk WARNING: To avoid serious personalinjury,always
remove the battery pack from the tool when cleaning
or performingany maintenance.
G ENERAL MAINTENANCE
Avoid using solvents when cleaning plastic parts. Most
plasticsare susceptible to damage from various types st
commemia] solventsand may be damaged by their use.
Use clean cloths to remove dirt, dust, sit, grease, eta.
_1_ WARNING: Do not at any time let brake fluids,
gasoline, petroleum-based products, penetrating
oils, etc. come ]n con'_ct with plastic parts. Chsmi-
Pals can damage, weaken or destroy plasticwhich
may result in serious personalinjury.
Only the parts shown on the parts [(st are intended to be
repairedor rep(aced by the customer.All other parts
should be replaced at a Sears Service Center.

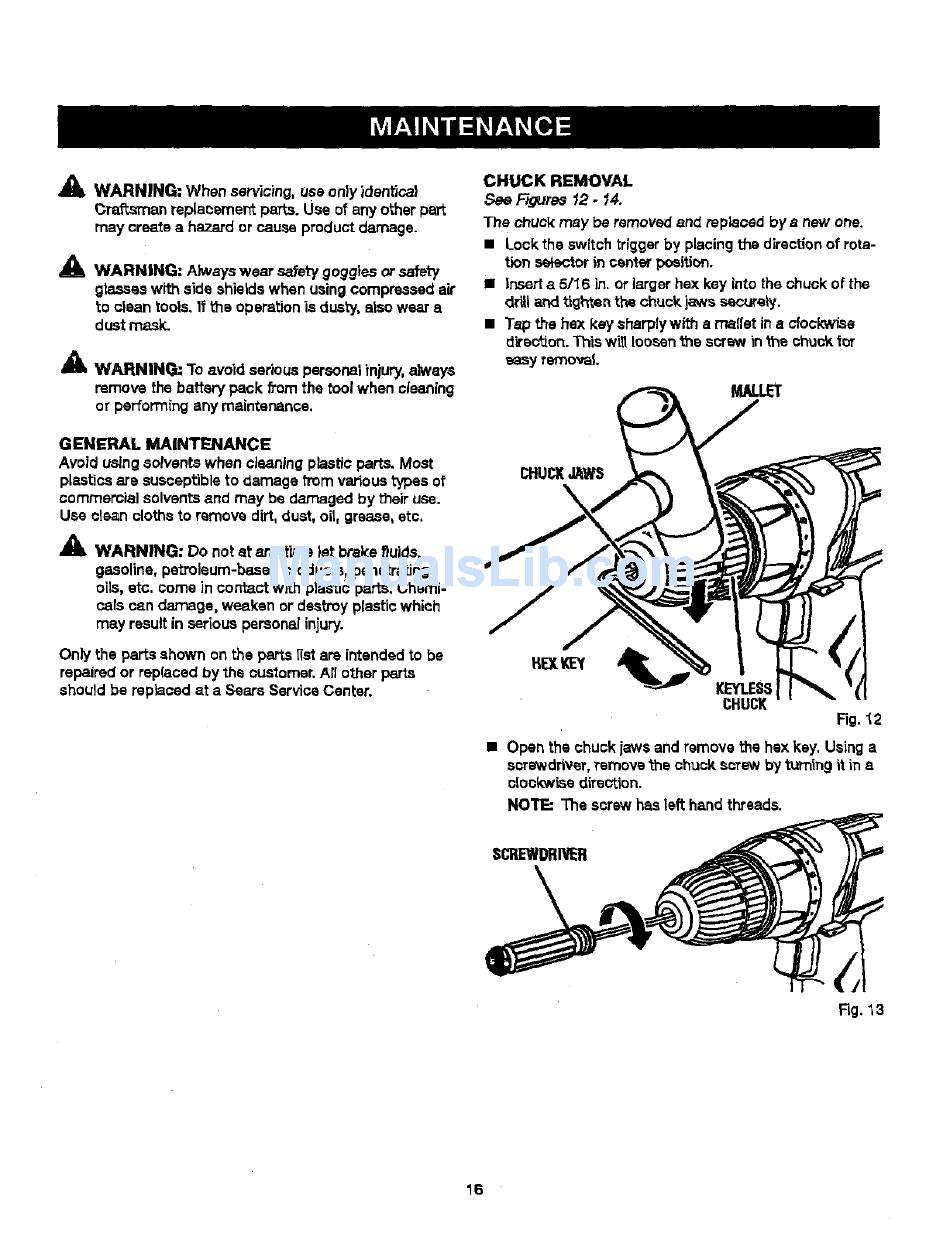

CHUCK REMOVAL
See F-_ums 12- 14.
The chuci( may be removed and replaced bye new one.
• Lock the switch triggerby placing the directionof rota-
tion selector in center position.
• |nsert a 5116 in. or larger hex key into the chuck of the
driUarid tighten the chuck jaws securely.
• Tap the box key sharplywith a ma[(et in a clockwise
direc_on. This w|_ loosen the scrs_, _nthe ohucY,tot
easy removal
KEYt,.ESS
CHUCK
Fig. "t2
• Open the chuck jaws and remove the hsx key. Using a
scrawdriver,remove the chuck screw by b._'ningit in a
clockwise d irection.
NOTE: The screw has left hand threads.
SCREWDRIVER
Fig. 13
16
