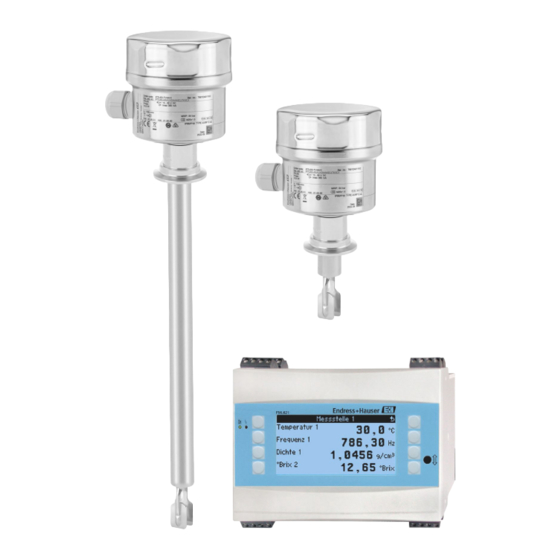

Products Solutions Services BA02288F/00/EN/01.23-00 71627517 2023-09-30 Valid as of version 01.00.zz Operating Instructions Liquiphant FTL63 Density Vibronic Density measurement for liquids specifically for the food and life sciences industries...
Page 2
Liquiphant FTL63 Density Order code: XXXXX-XXXXXX Ser. no.: XXXXXXXXXXXX Ext. ord. cd.: XXX.XXXX.XX Serial number www.endress.com/deviceviewer Endress+Hauser Operations App A0023555 Endress+Hauser...
Liquiphant FTL63 Density About this document About this document Purpose of this document These Operating Instructions contain all the information that is required in the various phases of the life cycle of the device: from product identification, incoming acceptance and storage, to mounting, connection, operation and commissioning through to troubleshooting, maintenance and disposal.
For an overview of the scope of the associated Technical Documentation, refer to the following: • Device Viewer (www.endress.com/deviceviewer): Enter the serial number from the nameplate • Endress+Hauser Operations app: Enter serial number from nameplate or scan matrix code on nameplate. 1.3.1 Standard documentation Document type: Operating Instructions (BA) Installation and initial commissioning ‒...
Modifications to the device Unauthorized modifications to the device are not permitted and can lead to unforeseeable dangers. ‣ If, despite this, modifications are required, consult with Endress+Hauser. Repair To ensure continued operational safety and reliability: ‣ Only perform repair work on the device if this is expressly permitted.
It meets the general safety standards and legal requirements. It also complies with the EU directives listed in the device-specific EU Declaration of Conformity. Endress+Hauser confirms this by affixing the CE mark to the device. IT security We only provide a warranty if the device is installed and used as described in the Operating Instructions.
Liquiphant FTL63 Density Incoming acceptance and product identification Product design A0052411 1 Liquiphant FTL63 product design Housing with electronic insert FEL60D and cover Temperature spacer, pressure-tight feedthrough (second line of defense), optional Process connection, e.g. clamp/Tri-Clamp Process connection, e.g. thread...
All of the information on the measuring device is displayed along with an overview of the scope of technical documentation provided. • Enter the serial number on the nameplate into the Endress+Hauser Operations app or scan the 2-D matrix code on the nameplate with the Endress+Hauser Operations app 4.2.1...
Liquiphant FTL63 Density Mounting Mounting Mounting instructions • Any orientation for compact version or version with a pipe length of up to 500 mm (19.7 in)approx. • Vertical orientation from above for device with long pipe • Minimum distance between the fork tip and the tank wall or pipe wall: 10 mm (0.39 in) A0039739 ...
Mounting Liquiphant FTL63 Density 5.1.1 Flow velocity - Installation in piping Install the tuning fork within the medium flow • Flow velocity: < 2 m/s (6.56 ft/s) per second • Prevents the formation of air bubbles (1) A0039718 5...
Liquiphant FTL63 Density Mounting ≥5×DN ≥2×DN >750 (29.5) >250 (9.84) A0039700 7 Installing the inlet run. Unit of measurement mm (in) Outlet run To comply with the accuracy specification, the outlet run must meet the following requirements: Outlet run: ≥ 2x DN (nominal diameter) - min. 250 mm (9.84 in) The pressure and temperature sensor must be installed on the outlet side of the flow direction after the Liquiphant density sensor.
Page 14
Mounting Liquiphant FTL63 Density Standard installation Correction factor "r" as a factor of height "h", for entering in the Density Computer FML621 or ReadWin2000: 12 mm (0.47 in) 1.0026 14 mm (0.55 in) 1.0016 16 mm (0.63 in) 1.0011 18 mm (0.71 in) 1.0008...
Page 15
Liquiphant FTL63 Density Mounting 80 mm (3.15 in) 1.0008 82 mm (3.23 in) 1.0006 84 mm (3.31 in) 1.0005 86 mm (3.39 in) 1.0004 88 mm (3.46 in) 1.0003 90 mm (3.54 in) 1.0003 92 mm (3.62 in) 1.0002 94 mm (3.70 in) 1.0002...
Mounting Liquiphant FTL63 Density 92 mm (3.62 in) 1.0002 94 mm (3.70 in) 1.0001 96 mm (3.78 in) 1.0001 98 mm (3.86 in) 1.0001 100 mm (3.94 in) 1.0001 >100 mm (3.94 in) 1.0000 5.1.4 Avoid buildup NOTICE The presence of buildup or corrosion on the tuning fork affects the result of the measurement and must be avoided! ‣...
Liquiphant FTL63 Density Mounting A0039742 10 Examples of support in the event of dynamic load 5.1.7 Weld-in adapter with leakage hole Weld in the weld-in adapter in such a way that the leakage hole is pointing downwards. This enables any leaks to be detected quickly.
Page 18
Mounting Liquiphant FTL63 Density A0039125 12 Position of the tuning fork when installed horizontally in the vessel using the marking Installing the device in piping NOTICE Incorrect alignment of the tuning fork Vortices and eddies can falsify the measuring result.
Page 19
Liquiphant FTL63 Density Mounting Aligning the cable entry All housings can be aligned. Housing without locking screw The device housing can be rotated up to 350°. <350° A0052359 15 Housing without locking screw with drip loop Housing with locking screw Housings with locking screw: •...
Mounting Liquiphant FTL63 Density Closing the housing covers NOTICE Thread and housing cover damaged from dirt and fouling! ‣ Remove dirt (e.g. sand) on the thread of the covers and housing. ‣ If you continue to encounter resistance when closing the cover, check the thread again for fouling.
Liquiphant FTL63 Density Electrical connection Electrical connection Required tool • Screwdriver for electrical connection • Allen key for screw of cover lock Connecting requirements 6.2.1 Cover with securing screw The cover is locked by a securing screw in devices for use in hazardous areas with certain explosion protection.
Page 22
Electrical connection Liquiphant FTL63 Density Terminal assignment The output signal of the density sensor is based on pulse technology. With the aid of this signal, the fork frequency is constantly forwarded to the Density Computer FML621. Pulse – L+ L- PE...
Page 23
Liquiphant FTL63 Density Electrical connection Adjustment There are 3 different types of adjustment: • Standard adjustment (order configuration): Two fork parameters are determined at the factory to describe the sensor characteristics and are provided in the calibration report with the product. These parameters must be transmitted to the Density Computer FML621.
Electrical connection Liquiphant FTL63 Density A0039632 19 Density measurement with Density Computer FML621 Liquiphant Density → Pulse output Temperature sensor, e.g. 4 to 20 mA output Pressure transmitter 4 to 20 mA output required for changes in pressure >6 bar...
Liquiphant FTL63 Density Electrical connection 24/25 mm 8.0 Nm A0018023 20 Example of coupling with cable entry, electronic insert with terminals M20 coupling (with cable entry), example Conductor cross-section maximum 2.5 mm (AWG14), ground terminal on inside in housing + terminals on the electronics Conductor cross-section maximum 4.0 mm...
Operation options Liquiphant FTL63 Density Operation options Overview of operation options 7.1.1 Operating concept Operation with the Density Computer FML621. For details, see documentation for the Density Computer FML621. 7.1.2 Elements on the electronic insert Pulse – A0039683 21...
Liquiphant FTL63 Density Operation Operation Light signals Yellow LED Symbols, information Stable measurement Unstable measurement/process conditions Maintenance required Green LED Symbols, information / Power on / Power off Red LED Symbols, information No fault Maintenance required Device failure For more information, see the Technical Information for Liquiphant Density.
12.1.1 Repair concept Endress+Hauser repair concept • The devices have a modular design • Customers can carry out repairs For more information on service and spare parts, please contact your Endress+Hauser sales representative. 12.1.2 Repairs to Ex-approved devices WARNING Incorrect repair can compromise electrical safety! Explosion hazard! ‣...
Liquiphant FTL63 Density Repair 12.2 Spare parts • Some replaceable device components are identified by a spare part nameplate. This contains information about the spare part. • All the spare parts for the measuring device, along with the order code, are listed in the W@M Device Viewer (www.endress.com/deviceviewer) and can be ordered.
• G 1 sensor adjustable • RD52 sensor adjustable For detailed information, see "Technical Information" TI00426F (Weld-in adapters, process adapters and flanges) Available in the Download Area of the Endress+Hauser website (www.endress.com/downloads). 13.4 M12 socket The M12 sockets listed are suitable for use in the temperature range –25 to +70 °C (–13 to +158 °F).
See safety instructions (XA): All data relating to explosion protection are provided in separate Ex documentation and are available from the Downloads area of the Endress+Hauser website. The Ex documentation is supplied as standard with all devices approved for use in explosion hazardous areas.
Technical data Liquiphant FTL63 Density 15.3.3 Operating altitude As per IEC 61010-1 Ed.3: • Up to 2 000 m (6 600 ft) above sea level • Can be extended to 3 000 m (9 800 ft) above sea level if overvoltage protection is used 15.3.4...
The Pressure Equipment Directive (2014/68/EU) uses the abbreviation "PS". The abbreviation "PS" corresponds to the MWP (maximum working pressure) of the device. 15.4.4 Pressure tightness Up to vacuum 15.4.5 Solids contents ⌀ ≤ 5 mm (0.2 in) 15.5 Additional technical data Current Technical Information: Endress+Hauser website: www.endress.com → Downloads. Endress+Hauser...
