Micromanometer Model 6700 Instruction Manual Be sure to read this manual thoroughly before using the instrument , fully understand and pay attention to each cautions mentioned. Please well-keeping this manual for long time service reference. 01003 15.05 1.800.561.8187 information@itm.com www. .com...
If abnormal smells, noises or smoke occur, or if liquid enters the instrument, pull out the AC adapter and remove the batteries immediately. Then send it to the maintenance Dept. of KANOMAX for after service. „ or, there is possible of an electric shock or a fire or instrument malfunction.
Page 6
CAUTION ○ Always unplug when the instrument not in use. „ Failure to do so may cause an electric shock, an fire or circuit damage. Using properly ○ Remove the batteries when storing the instrument for a long period. Do not leave the exhaused batteries in the battery comparement and exchange the battereis on time.

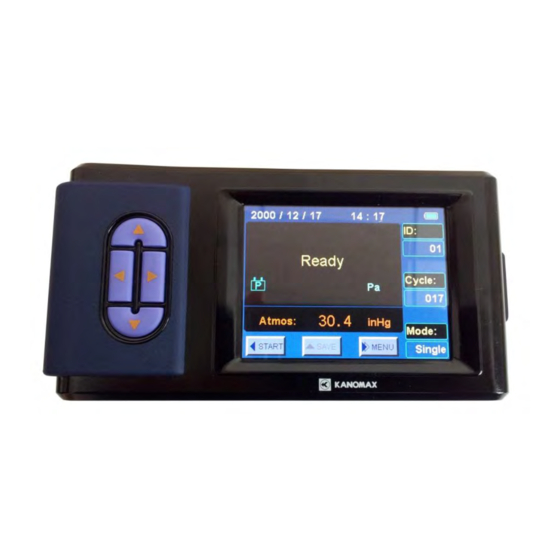

1. Introduction Micromanometer Model 6700 is a high-accuracy intelligent test instrument. 1.1. Features 3.5 inch true color LCD. Ultra-large Storage capacity: 8000 records Blue tooth communication makes remote monitoring and data transferring available. Light weight, compact configuration for easy carrying. ...
Device under test (+) (-) 3.2. Shoulder Strap For convenient view and easy operation, the shoulder strap can be fit for using. 4. Operating Instruction 4.1. Power supply 1.Power by AC adapter. AC adapter will be as the priority power supply when the AC adapter and batteries are all available using. The specification of the AC adapter is: I/P:AC 110-240V 50/60HZ O/P:DC 5V/2A。...
Atmos: Mode: Single START SAVE MENU 1. Start On Press button【POWER】for 2 seconds for start On, displaying “ KANOMAX” then enter into the testing interface. 2. Power Off Press【POWER】for 2 seconds, shut down and power off. 4.3. Keypad operation UP/SAVE...
While in the “Record Processing”, pressing for 2 seconds will delete saved data. START:Begin a measurement in main menu STOP:Stop a measurement in main menu BACK:Cancel or end an operation or return to the previous screen EXIT:Return to the main menu ESC:Stop printing when printing DOWN::Value decreasing or Cursors downward moving 5.
1) START: Left-button for the Micromanometer. 2) After testing start for about 8s with stably measuring,output displaying the test data and testing wind direction. 3) Testing stop when finish outputting. 4) Press SAVE for data record with adding 1 to the Cycle value. 5.3.
General Setting General Setting 2014 / 03 / 20 Date Date 2014 / 04 / 01 (1) press for data modify. Time 13 : 10 Time 13 : 10 Auto Shut DOWN DOWN Auto Shut (2)press , for selecting Year/Month/day. Backlight High Backlight...
General Setting General Setting Date 2014 / 03 / 20 Date 2014 / 03 / 20 (1)Press for options change. Time 13 : 10 Time 13 : 10 DOWN DOWN Auto Shut Auto Shut (2)Press for save settings . Backlight High Backlight Normal...
2)For printing out the testing record, the optional printer and cables for special are necessary. Printer baud rate is set to 19200 bps and Do not change it. Refer to the << Manuel for RD series Mini printer >> . 3)Bluetooth make the remote control and data monitoring available by Hand phone.
Test Setting Test ID (1) Test ID is up to 20. Select Tool Select ID Add New ID Test ID (2) Set different Test ID for the different tool. DOWN DOWN Test Mode RunAvg Unit (3) 100 data records can be stored in a single Data Record Total ID: BACK...
Page 16
Test Setting Select Tool Test ID DOWN Test Mode RunAvg Unit Data Record BACK Test ID: Total: 20 Cycle: Total: 01 Data Record Pressure: Display the Record 0.000 Max: Atmos : 101.3 Delete the Record DOWN DOWN DOWN Time: Min : 2014 / 03 / 18 13 : 10 : 18 Avg:...
7 Error and Troubleshooting Symptom Possible causes Corrective action incorrect specification of the AC Check and refer to Chapter4.1 Adapter in Manuel Check and refer to Chapter4.1 No display when power On Battery installation error in Manuel Low or dead battery power Replace the batteries Low battery charge Replace new batteries...
This limited warranty covers all defects encountered in normal use of the PRODUCT, and does not apply in the following cases: (1) Use of parts or supplies other than the PRODUCT sold by KANOMAX GROUP COMPANIES, which cause damage to the PRODUCT or cause abnormally frequent service calls or service problems.
Page 19
Upon request, we will repair the instrument at the customer’s expense, if the instrument’s performance is found to be recoverable by providing the repair. Replacement parts are available for a minimum period of five (5) years after termination of production. This storage period of replacement parts is considered as the period during which we can provide repair service.
