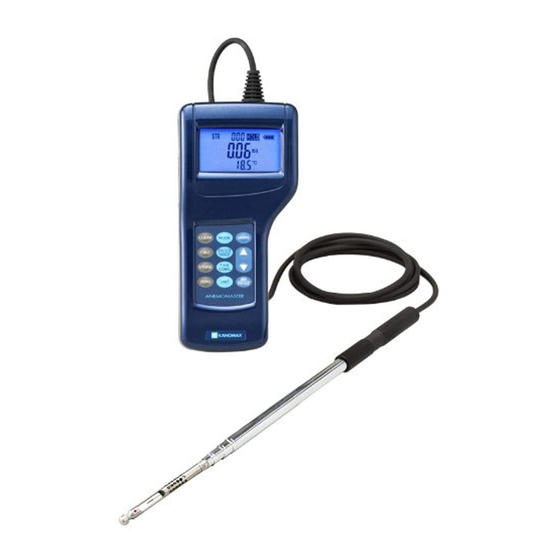

- Page 1 ｑｗ ANEMOMASTER MODEL 6036 Data Acquisition Software (6036-41) PC-LINK Software (6036-45) Operation Manual 02001 1901...
- Page 2 Precautions When Using Kanomax Software Products in Windows 7 or 8/8.1 or 10 1. Setting icon of the software : Click [Start] -> [ALL Programs] -> [KANOMAX] or right-click the desktop icon of the software. Right-click the icon of the software and click [Properties], or click [Properties] of the desktop icon.
- Page 3 2. For Stored data: Stored data may not appear in Windows Explorer if it was saved in the C:\ folder or one of the folders in Program Files (Program Files(x86) for 64 bit). Click “Compatibility files” in Windows Explorer to display the data. If you cannot perform this operation, or “Compatibility files”...
-
Page 4: Table Of Contents
Table of Contents 1. Overview ........................1 1.1 System Overview ........................1 1.2 Software Operating Requirements ..................1 1.3 Hardware Connection ......................1 2. Software Installation ....................2 3. Installing Device Driver ..................4 3.1 Device Driver Installation ......................4 3.1.1 Windows 7,8/8.1,10 .......................... -
Page 5: Overview
NOTE: 1. Any unauthorized duplication of the product, in whole or in part, without consent from KANOMAX JAPAN INC. is strictly prohibited. 2. Supplied software is intended for installation on a single computer only. 3. Contents of the Operation Manual are subject to change without notice. -
Page 6: Software Installation
3. Data Acquisition Software (S603-60) 2. Software Installation When installing the software, be sure to log in with the user having administrative rights and follow the procedure below. 1)Before installing the software, close any running programs. [NOTE] If a previous version of this software is already installed on the computer, it must be uninstalled prior to installing the new version. - Page 7 3. Data Acquisition Software (S603-60) 7)You are now ready to install the software. Click “Next” to start installation. 8)When the installation is complete as shown in the right figure, click “Finish”.
-
Page 8: Installing Device Driver
3. Data Acquisition Software (S603-60) Installing Device Driver 3.1 Device Driver Installation When installing the software, be sure to log in with the user having administrative rights and follow the procedure below. When you connect the ANEMOMASTER MODEL 6036, “Found New Hardware Wizard” window will be displayed. - Page 9 3. Data Acquisition Software (S603-60) 5)After opening the Device Manager window, confirm that “KANOMAX Anemo Master Model 6036” or “Silicon Labs CP210x USB to UART Bridge”is listed in “Other Device” and right-click it. Highlight and click on “Update Driver Software” in the menu.
- Page 10 3. Data Acquisition Software (S603-60) 9) When the installation is complete as shown in the right figure, click “Close”.
-
Page 11: Data Acquisition Software (6036-41)
4. Data Acquisition Software (6036-41) 4.1 Software Startup To start up the “Anemomaster Data Acquisition Software”, click [start] -> [All Programs] -> [Kanomax] -> [Anemomaster Model 6036 Data Acquisition Software] [Air Velocity Graph] [Flow Rate Graph] [Air Velocity Data Table]... -
Page 12: Measurement
3. Data Acquisition Software (S603-60) 4.2 Measurement 4.2.1 Starting a Measurement 1) Click [Measurement] -> [Measurement] from the menu bar. (Or click the button from the tool bar or press F4 key.) 2) “Measuring Parameter Setting” dialog box will be displayed. Configure each setting for a measurement. 1～65500 times Serial No. -
Page 13: Stopping A Measurement
3. Data Acquisition Software (S603-60) <Screen while measuring> 4.2.2 Stopping a Measurement 1) Click [Measurement] -> [Measurement Stop] from the menu bar. (Or click button on the tool bar or press F5 key.) 2) A confirmation window will ask you if you want to stop a measurement. 3) To stop a measurement click [Yes] (B). -
Page 14: Displaying Measurement Data
3. Data Acquisition Software (S603-60) 4.2.3 Displaying Measurement Data Data mark line <Example of Measurement Data Display> Click the data mark line on the graph to indicate the corresponding data record in the data sheet. Click the data on the data sheet to move the data mark line to the corresponding position on the graph. [Note] This software does not have a function to redisplay any stored measurement data. -
Page 15: Data Save
3. Data Acquisition Software (S603-60) 4) Set the Y axis (vertical axis) that indicates air velocity. (b) 5) After setting X and Y axis, click [OK]. (c) The flow rate graph setting (scale) will be set automatically. 4.2.5 Data Save 1) To save a measurement data click [File] ->... -
Page 16: Example Of Saved Data
3. Data Acquisition Software (S603-60) 4.3 Example of Saved Data <CSV format> <TXT format> ※ Data stored in the column “Atom.F” are: 0:No atmospheric pressure compensation 1:Atmospheric pressure compensation(Automatic) 2:Atmospheric pressure compensation(Manual) 3: Atmospheric pressure compensation(Error) 4.4 Display Language Display language can be selected from English or Japanese from the [View] menu. 4.5 Software Information To check the name, version and copyright information of the software click [Help] ->... -
Page 17: Pc-Link Software (6036-42)
4. PC-LINK Software (S603-01) 5. PC-LINK Software (6036-42) 5.1 Software Startup To start up the “Anemomaster Data Acquisition Software”, click [start] -> [All Programs] -> [Kanomax] -> [Anemomaster Model 6036 PC-LINK Software] [Directory] [Data List] [Saved File List] <Startup Window>... -
Page 18: Data Acquisition
4. PC-LINK Software (S603-01) 5.2 Data Acquisition 5.2.1 Acquiring Data from Anemomaster Set the Anemomaster to the measurement mode where the data to be acquired is saved. For example, if you want to download an air velocity data to your computer, set the Anemomaster to an air velocity measurement mode. -
Page 19: Example Of Stored Data
4. PC-LINK Software (S603-01) 5.3 Example of Stored Data <An example of saved data displayed in MS Excel> ※ Data stored in the column “Atom.F” are: 0:No atmospheric pressure compensation 1:Atmospheric pressure compensation(Automatic) 2:Atmospheric pressure compensation(Manual) 3: Atmospheric pressure compensation(Error) 5.4 Error Message 1) File Name Error Before acquiring data, you need to enter a file... -
Page 20: Troubleshooting
5. Troubleshooting 6. Troubleshooting Communication error message is displayed. Refer to “Setting the Measurement Unit and Baud Rate” in the User’s Manual of ANEMOMASTER MODEL 6035/6036(P.21) and set the Baud rate of the instrument to 19200bps. Confirm the communication settings. Make sure that the computer is connected to the Anemomaster with a communication cable. -
Page 21: Contact Information
6. Contact Information 7. Contact Information U.S.A. & Europe KANOMAX USA, INC. PO Box 372, 219 US Hwy 206, Andover, NJ 07821 U.S.A. TEL: (800)-247-8887 / (973)-786-6386 FAX: (973)-786-7586 URL: http://www.kanomax-usa.com/ E-mail: info@kanomax-usa.com Japan & Asia KANOMAX JAPAN, INC. 2-1 Shimizu Suita City, Osaka 565-0805, Japan...
