- Page 1 TB-2632B...
-
Page 2: Table Of Contents

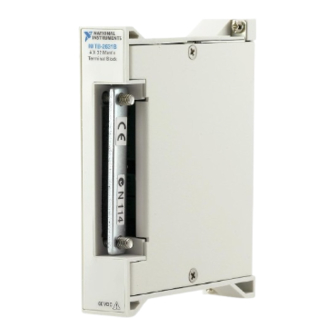

The NI TB-2632B terminal block installs in front of the NI PXI-2530B switch module. The NI TB-2632B has screw terminals to connect signals to the switch. Screw terminals for the trigger input and trigger output signals are also available. The NI TB-2632B is designed for use with the NI PXI-2530B and is not compatible with the NI PXI-2530. -
Page 3: Verify The Components
2. Verify the Components Make sure you have the following: ❑ NI TB-2632B terminal block ❑ PXI chassis ❑ NI PXI-2530B switch module ❑ 1/8 inch flathead screwdriver 3. Connect Signals Caution To ensure the specified EMC performance, operate this product only with shielded cables and accessories. - Page 4 Signal cables Rear connector Strain-relief opening Terminal block top cover Strain-relief bar Top cover screws Strain-relief screw Safety ground lug Chassis screws 10 Screw terminals Figure 1. NI TB-2632B Terminal Block © National Instruments Corporation NI TB-2632B Installation Instructions...
- Page 5 60 VDC MAX NATIONAL COLUMNS 0.4 A MAX INSTRUMENTS ROWS 1-WIRE REFERENCE +5V MAX TRIGOUT TRIGIN Figure 2. NI TB-2632B Terminal Reference NI TB-2632B Installation Instructions ni.com...
-
Page 6: Install The Terminal Block
(the NI PXI-2530B should already be installed in a PXI chassis): Plug the NI TB-2632B on to the front connector of the NI PXI-2530B as shown in Figure 3. Tighten the top and bottom chassis screws on the back of the terminal block rear panel to hold it securely in place. -
Page 7: Compliance And Certifications
For additional environmental information, refer to the NI and the Environment Web page at ni.com/ . This page contains the environmental regulations and directives with which NI environment complies, as well as other environmental information not included in this document. NI TB-2632B Installation Instructions ni.com... - Page 8 At the end of the product life cycle, all products must be sent to a WEEE recycling center. For more information about WEEE recycling centers, National Instruments WEEE initiatives, and compliance with WEEE Directive 2002/96/EC on Waste Electrical and Electronic Equipment, visit ni.com/environment/weee...
- Page 9 LabVIEW, National Instruments, NI, ni.com, the National Instruments corporate logo, and the Eagle logo are trademarks of National Instruments Corporation. Refer to the Trademark Information at ni.com/trademarks for other National Instruments trademarks. Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the patents.txt file on your media, or the National...
