Iridium 9555N Quick Start Manual

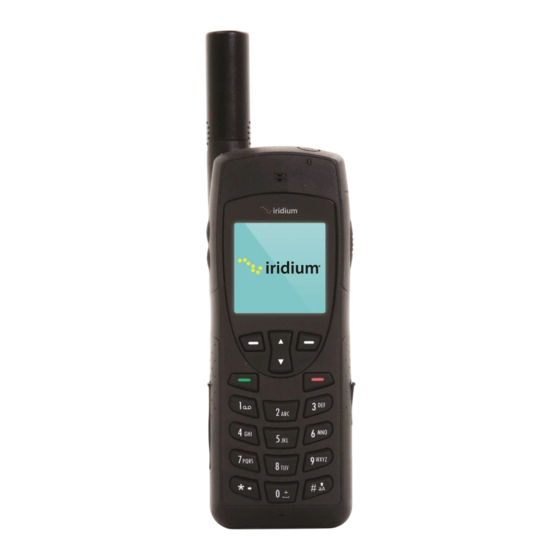

Iridium 9555 Satellite Phone
Quick Start Guide
1. On/Off Button
2. Earpiece
3. Status Indicator LED
4. Display
5
5. Volume Keys
6. Convenience Key
7. 2-way Navi-key
8. Left Soft Key
9. Right Soft Key
8
10. Green Key
10
11. Red Key
13
12. Headset Jack
14
13. DC Power
14. USB Port
15. Keypad
16. Microphone
2. Charge the Phone and Power On
• Plug the power adapter into the port on the left side of the phone.
• The battery symbol on the LCD display flashes while charging. When fully
charged, the battery symbol will go solid.
• Turn the phone on by pressing and holding the On/Off button on the top
of the phone for 5 seconds.
• If prompted for a SIM PIN, enter the four to eight digit SIM card PIN code
provided by your service provider and press OK to proceed. The default
SIM PIN is 1111 and may be modified. Pressing the incorrect code multiple
times will lock the phone, requiring an unlock code.
1
3
2
4
6
7
9
11
12
15
16
1. Insert the SIM Card
• Remove the battery from the phone.
• Slide the SIM Card into the slot, following the orientation shown on the decal.
• Re-install the battery.
3. Set up Voicemail
• From the main menu, select 'Voicemail, ' 'Voicemail Settings' and finally 'Number. '
• Enter +881662990000 then select 'Save' by pressing the left soft key. To enter
the + sign, press and hold 0 key.
• To place a voicemail set-up call, go to an outdoor area with a clear view of the
sky, extend the antenna, and select 'Voicemail' from the main menu and then
'Call Voicemail. ' Ensure that the antenna is articulated left or right so it is
pointing up during the phone call for optimal use.
• When prompted, enter your Iridium phone number followed by the star (*) key,
then enter your password (default is the last seven digits of your phone number).
• Follow the audio prompts to set your new password, record your greeting and
configure your account settings.
• End the call by pressing the red button and follow the same 'Call Voicemail'
steps to check voicemail notifications in the future.
